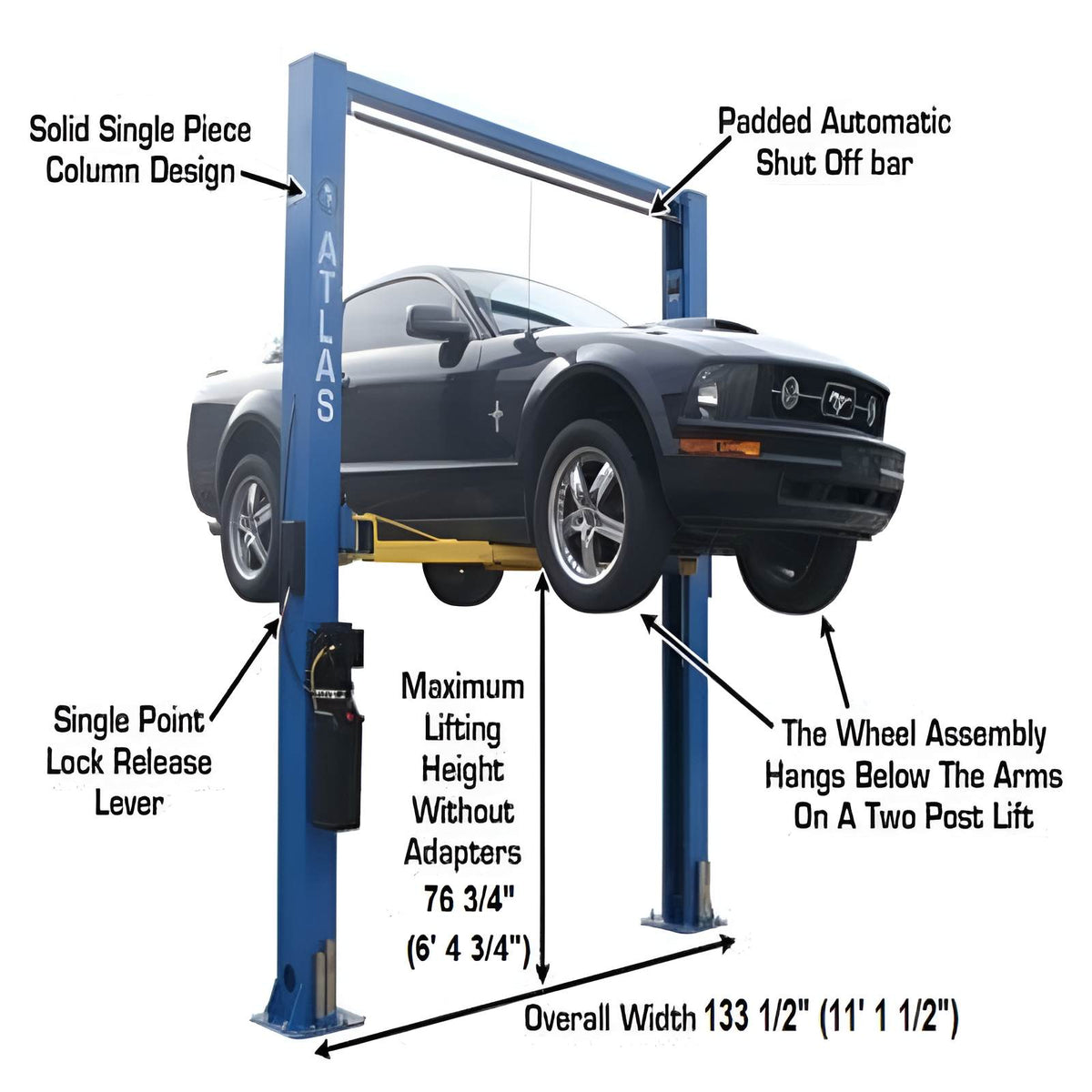

Atlas 9OHSC 9,000 lb 2 Post Lift

Working on cars is a pain. It’s dirty, it’s backbreaking, and it’s time-consuming. You deserve better. Picture spending hours on your back, covered in grease, just to change an oil filter. The Atlas® 9OHSC two-post lift is the answer to your wishes. With a hefty 9,000 lb capacity, it can handle anything you put on it. Its single-piece columns and extra-long carriages are built to last, giving you peace of mind while you work. Plus, with a generous 100.5” drive-thru, you can easily maneuver any car into position.

The 9OHSC stands tall at 11’10”, and it features a 133.5” floor width. It features a max lift height of 76 3/4". Now imagine the relief of working on a car at a comfortable height, without sacrificing safety or strength. You’ll be wondering how you ever lived without this.

9OHSC SS Specifications:

• Capacity: 9,000 LB.

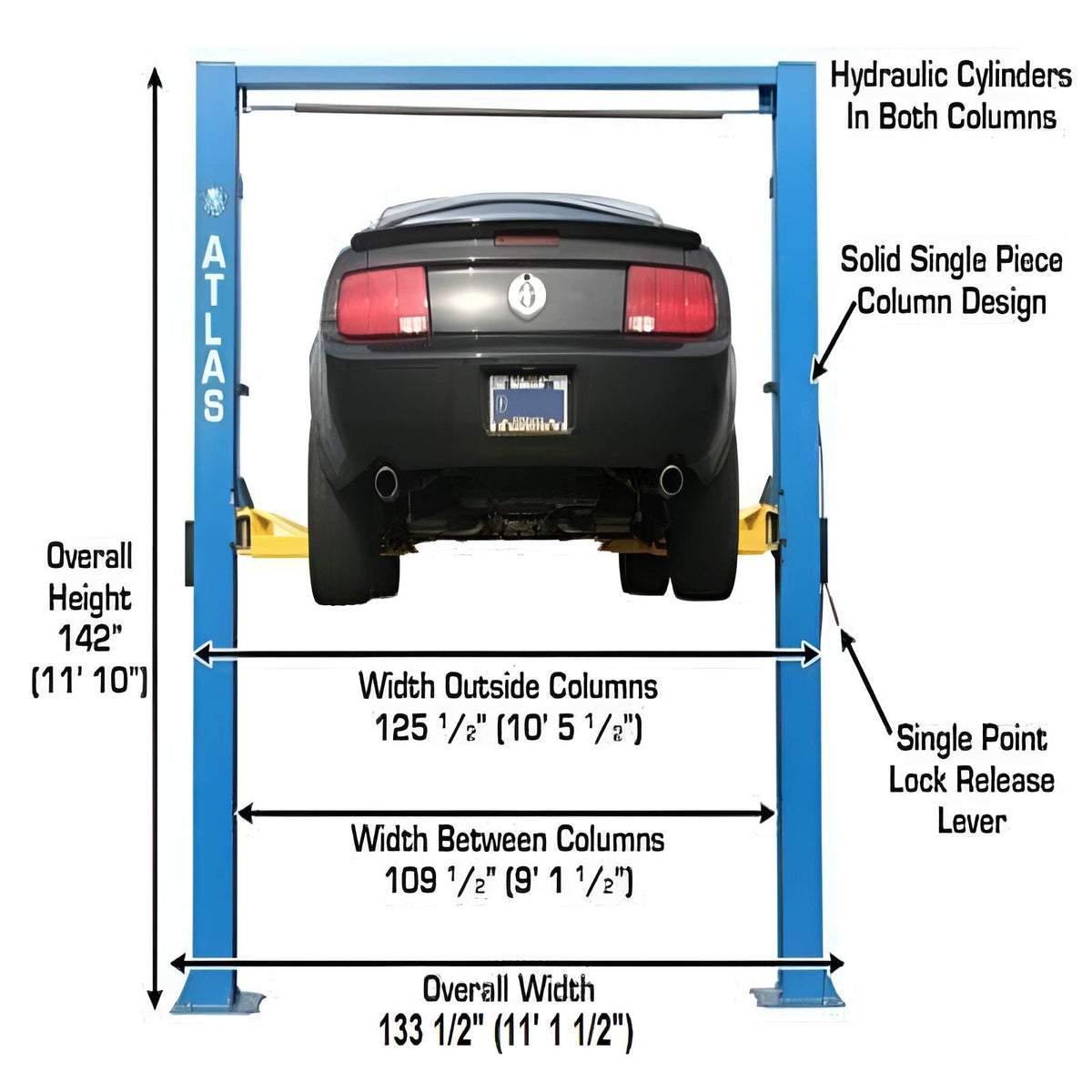

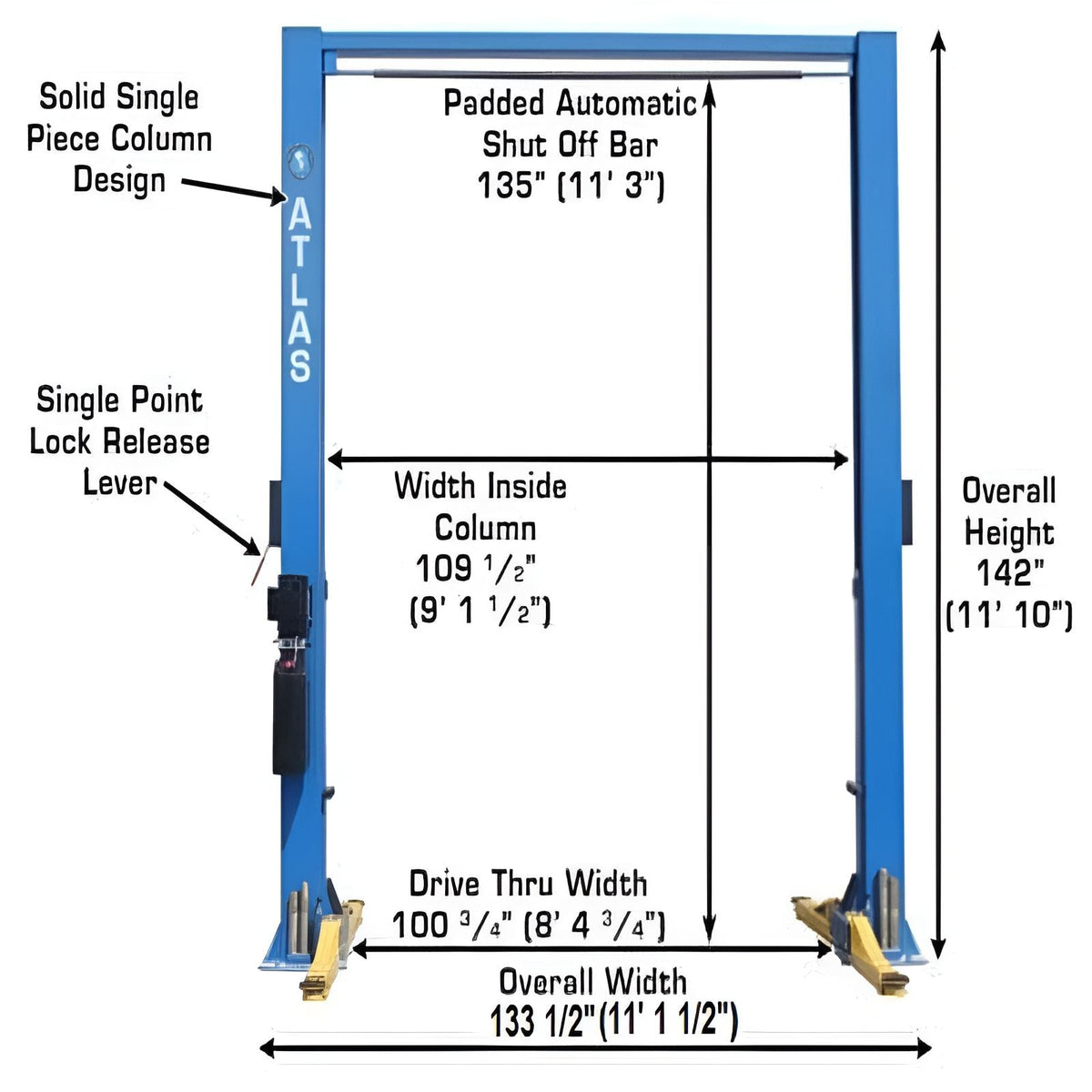

• Overall Height 142" (11' 10")
• Overall Floor Width133 1/2" (11' 1 1/2")
• Outside Column to Outside Column 125 1/2" (10' 5 1/2")
• Maximum Lift Height (Without Adapters) 76 3/4"
• Maximum Lift Height (With Adapters) 87 3/4"
• Minimum Arm Height 4"
• Inside Column 109 1/2” (9' 1 1/2”)
• Drive Thru 100 1/2” (8' 4 1/2”)
• Column Size 8" x 9 3/8"

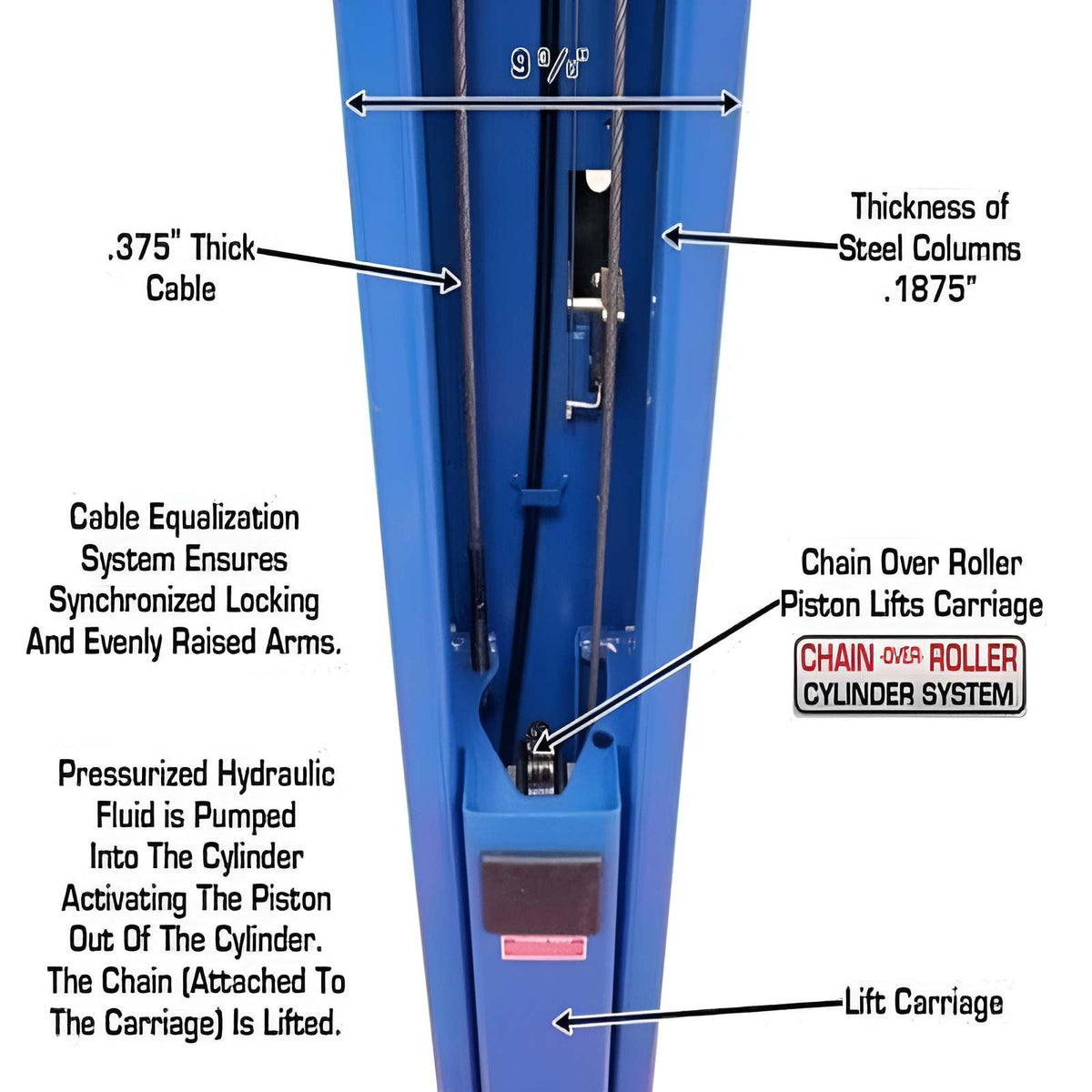

• Column Thickness of Steel 5mm
• Base Of Lift 16 3/4" x 17 3/4"
• Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 1,430 LBS.
• Pallet Size:  146-1/2" Long x 43" Tall x 19" Wide
• Adapter Heights 4 Each 2”, 3”, 6”
• Arm Hole/Adapter Peg Size 1.5”
• Requires a minimum of 4" of concrete with a 3000 psi. rating

Atlas 9,000lb 2 Post Lift Special Features:

• Single-Piece Column Design
• Overhead, Open-Floor Style Lift
• 3-stage Front Arms, 2-Stage Rear Arms
• Lock Release: Single Point
• Double Safety Lock System
• Automatic Arm Restraints
• Dual Hydraulic Chain-Drive Cylinders
• Warranty: 5 year Structural; 2 year Hydraulic ‐ Parts Only

• Unit Includes:
•     Mounting Hardware
•     12-piece Truck Adapter Set
• Optional Item(Sold Separately)
  • Lawnmower Adapter for 2-Post Lift

9OHSC Manual

   Atlas 9OHSC-SS Manual
