Atlas 9KOH 9,000 lb 2 Post Lift

Looking for a lift that will help both the Mini Cooper and an F-150? The Atlas® 9KOHX is here to break you out of lift limbo and into a world of possibilities. This lift is a marvel with a 9,000-pound lifting capacity that adapts to your garage and your fleet.

With its adjustable height and configurable arms, it's like having multiple lifts in one. Its symmetric-to-asymmetric flexibility means you can cradle a lowered sports car one day and hoist a hefty pickup the next. The spring-loaded Secondary Lock System (SLS) is standing by 24/7, ready to catch any slack faster than you can blink. Don't let inflexible lifts hold you back - with the Atlas® 9KOHX, you're not just lifting vehicles; you're entering a realm of productivity you have only daydreamed of before.

Atlas 9KOHX Specifications:

• Capacity 9,000 LB.

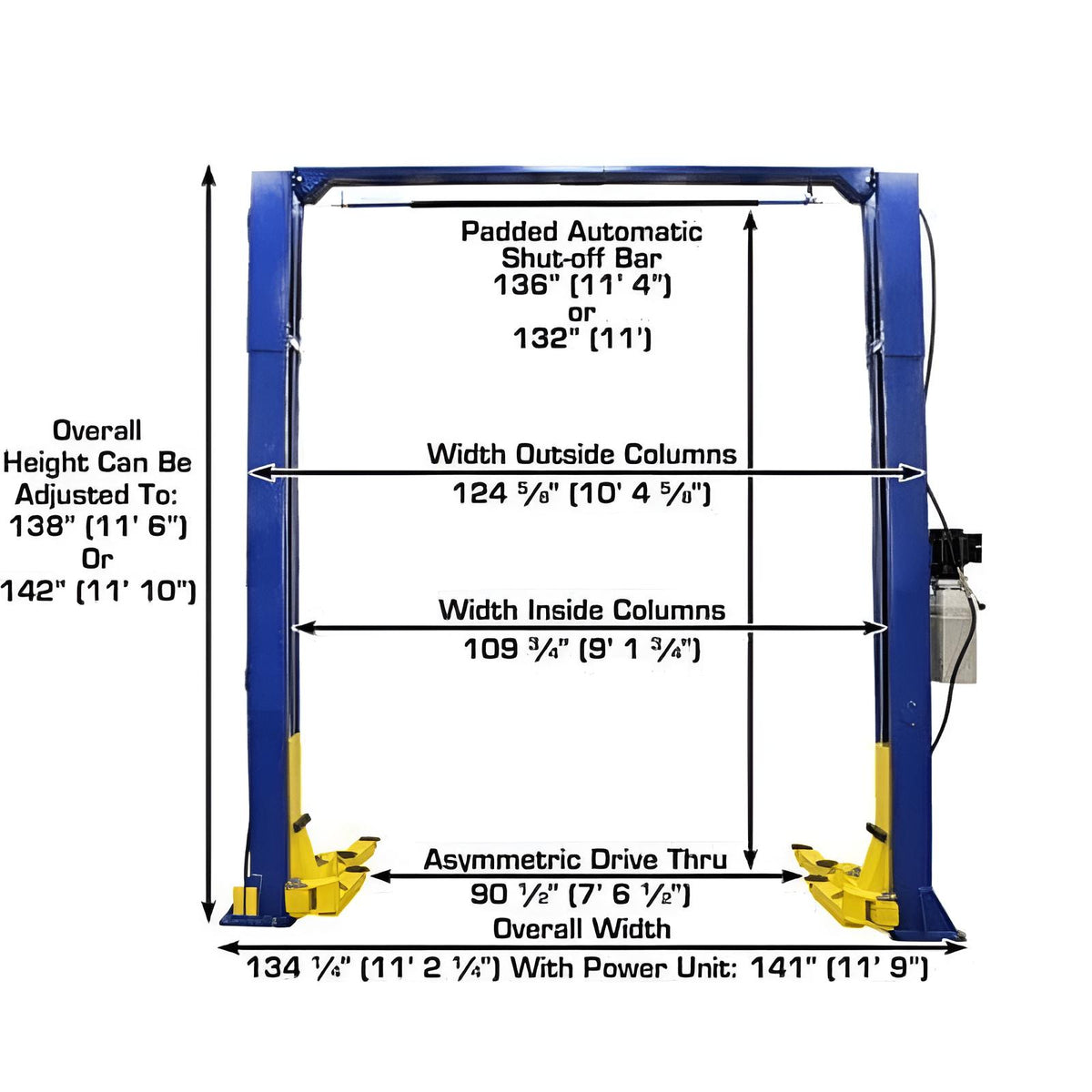

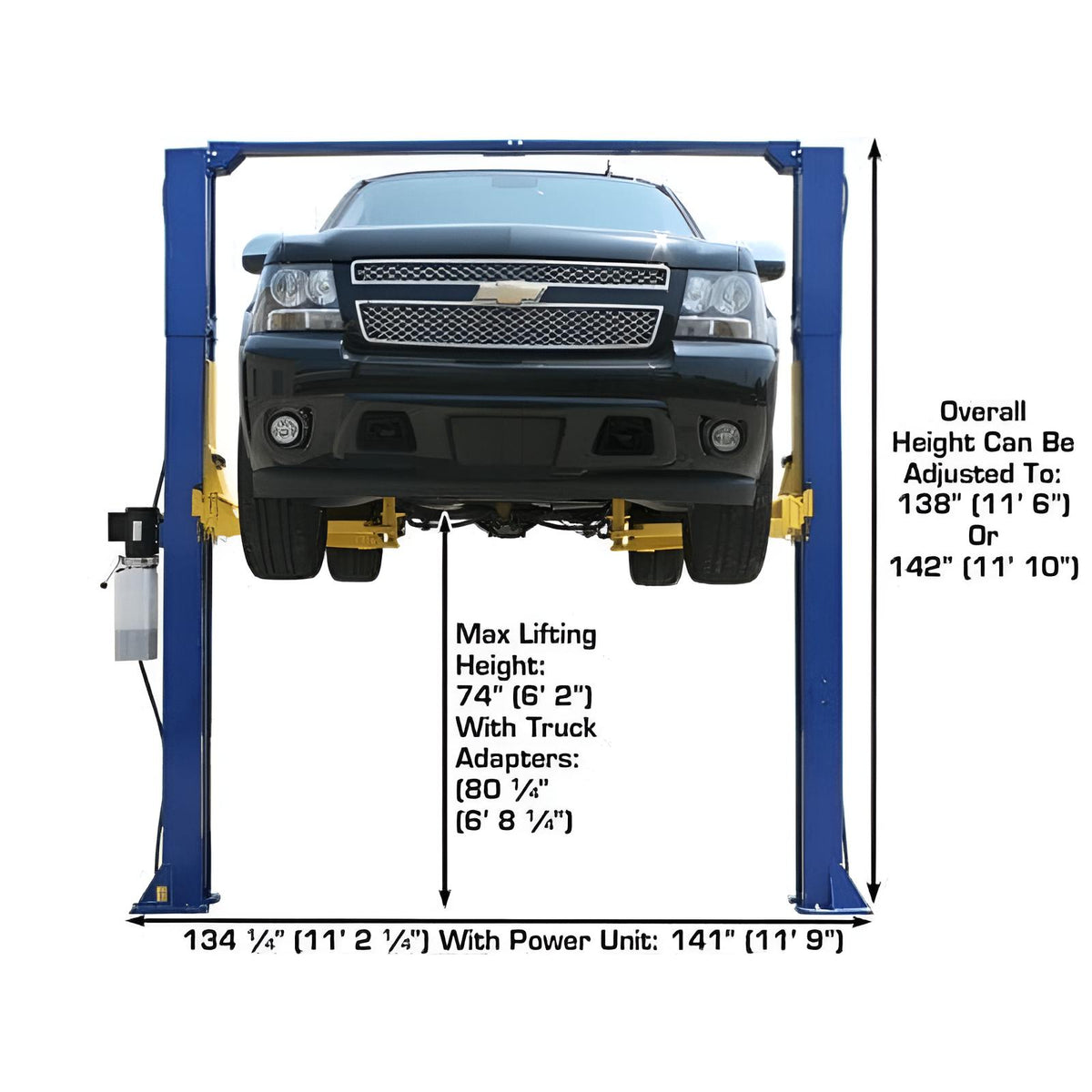

• Overall Height 138" (11’ 6") or 142” (11’ 10”)
• Overall Floor Width 134 1/2" (11’ 2 1/2")
• Outside Column to Outside Column 124 7/8" (10’ 4 7/8")
• Maximum Lift Height (Without Adapters) 74 1/2"
• Maximum Lift Height (With Adapters) 81"
• Minimum Arm Height 4"
• Inside Column 110” (9’ 2”)

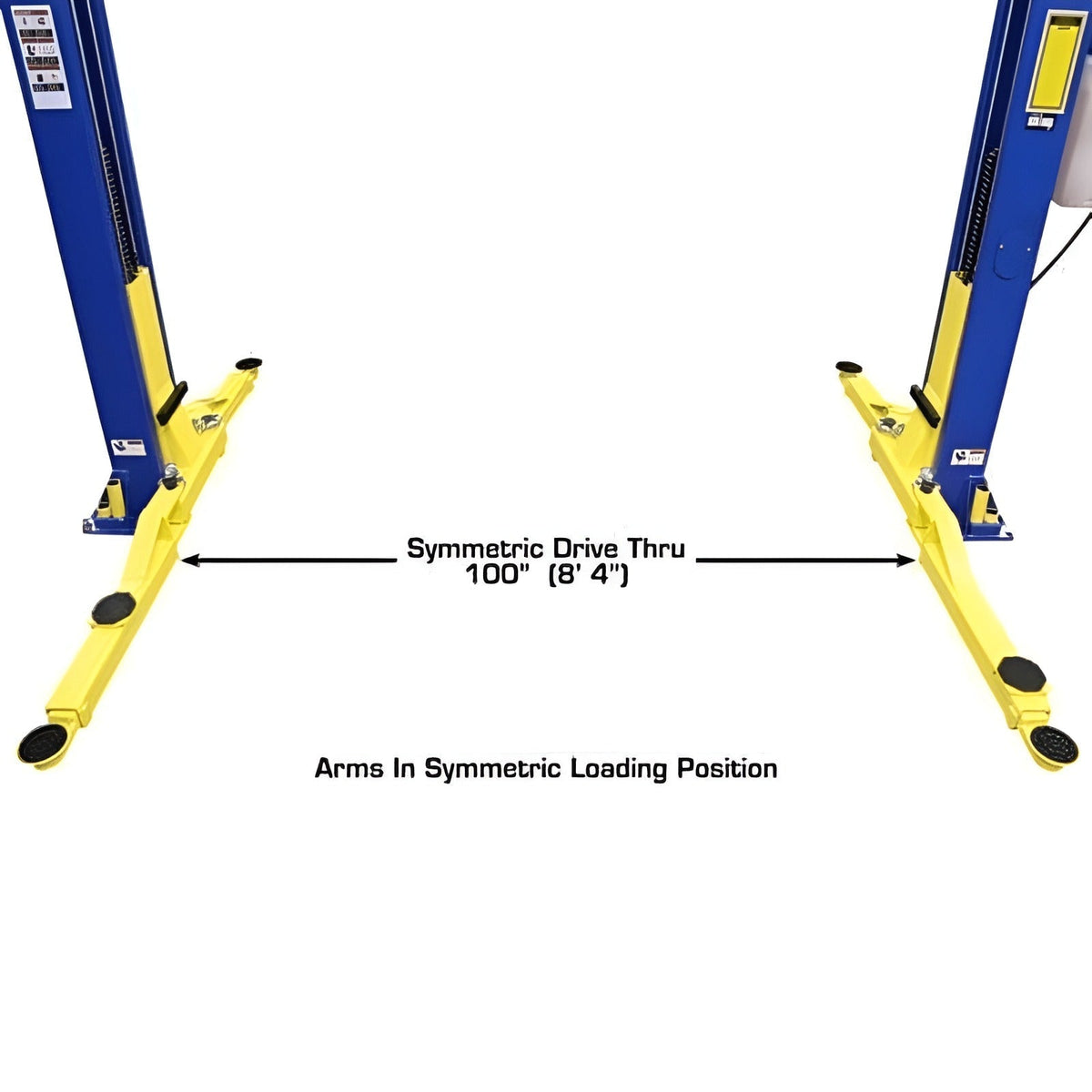

• Drive Thru 100” (8’ 4”) Symmetric/ 90 1/2" (7’ 6 1/2”) Asymmetric
• Column Size 7 1/4" x 11"
• Column Thickness of Steel 5mm

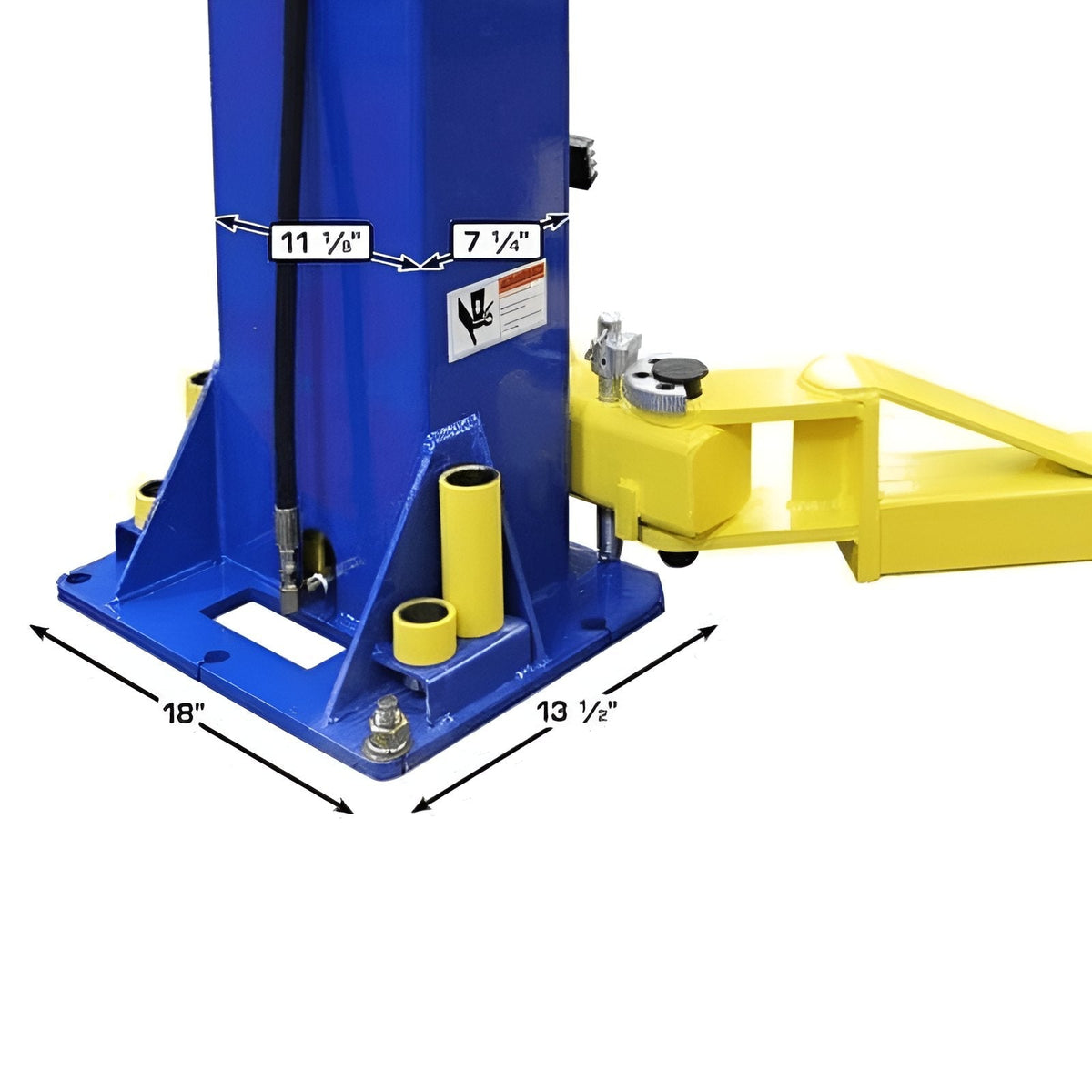

• Base Of Lift 14 1/4" x 18"

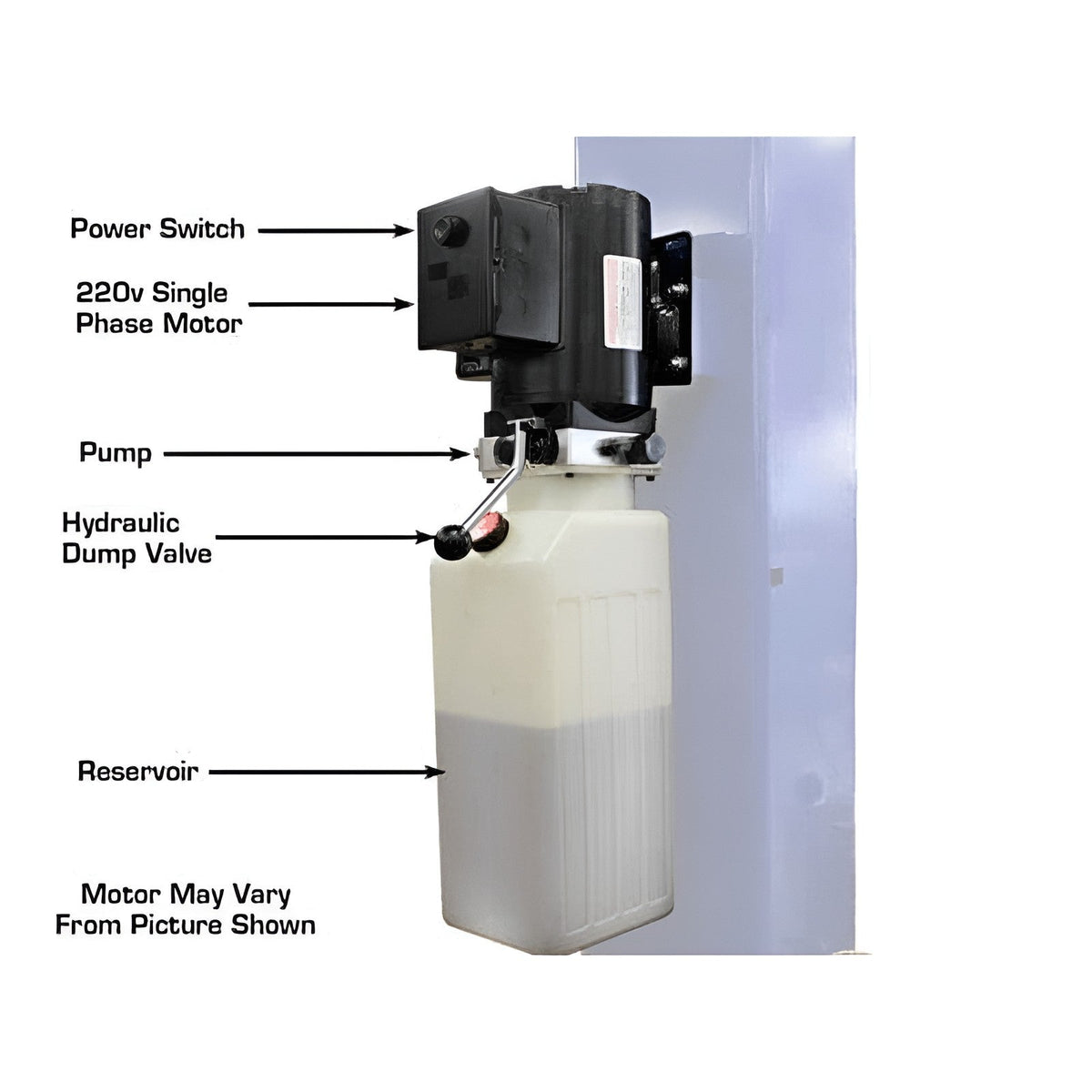

• Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 1,450 LBS.

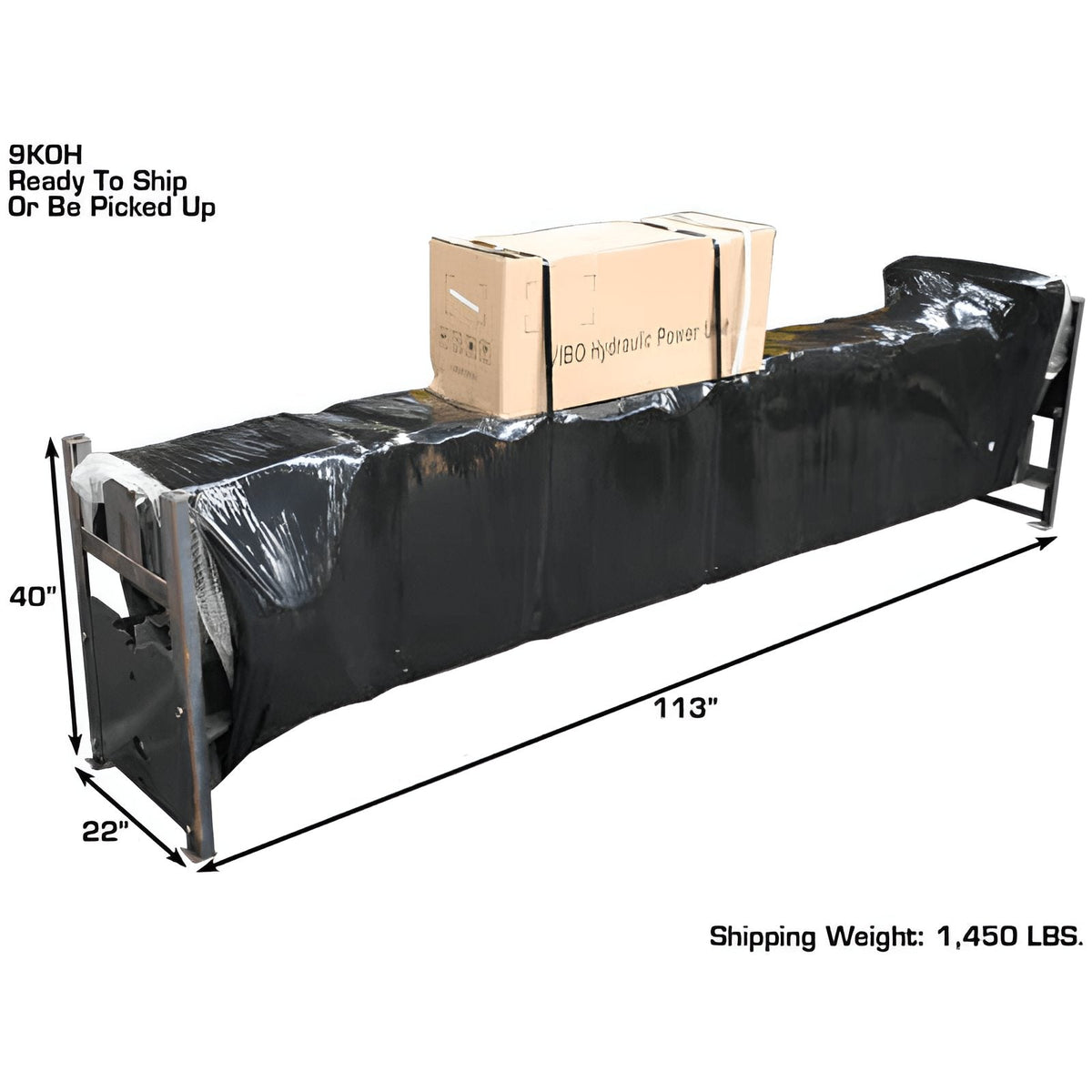

• Pallet Size:  113" Long x 40" Tall x 22" Wide + Box strapped to top of pallet

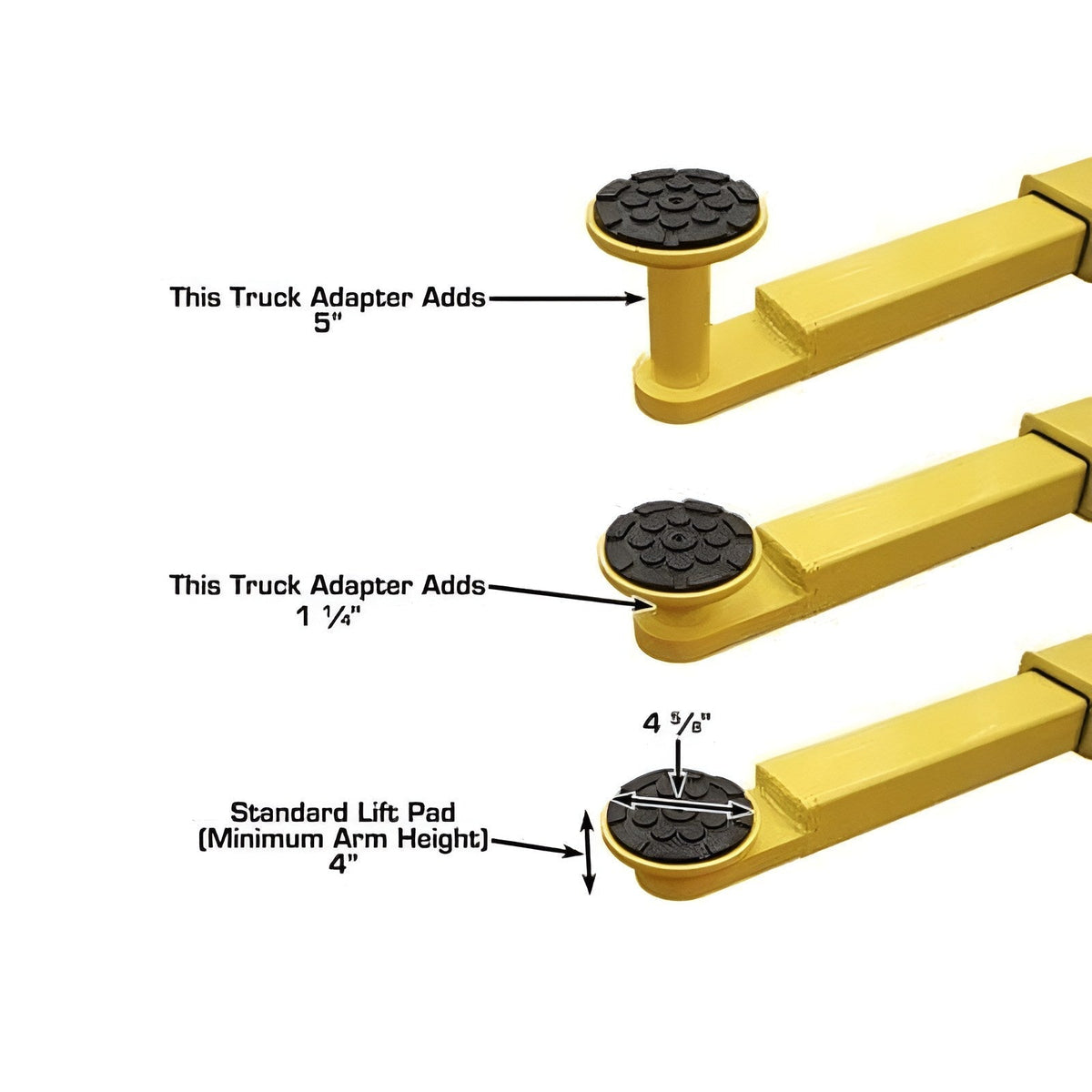

• Adapter Heights 4 Each 1.5”, 5”
• Arm Hole/Adapter Peg Size 1.5”
• Requires a minimum of 4" of concrete with a 3000 psi. rating

9KOHX 9,000 lb 2 Post Lift Special Features:

• Overhead, Open Floor Design

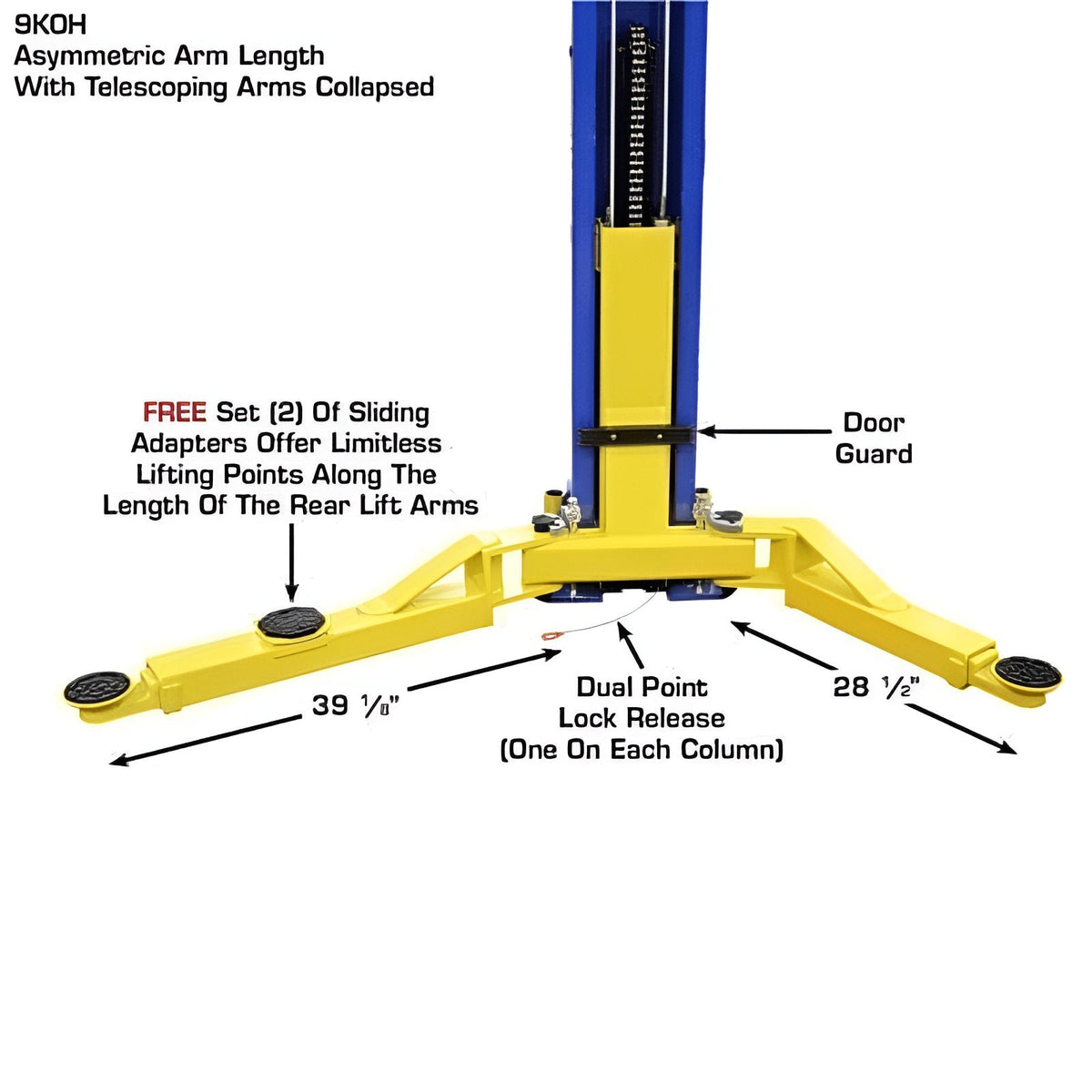

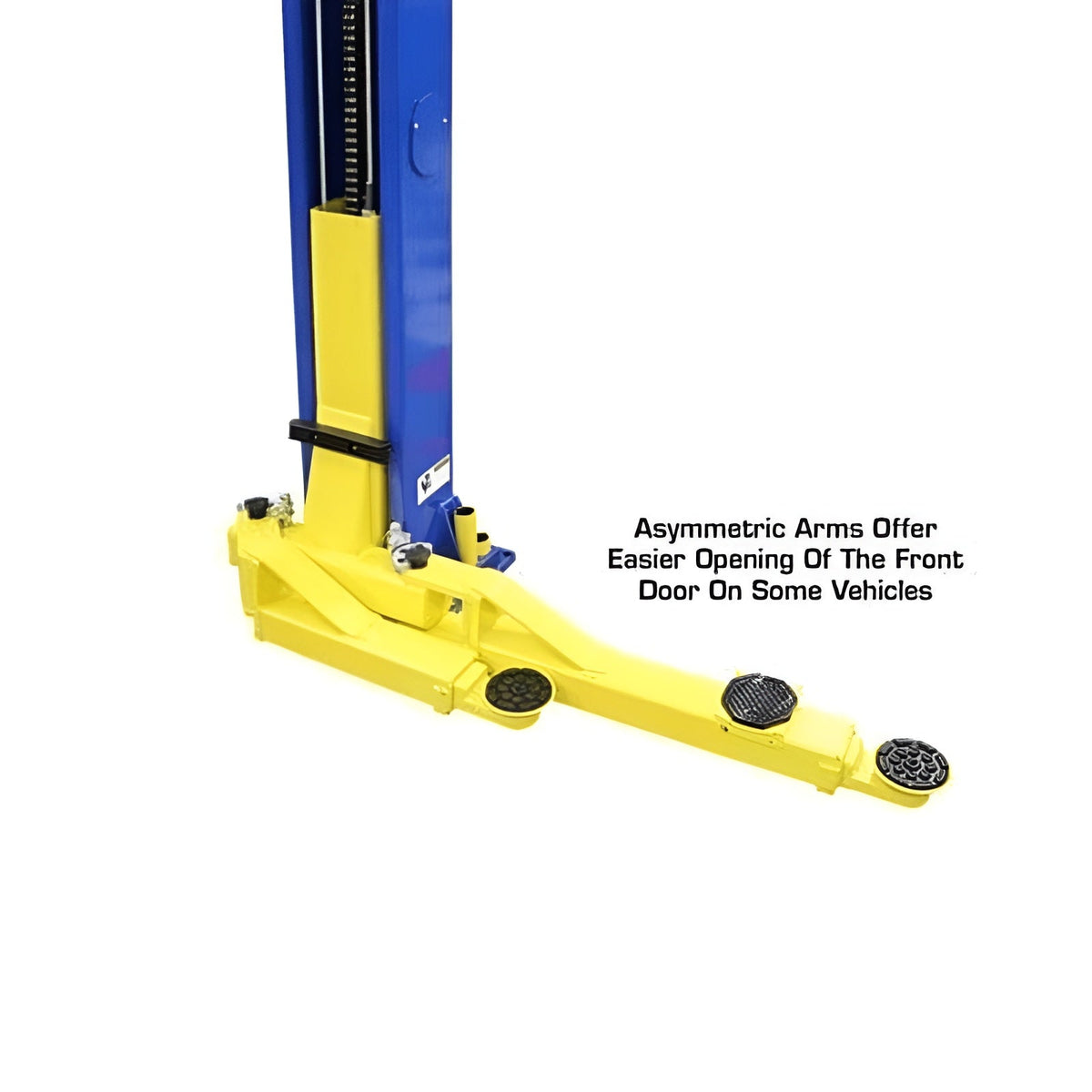

• Asymmetric & Symmetric Arms

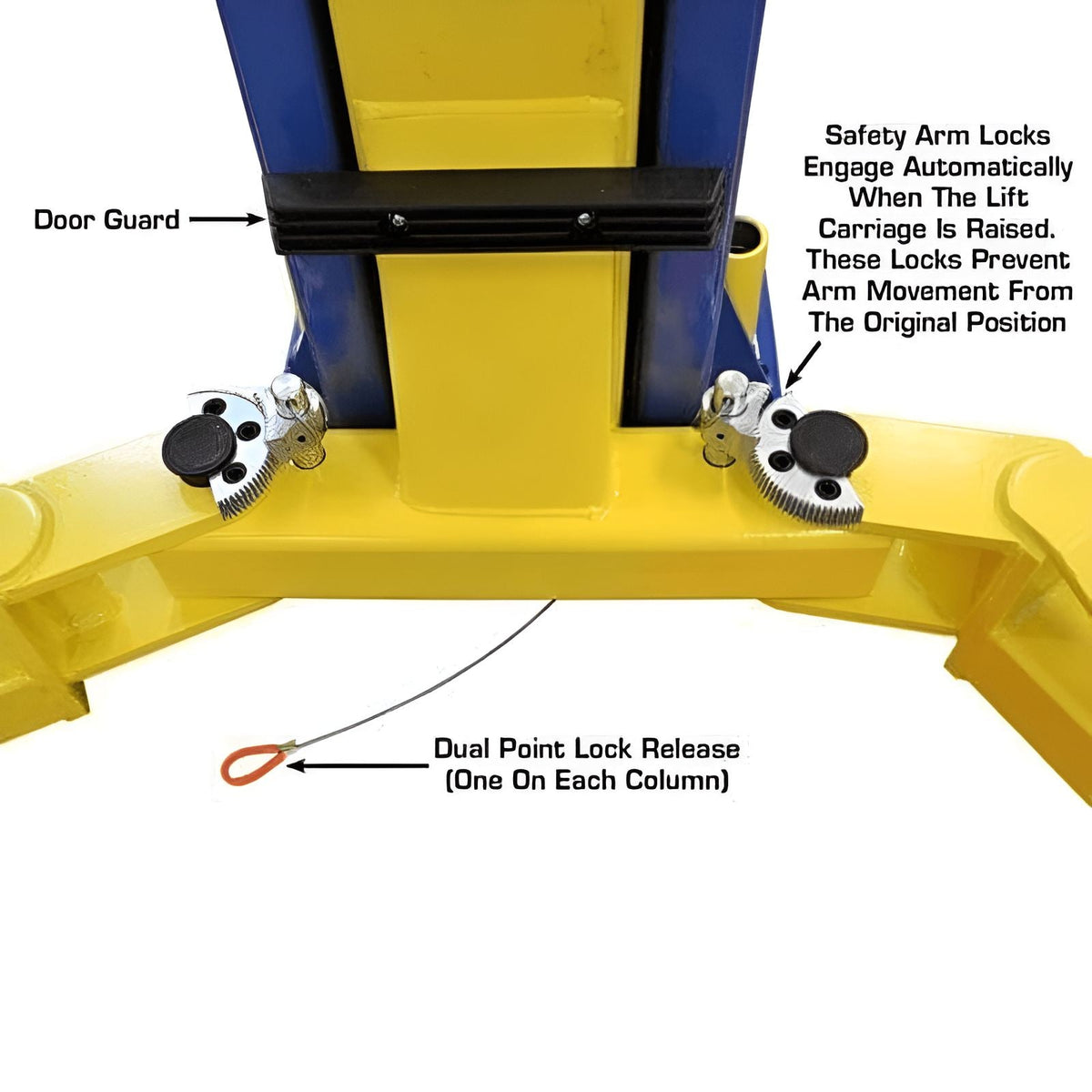

• Automatic Arm Restraints
• Lock Release: Dual Point
• Rubber Guards on the Carriage

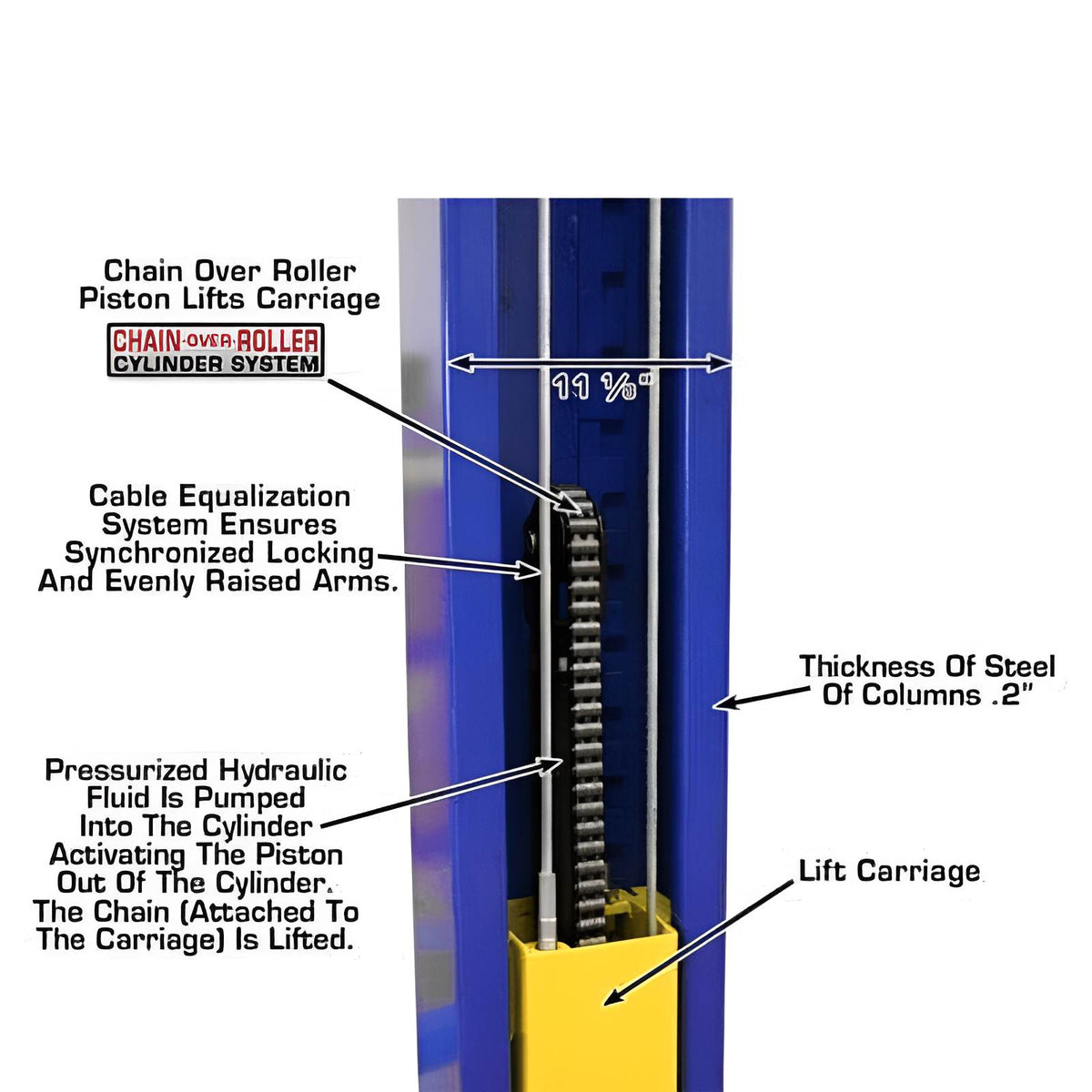

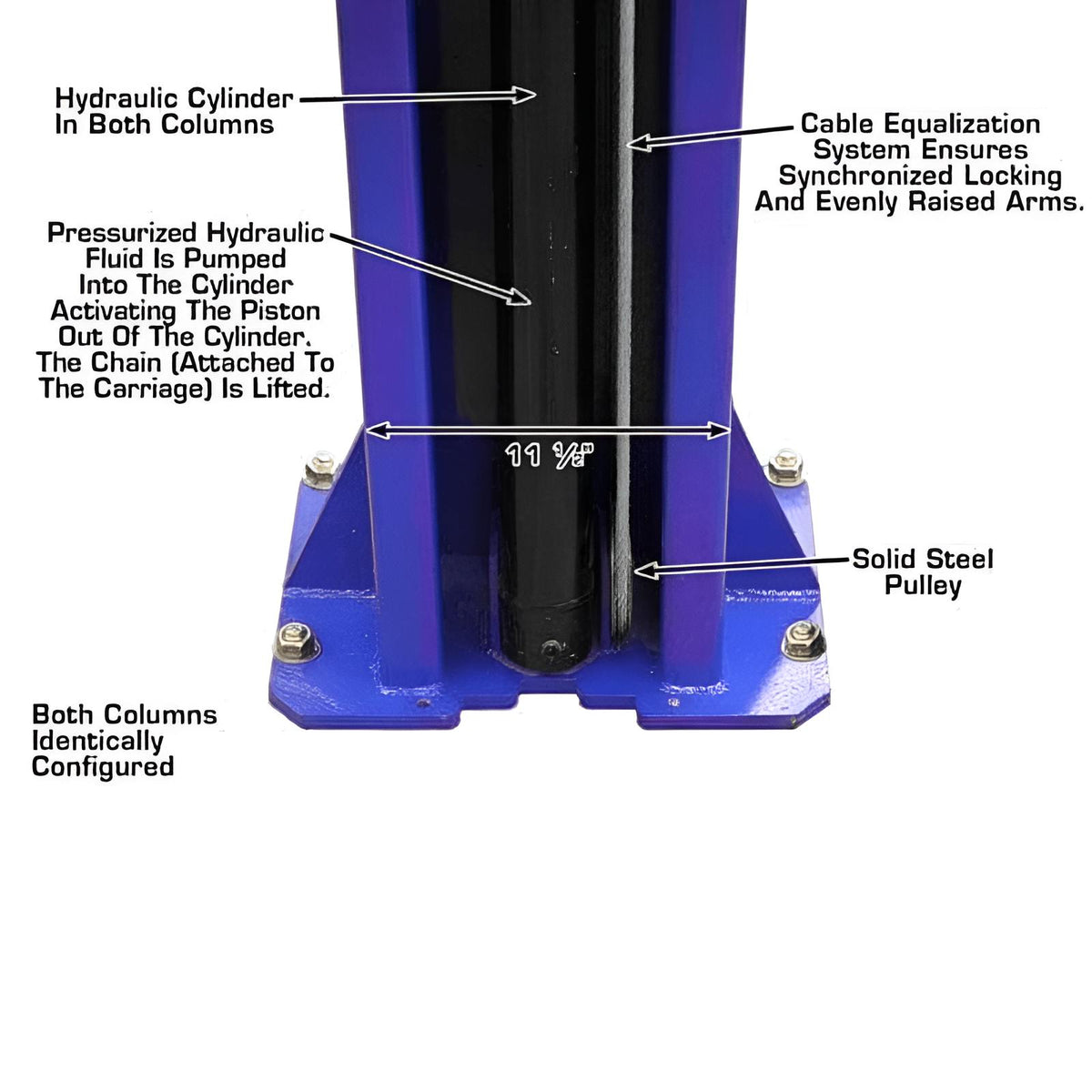

• Dual Hydraulic Chain-Drive Cylinders
• Secondary Lock System
• Warranty: 2 year Structural; 1 year Hydraulic ‐ Parts Only

• Unit Includes:

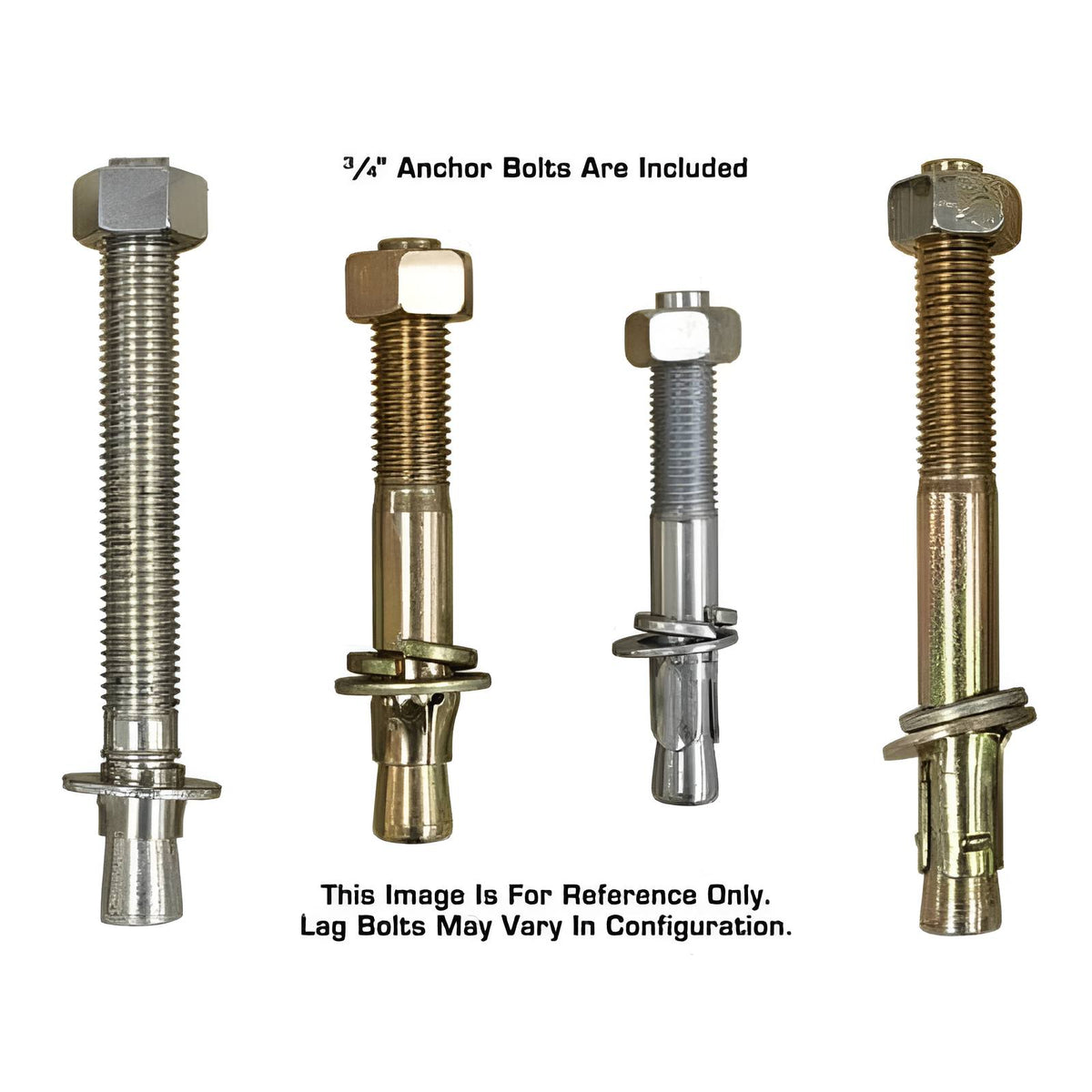

  • Mounting Hardwar

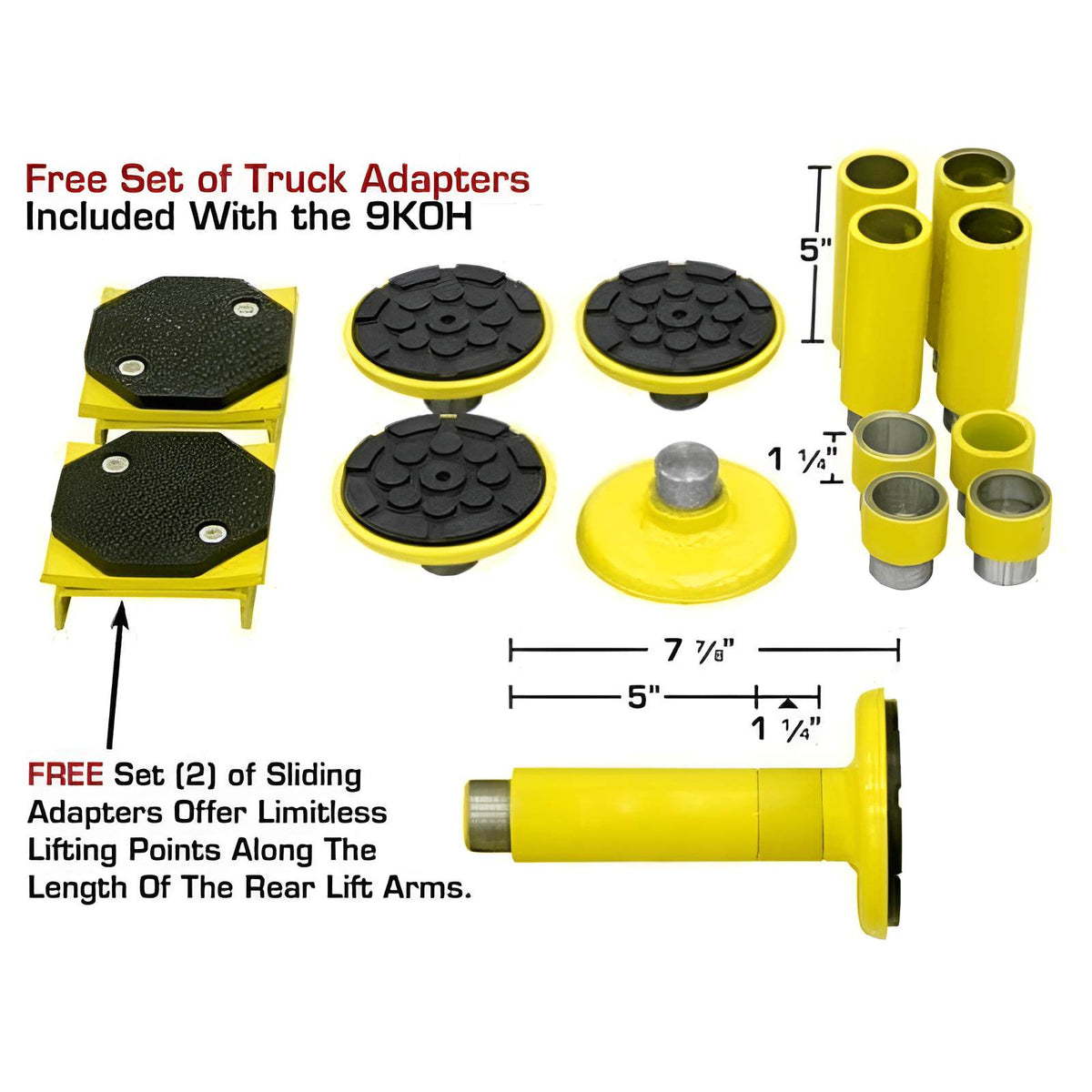

  • 8-piece Truck Adapter Set
  • Sliding Arm Adapters

Atlas 9KOH Manual:

   Atlas 9KOH Lift Manual

Warehouse Pickup locations (No shipping charge):

• Atlanta, GA
• Dallas, TX
• Fresno, CA
• Indianapolis, IN
• Phoenix, AZ
• Somerset, NJ
