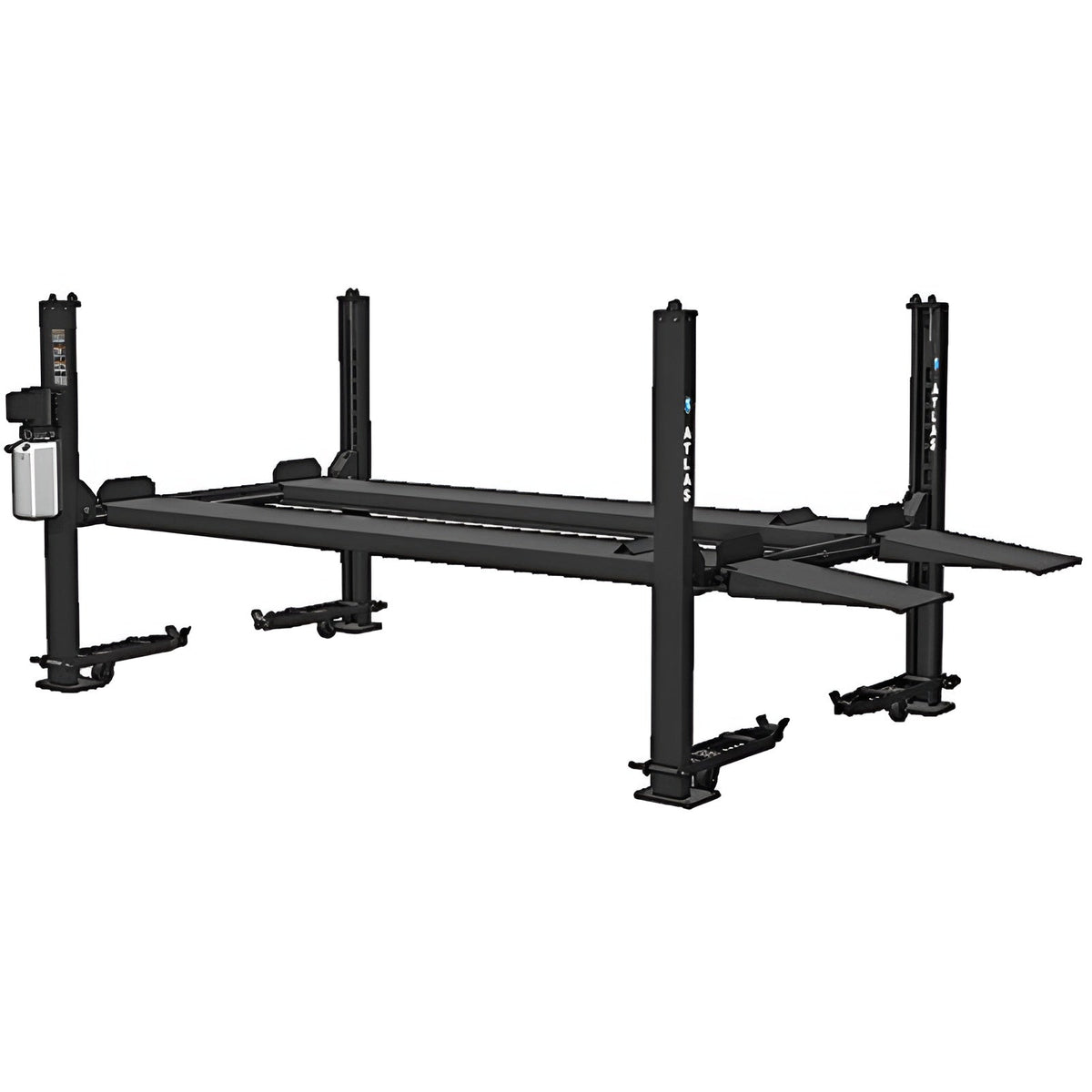

Atlas Apex 8, 8,000 lb 4 Post Vehicle Storage Lift - ALI Certified

Running out of garage space? Meet the Atlas® APEX8 - the ultimate car storage solution. Double your parking capacity without sacrificing convenience. Craving more space for your cars? The APEX8 is a heavy-duty, ALI-certified lift that can safely stack most passenger vehicles with a whopping 8,000-lb capacity and a 72" max lift height. This portable design, complete with a caster kit, lets you easily move it around your garage or even outside. Plus, it comes with free plastic drip trays and a steel jack tray to save you money upfront.

Experience the freedom of a clutter-free garage. The APEX8 is more than just a car lift; it's a lifestyle upgrade. Enjoy easy access to your vehicles and create a more organized living space. And the 5-year structural warranty will have you sleeping like a baby. Free up some wanted space with the Atlas® APEX8.

Apex8 Specifications:

• Capacity: 8000 lbs
• Lifting Height, Top of Runway: 72" (6')
• Clearance Under Runways: 67" (5' 7")
• Height of Columns: 85" (7' 1")
• Overall Width: 104" (8' 8") w/ motor 114" (9' 6")
• Overall Length w/ Ramps: 207 5/8" (17' 3 5/8")
• Runway Length: 169 1/2" (14' 1 1/2")

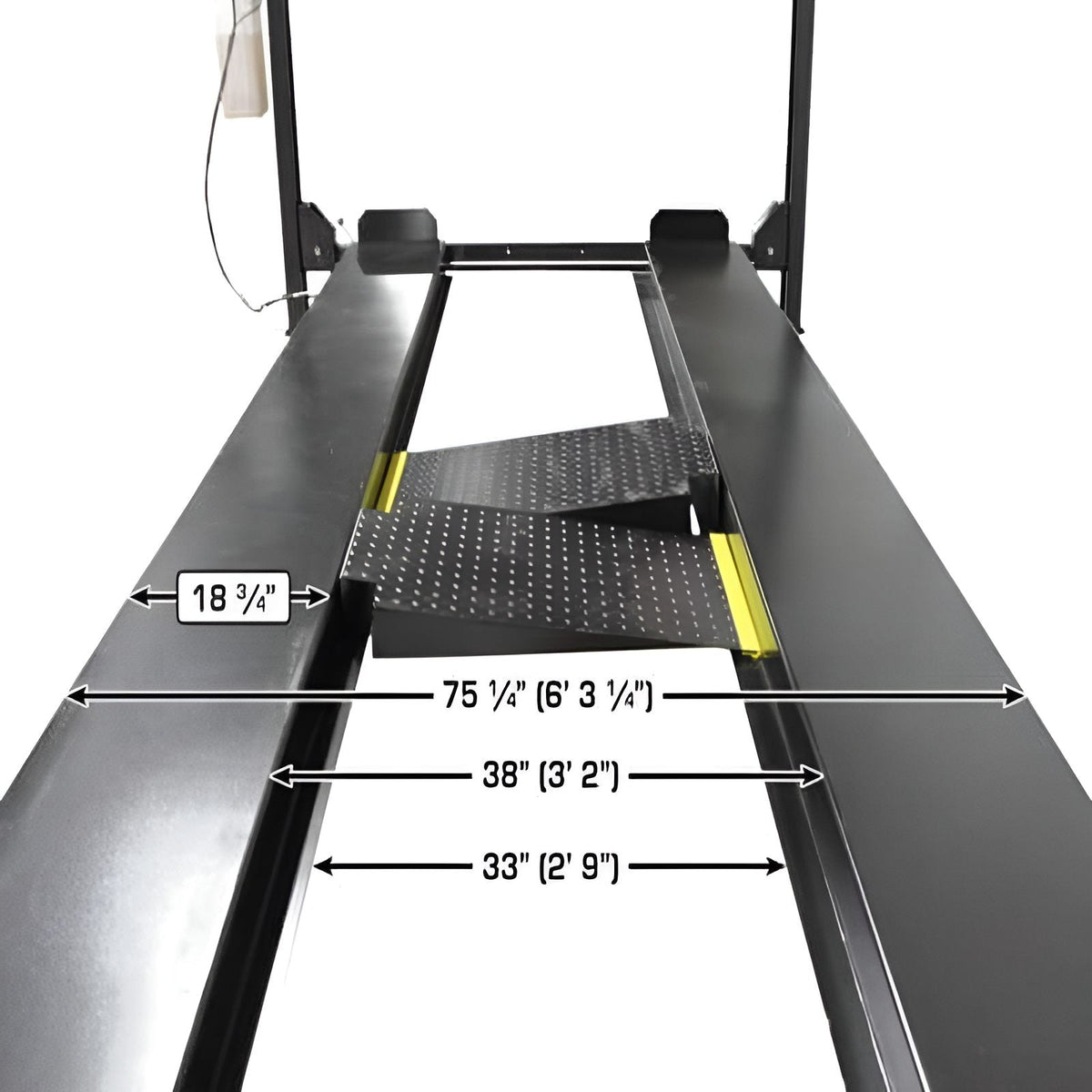

• Runway Width: 18 2/4"
• Runway Thickness: 4 1/3"
• Width Between Runways: 38" w/ Rail 33"
• Outside Runway to Outside Runway: 75 1/4" (6' 3 1/4")
• Clearance Between Columns: 94" (7' 10")
• Length Between Columns: 157 1/3" (13' 1 1/3")
• Drive Thru: 80 1/4" (6' 8 1/4")

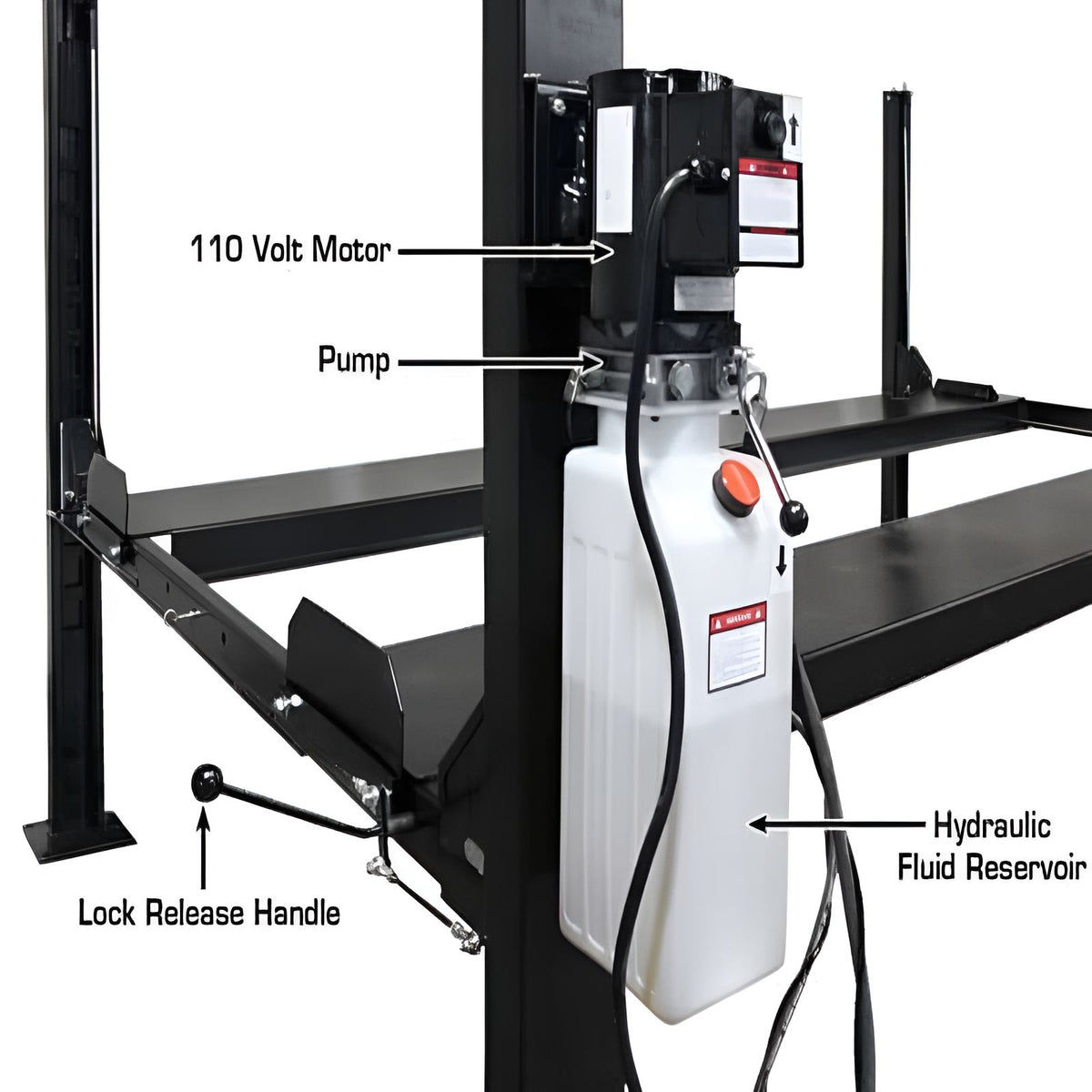

• Motor/Electrical Requirement: 110volt, 30 amp breaker required
• Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
• Shipping Weight: 2000 lbs
• Pallet Size:  171" Long x 23" Tall x 30-1/2" Wide

ATEATTD-APEX8 Special Features:

• ALI Certified
• Design: Free Standing & Portable
• Powder Coat Finish
• Lock Release: Single-Point
• Lock Design: Double Lock Safety System
• Warranty: 5 year Structural; 2 year Hydraulic ‐ Parts Only
• Unit Includes:
•     Caster Kit with Polyurethane Wheels Included

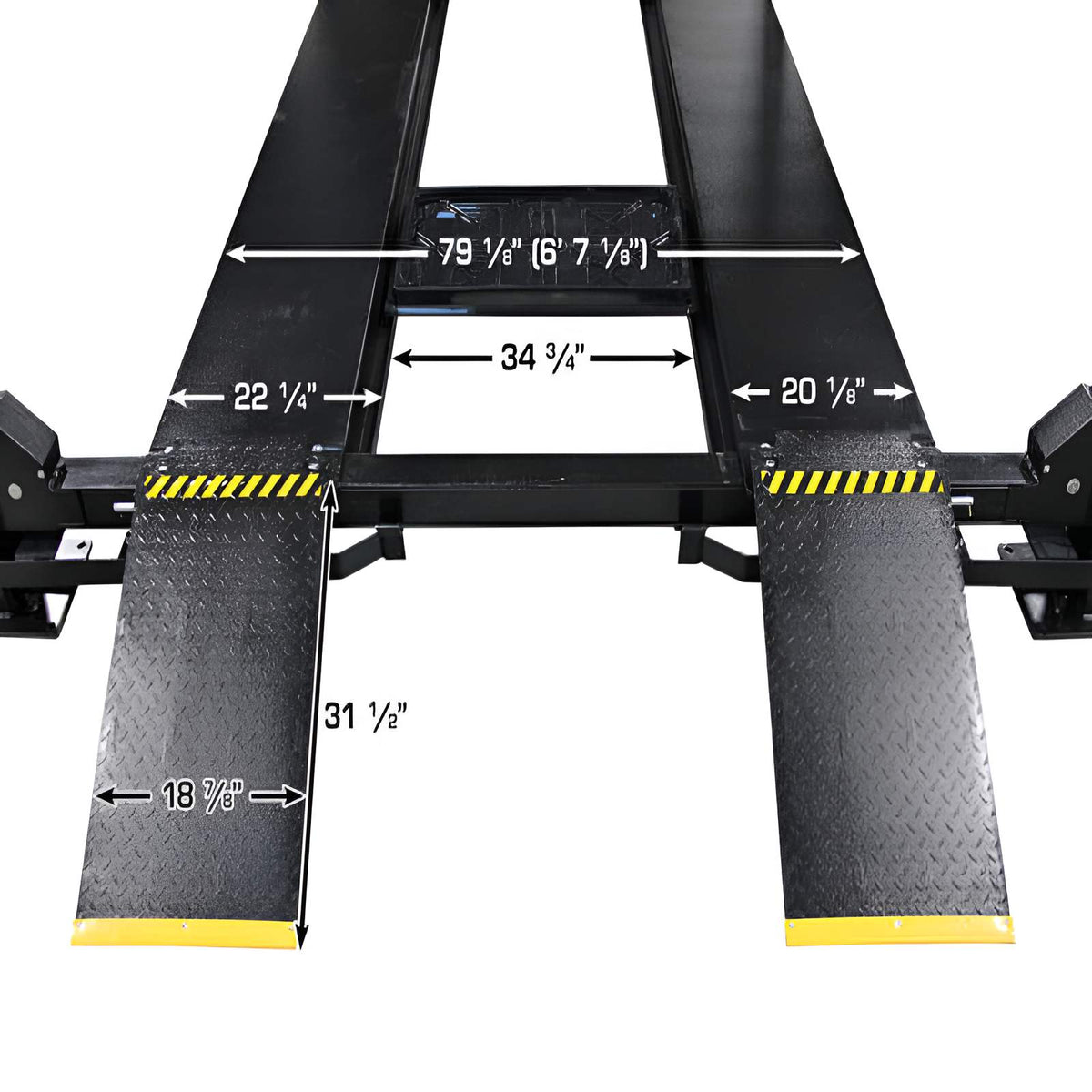

•     Steel Approach Ramps Included
•     Steel Jack Tray Included
•     4 Plastic Drip Trays
•     2 Wheel Chocks
• Buy as a Combo Atlas APEX 8 + PROJack35

Apex 8 Four Post Vehicle Storage Lift Optional Items (sold separately):

• Anchor Bolt System
• ProJack35 Sliding Jack

Apex 8 Manual

   Atlas Apex 8 Manual
