Atlas BP8000, 8,000 lb 2 Post Lift - Low Ceiling

Tired of bumping your head every time you try to work on a lifted vehicle? Those big jobs are slipping through your fingers faster than a greased lug nut. The struggle is real, and your wallet is feeling the pinch.

The Atlas® BP8000 is here to save the day - and your forehead. This nimble ninja of a lift sneaks into spaces as tight as 9 foot 3 inches, bringing 8,000 pounds of lifting prowess to the party. No more turning away jobs or playing limbo with truck suspensions. With its Super-symmetric arms and single-point lock release, it's easier to operate than your morning coffee maker. And talk about adaptable - its twelve-piece truck adapter set is more versatile than a Swiss Army knife at a camping trip. With the Atlas® BP8000, you'll be lifting your way to new heights - literally and figuratively!

 Atlas 8k Lift Specifications:

• Capacity 8,000 LB.
• Overall Height 108" (9')
• Overall Floor Width 132" (11')
• Outside Column to Outside Column 124" (10' 4")
• Maximum Lift Height (Without Adapters) 75 1/2"
• Maximum Lift Height (With Adapters) 86 1/2"
• Minimum Arm Height 4"
• Inside Column 109 1/8” (9' 1 1/8”)

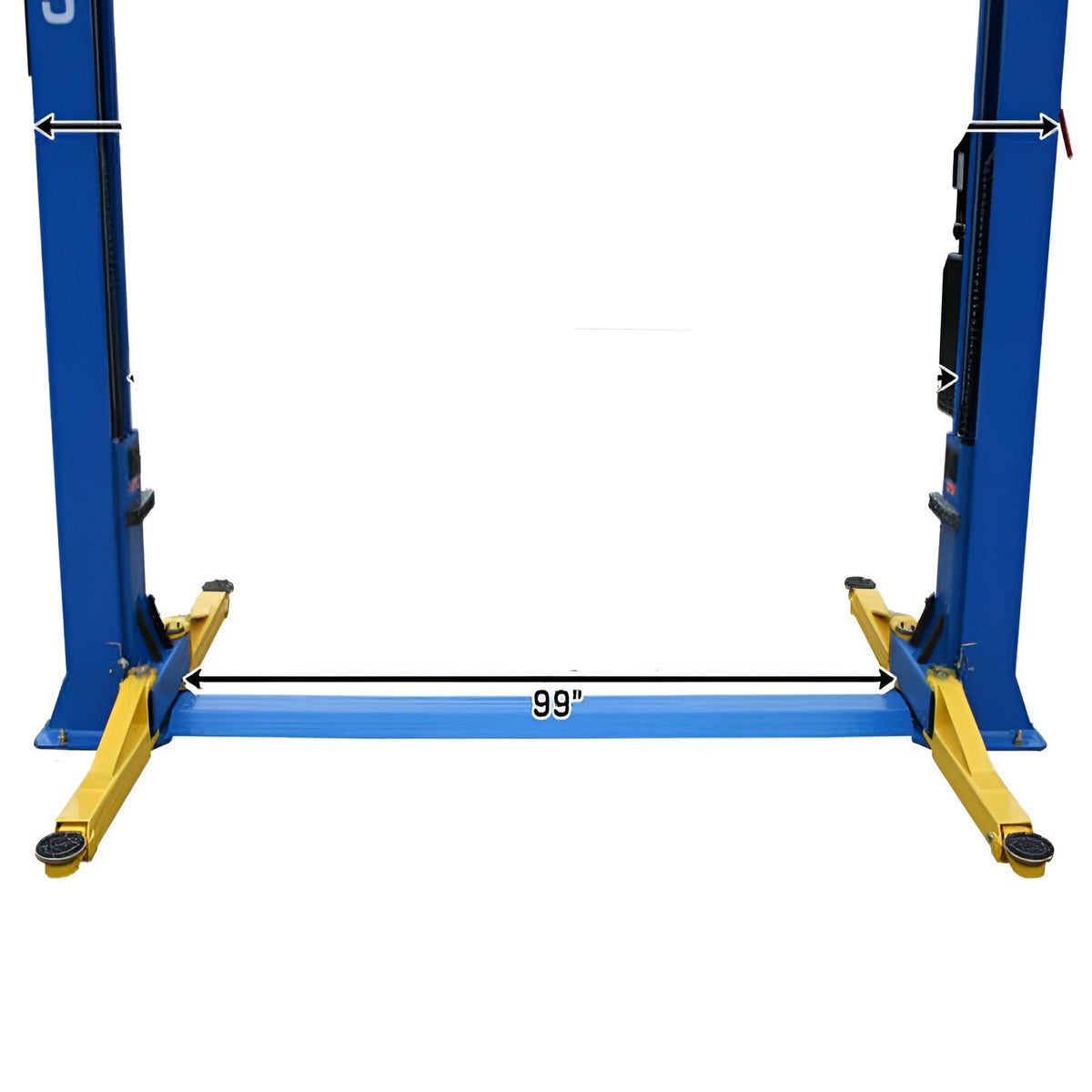

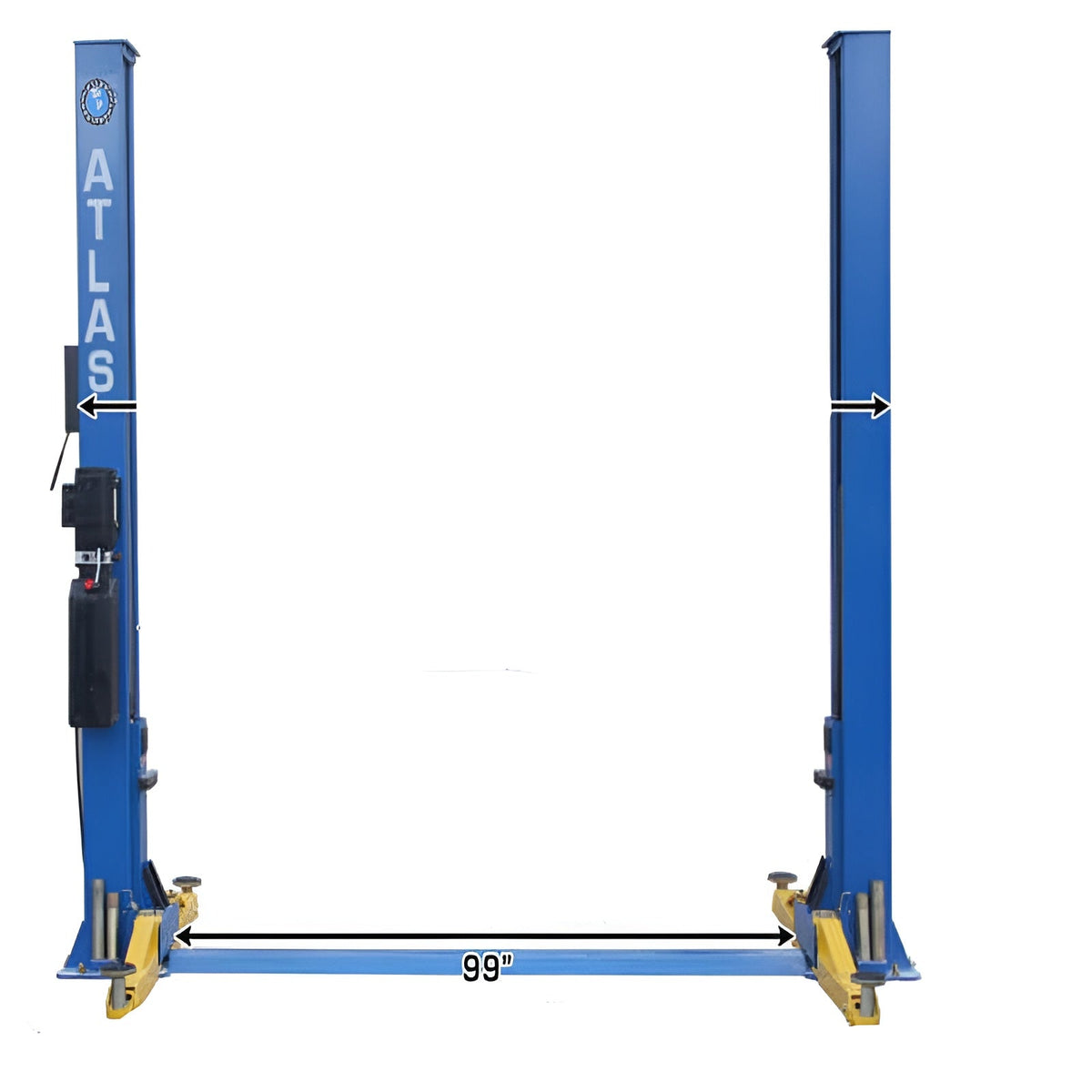

• Drive Thru 99” (8' 3”)

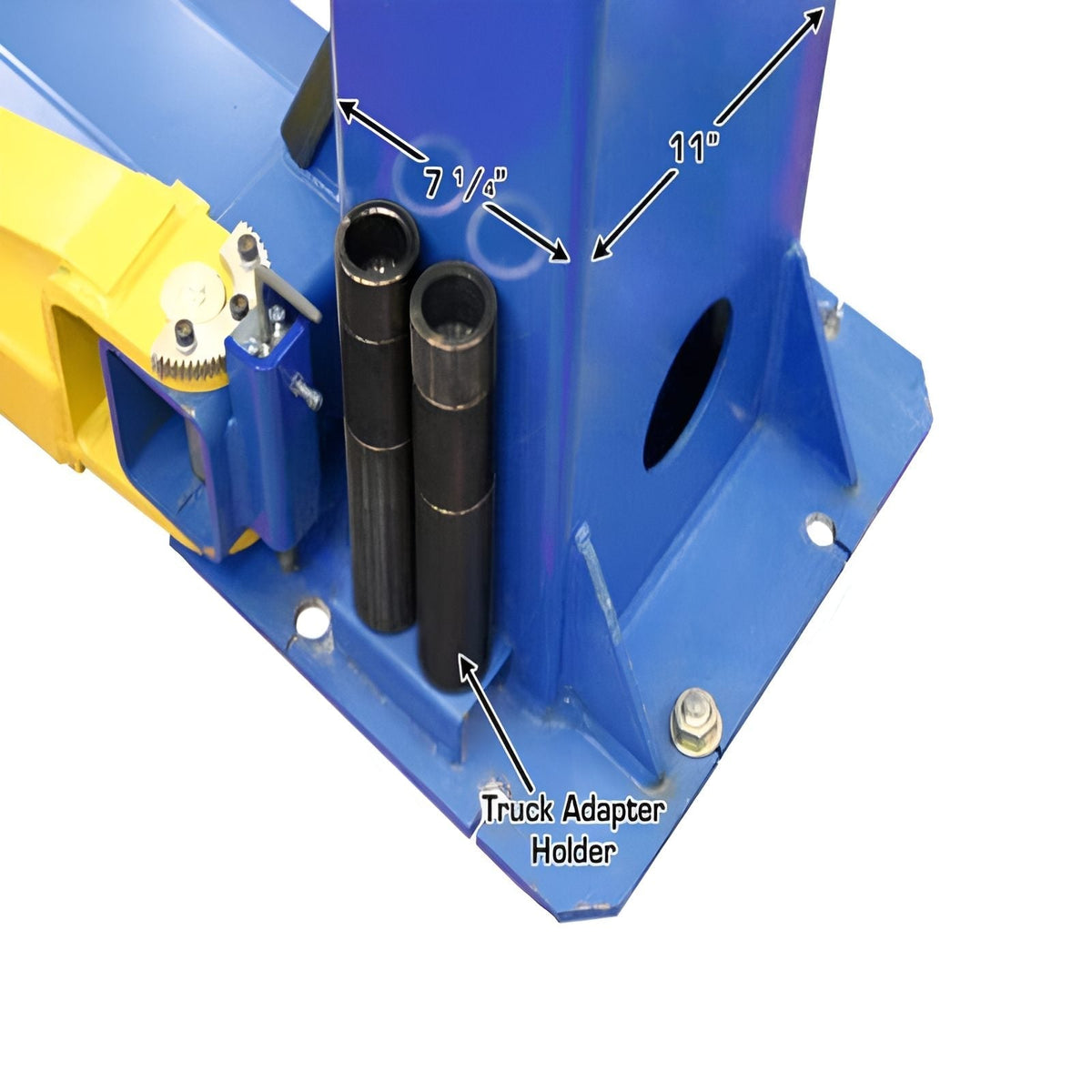

• Column Size 7 1/4" x 11"
• Column Thickness of Steel 6mm
• Base Of Lift 17 1/2" x 17 3/4"
• Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 1,300 LBS.
• Pallet Size:  111" Long x 45" Tall x 19" Wide

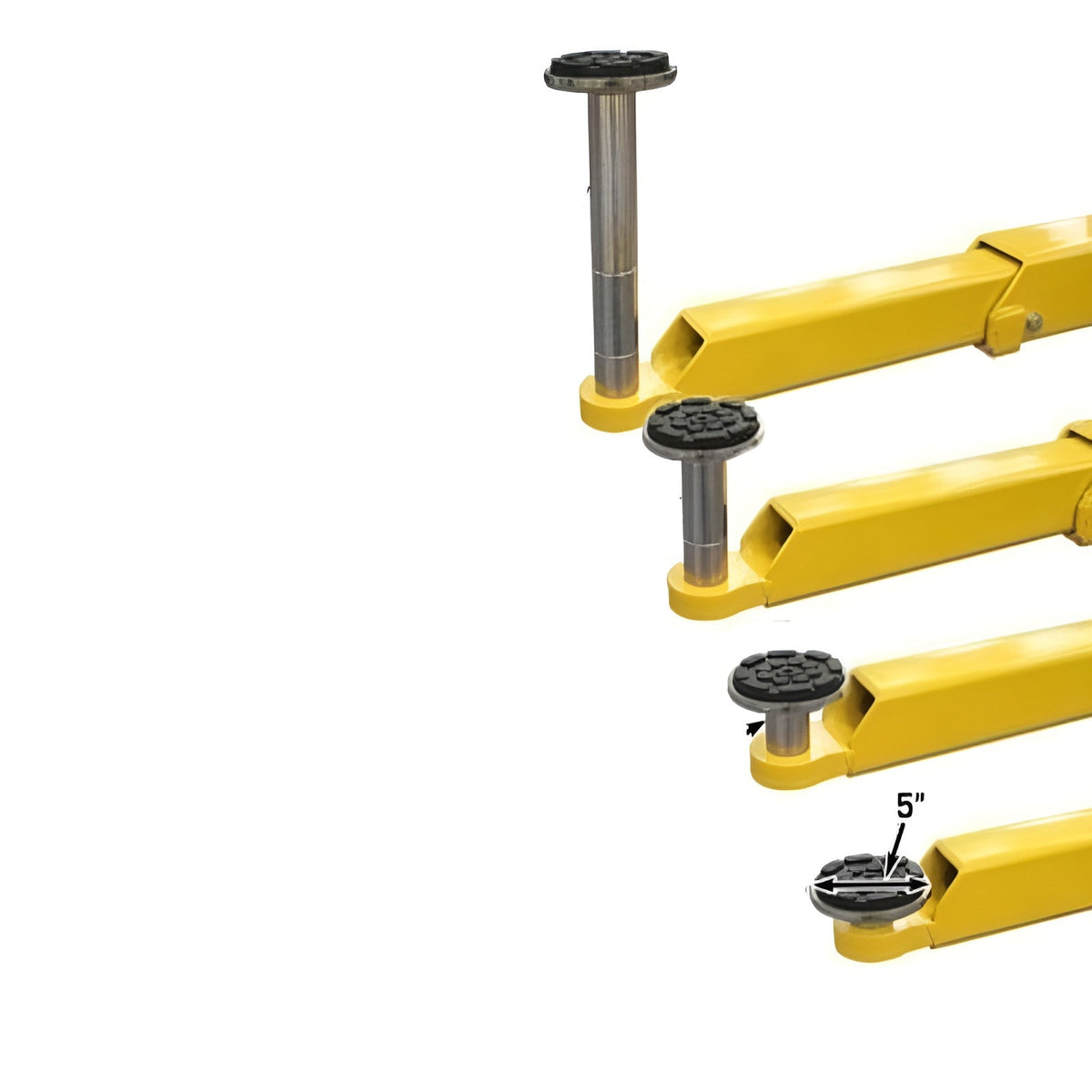

• Adapter Heights 4 Each 2”, 3”, 6”
• Arm Hole/Adapter Peg Size 1.5”
• Requires a minimum of 4" of concrete with a 3000 psi. rating

Atlas 8,000 lb 2 Post Lift Special Features:

• Hobbyist Grade Lift - Not Intended for Commercial Use

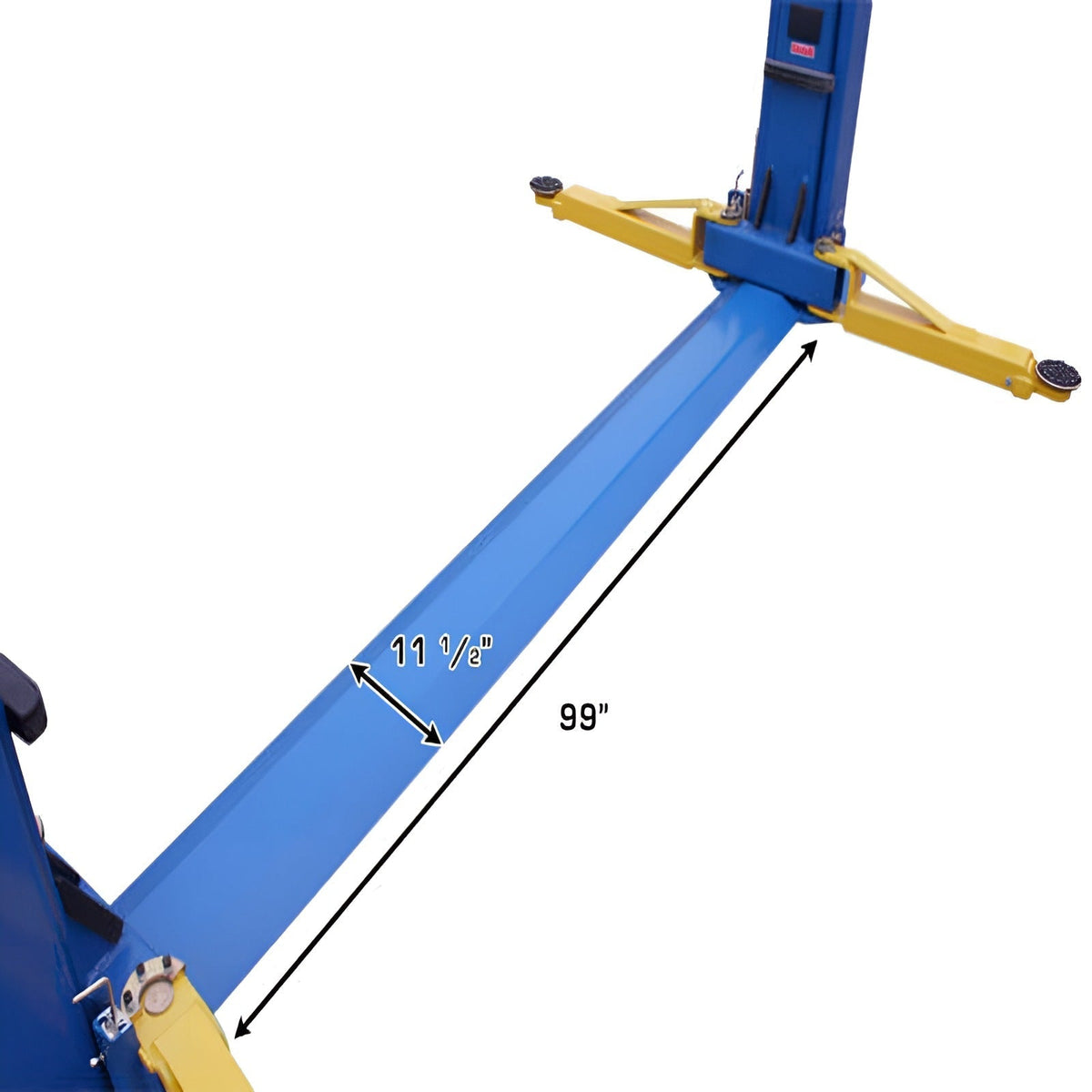

• Baseplate, Open-Top Style Lift
• 3-stage Front Arms, 2-Stage Rear Arms
• Lock Release: Single Point
• Double Safety Lock System

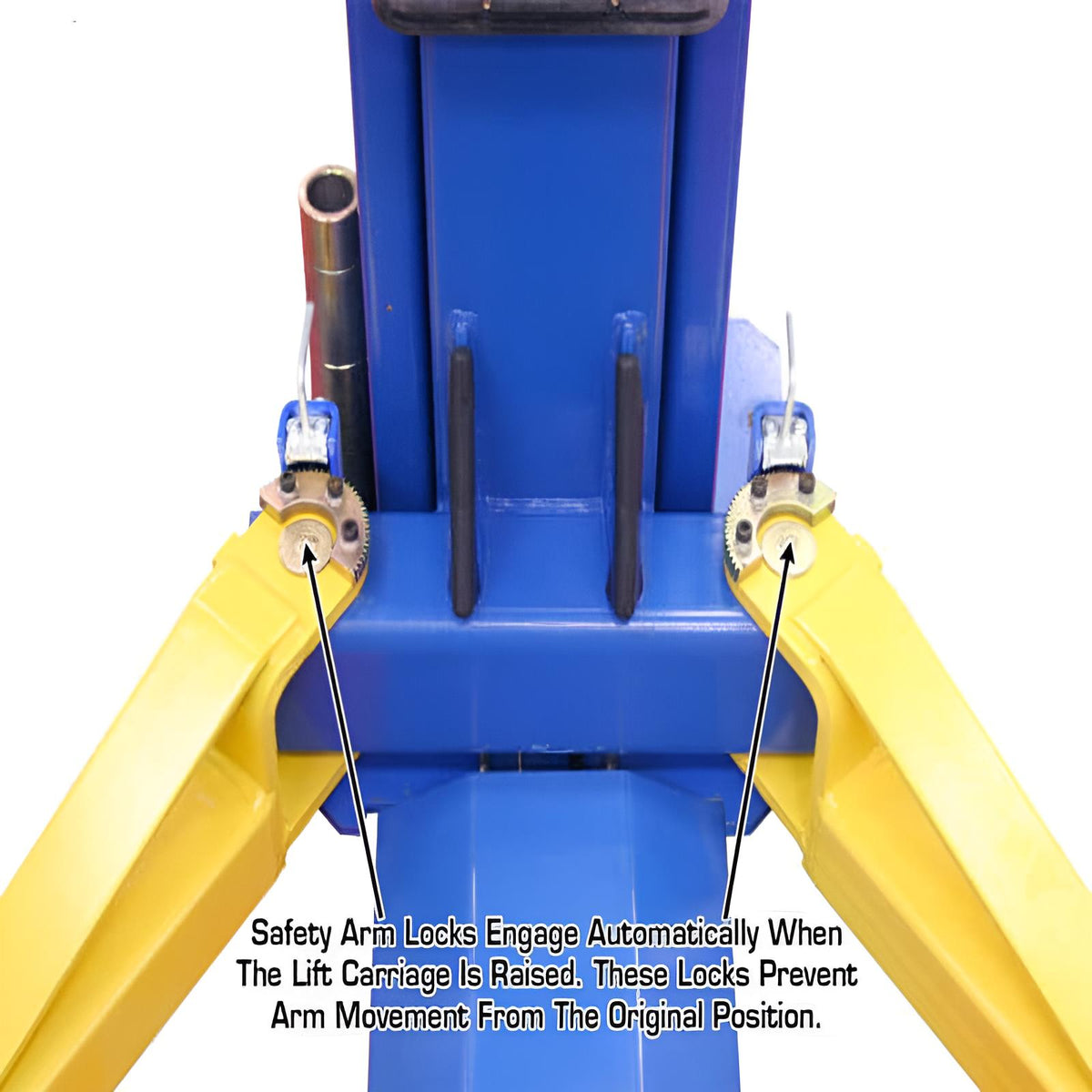

• Automatic Arm Restraints
• Dual Hydraulic Chain-Drive Cylinders
• Warranty: 5 year Structural; 2 year Hydraulic ‐ Parts Only

• Unit Includes:
•     Mounting Hardware

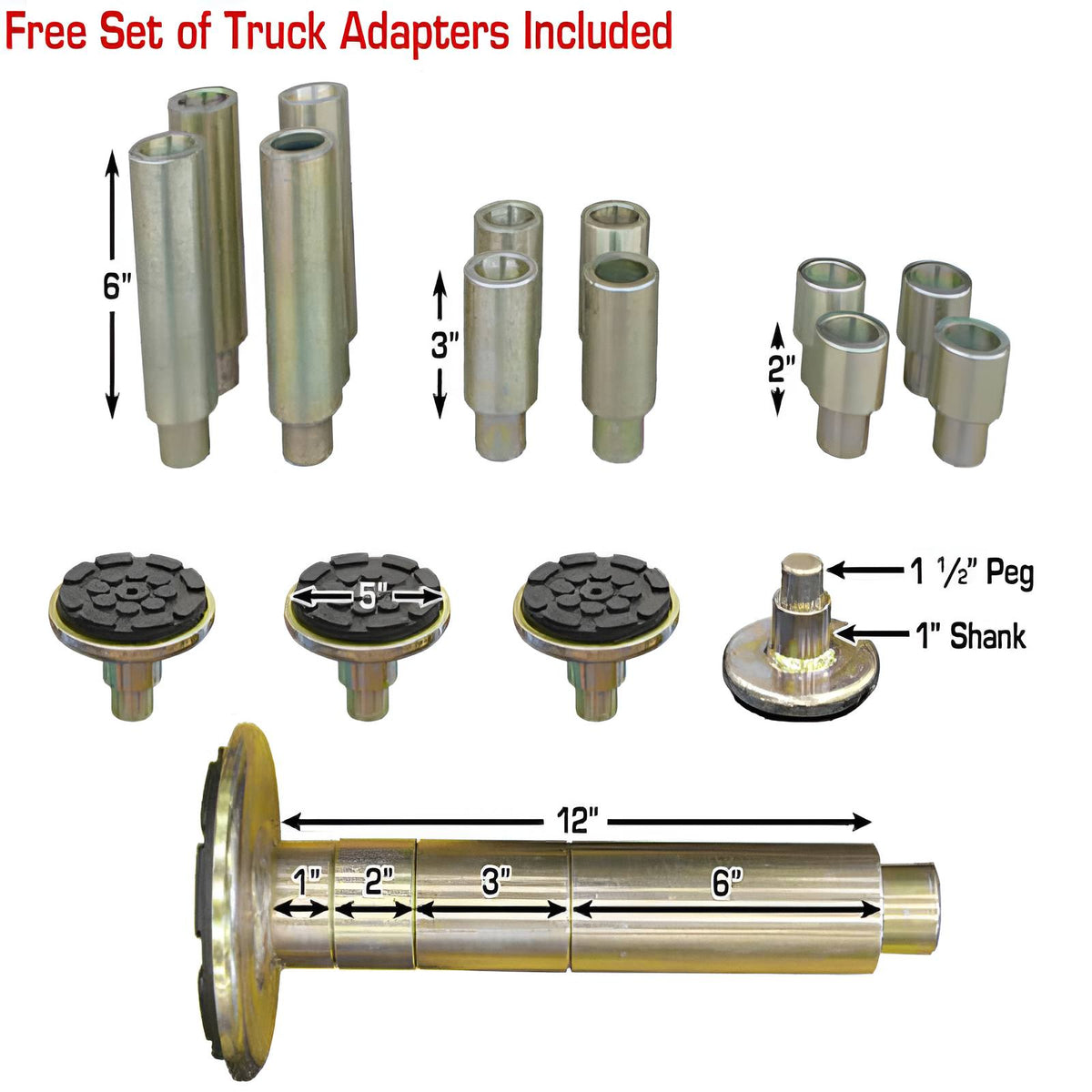

•     12-piece Truck Adapter Set
• Optional Item (Sold Separately):
  • Lawnmower Adapter for 2-Post Lift
  • ATEATTD-BP-EXTKIT-BP8 - Base Plate Extension for Stability

BP8000 Manual

   Atlas BP8000 Manual
