Atlas Platinum PVL14 + RJ7000 (2) Rolling Jacks ALI Certified Combo

Your current lift setup is the weak link in your automotive chain. It's not just about slow service anymore; it's about missed opportunities, safety concerns, and the nagging feeling that you're always one step behind the competition. Enter the Atlas Platinum PVL14 Combo - your all-in-one answer to modern automotive challenges.

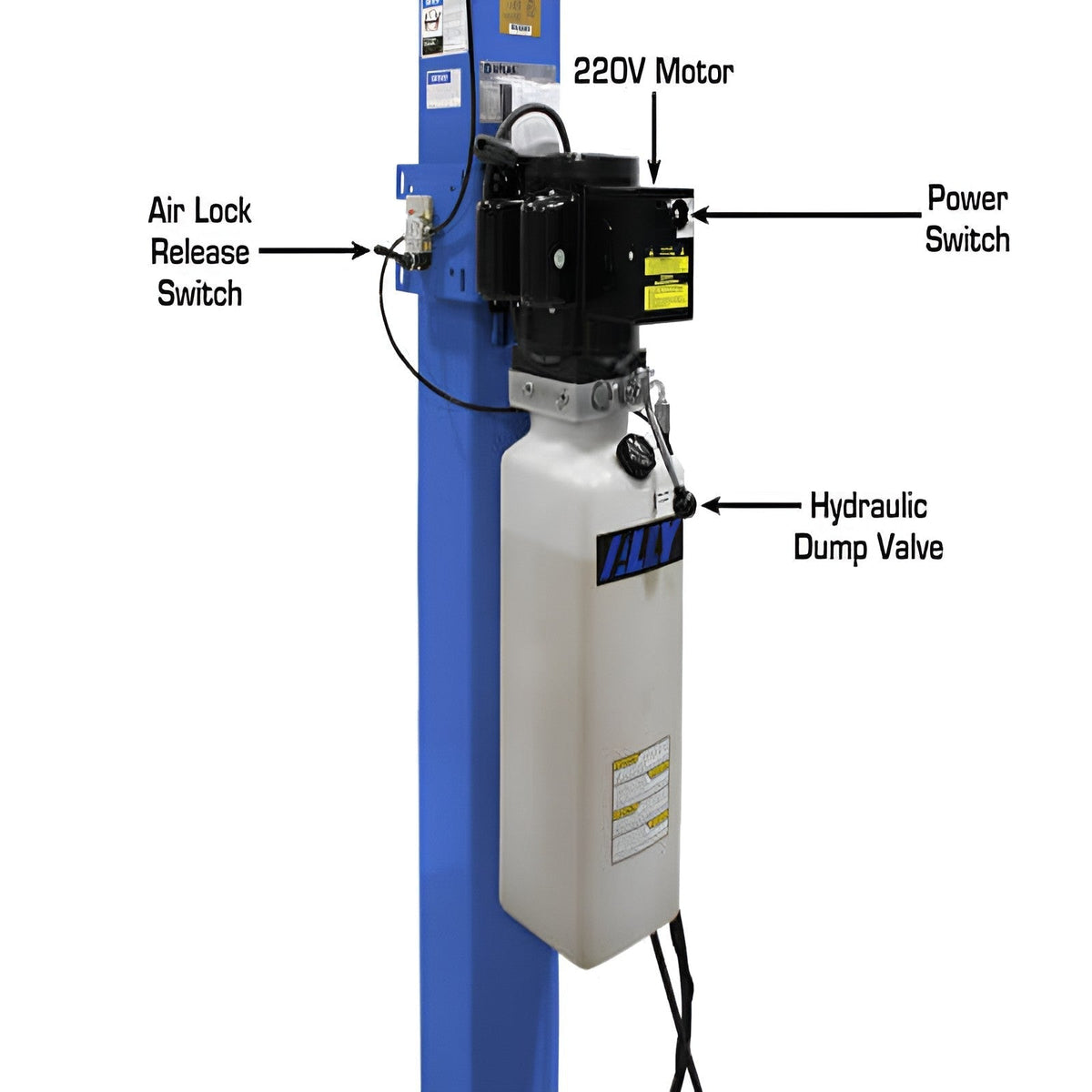

With a hefty 14,000 lb capacity and a 76 1/2" lift height, it handles everything from compact cars to light commercial vehicles. The ALI certification ensures you're not just meeting safety standards; you're exceeding them. But here's where it gets interesting: The included RJ7000 Rolling Bridge Jacks, each with a 7,000 lb capacity, turn wheel service into a breeze. And with a lifting range from 36" to 45 1/2", they're as flexible as a yoga instructor. The ALLY Hydraulic AL2650 power unit, with its high-silver-content windings, runs cooler and more efficiently than your morning espresso machine. From its 205 1/2" long runways to its air-operated single point lock release, every feature of the PVL14 is designed to boost your productivity. With the Atlas Platinum PVL14 Combo, you're setting the pace.

PVL14 Combo Specifications:

• Capacity: 14,000 lb.

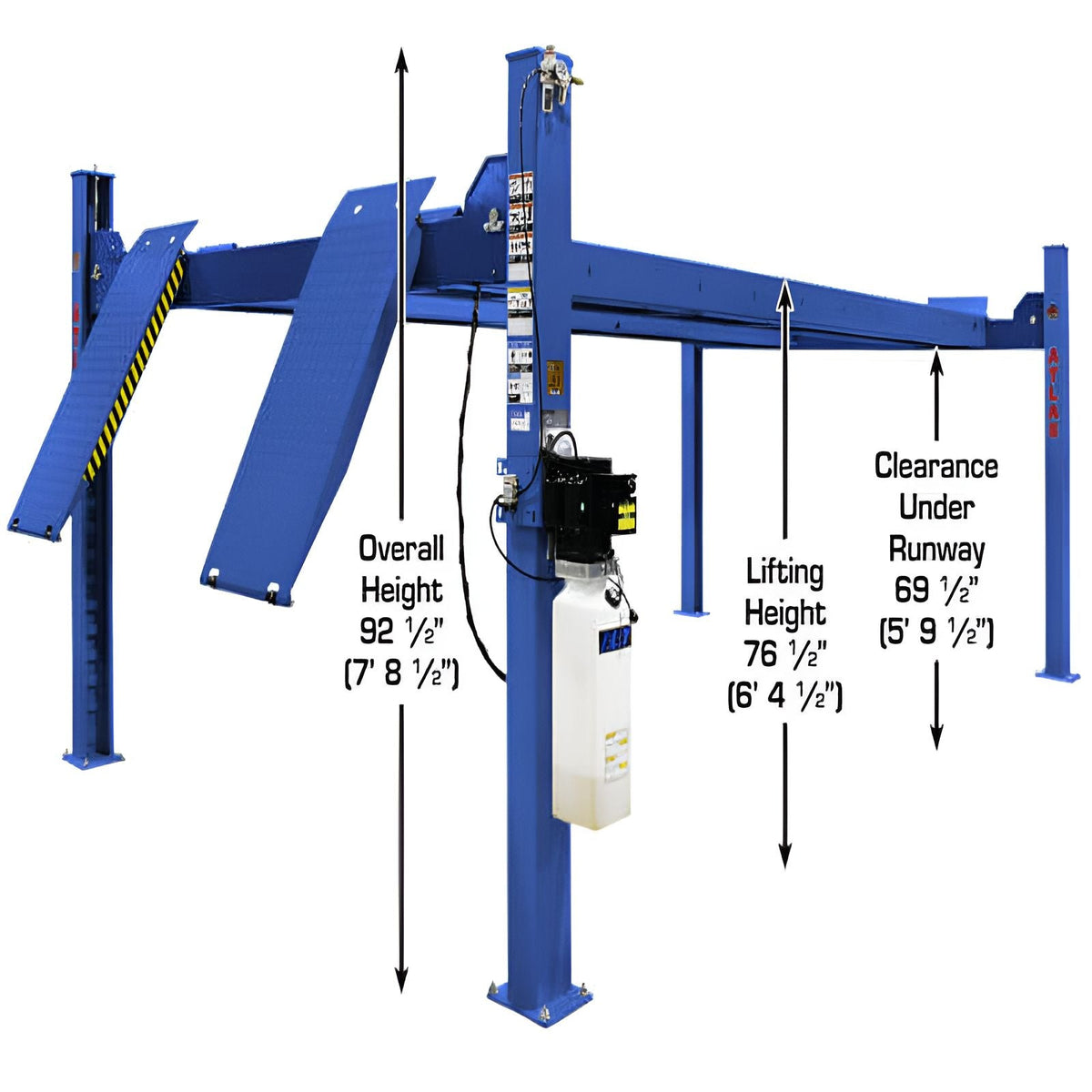

• Lifting Height: 76 1/2" (6' 4 1/2")

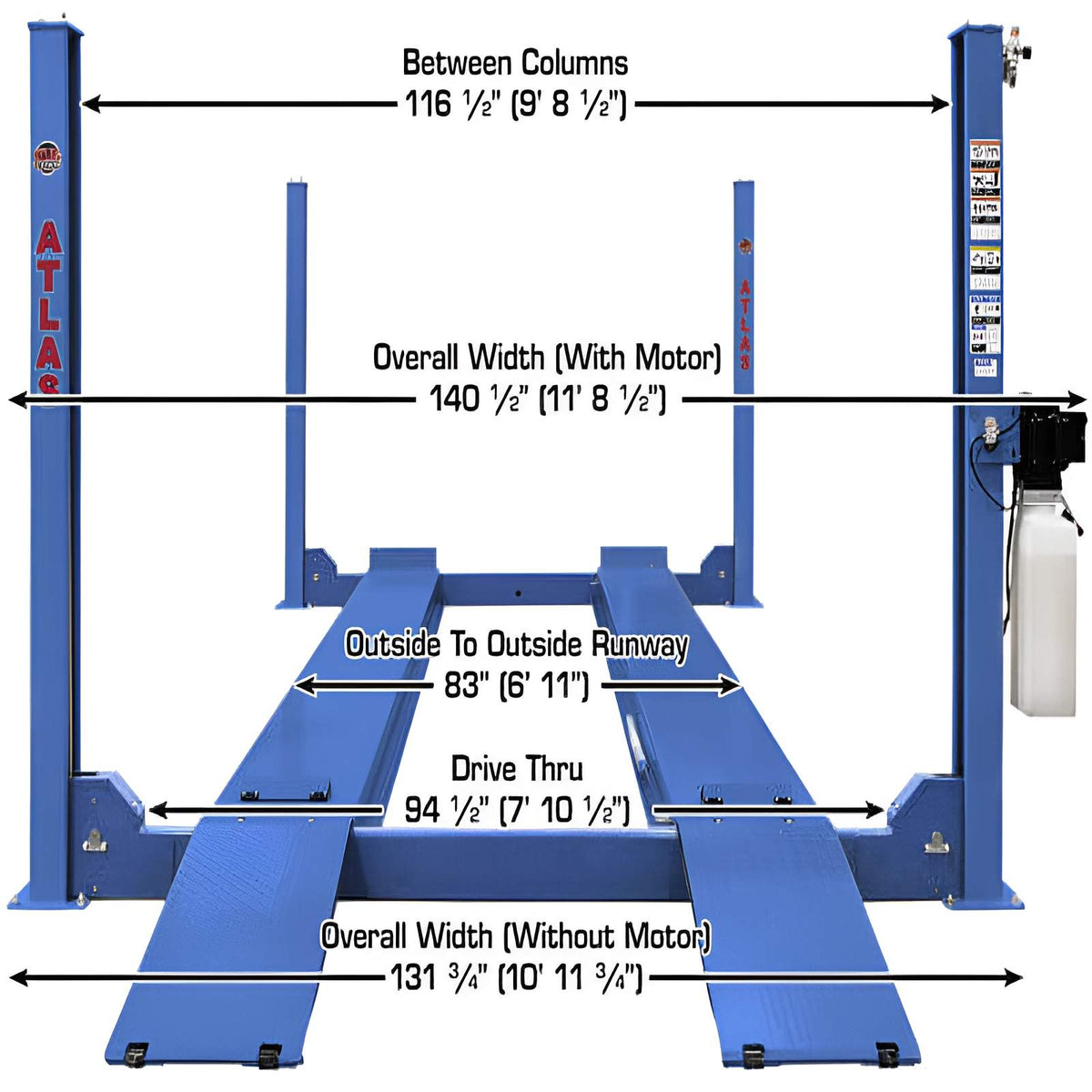

• Overall Width of Columns (Without Motor): 131 3/4" (10' 11 3/4")
• Overall Width of Columns (With Motor): 140 1/2" (11' 8 1/2")

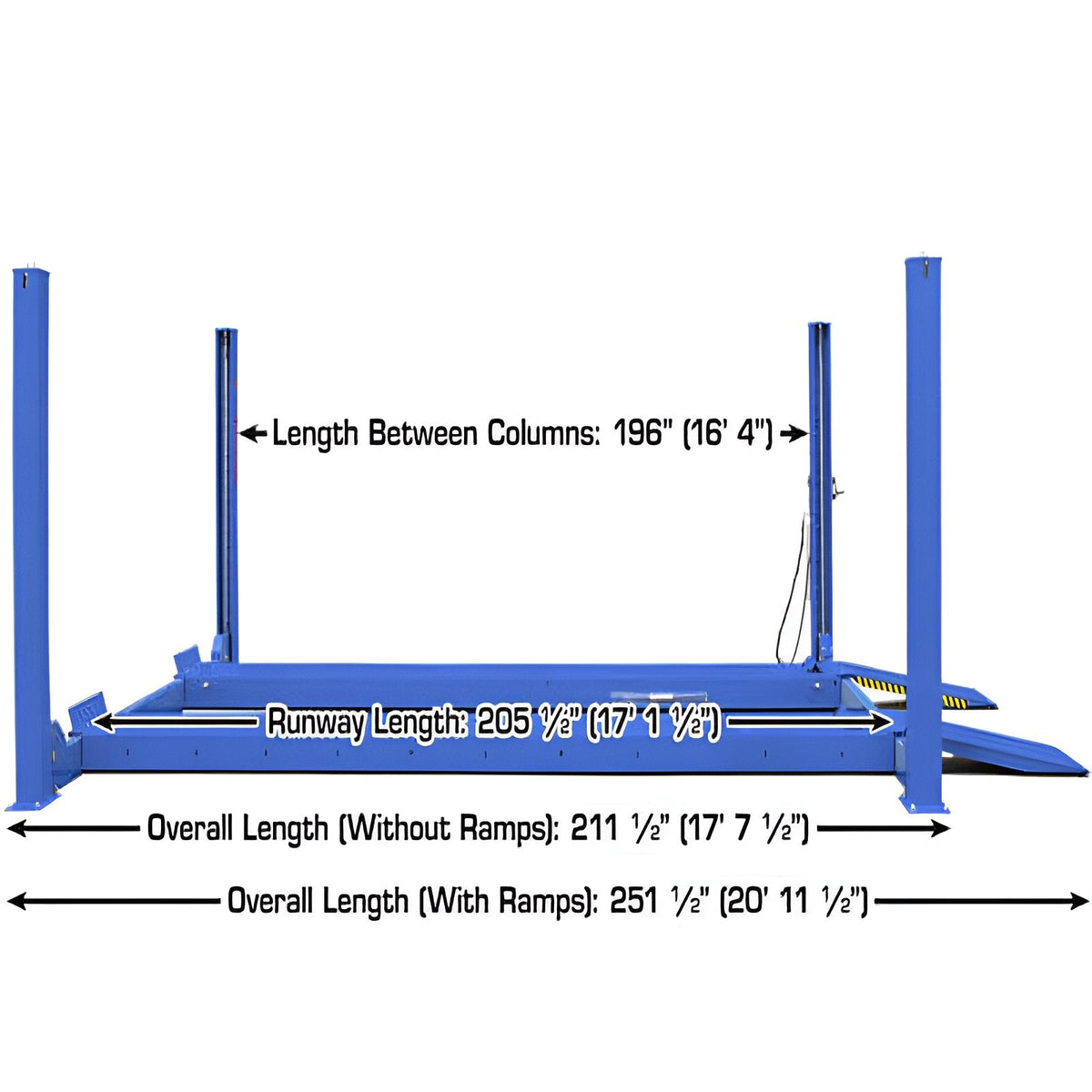

• Overall Length with Approach Ramp: 251 1/2" (20' 11 1/2")
• Length Between Columns: 196" (16' 4")

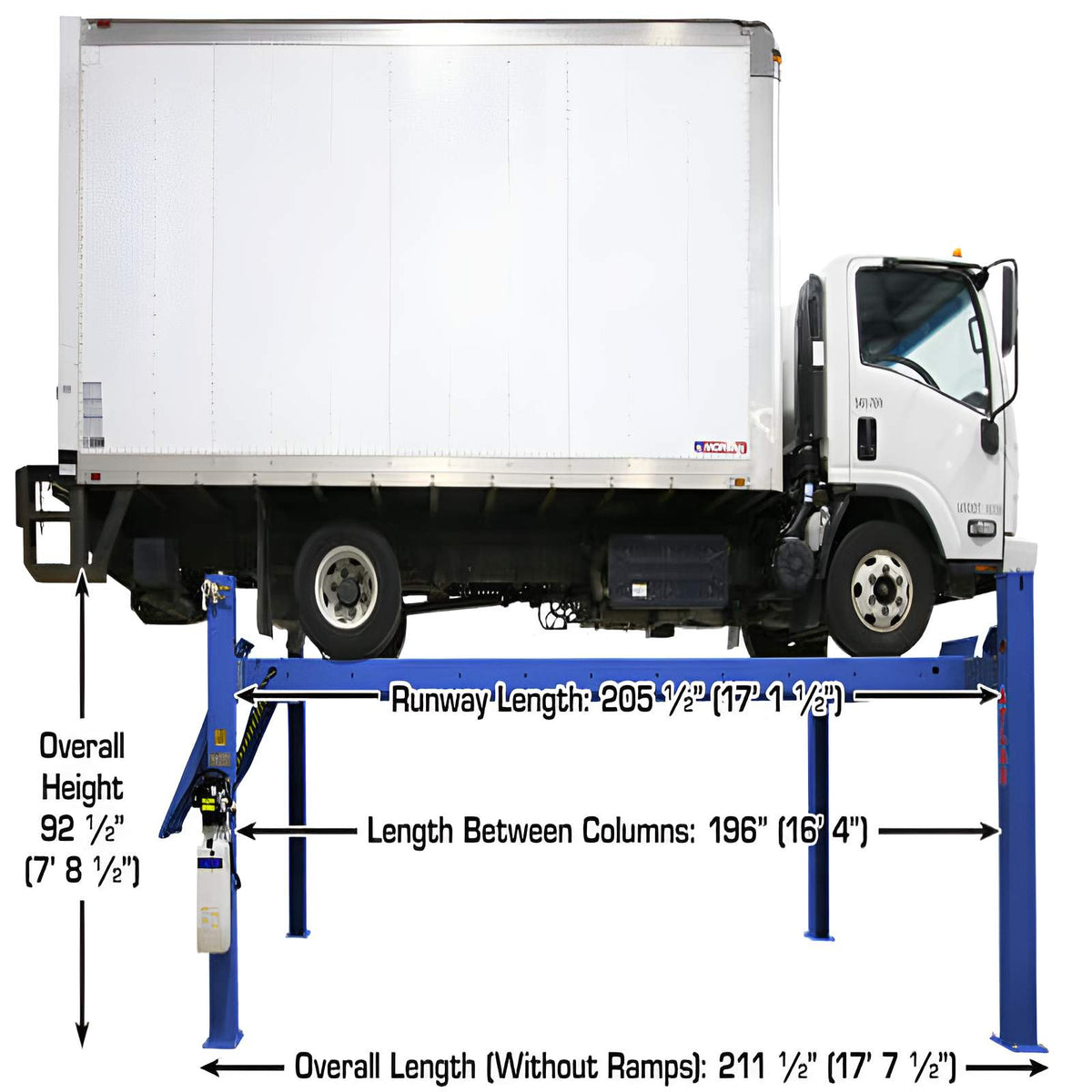

• Runway Length: 205 1/2" (17' 1 1/2")

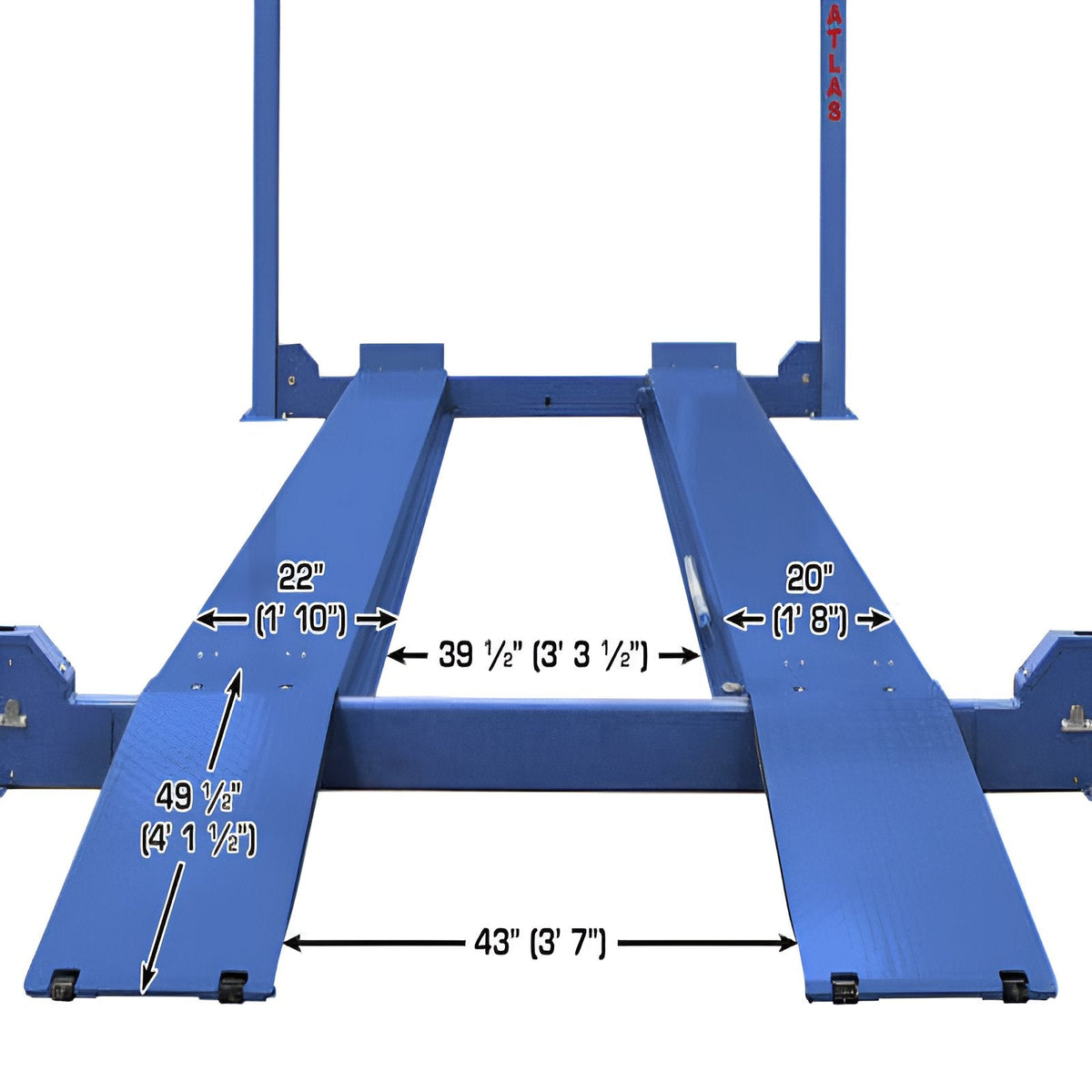

• Runway Width: 20"
• Thickness of Runway: 7"
• Width Between Runways: 42 3/4" (w/ Rail 39 1/4")
• Outside Runway to Outside Runway: 83 1/8" (6' 11 1/8")
• Clearance Under Runways: 69 1/2" (5' 9 1/2")

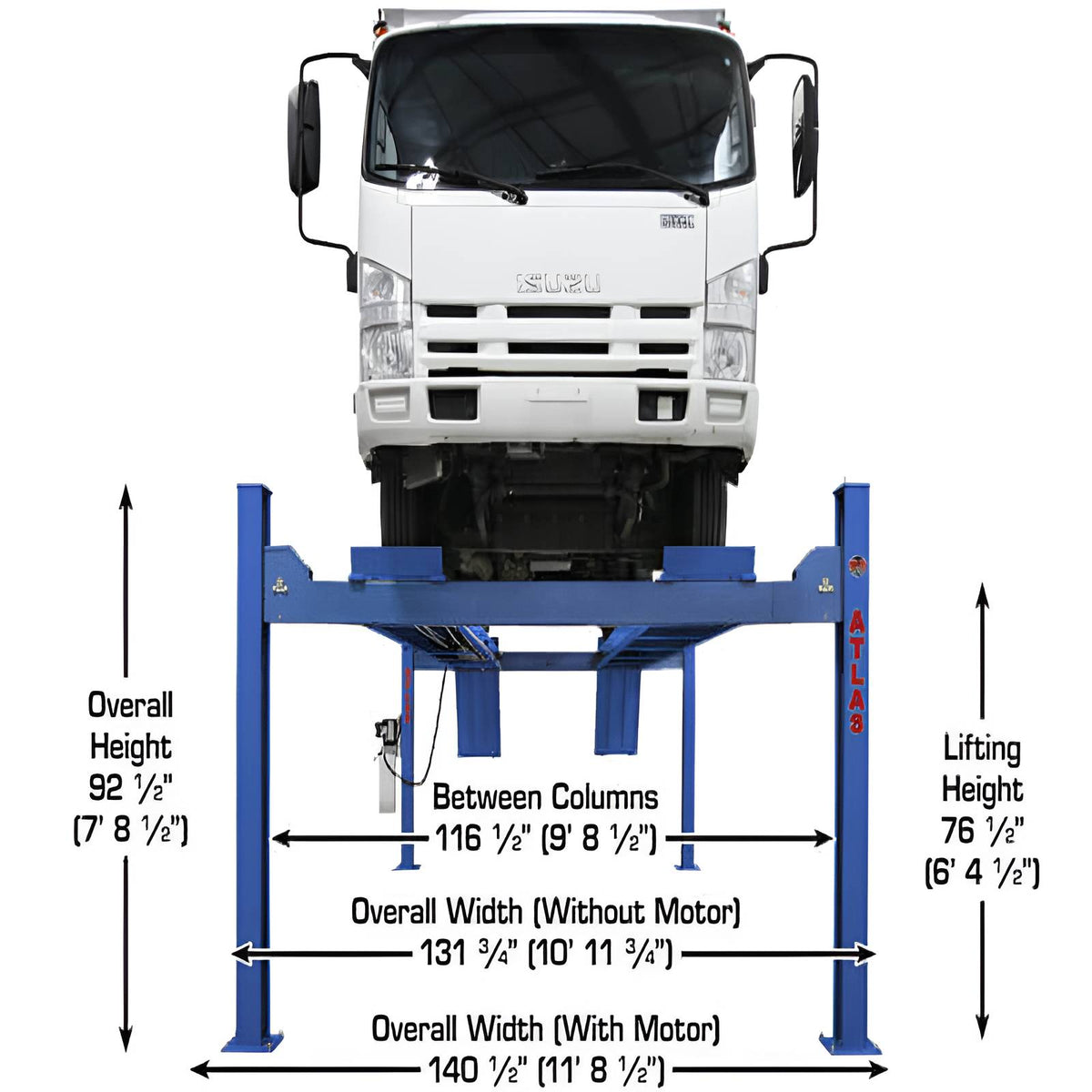

• Clearance Between Columns: 116 3/8" (9' 8 3/8")
• Height of Columns: 92 1/2" (7' 8 1/2")
• Maximum Wheel Base: 195" (16' 3")
• Drive Thru: 94 1/2" (7' 10 1/2")
• Air Requirement: 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
• Motor/Electrical Requirement: 220 volt single (1) phase. A 30 amp breaker is recommended
• Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight: 2,800 lbs.
• Concrete Requirement: Minimum of 6" with a 3000 psi rating

Atlas PVL14 Combo Special Features:

• ALI Certified Lift
• 14,000 lb. Capacity
• Heavy Duty, Commercial Grade
• Extra Tall, Extra Wide & Extra Long
• Adjustable Lock Ladder Design
• Higher Quality Powder Coat Finish
• Air Operated Single Point Lock Release (External Air Supply Required)
• Lock Ladder Design
• Double Lock Safety System
• Powder Coat Finish
• Steel Approach Ramps Included
• Mounting Hardware Included
• Standard with Premium ALLY Powerunit
• 220volt/1phase Electric Operation (Requires a 30amp Breaker)
• Shipping Weight: 2,800 lbs.
• 5 yr Structural – 2 yr Hydraulic – 2 yr Powerunit Warranty

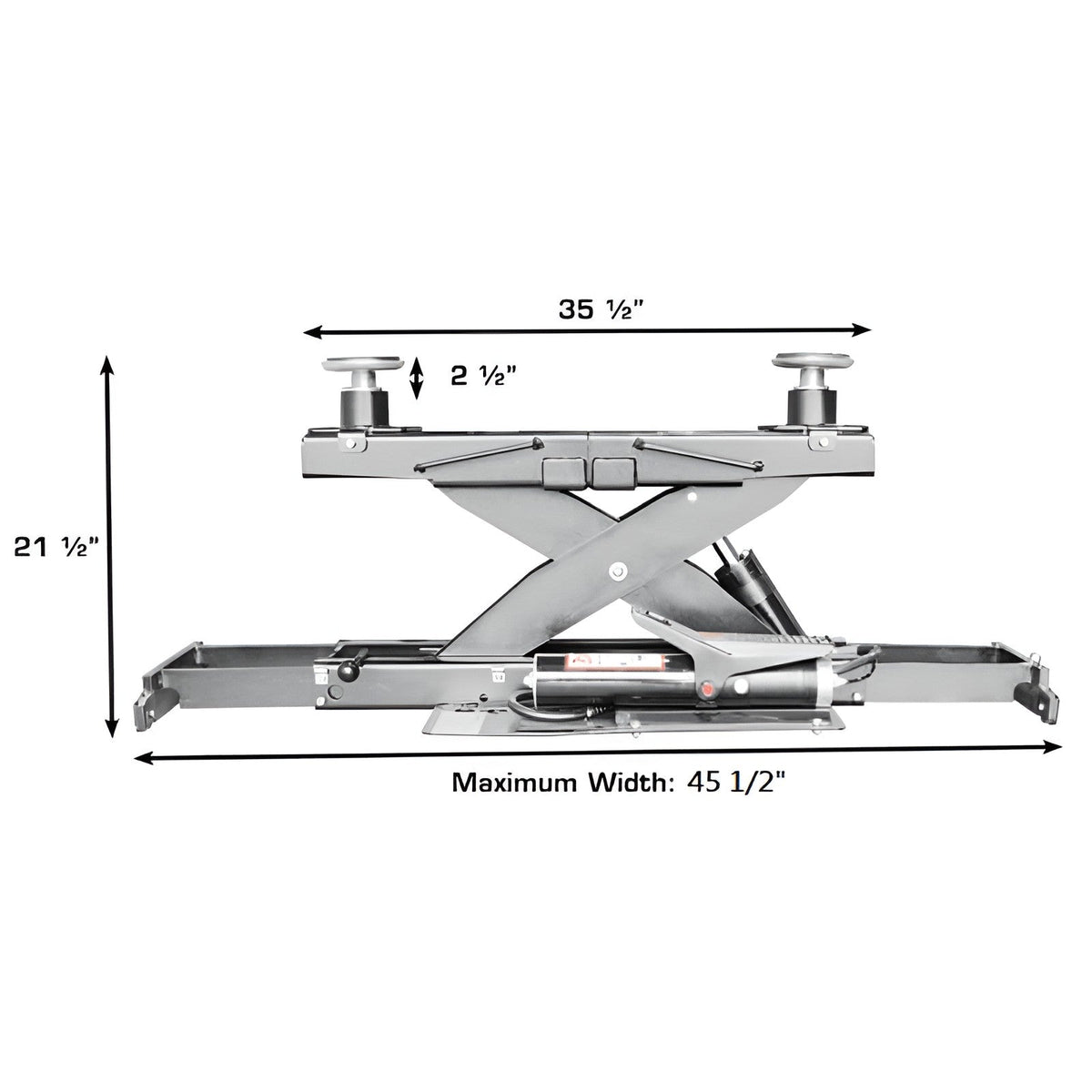

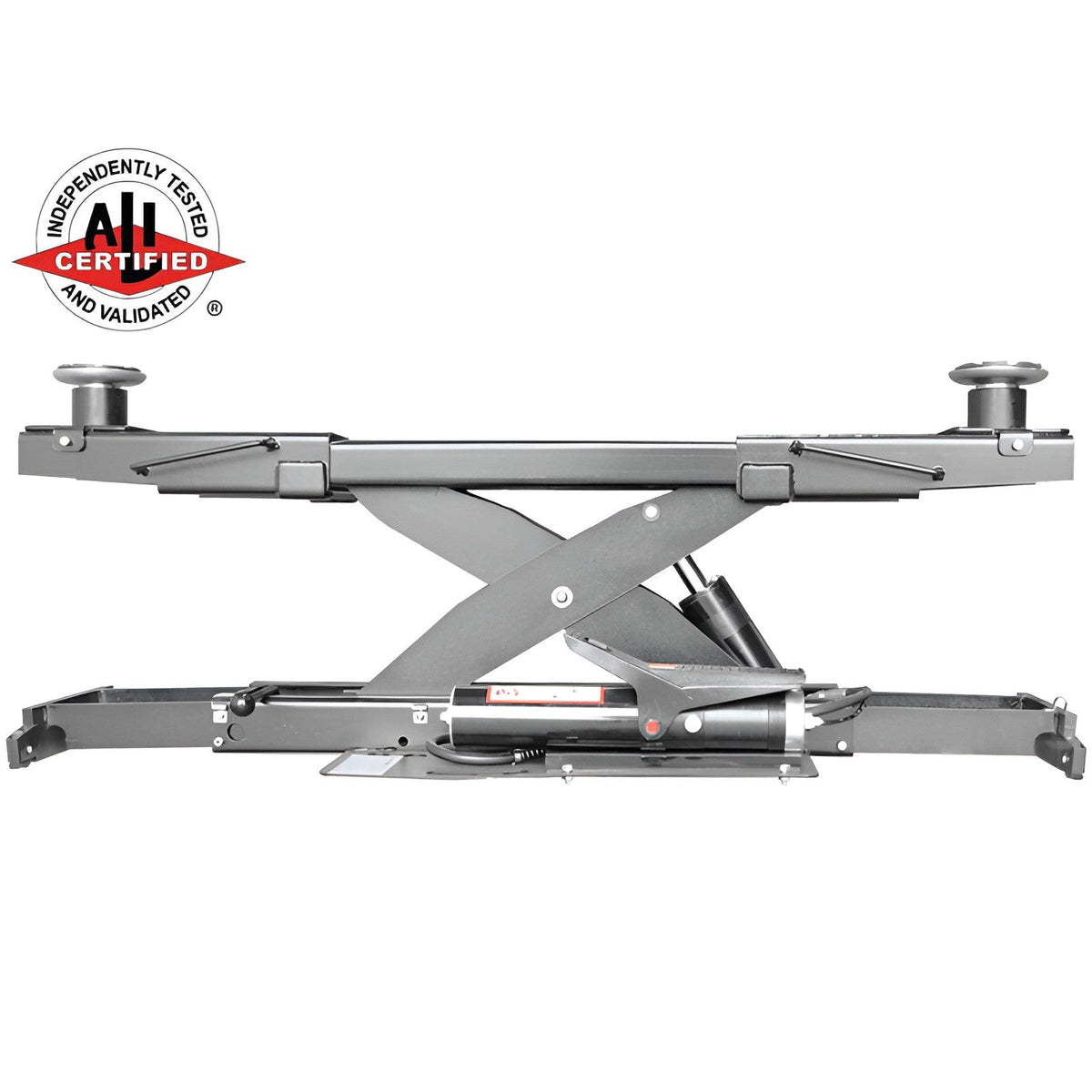

Platinum RJ7000 Rolling Jack Specifications

• Qty: 2
• Maximum Capacity: 7,000 lb.
• Maximum Width: 45 1/2" (3' 9 1/2")
• Minimum Width: 36" (3')
• Distance Between Runway Capability: 36"-45"
• Maximum Lifting Height (With Adapters): 27 1/2" (2' 3 1/2")
• Air Requirement: 70-115 PSI
• Shipping Weight: 400 lbs.
• Double Screw-Up Adapter Pad: 1 1/2" - 4"

PLATINUM RJ7000 Special Features

• 7,000 lb. Capacity
• Air/Hydraulic Operated
• Two Safety Lock Positions
• Double Screw-Up Adapters Included
• Compact Size with Low Profile
• Smooth Rolling Action
• Scissor mechanism allows for level lifting
• Powder Coated Finish
• 1 Year Parts Only Warranty

PVL14 Manual

   Atlas PVL14 Manual

   Atlas RJ7000 Manual

   Atlas RJ7000 Measuring Guide

Atlas Platinum PVL14 4 Post Vehicle Storage Lifts Optional Item (Sold Separately)

• Atlas Platinum PVL14
• Atlas RJ7000 Rolling Jacks

*Due to Extra Large Size, product cannot be delivered to a freight terminal.

Warehouse Pickup locations (No shipping charge):

• Atlanta, GA
• Dallas, TX
• Indianapolis, IN
• Phoenix, AZ
• Somerset, NJ
