Atlas PV12PX 12,000 lb 2-Post Lift

PV12PX 12,000lb Overhead 2-Post Lift by Atlas

Looking for a heavy-duty, no-nonsense lift that won't let you down? Meet the Atlas PV12PX, a 12,000 lb capacity overhead 2-post lift that's been delivering top-tier performance for years. Whether you're dealing with compact cars or long wheelbase trucks, this lift has you covered with its low pad height and massive 109" drive-through space (SEE: 2 post lift dimensions article), giving you the freedom to handle vehicles with extended mirrors or wider bodies. Designed for commercial use, it’s built like a tank, offering rugged durability at a price that won’t break the bank.

But that's not all—the PV12PX is packed with features that make your job easier. From extended symmetrical arms to its peg-style truck adapters, you’ll be safely lifting everything from passenger cars to box trucks without a hitch. And with adjustable height settings up to 14' 9", clearance is no longer a concern. Add in automatic arm restraints, a padded shut-off bar, and heavy-duty construction, and you’ve got yourself a professional-grade lift that gets the job done every time.

ATEXH-PV12PX Specification

• Capacity: 12,000 LB
• Overall Height: 165" (13’ 9”) or 177” (14’ 9”)
• Special Low Height: 150" (12’ 6”) (Requires Purchase of Extra Cables)
• Overall Floor Width: 150 3/4" (12’ 6 3/4”)
• Outside Column to Outside Column: 139 1/8" (11’ 7 1/8")
• Maximum Lift Height (Without Adapters): 72 1/4"

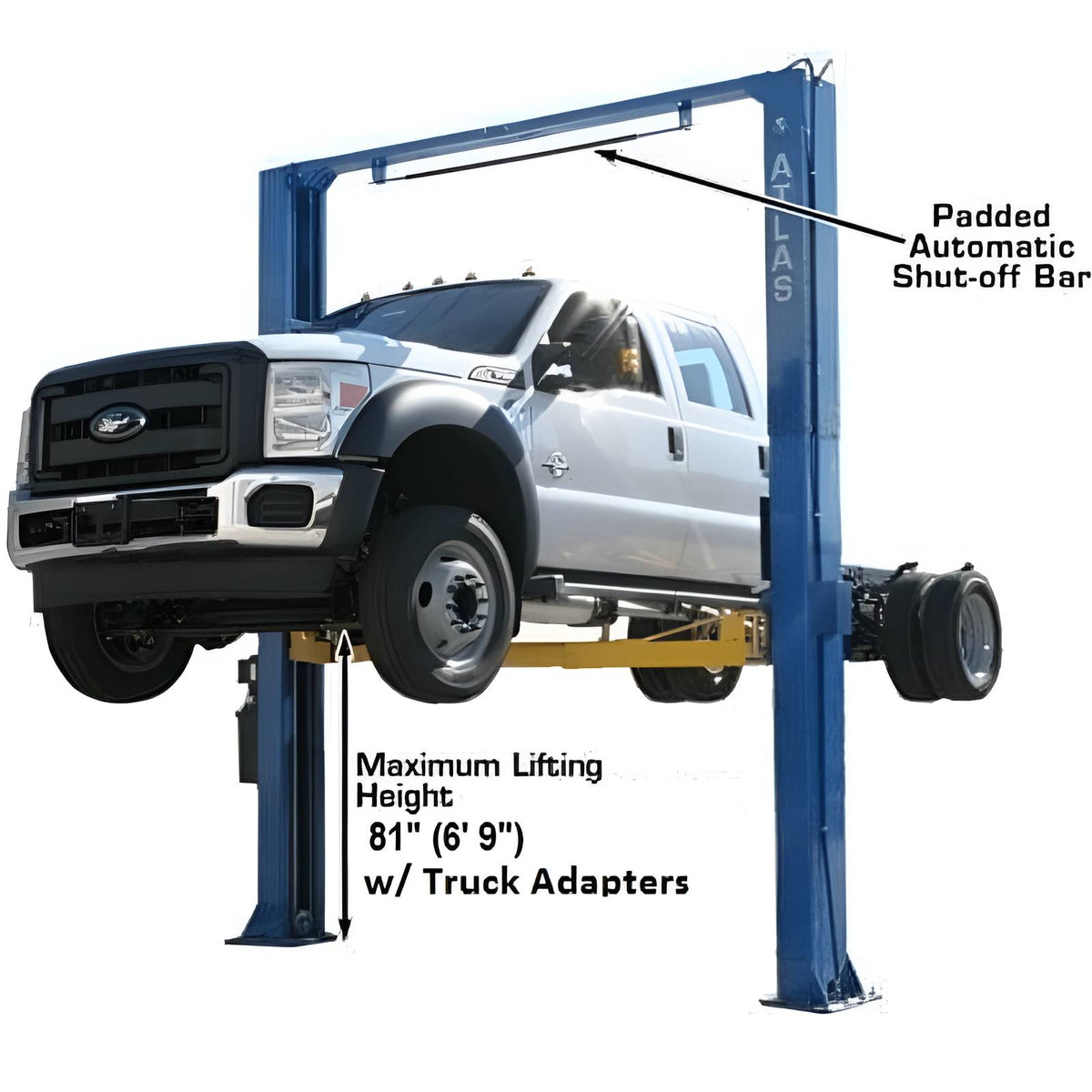

• Maximum Lift Height (With Adapters): 81"
• Minimum Arm Height: 4 1/2"
• Inside Column Width: 123 1/2” (10’ 3 1/2”)
• Drive Thru Width: 109 1/2" (9’ 1 1/2”)
• Column Size: 7 1/2" x 14 1/2"
• Column Thickness of Steel: 6mm

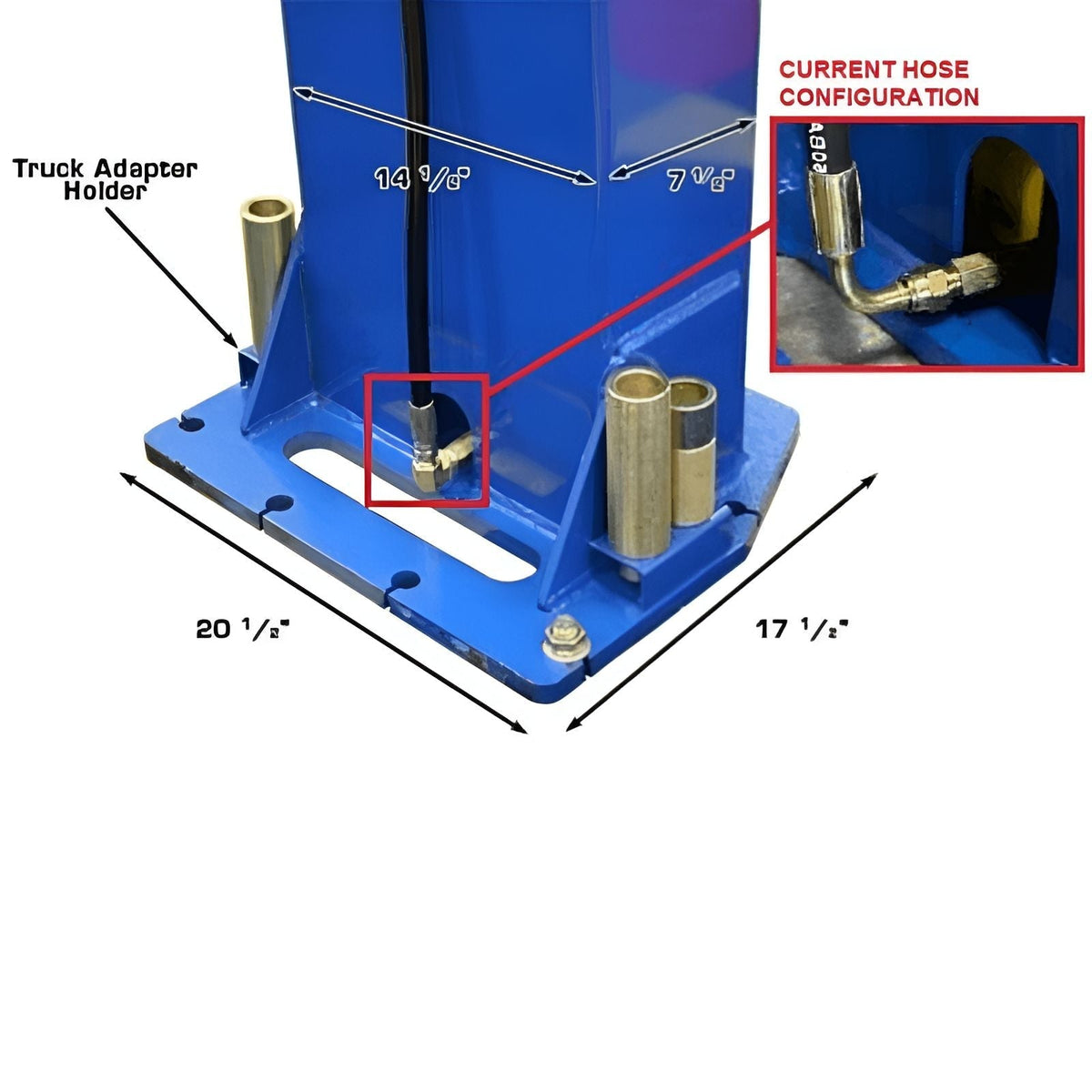

• Base of Lift Dimensions: 17 1/2" x 20 1/2"
• Motor/Electrical Requirement: 220 volt single (1) phase, 30 amp breaker recommended
• Oil Requirement: 3-5 Gallons AW32/AW46 (Not Included)

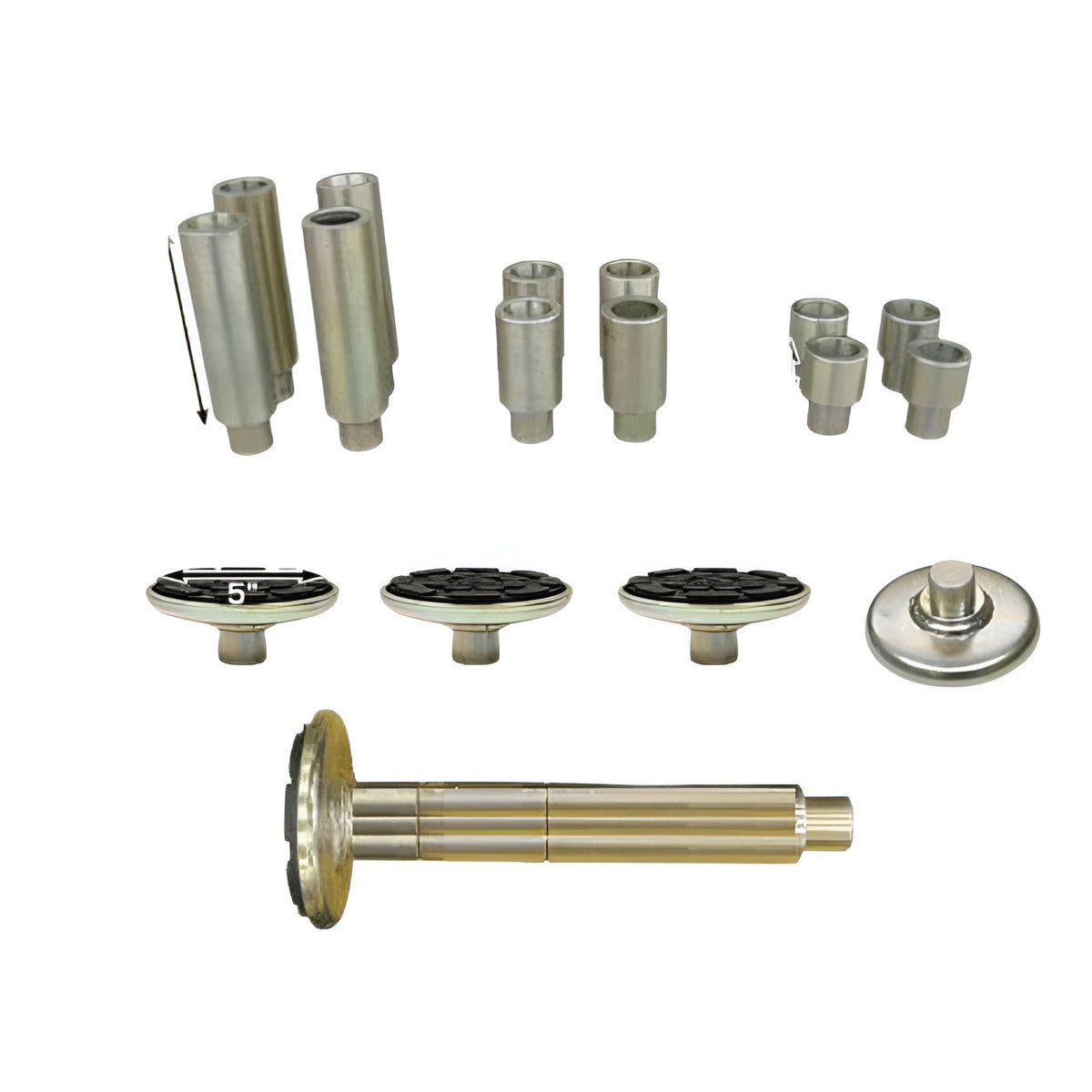

• Adapter Heights: 4 Each: 1.25”, 2.5”, 5”
• Arm Hole/Adapter Peg Size: 1.5”
• Shipping Dimensions: 114"L x 22" x 30" Tall - 2,160 LBS

Atlas 12,000 lb 2-Post Lift Special Features

• 12,000 lb. capacity
• Extra Tall & Extra Wide
• Commercial Grade
• Adjustable height 150″ (12′ 6″) or 165″ (13′ 9″) or 177″ (14′ 9″)
• Special low height 150″ (12′ 6″)  (Part No. ATEATPKP-217112 - sold separately)
• Symmetric arms
• Automatic Arm Restraints

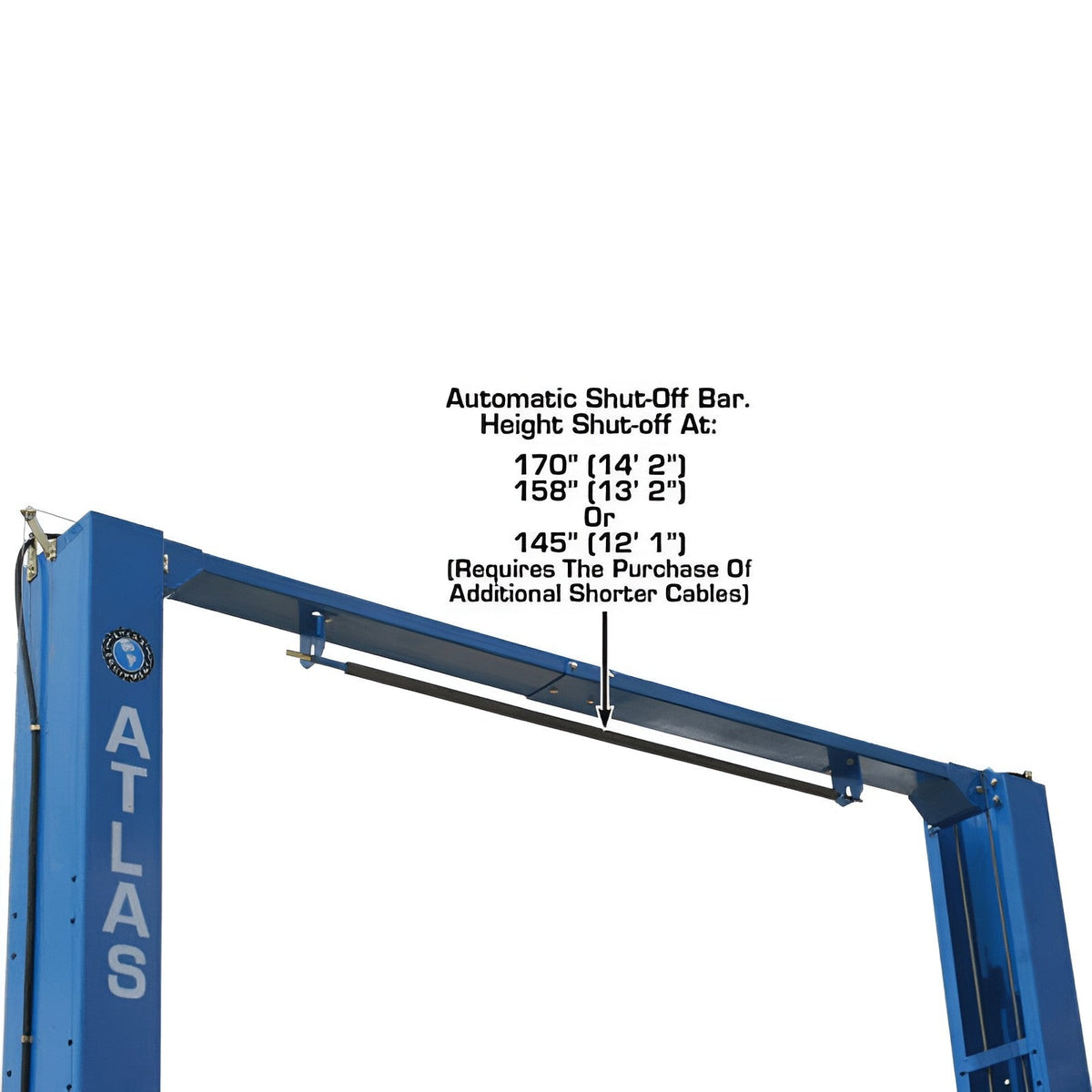

• “Padded” Shut-Off Bar
• Door Guards on Carriages

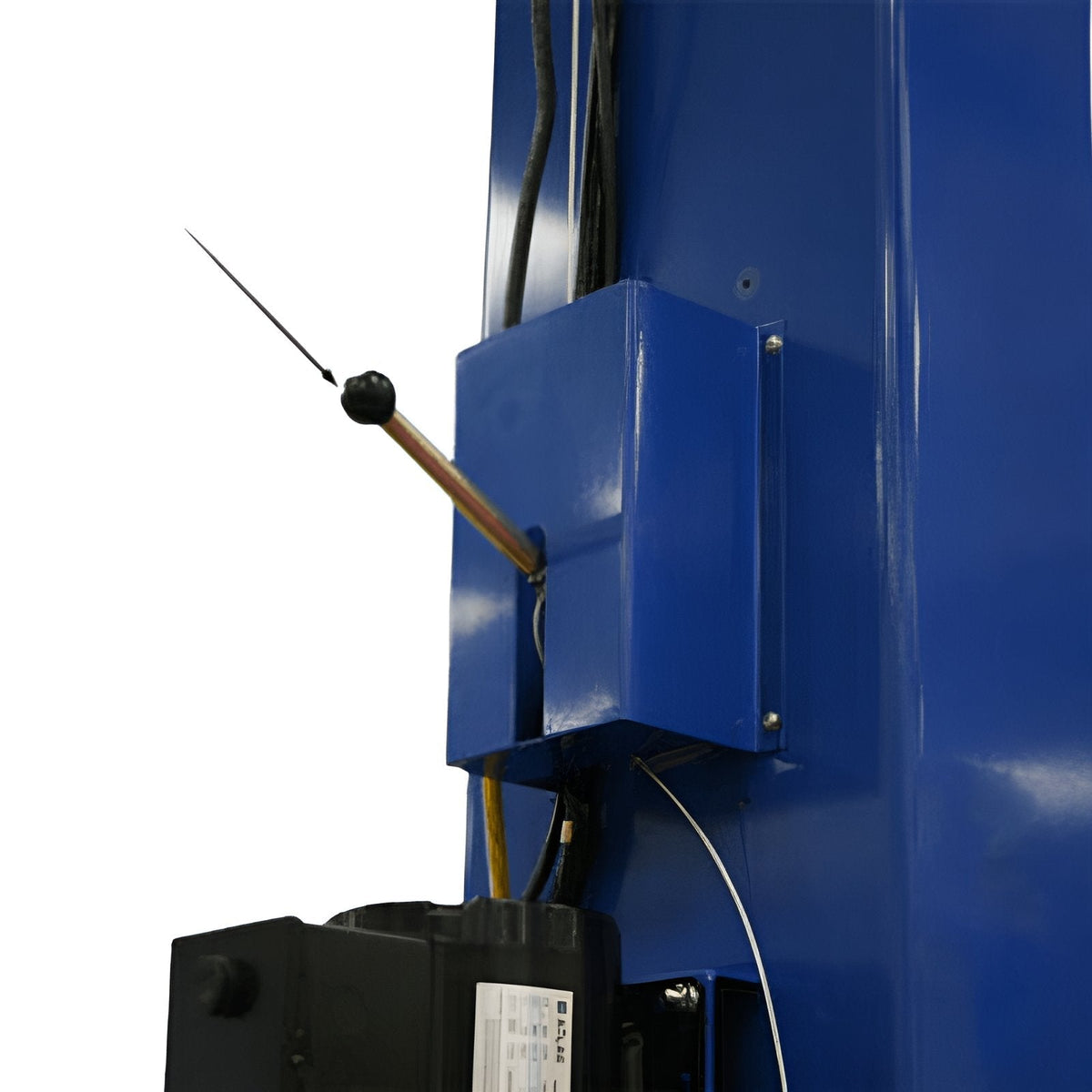

• Single Point Lock Release
• 2 Stage Arms
• Direct-Drive Cylinders
• Powder Coat Finish

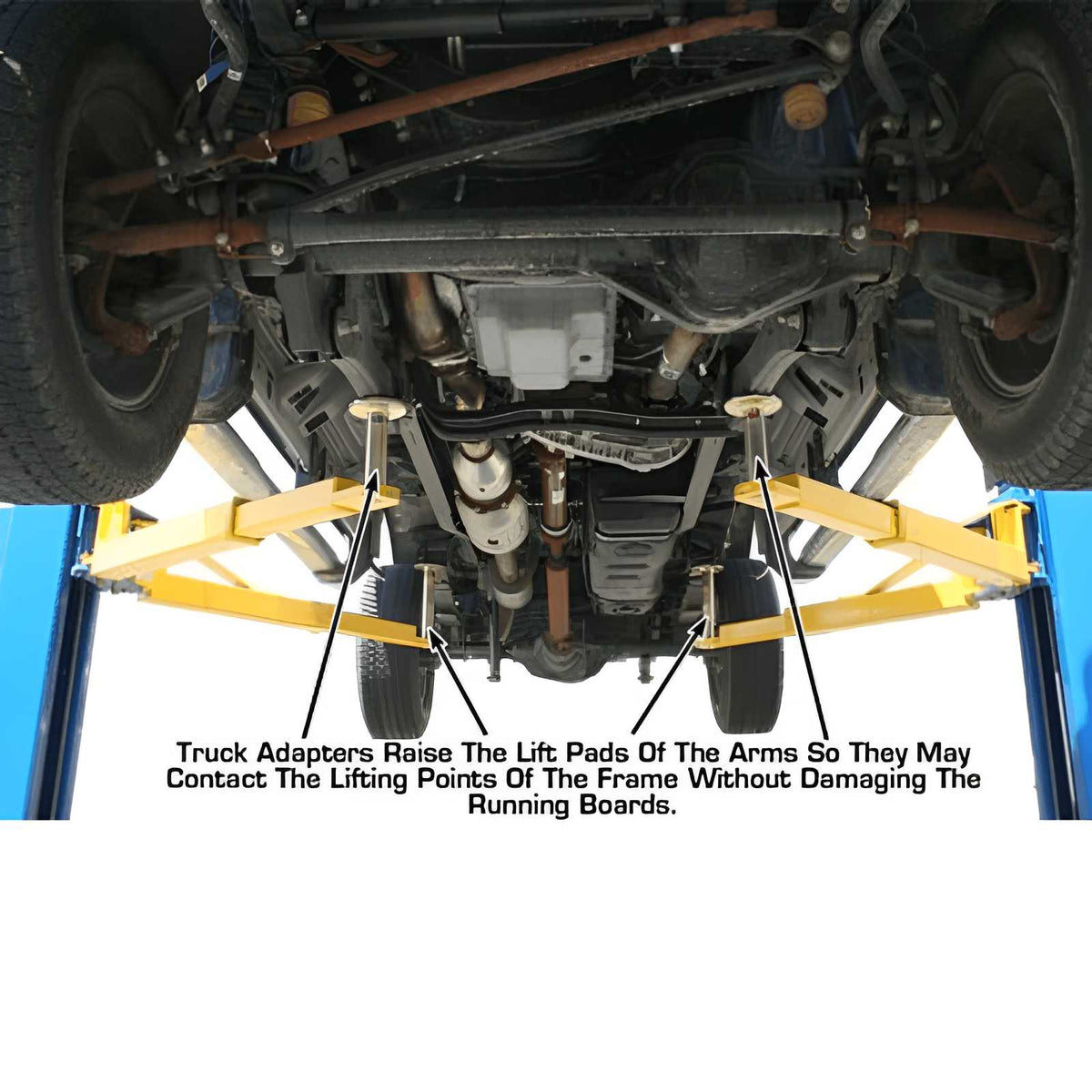

• Free 12 Piece Truck Adapter Set
• Mounting Hardware Included
• Shipping weight: 2,160 lbs.
• 5 yr. Structural – 2 yr. Hydraulic – 1 yr. Power Unit – Parts Only Warranty
