Atlas PVL12, 12,000 lb 2 Post Lift - Extra Wide & Tall - ALI Certified

Tired of fighting with your lift? Meet the Atlas® Platinum PVL12 – the professional’s choice for conquering even the toughest jobs. This isn’t just a lift; it’s a workhorse. With a massive 12,000 lb. capacity and ALI certification, it’s built to handle whatever you throw at it. Low pad height? Check. Extra-wide stance? You got it. Tall vans and box trucks? No problem. It's like having a superhero assistant in your garage. For more information on sizing requirements, read our post about 2 post lift dimensions.

No more struggling with oversized vehicles or worrying about your lift's capacity. The PVL12 is more than just equipment; it's a productivity boost. Its premium power unit, with heavy-duty components and a two-year warranty, ensures you’re backed by quality. Don’t let another frustrating lift job slow you down. Upgrade to the Atlas® Platinum PVL12. Your back (and your bottom line) will thank you.

ATEAP-PVL12 Specifications:

• Capacity 12,000 LB.
• Overall Height 165" (13' 9”) or 177” (14' 9”)
• Overall Floor Width 150 3/8" (12' 6 3/8”)
• Outside Column to Outside Column 139 1/8" (11' 7 1/8")
• Maximum Lift Height (Without Adapters) 73 5/8"
• Maximum Lift Height (With Adapters) 85 1/2"
• Minimum Arm Height 4 1/2"
• Inside Column 122 5/8” (10' 2 5/8”)
• Drive Thru 109 5/8" (9' 1 5/8”)
• Column Size 7 1/2" x 14 1/2"
• Column Thickness of Steel 6mm
• Base Of Lift 17 1/2" x 20 1/2"
• Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 2,425 LBS.
• Pallet Size:  113-1/2" Long x 46" Tall x 21-1/2" Wide
• Adapter Heights 4 Each 4.5”, 8.5”
• Arm Hole/Adapter Peg Size 1.57”

PVL12 12,000 lb 2 Post Lift Special Features:

• ALI Certified
• Commercial Grade
• Overhead, Open Floor Design

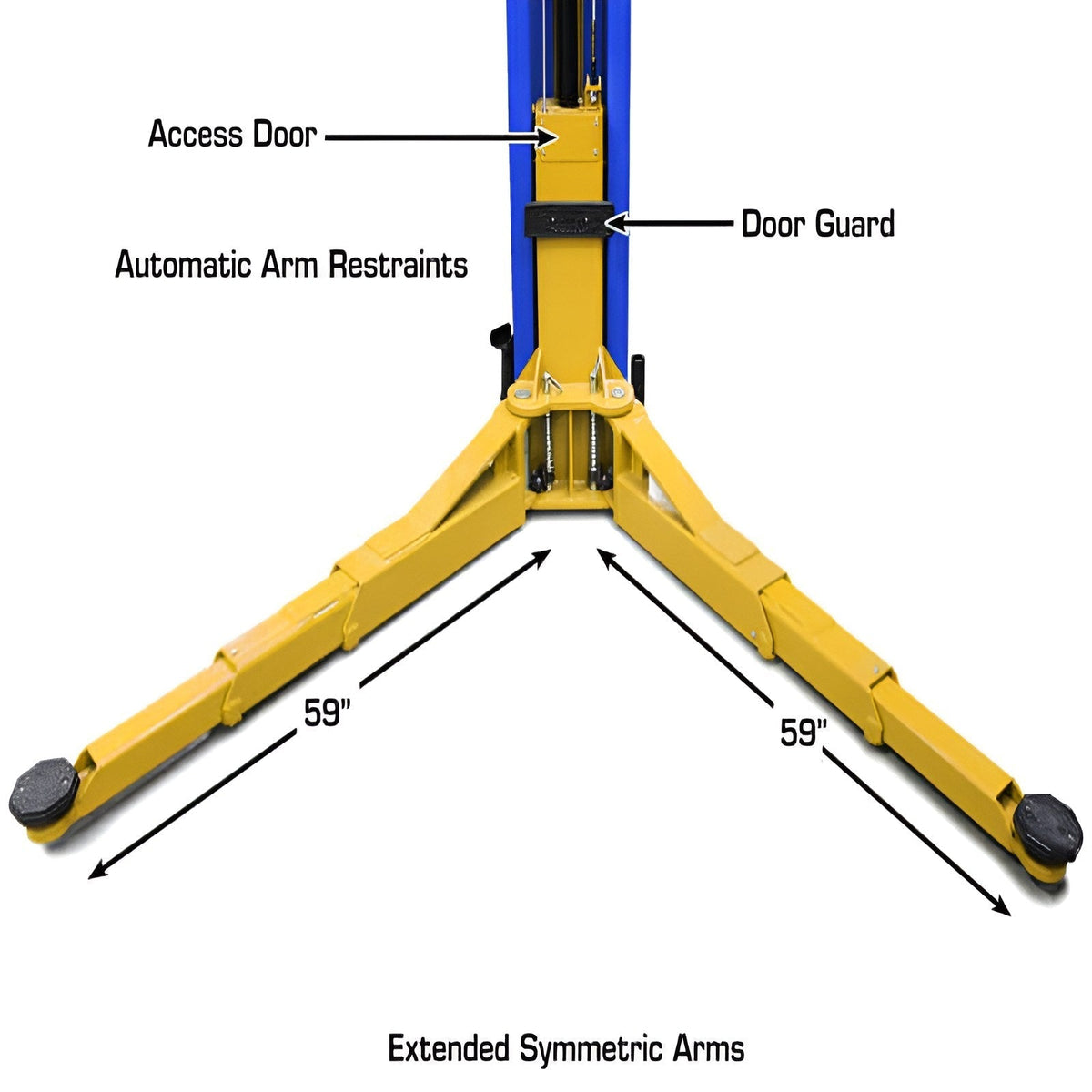

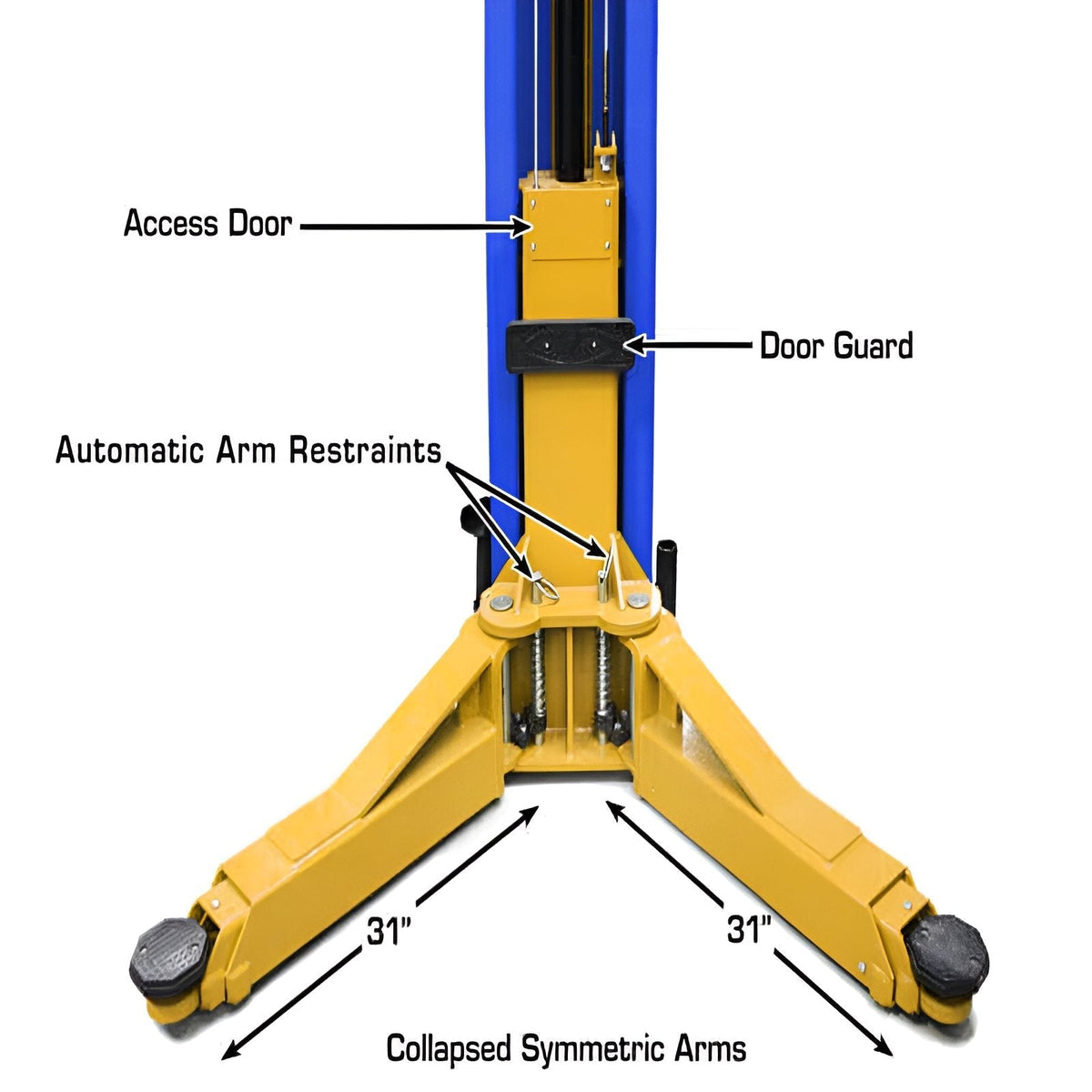

• 3-Stage Symmetric Arms
• Extra Wide & Extra Tall

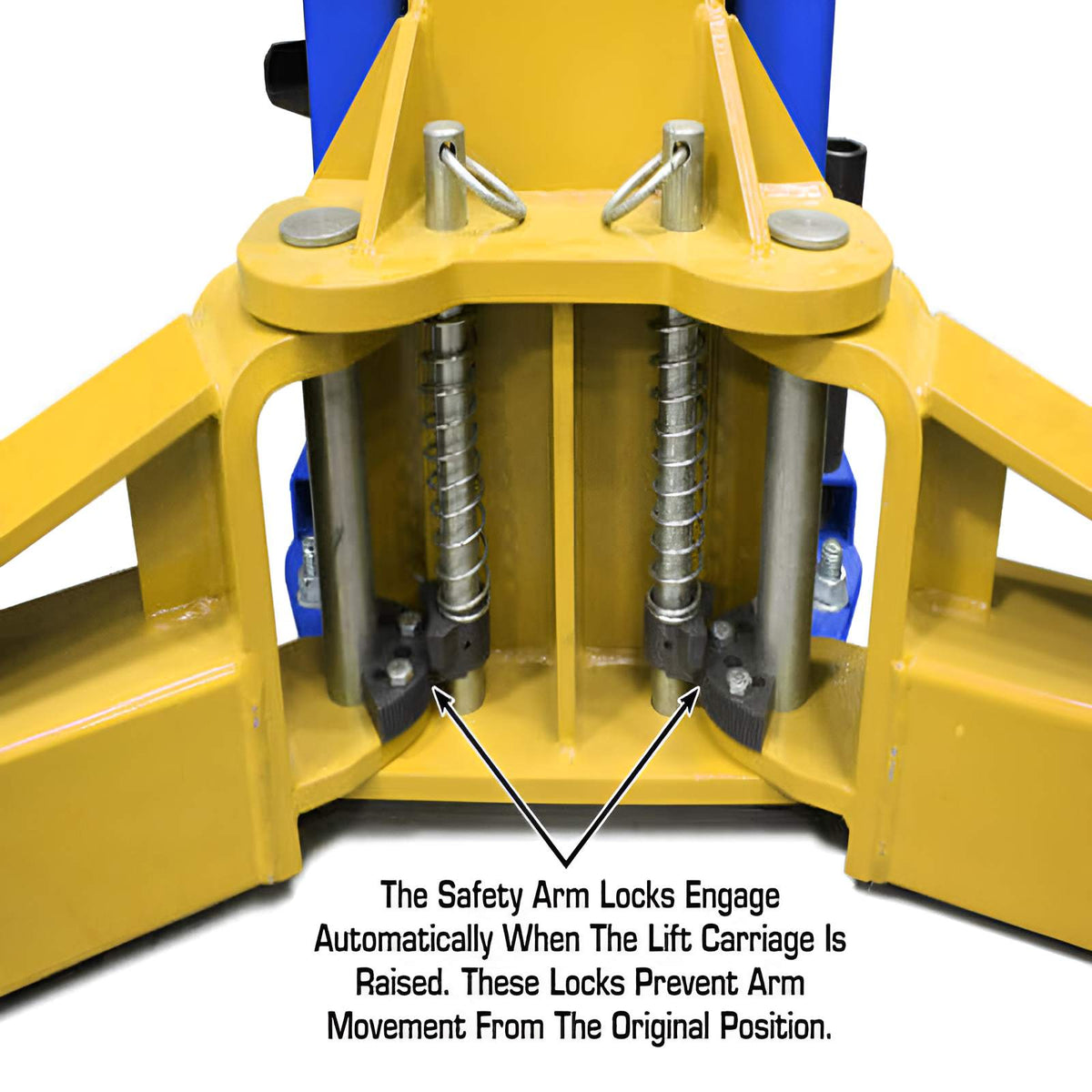

• Automatic Arm Restraints
• Lock Release: Single Point
• Direct Drive Cylinders
• Thick Door Guards on Carriage
• Padded Shutoff Bar
• Powder Coat Finish
• Secondary Lock System
• Warranty: 5 year Structural; 2 year Hydraulic; 2 year Power Unit ‐ Parts Only

• Unit Includes:
•     Mounting Hardware

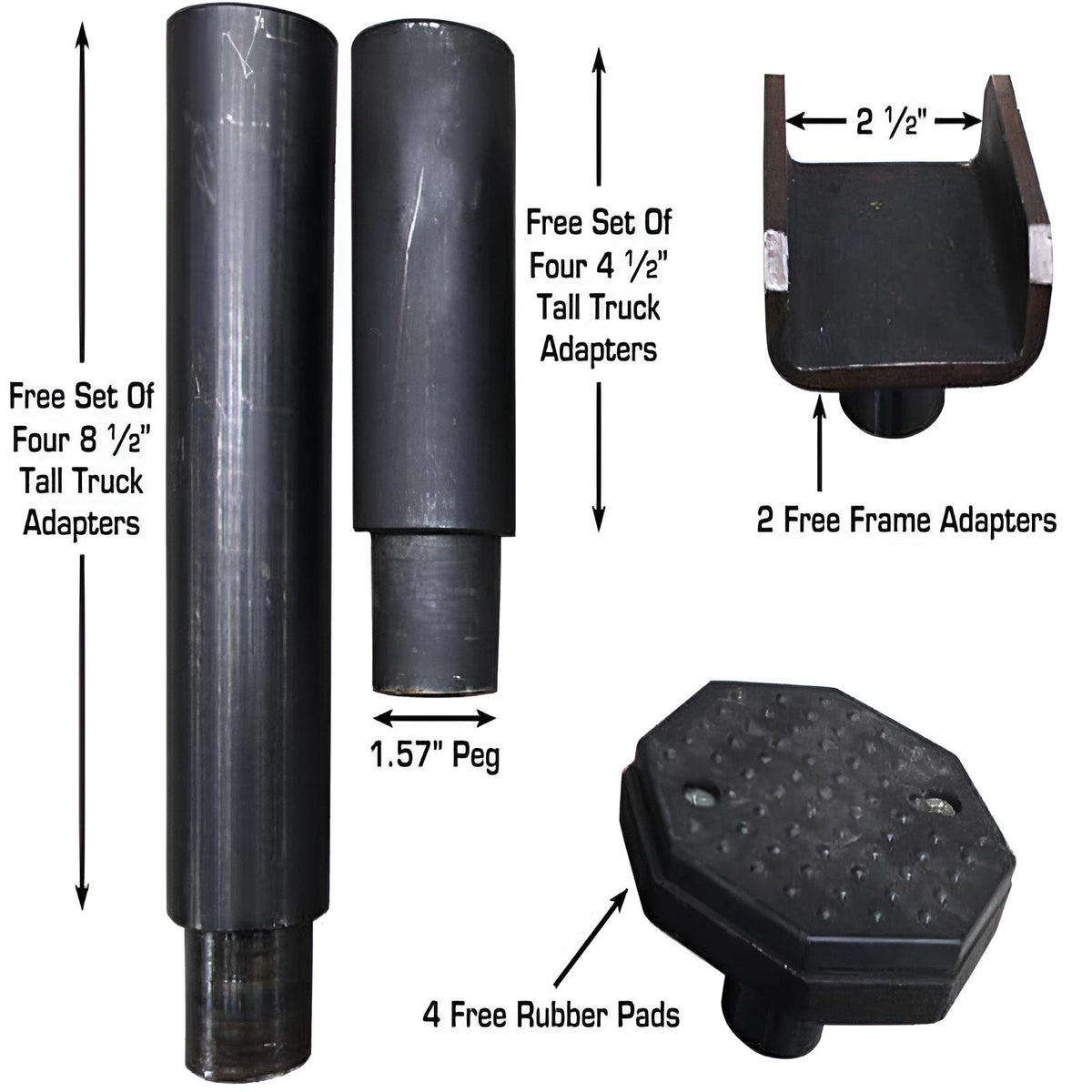

•     8-piece Truck Adapter Set

PVL12 Manual

   Atlas PVL12 Manual
