Atlas PVL9BP 9,000 lb 2 Post Lift - ALI Certified

Is your low-ceiling garage forcing you to turn away profitable jobs? Are you constantly dodging a pesky overhead beam, slowing down your work and risking injury? Your competitors are servicing a wider range of vehicles while you're stuck with limited options. Enter the Atlas® Platinum PVL9BP - the 9,000 lb capacity two-post lift that's revolutionizing low-ceiling garages. With a compact 111 1/8" column height and open-top design, it fits where others can't. Yet it still packs the punch to lift everything from compact cars to full-size pickups.

The PVL9BP's ALI Certification ensures top-notch safety, while its ALLY power unit, certified for both US and Canada, delivers reliable performance. With 3-stage symmetric arms and automatic restraints, it adapts to any vehicle effortlessly. The dual hydraulic chain-drive cylinders provide smooth, consistent lifting. And the cherry on top? A 5-year structural warranty that lets you lift with confidence.

Atlas Platinum PVL 9BP Specifications:

• Capacity 9,000 LB.

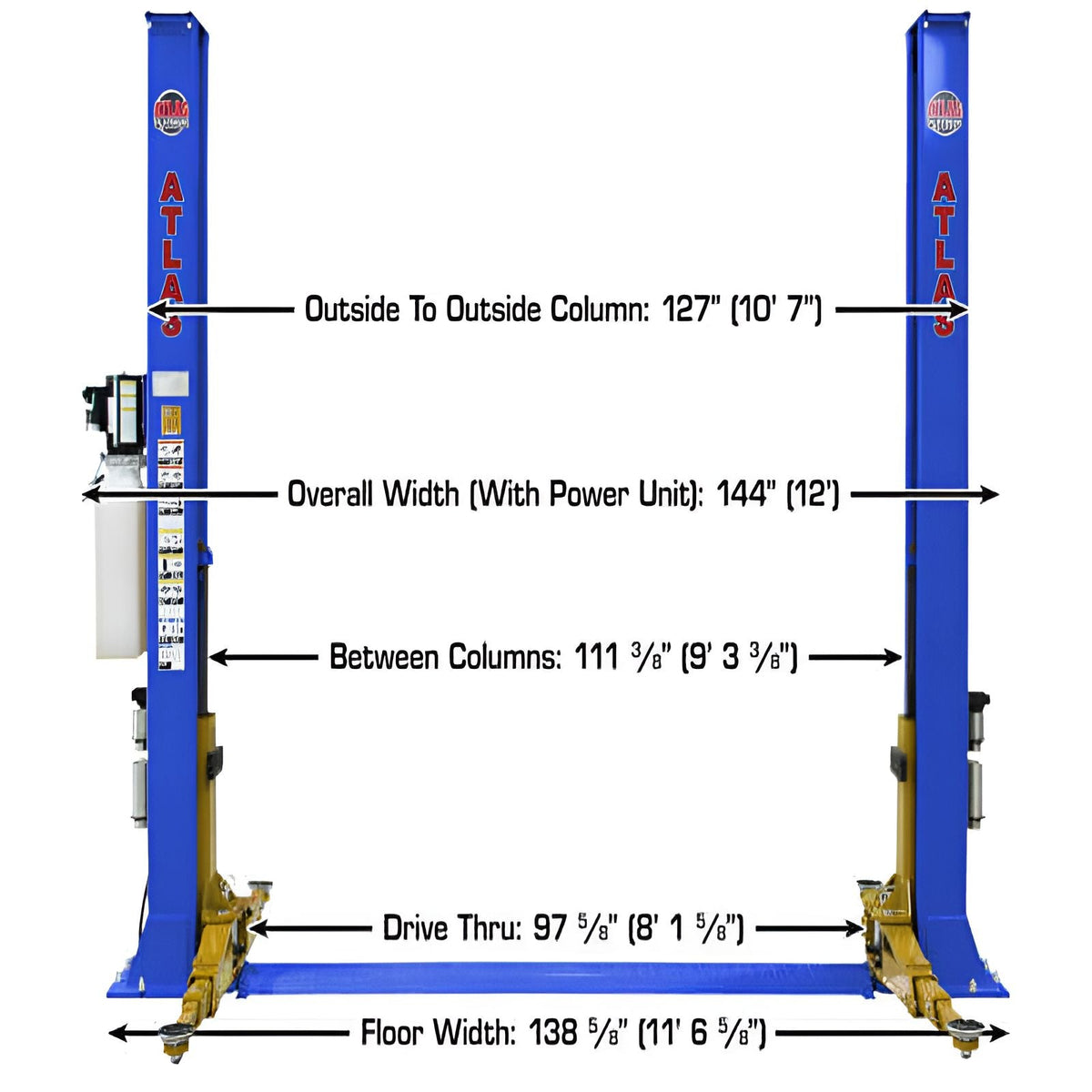

• Overall Height 111 1/8" (9’ 3 1/8")
• Overall Floor Width 138 5/8" (11’ 6 5/8")
• Outside Column to Outside Column 127 1/2" (10’ 7 1/2")
• Maximum Lift Height (Without Adapters) 74 3/4"
• Maximum Lift Height (With Adapters) 83 3/4"
• Minimum Arm Height 4 1/2"
• Inside Column 111 3/8” (9’ 3 3/8”)
• Drive Thru 97 5/8” (8’ 1 5/8”)
• Column Size 7 5/8" x 14 1/4"
• Column Thickness of Steel 6mm
• Base Of Lift 19 1/2" x 20 1/2"

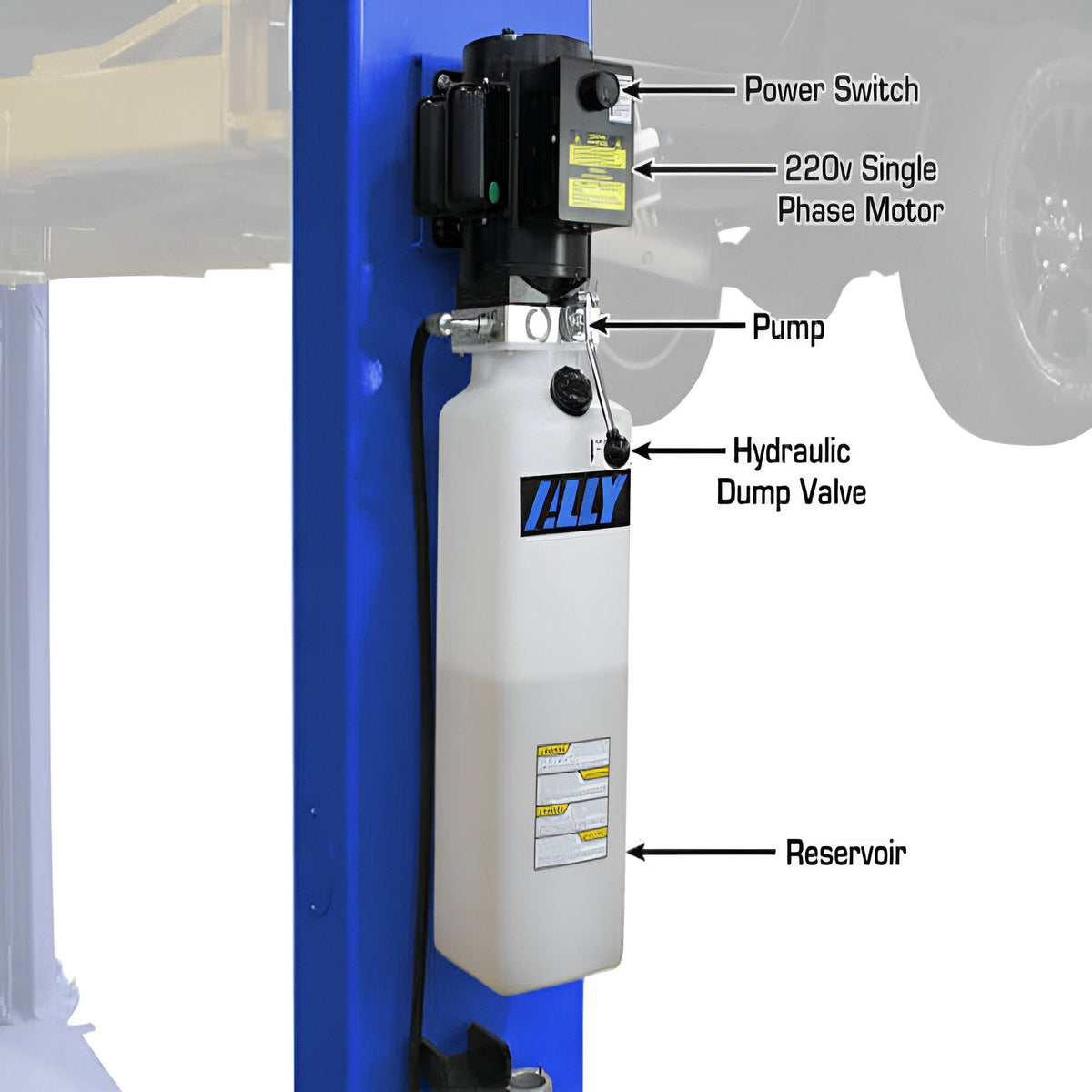

• Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 1,700 LBS.
• Pallet Size:  113" Long x 44" Tall x 22-1/4" Wide
• Adapter Heights 4 Each 3”, 6”
• Arm Hole/Adapter Peg Size 2”
• Requires a minimum of 6" of concrete with a 3000 psi. rating

ATEAP-PVL9BP Special Features:

• ALI Certified
• Commercial Grade
• Base Plate, Open-Top Design

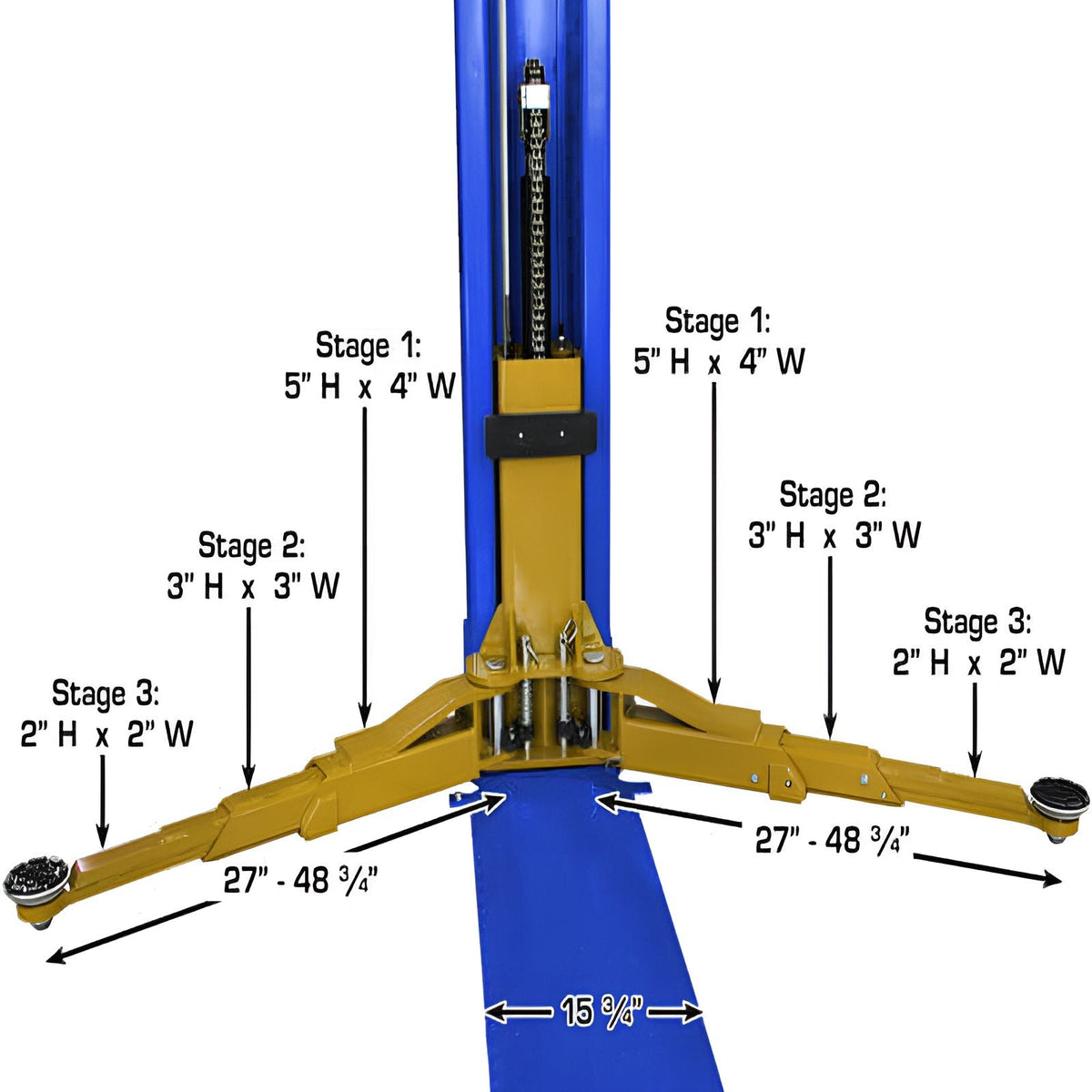

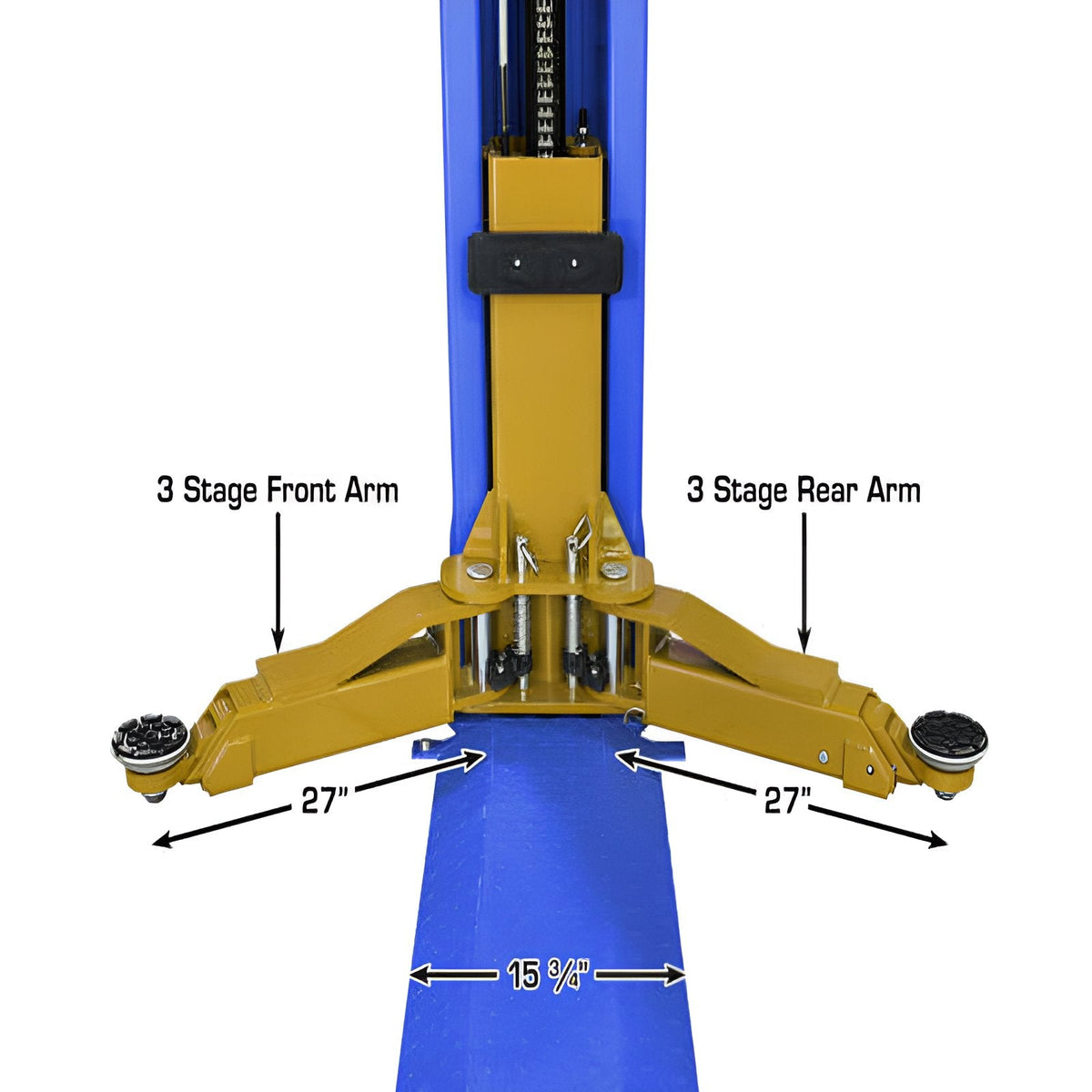

• 3-Stage Symmetric Arms
• Lock Release: Dual Point

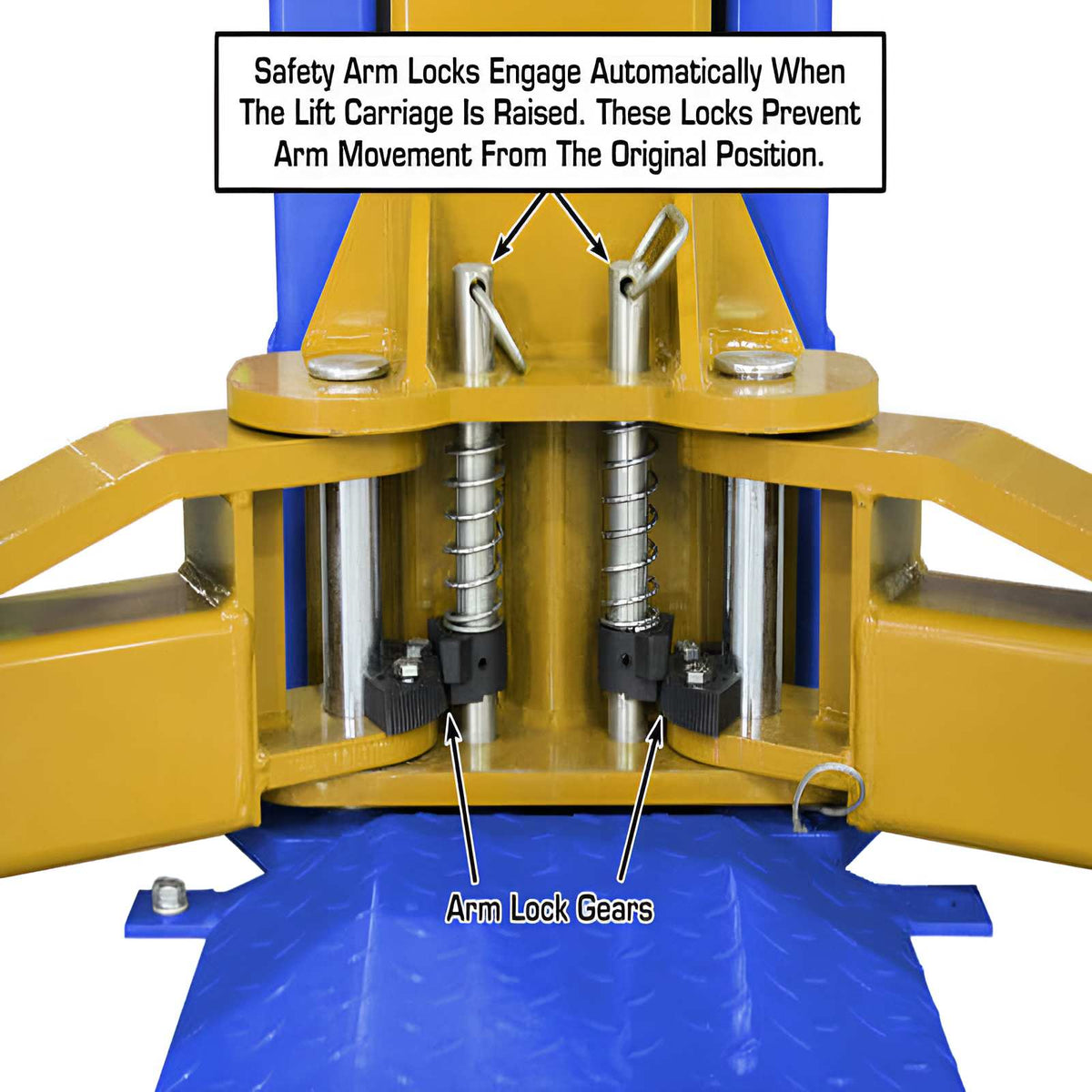

• Automatic Arm Restraints

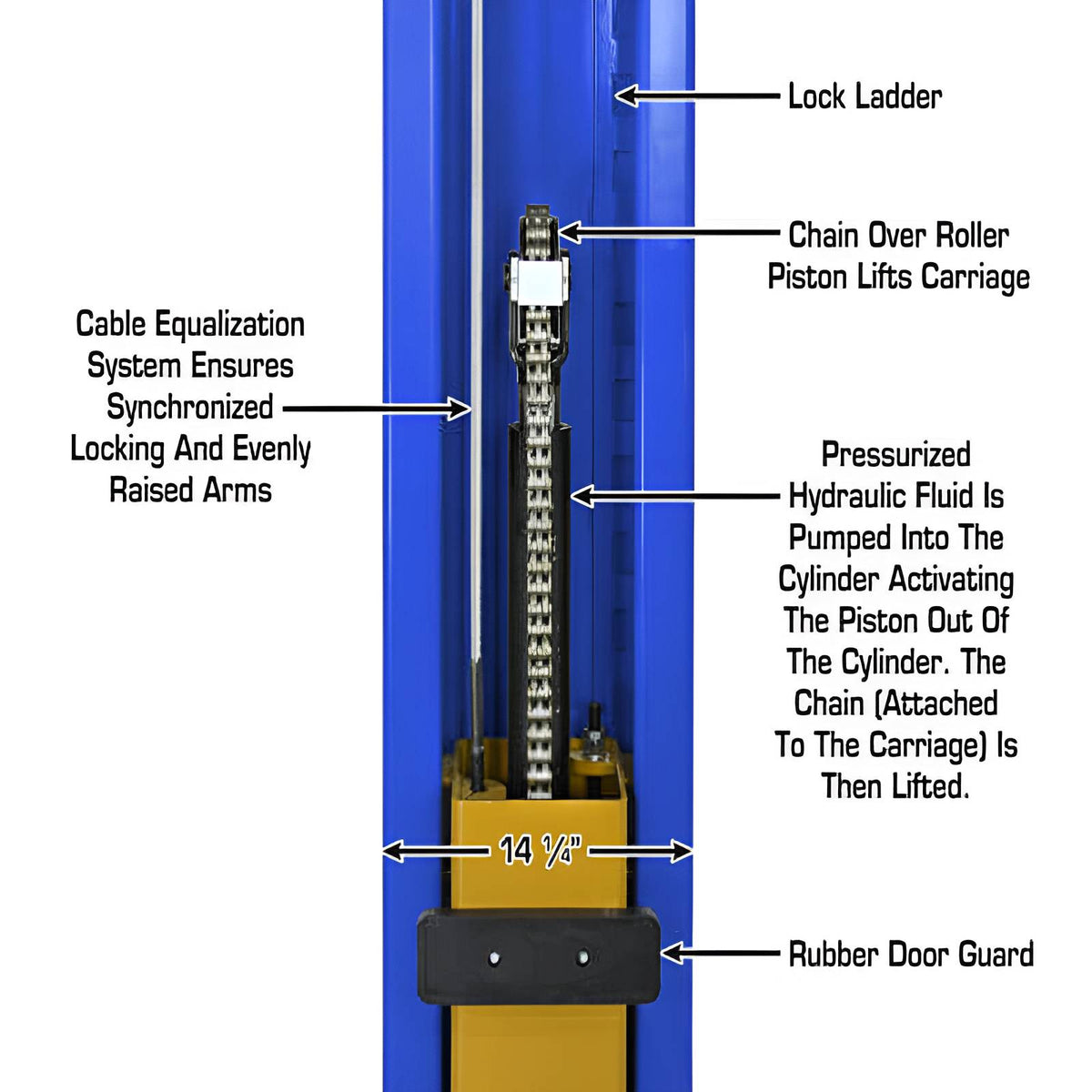

• Dual Hydraulic Chain-Drive Cylinders
• Pads on Carriage
• Powder Coat Finish
• Secondary Lock System
• Warranty: 5 year Structural; 2 year Hydraulic; 2 year Power Unit ‐ Parts Only

• Unit Includes:
  •     Mounting Hardware

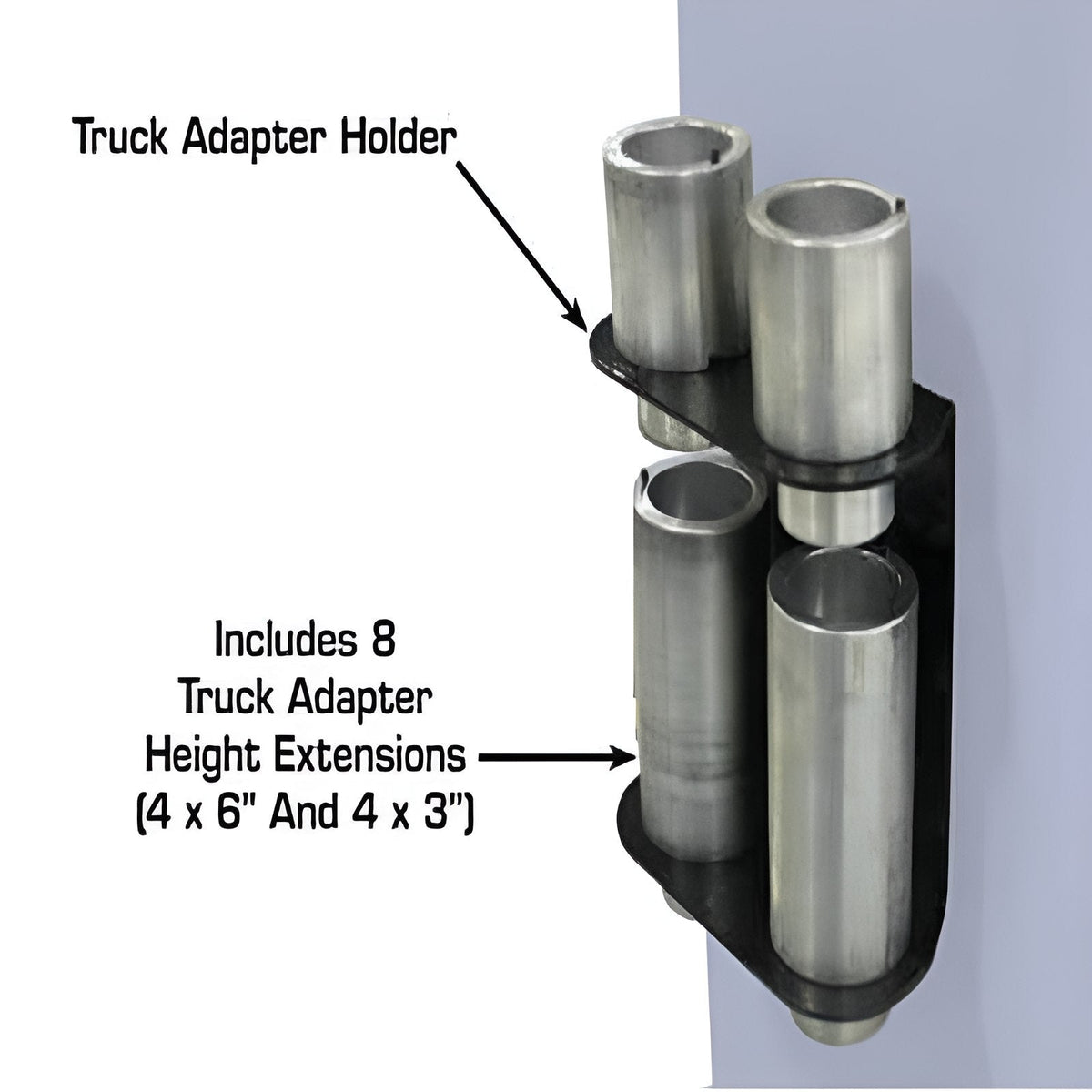

  •     8-piece Truck Adapter Set

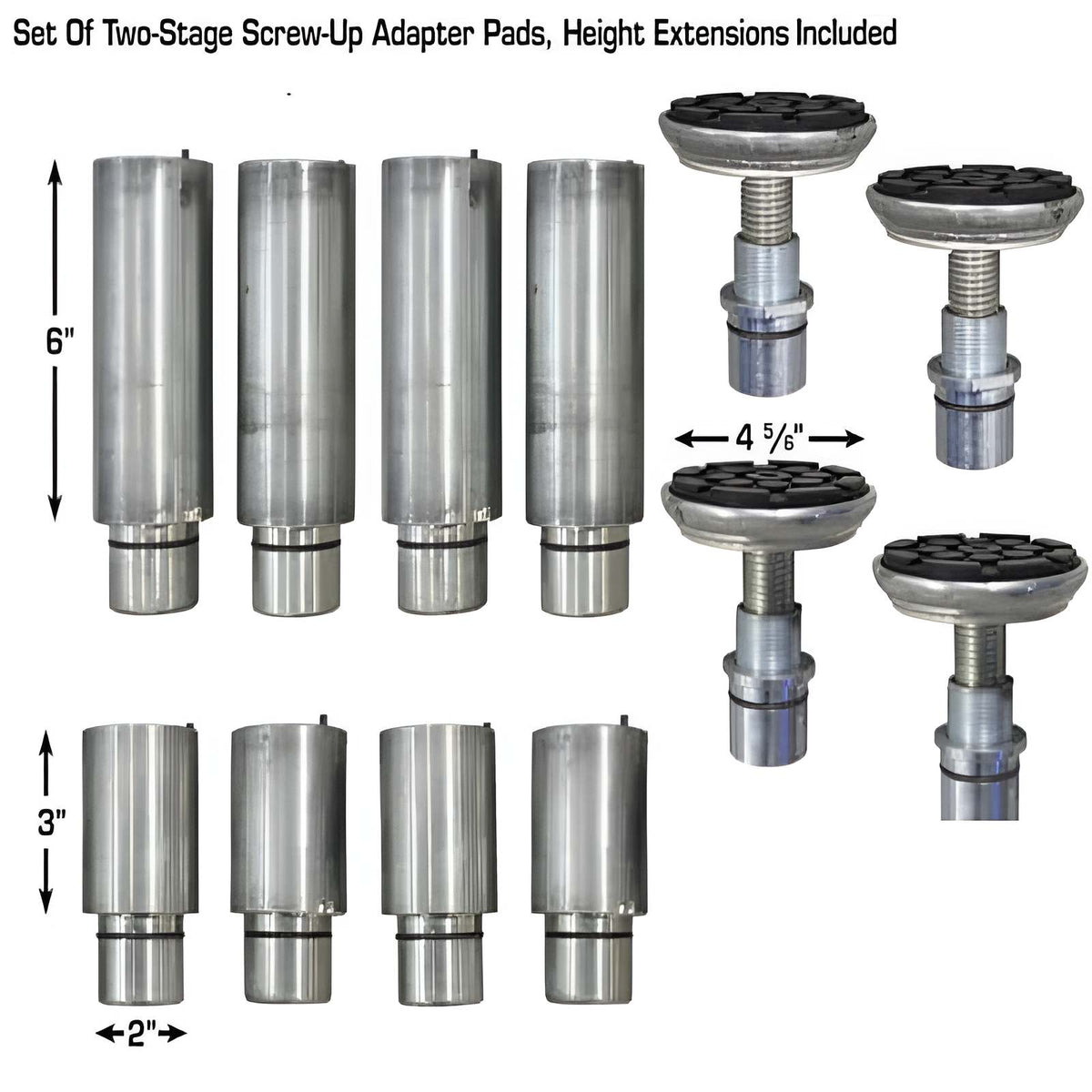

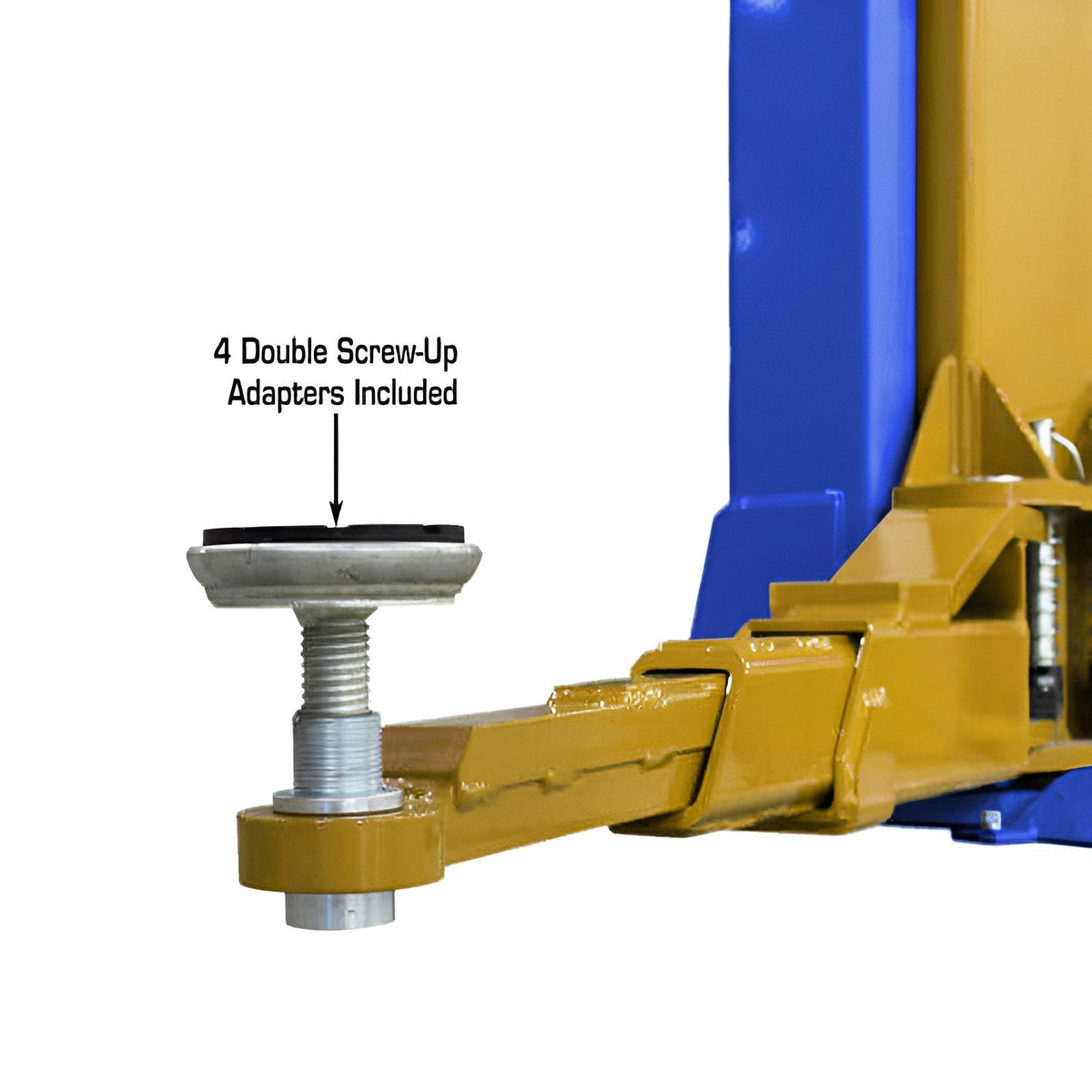

  •     Double Screw-up Adapters

PVL9BP Manual

   Atlas PVL9BP Manual
