Eagle ECL-10A 10,000lbs 2-Post Lift – Versatile Arms

10,000 lb 2-Post Lift – Heavy-Duty, Versatile, and Built for Full-Service Shops

The Eagle ECL-10A 10,000 lb 2-Post Lift is built for full-service shops that need durability, flexibility, and smooth operation across a wide range of vehicles. Engineered for cars, small SUVs, and trucks up to ¾-ton capacity, this lift delivers dependable performance for daily service tasks, heavy maintenance work, and continuous shop use. Its asymmetric design improves door clearance and vehicle access, giving technicians more room to work safely and efficiently.

Constructed with oversized steel gears, rugged pins, and a dependable power unit, the ECL-10A ensures stable lifting power and long-term reliability. The heavy-duty arm restraint system keeps the lift secure at every height, while the single-point lock release allows both columns to disengage simultaneously—streamlining workflow and reducing downtime. Height adapters (2.5" & 6.5") are included to accommodate a wide range of vehicle lift points, from compact cars to lifted trucks.

Additional enhancements such as outer hose guards, door guards, and low-friction components help protect both the lift and the vehicles it services. The fast 55-second rise time boosts productivity, and the wide drive-through clearance offers excellent maneuvering space for vehicles of various sizes. Whether for professional automotive shops or commercial maintenance facilities, the ECL-10A provides a proven combination of strength, safety, and versatility.

2-Post Lift ECL-10A Specification

• Style: Asymmetric

• Max Lifting Height: 72"–79" (with extensions)

• Cylinder Full Height: 145.2"

• Total Width: 145"

• Drive-Through Clearance: 98.4"

• Floor to Overhead Switch: 140"

• Front Arm Reach: 28"–40"

• Rear Arm Reach: 42.5"–59.5"

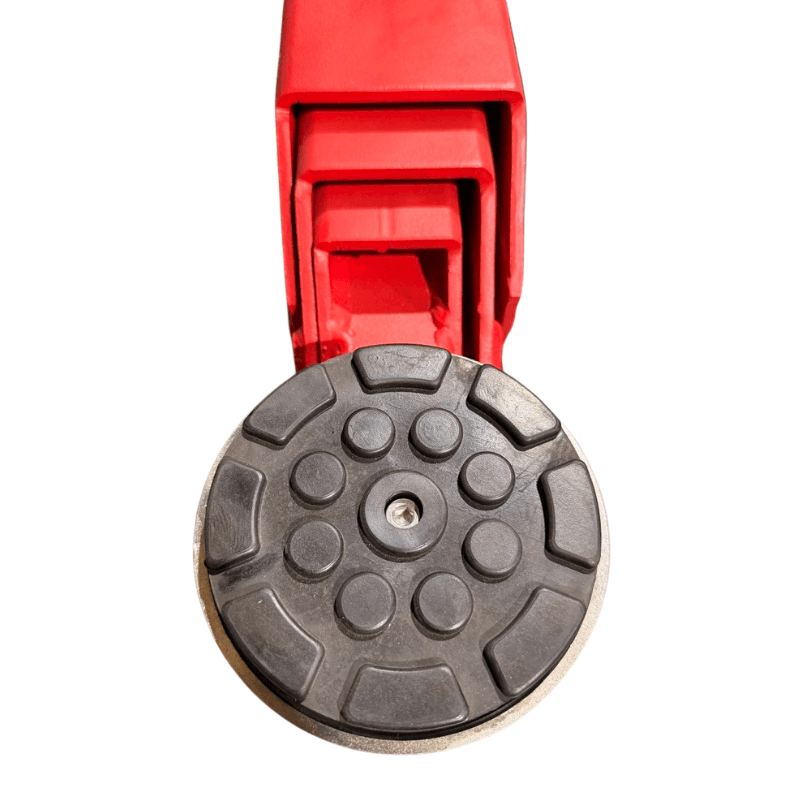

• Drop-In Pad Height: 5"–7.5"

• Inside Column Width: 117"

• Motor: 2.5HP

• Voltage: 208–230V / 1-phase

• Rise Time: 55 seconds

• Max Load per Arm: 2,500 lbs

• Minimum Ceiling Height Required: 156"

• Maximum Column Height: 145"

• Lift Weight: ~1,777 lbs

ECL-10A 10,000lbs 2-Post Lift Special Features

• 10,000 lb lifting capacity

• Asymmetric arm configuration

• Single-point lock release for both columns

• Heavy-duty arm restraint system

• 2.5HP durable power unit

• Oversized steel gears, pins, and springs

• Door guards and outer hose guards

• Fast 55-second rise time

• Includes 2.5" and 6.5" height adapters

• Suitable for cars, SUVs, and ¾-ton trucks

• 1-year warranty included

ECL-10A Manual

  Eagle ECL-10A Installation and Operations Manual
