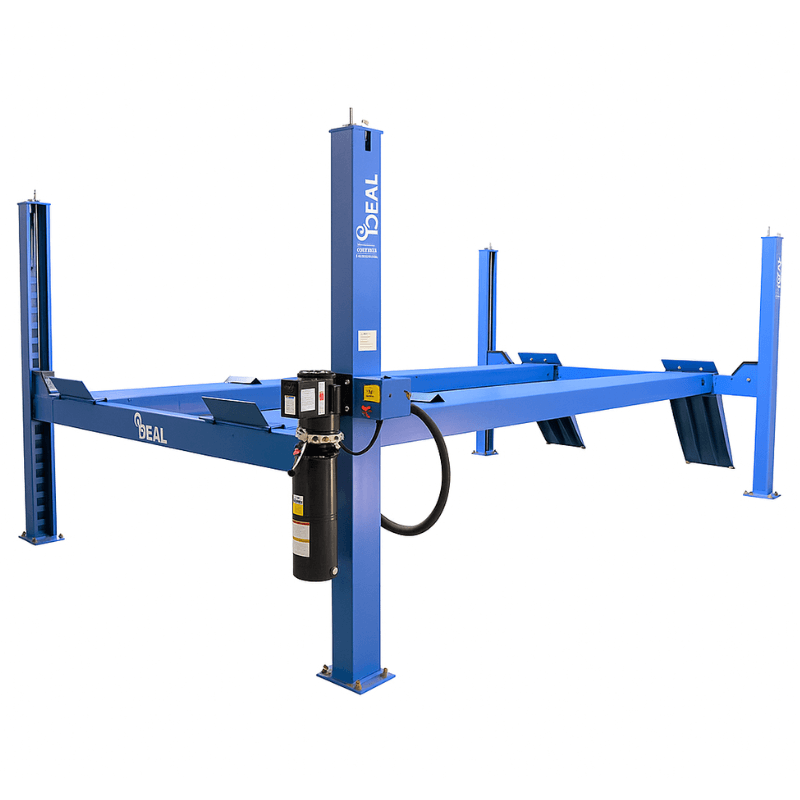

IDEAL FP14KC-X 14,000 lb 4 Post Car Lift

FP14K Lift by Ideal

Is your current lift limiting the range of vehicles you can service? Are you turning away lucrative heavy-duty jobs because your equipment can't handle the weight? Imagine a lift that can handle everything from compact cars to heavy-duty trucks with ease. The iDeal FP14KC-X with 14,000 lbs capacity commercial service lift does just that, with 18 locking height positions and 20" wide runways accommodating wheelbases up to 182.5".

Dreaming of unparalleled safety and precision? The iDeal FP14KC-X features a single-point pneumatic lock release, fully adjustable lock stops, and slack cable safety devices. Built to last with a durable cable lift system and powder coat finish, it's backed by a 5-year structure warranty so you can sleep soundly at night.

4 Post Car Lift FP14KC-X Specification

• Capacity: 14,000 lbs.

• Overall Length with Ramp: 252-1/2"

• Overall Width (Without Power Unit): 131-7/8"

• Overall Width (With Power Unit): 142"

• Overall Height: 92-1/2"

• Max Rise Height: 77-1/2"

• Min Height: 7-7/8"

• Width Between Posts: 116-1/4"

• Length Between Posts: 196"

• Widths Between Runways: 43" or 46"

• Width of Runways: 20"

• Max Wheelbase: 182-1/2"

• Ramp Length: 44"

• Max Clearance Under Runway: 69-5/8"

• Drive-Thru Clearance: 96"

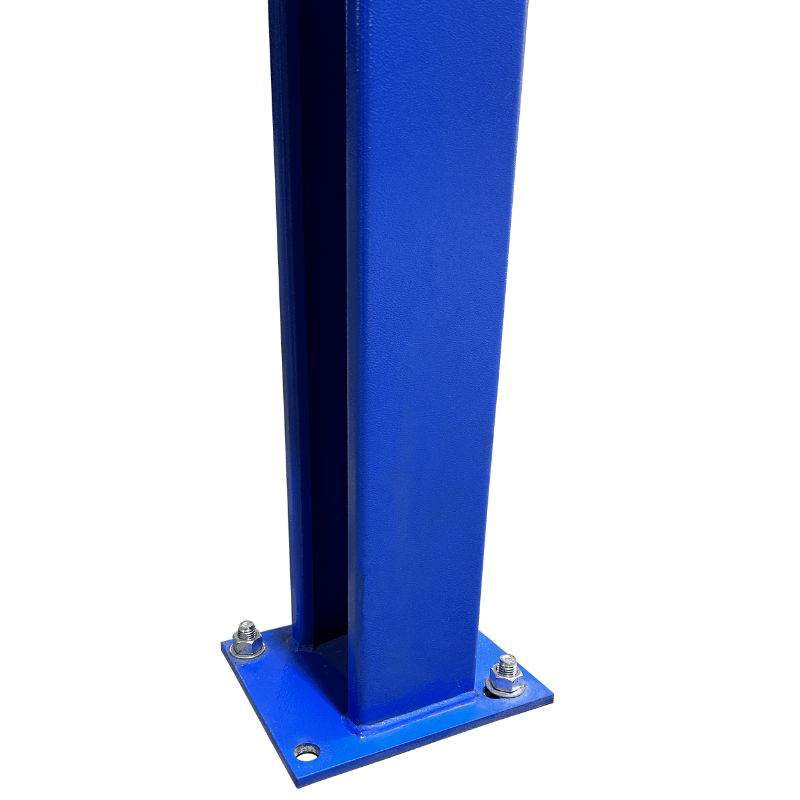

• Base Plate: 10-1/2" x 9"

• Power Requirement: 220V – 20 Amp – 1PH

• Ship Weight: 2,690 lbs.

• Min Bay Size: 16' x 25'

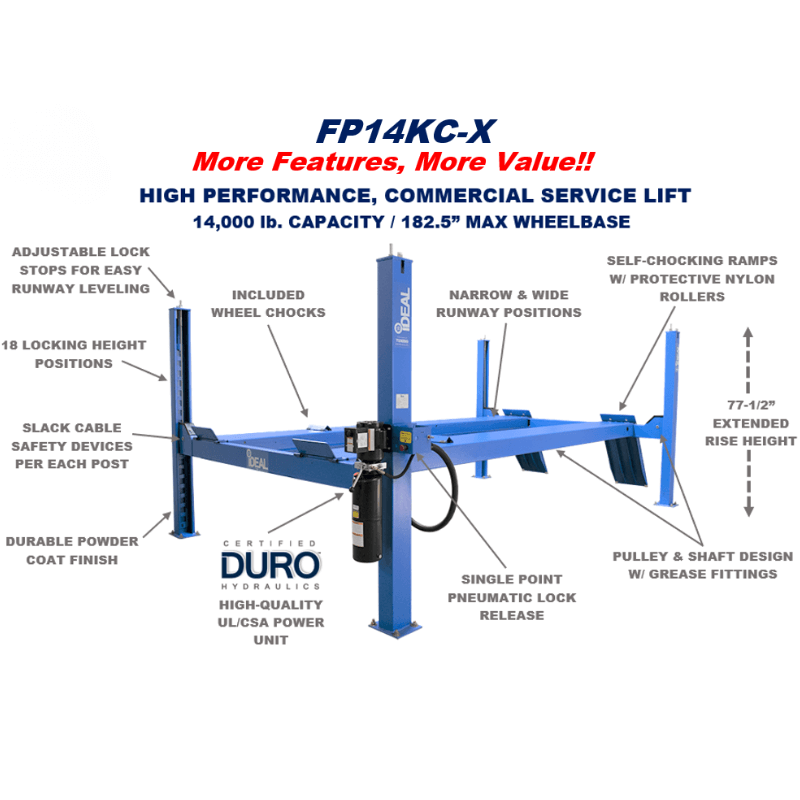

FP14KC-X 14,000 lb Car Lift Special Features:

• 14,000 LBS CAPACITY
• HIGH PERFORMANCE COMMERCIAL SERVICE LIFT
• DURABLE, HIGH QUALITY CABLE LIFT SYSTEM
• 182.5″ MAX WHEELBASE
• 18 LOCKING HEIGHT POSITIONS
• 20″ WIDE RUNWAYS
• NARROW & WIDE RUNWAY MOUNTING POSITIONS
• SINGLE POINT PNEUMATIC LOCK RELEASE
• FULLY ADJUSTABLE LOCK STOPS FOR EASY LEVELING
• SLACK CABLE SAFETY DEVICES

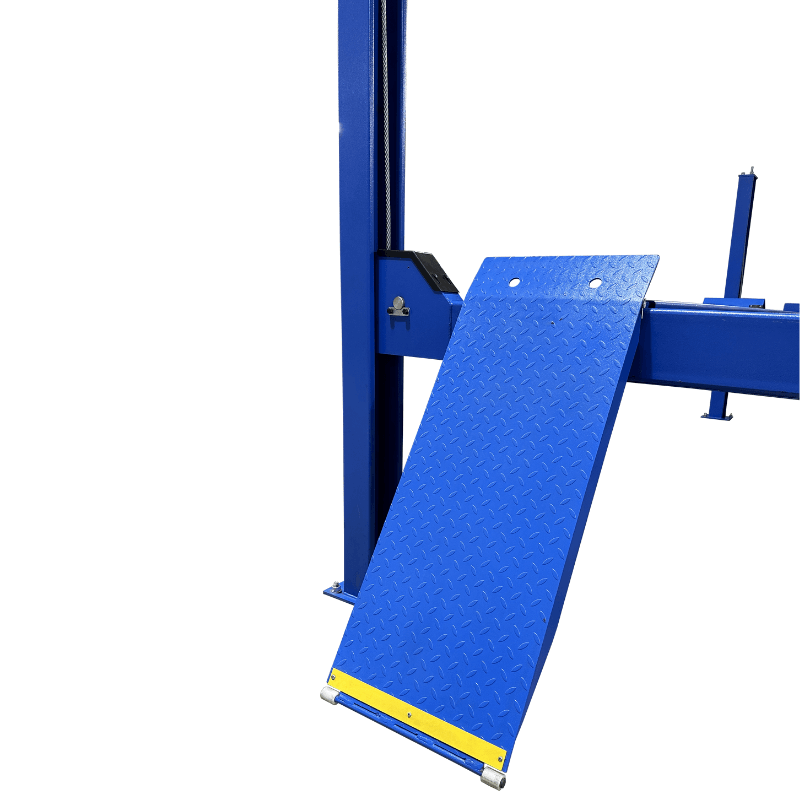

• SELF-CHOCKING APPROACH RAMPS W/ NYLON ROLLERS
• WHEEL CHOCKS (1PR)
• DURABLE POWDER COAT FINISH
• Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use
• Power: 220v-20amp-1PH
• GROSS SHIPPING WEIGHT: 2,690LBS
• iDeal Warranty:
  One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment
• Weight: 2740 lbs
• Pallet Dimensions: 208"L 27"W 32"H
• Recommended Rolling Jack (Sold Separately)
  • RAJ-7K-H

FP14KC-X Manual

  iDEAL FP14KC-X Manual

  IDEAL FP14KC-X Flier
