Katool AK-M115S 11000 lbs Heavy Duty Two Post Lift

M115S Two-Post Vehicle Lift

Elevate your garage or workshop setup with the Katool AK-M115S Two-Post Lift, a heavy-duty hoist engineered to handle up to 11,000 lbs. Built for serious mechanics and auto enthusiasts, this lift provides unmatched stability and performance for lifting cars, trucks, and SUVs. Its clear-floor design ensures unobstructed movement under the vehicle, making maintenance and repair tasks more accessible and efficient.

This two-post lift is powered by a dual hydraulic chain-drive system, ensuring smooth and balanced lifting. It comes equipped with automatic safety locks on both posts, manual release levers, and a high-precision motor rated at 2.2 kW. Adjustable arm extensions and height adapters offer greater flexibility, allowing it to accommodate a wide variety of wheelbases and frame designs. With a max lifting height of 70.75", it gives you plenty of space to work underneath.

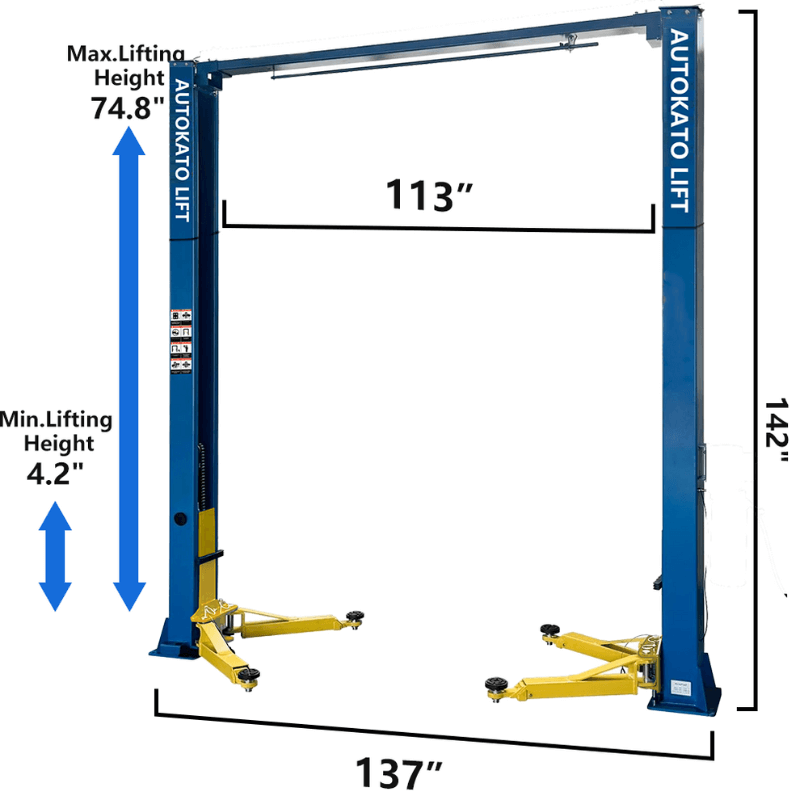

M115S Specifications

• Lifting Capacity: 11,000 lb (5,000 kg)

• Maximum Lifting Height (under pads): 70.75

• Minimum Pad Height: 4.25

• Overall Height: 141.25

• Overall Width: 142.25

• Drive-Thru Clearance: 94.5

• Arm Reach (Min Max): Front 30.75; Rear 30.75, 50.5

• Motor Power: 2.2 kW (220 V, 60 Hz)

• Net Weight (excluding accessories): Approx. 1,350 lb (620 kg)

MK-M115S 11000 lbs Heavy Duty Two Post Lift Special Features

• Clear-floor twin-post design for unobstructed vehicle access

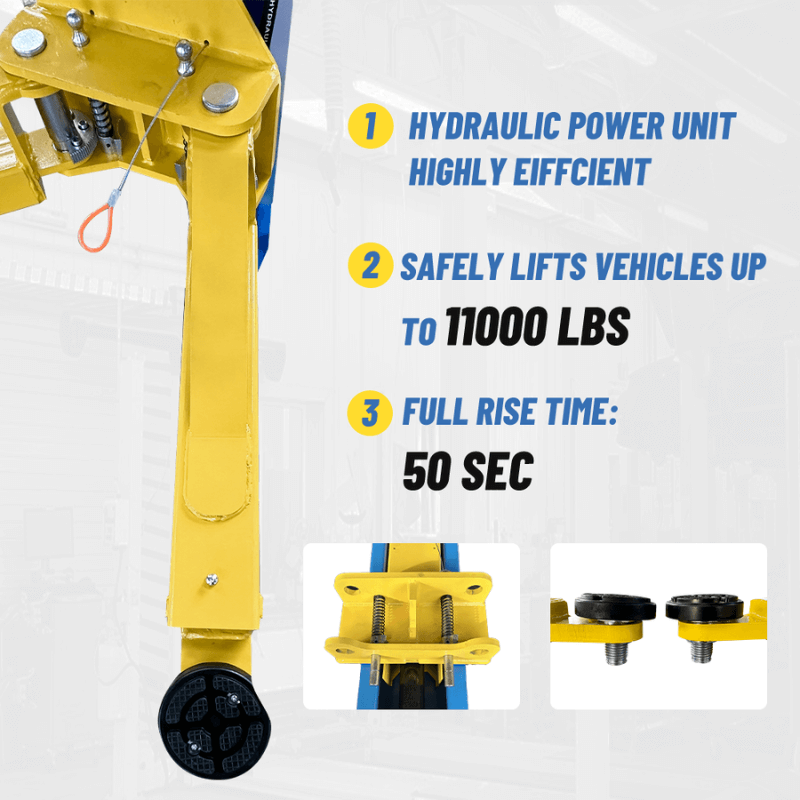

• Dual hydraulic chain-drive cylinders provide stable, uniform lifting

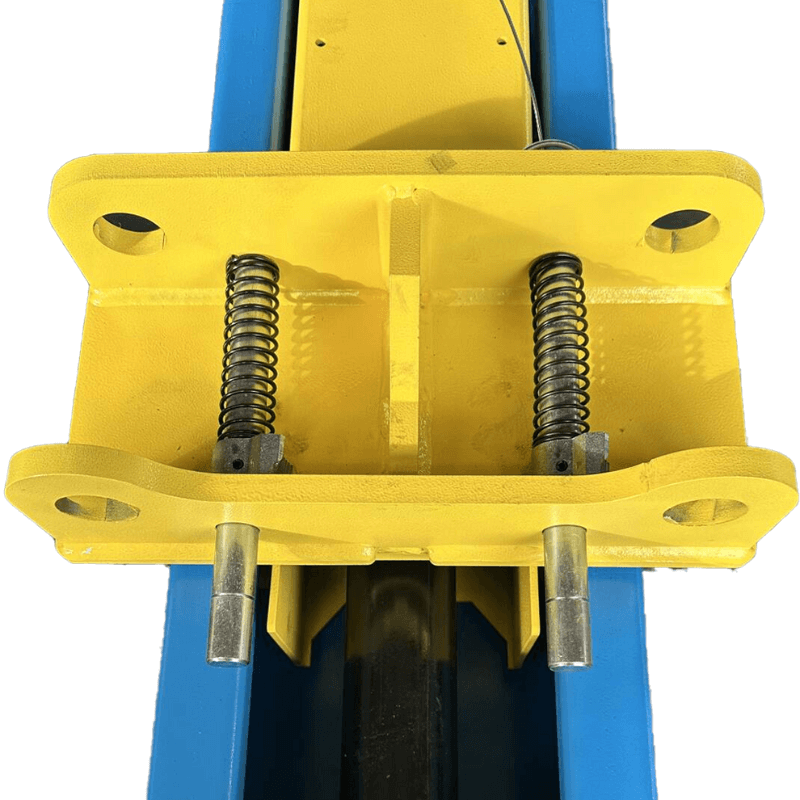

• Automatic safety locks with manual release on both posts

• CE-certified and tested for 115% dynamic and 150% static loading

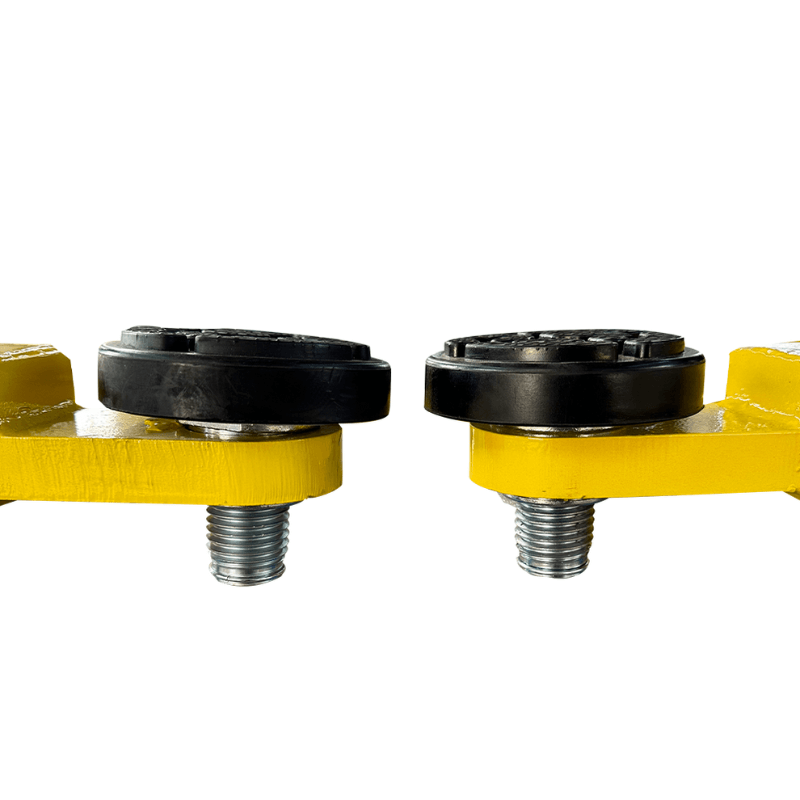

• Includes height extension adaptors (+30 mm and +120 mm) and rubber pad guards

• Compatible with both 110 V and 220 V electrical systems

• Overhead safety shutoff bar and integrated foot-guard rails with built-in toolbox

Katool M115S Manual

None available
