KATOOL KT-4H950 9,500lb Heavy Duty 4-Post Lift for Storage and Parking

4H950 4 Post Lift from Katool

Elevate your auto service capabilities with the KATOOL KT-4H950 4-Post Lift, designed for heavy-duty performance and built to handle vehicles up to 9,500 pounds. This lift is a reliable solution for professional automotive shops, dealerships, and serious home garages needing robust lifting power and long-term durability.

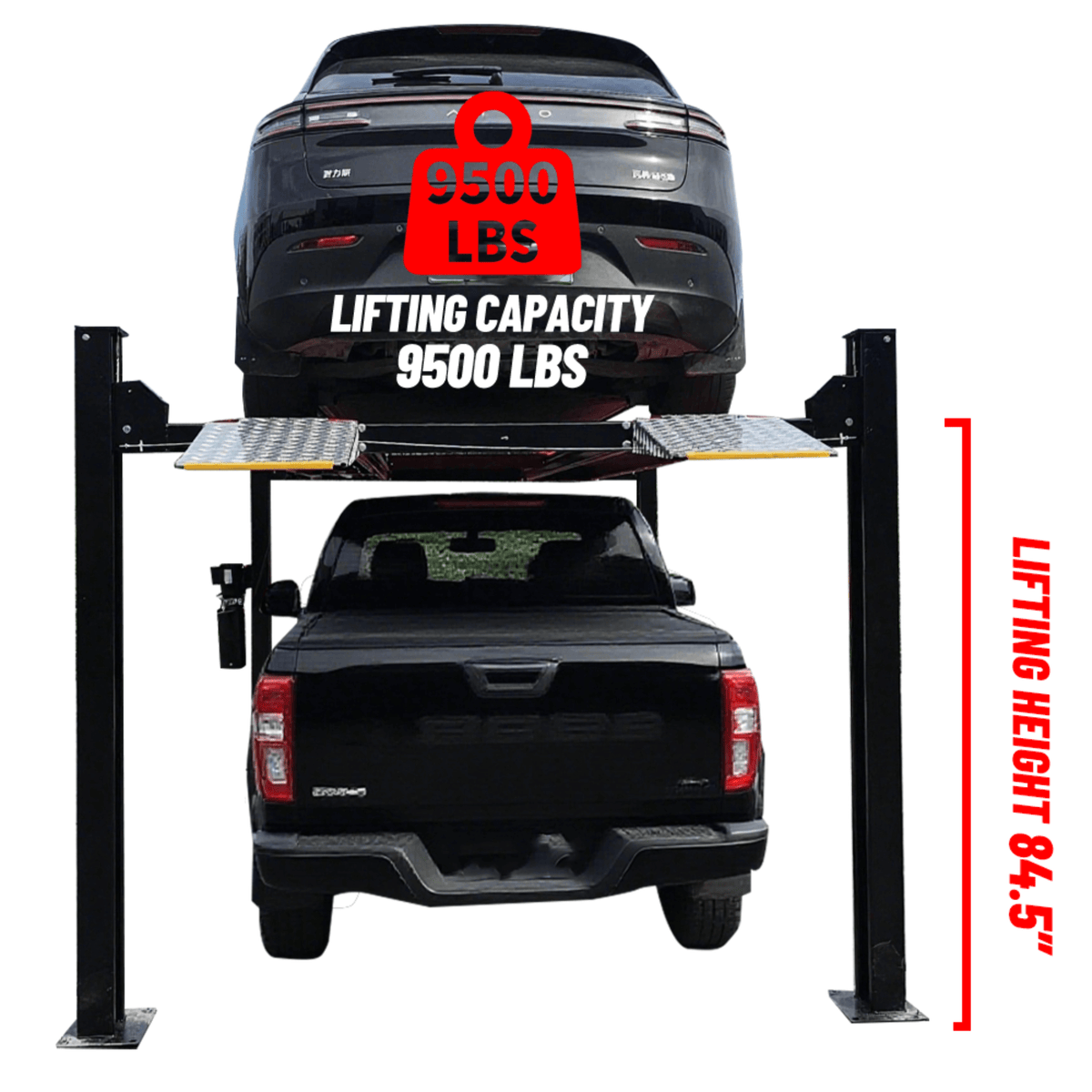

With an impressive lifting height of 84.5 inches and a quick 50-second lift time, this 4-post lift provides efficient access for undercarriage maintenance, repairs, and inspections. The non-skid diamond plate platforms and adjustable safety lock ladders ensure stable, slip-resistant operation for improved workplace safety.

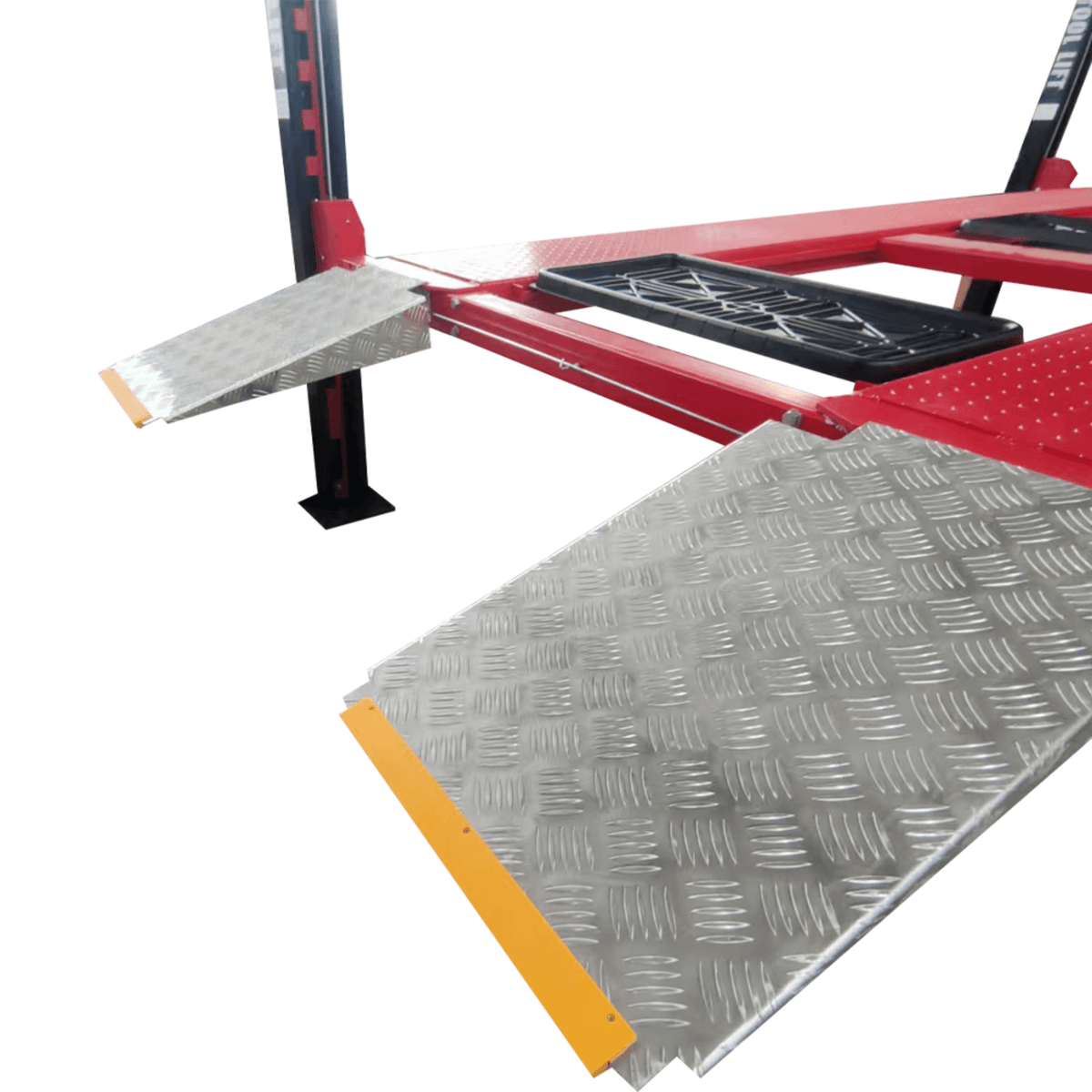

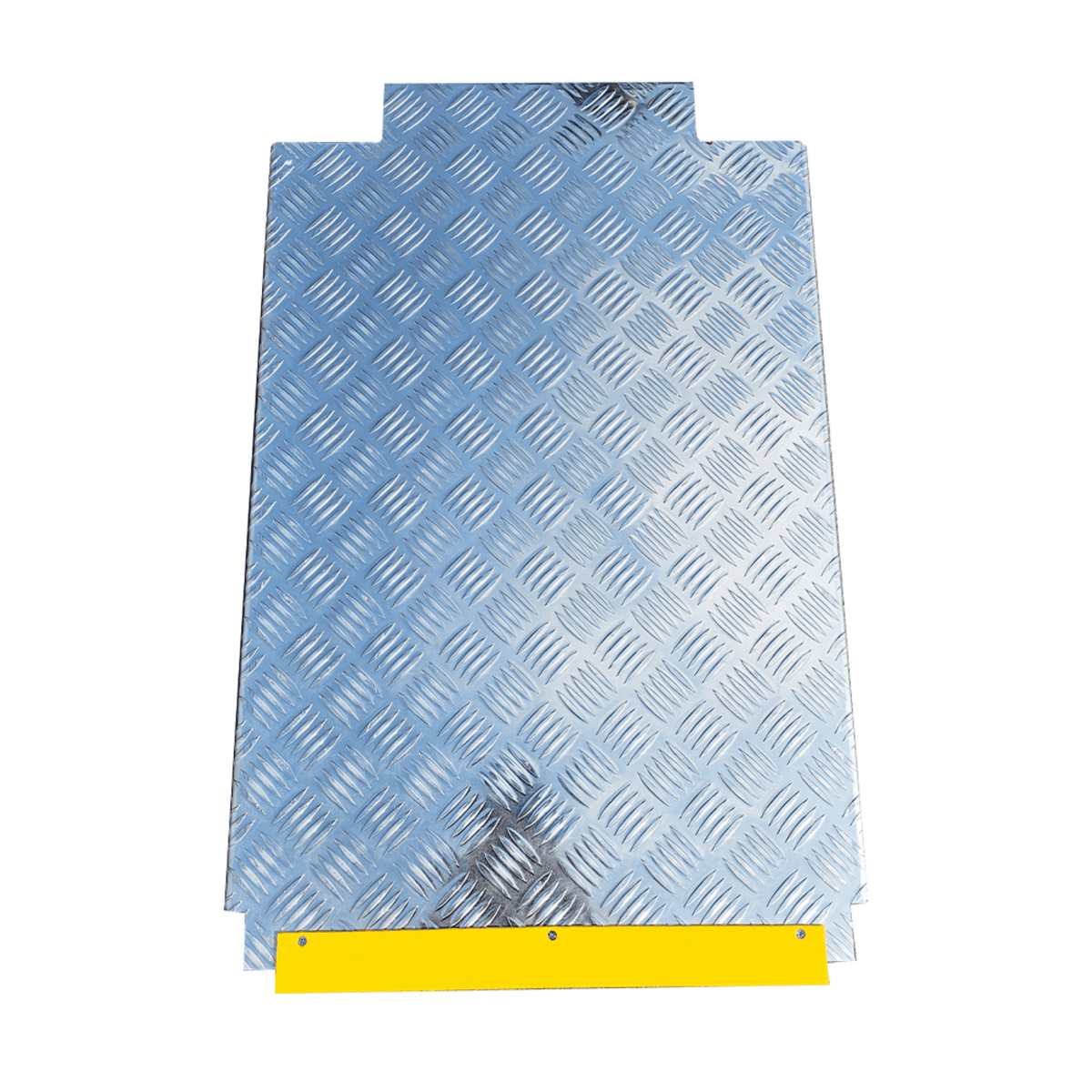

Engineered with 4 mechanical locks and both primary and secondary safety systems, the KT-4H950 prioritizes user protection. It also includes caster kits, aluminum ramps, a jack tray, and drip trays making it a complete lifting system ready to boost your shop’s productivity.

KT-4H950 Specifications:

• Lifting Capacity: 9,500lb

• Lifting Time: 50 seconds

• Runway Length: 174"

• Lifting Height: 84.5″

• Drive-thru Clearance: 86.6"

• Max Lifting Height: 81.5"

• Outside Runway Width: 79.8"

• Max Lifting Height: 81.5"

• Overall Height: 92.5"

• Lifting Time: 50 seconds

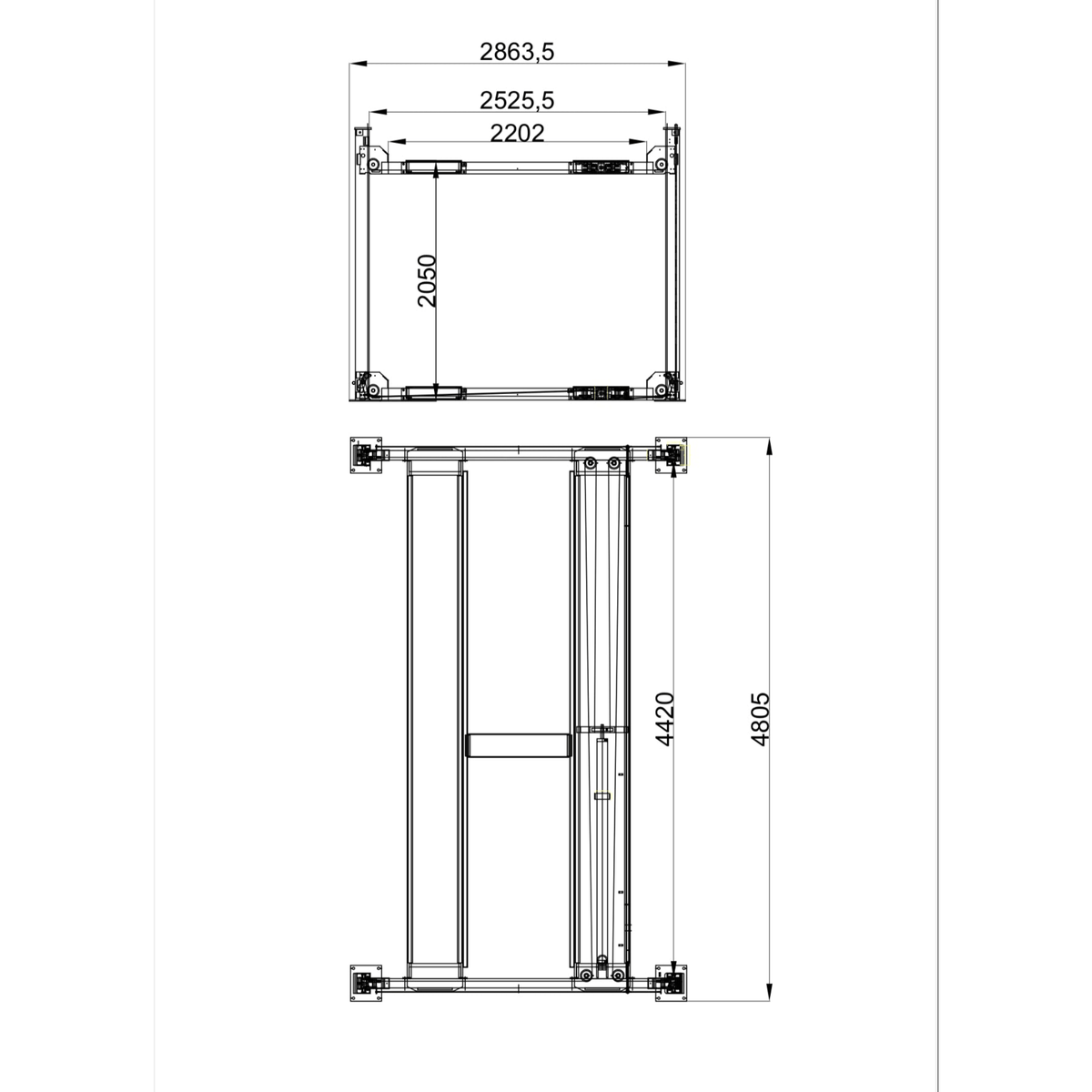

• Overall Width: 113″

• Width Between Columns: 99″

• Overall Length: 189″ (including baseplates)

• Motor: 110V / 3HP (30amp Breaker Required)


• Concrete Requirement: Minimum 3.93″ (100 mm) thickness at 3000 PSI

KT 4H950 9,500lb Heavy Duty 4-Post Lift Special Features

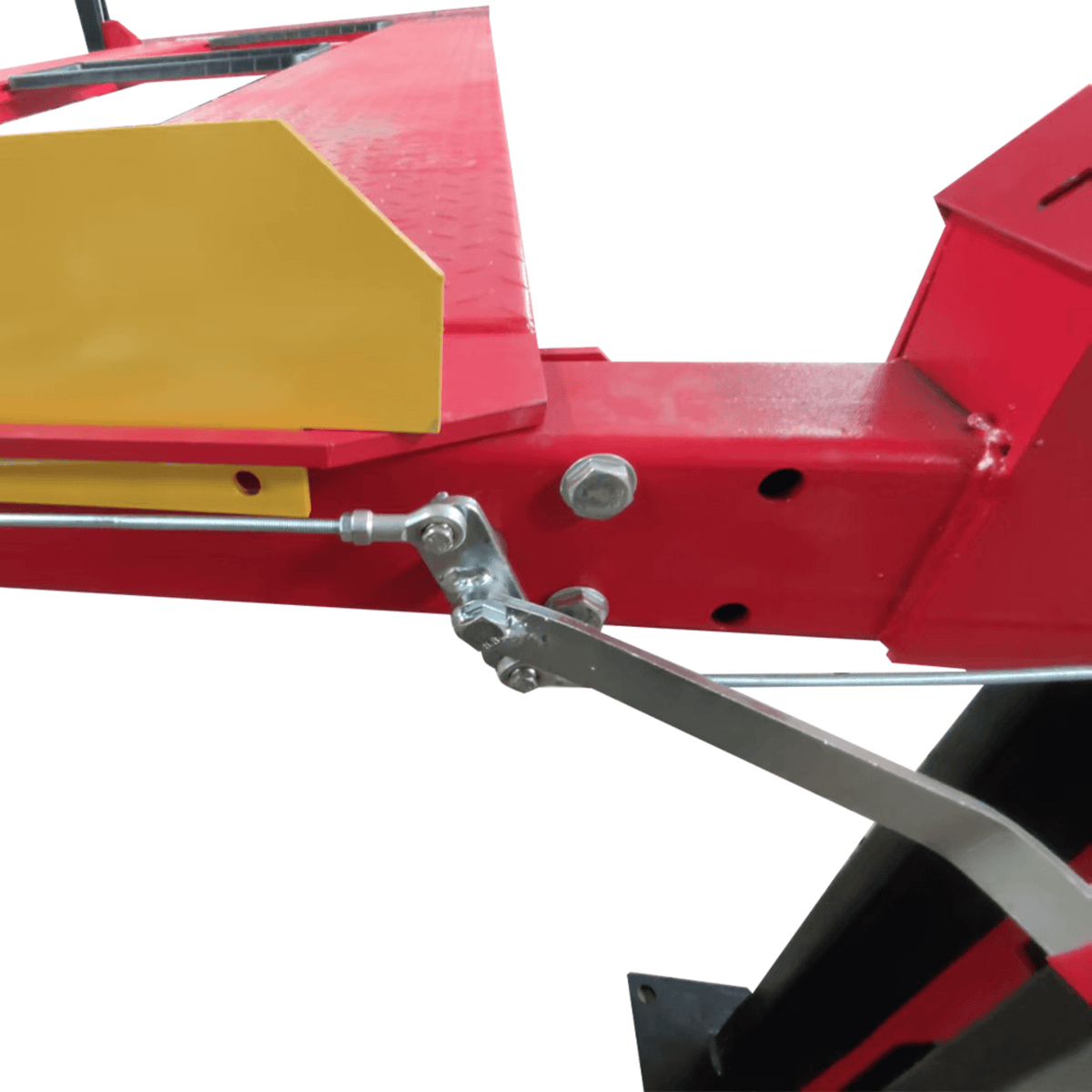

• Single-point manual safety release for simple operation

• Power unit column can be installed on either side, front or rear

• Non-skid diamond plate runways for safer vehicle positioning

• Safety System: 4 mechanical locks with primary & secondary safety locks

• Adjustable safety lock ladders for custom lift heights

• Includes:

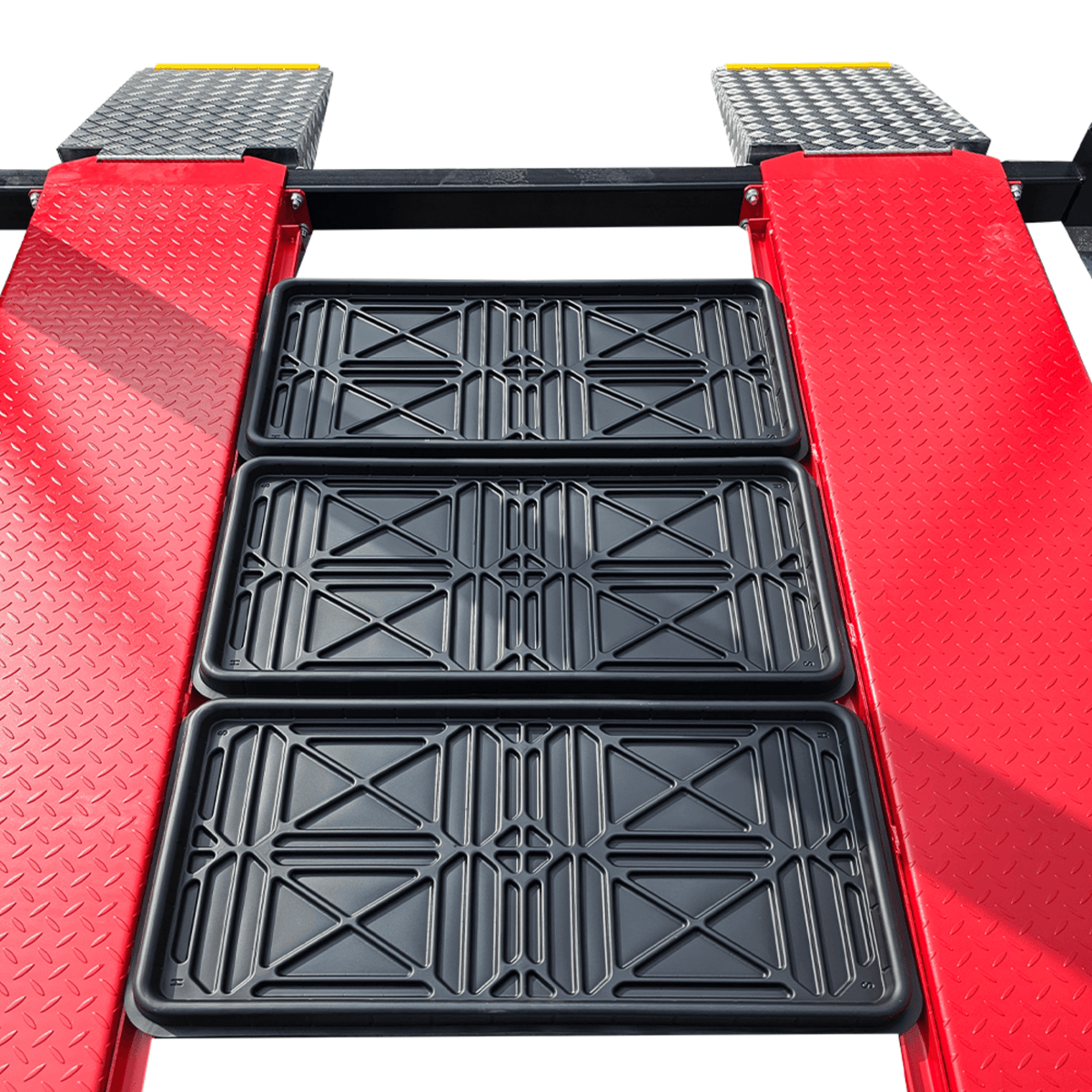

  •  Caster kit, Aluminum ramps, Jack Tray, and 3 drip trays

• Optional sliding bridge jack with hand pump available

• Rugged construction built for long-term shop use

KATOOL KT-4H950 Manual:

  Katool KT- 4H950 Installation and Operations Manual

  Katool KT-4H950 Cable Routing Instruction

*Prior to purchasing and installing, customers must confirm the concrete thickness and strength to ensure safety. The concrete must be at least 3.93" thick and have a 3000 PSI rating in order to properly install this lift and avoid potential injury or death.
