Stratus SAE-C9P 9,000 LBS 2 Post Lift

SAE-C9P 9,000 LBS Capacity Single Point Manual Release Vehicle 2 Post Lift by Stratus

The SAE-C9P 9,000 LBS Capacity Single Point Manual Release Vehicle 2 Post Lift is the ultimate solution for professional garages and automotive enthusiasts. With a 9,000 lbs capacity, this 2-post car lift is ideal for lifting large vehicles such as cars, trucks, and SUVs with ease. Its innovative clear floor design ensures unobstructed movement underneath the lift, making vehicle servicing and repairs more efficient than ever. Equipped with a single-point manual release, the SAE-C9P simplifies operations, while the direct drive system guarantees reliable and smooth performance. Built to last, this lift features a durable powder-coated finish in Granite Gray and Rein Orange, ensuring it stands out in functionality and style. Whether you’re tackling routine maintenance or more intensive repairs, the Stratus Clear Floor Lift offers unmatched performance and convenience.

Engineered for both safety and functionality, the SAE-C9P includes essential features like anti-surge valves, dual top limiter switches, and proof testing with 115% dynamic and 150% static capacity. Its user-friendly design comes with screw-up rubber pads and truck adapters, providing flexibility to accommodate various vehicle sizes. Optional accessories such as cradle pads and tripod jack stands add further versatility to the lift’s capabilities. Whether in a professional workshop or a personal garage, this lift ensures smooth operation, maximum safety, and unparalleled convenience, making it a valuable investment for all your automotive needs.

2 Post Lift SAE-C9P Specification:

• Model: C9P
• Capacity: 9,000 LBS
• Max Lifting Height with Adaptors: 78 7/8" (1900 MM)
• Min Lifting Height with Adaptors: 7 3/4" (197 MM)
• Max Lifting Height without Adaptors: 74 3/4" (1900 MM)
• Min Lifting Height without Adaptors: 3 3/4"
• Rise Time: ~50 SEC
• Overall Height: 153 9/16" (3900 MM)
• Overall Width: 125 3/8" (3185 MM)
• Overall Length: 134 5/8" (3420 MM)
• Inside Columns: 111 7/16" (2830 MM)
• Drive Thru: 100 11/16" (2558 MM)
• Front Arm Reach Max: 45 1/4" (1150 MM)
• Front Arm Reach Min: 29 3/16" (740 MM)
• Rear Arm Reach Max: 54 11/16" (1390 MM)
• Rear Arm Reach Min: 35 1/16" (890 MM)

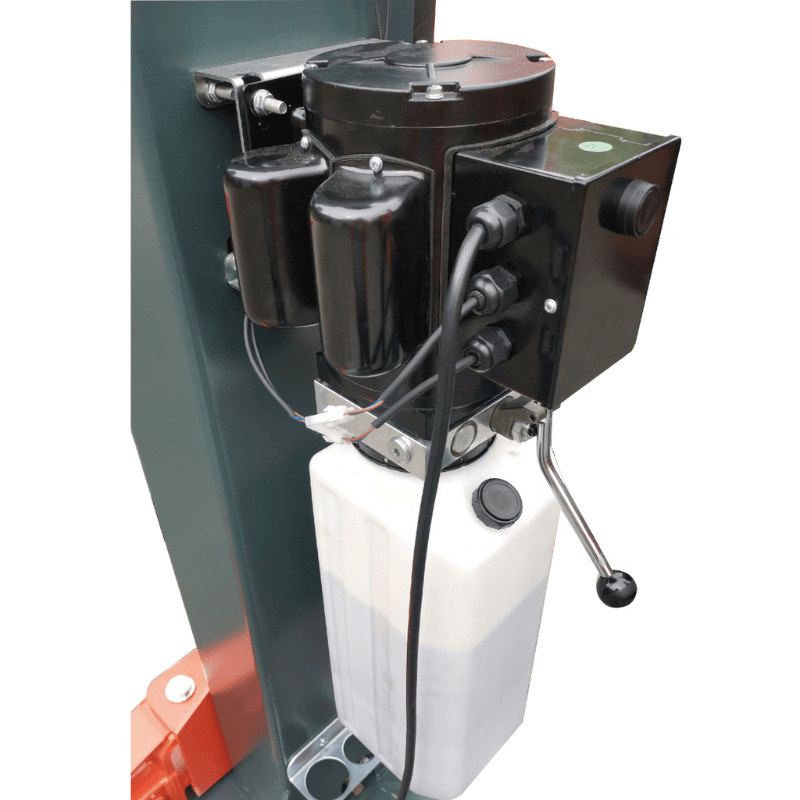

• Motor: 3 HP, 220V, 60 Hz, 1ph
• Oil: AW32 or AW46
• Breaker: 30A
• Weight: 1,433 LBS
• Dimension: 112" L x 23" W x 41" H
• Requirements: 6" – 3000 PSI


SAE-C9P 2 Post Lift Special Features

• Overhead, clear floor design for easy movement beneath the lift.
• 9,000 lbs capacity, perfect for large vehicles like trucks and SUVs.

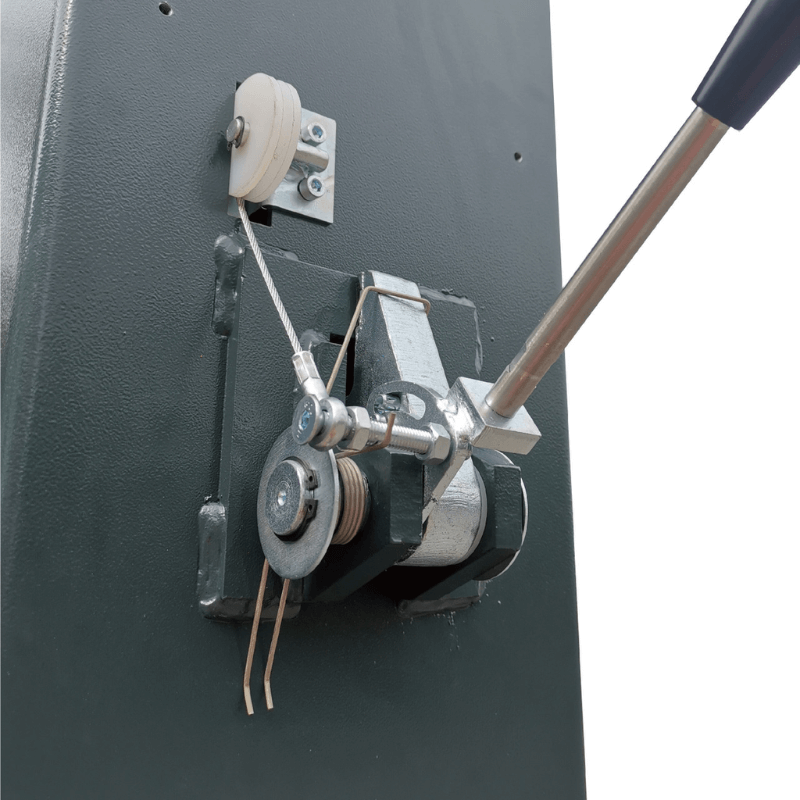

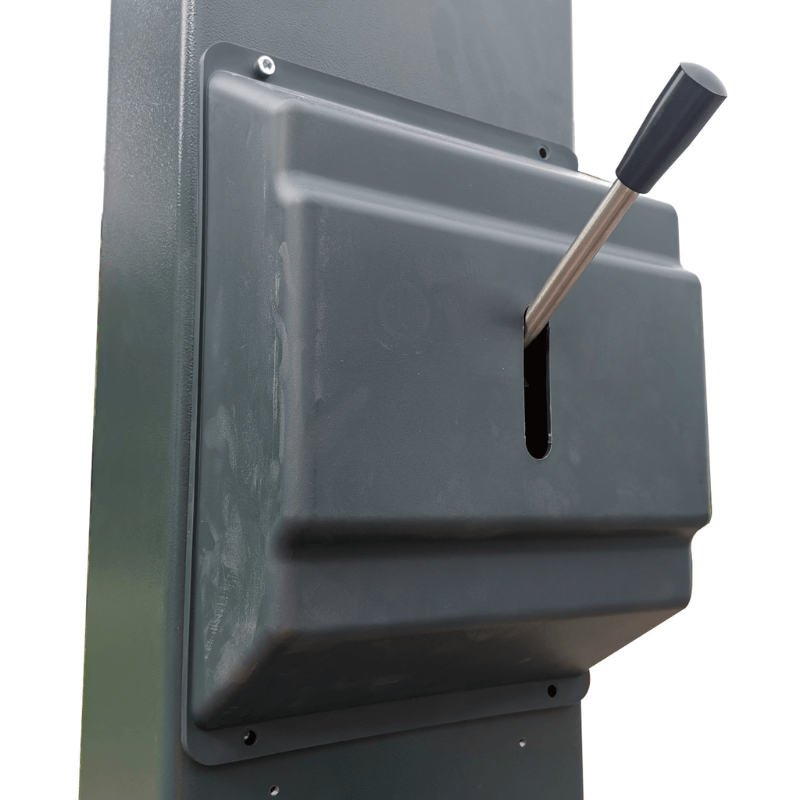

• Single-point manual release for convenient operation.
• Direct drive system for smooth and efficient lifting.
• Dual top limiter switches enhance safety during operation.
• Anti-surge valves for added system protection.
• Powder-coated finish in Granite Gray and Rein Orange for durability and aesthetics.

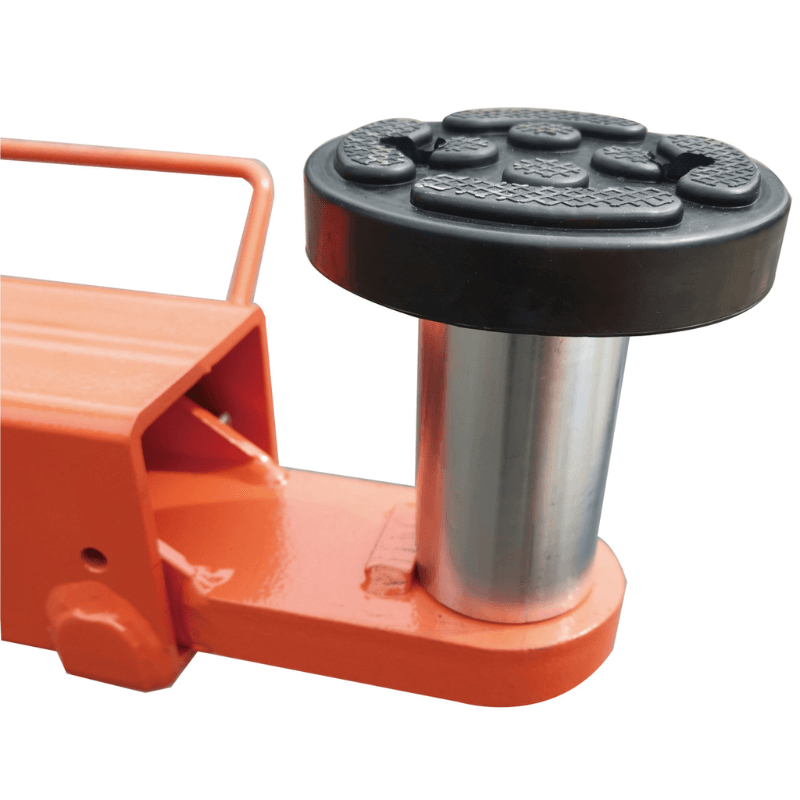

• Includes 4 screw-up rubber pads and 4 truck adapters (4” peg).
• Proof tested with 115% dynamic and 150% static rated capacity.
• Optional accessories available for expanded functionality, including cradle pads and tripod jack stands.

Stratus SAE-C9P Documentation

  Stratus SAE-C9P Installation and Operations Manual

  Stratus SAE-C9P Product Brochure
