Titan HD2P-9000AC 2 Post Car Lift

 HD2P-9000AC 9,000lb 2-Post Lift by Titan

The Titan HD2P-9000AC 2-Post Lift Gen-2 is a durable and reliable lifting solution designed for automotive service shops and serious car enthusiasts. With a 9,000lb capacity, this lift is suitable for a wide range of vehicles and features an asymmetric arm design for easy vehicle access. Its heavy-duty construction and sleek finish make it a long-lasting addition to any garage. It also comes with safety features such as rubber door guards and a safety shut-off bar. Plus, it is easy to install and has a 5-year structural warranty.

2-Post Lift Gen-2 HD2P-9000AC Specifications

• Type: 2-Post Lift

• Lifting Capacity: 9,000 lbs

• Arm Design: Asymmetric

• Hydraulic System: Dual 3” cylinders with low-friction chain rollers

• Power Unit: 220V

• Amp Draw: 15–26 amp

• Lifting Speed: 45 seconds

• Width: 137.8”

• Height: 142.95”

• Width Between Posts: 113.62”

• Drive Thru Clearance: 103.98”

• Lifting Height: 4.65” – 72.84”

• Concrete Requirement: 4” thick, 3,000 PSI strength

• Shipping Length: 145”

• Shipping Width: 19”

• Shipping Height: 44”

• Shipping Weight: 1,380 lbs

HD2P-9000AC 2-Post Lift Gen-2 Special Features

• Commercial-grade design for professional and enthusiast use
• 9,000lb lifting capacity to accommodate various vehicles
• Asymmetric arm design for better vehicle access
• Rubber door guards to protect vehicle finishes
• Padded overhead safety shut-off bar for added protection
• Dual-point safety release for controlled lowering
• Durable powder-coated finish in Cobalt Blue with bright yellow arms
• Low-profile lifting arms with automatic arm restraints

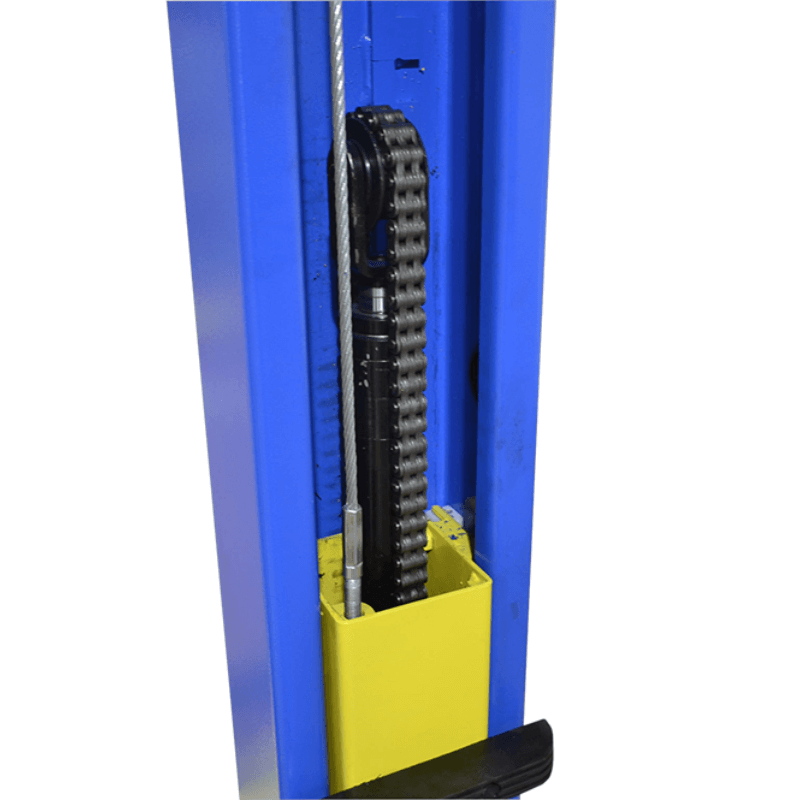

• Dual 3” hydraulic cylinders with low-friction chain rollers for smooth operation
• Threaded lifting pads and stackable truck adapters for versatility

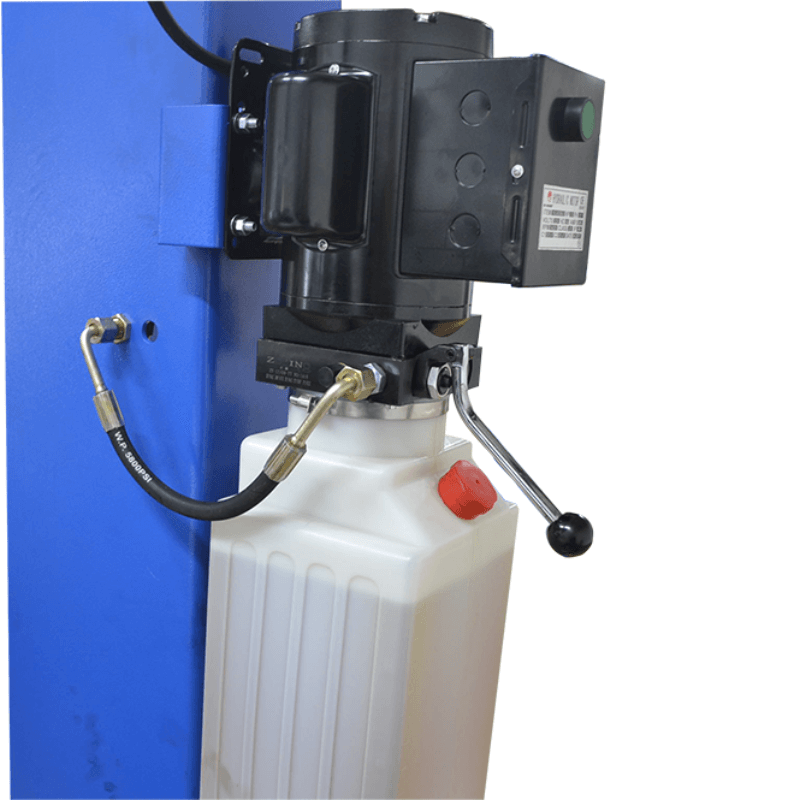

• Space-saving power unit mounting bracket for efficient garage layout
• Sleek internal hose routing with integrated hose guards
• Anchor bolt kit included for secure installation
  • 5-year structural warranty and 1-year electric/hydraulic parts warranty

Titan HD2P-9000AC Documents

  Titan HD2P-9000AC Installation and Operations Manual

  Titan HD2P-9000AC Spec Sheet
