Titan Lifts HD2P-9KMSC Master Series: 9,000lb Capacity 2 Post Car Lift

HD2P-9KMSC 9,000lb 2 Post Lift by Titan

Say goodbye to cramped, awkward vehicle maintenance with the Titan HD2P-9KMSC 9,000 lb 2-Post Lift – Clear Floor. Designed for top-tier garages and passionate car enthusiasts, this beast offers a hefty 9,000 lb capacity and a max lifting height of 82-1/4” with adapters, making it perfect for anything from sedans to larger trucks. Its clear-floor design ensures complete access beneath your vehicle without tripping over cables or obstacles. Plus, the direct drive hydraulic system and single-point lock release make operating this lift effortless and safe.

Every detail of the HD2P-9KMSC is geared for convenience and reliability. From the steel hydraulic oil reservoir to the advanced 3-stage front arms, every feature is built for flexibility and long-term use. The Power on Green LED keeps things user-friendly, while the overhead shut-off bar with a safety limit switch prevents accidental over-extension. With thoughtful additions like rubber door guards, steel toe guards, and a rugged powder-coated finish, this lift is a durable, efficient investment. And thanks to its solid warranty, you can lift with confidence, knowing you’re backed by Titan’s trusted quality. This lift is the one!

9KMSC Specifications

• Type: Clear Floor / Asymmetric
• Lifting Capacity: 9,000 lb
• Lifting Time: 50-60 seconds
• Overall Height: 141-3/4″ (cylinders extend 7-7/8” through top plates at max height)
• Width Between Posts: 118-1/8″
• Drive-Thru Width: 107-5/16″
• Low Pad Height: 3-3/4″
• Lifting Height: 74-3/4” (82-1/4″ with truck adapters and threaded pad mounts)
• Power Unit: 220V / 1Ph / 60Hz

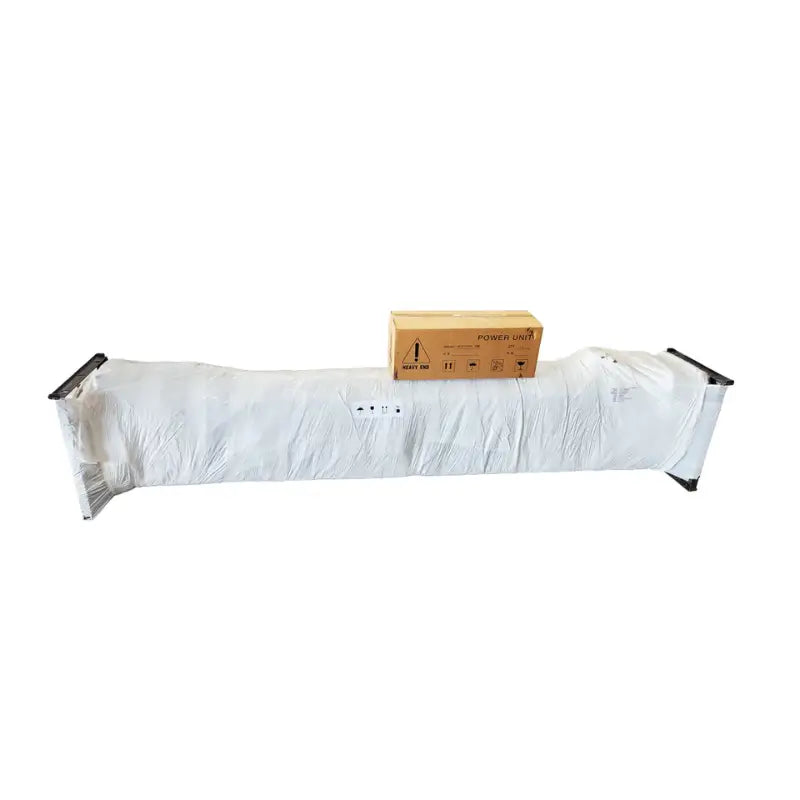

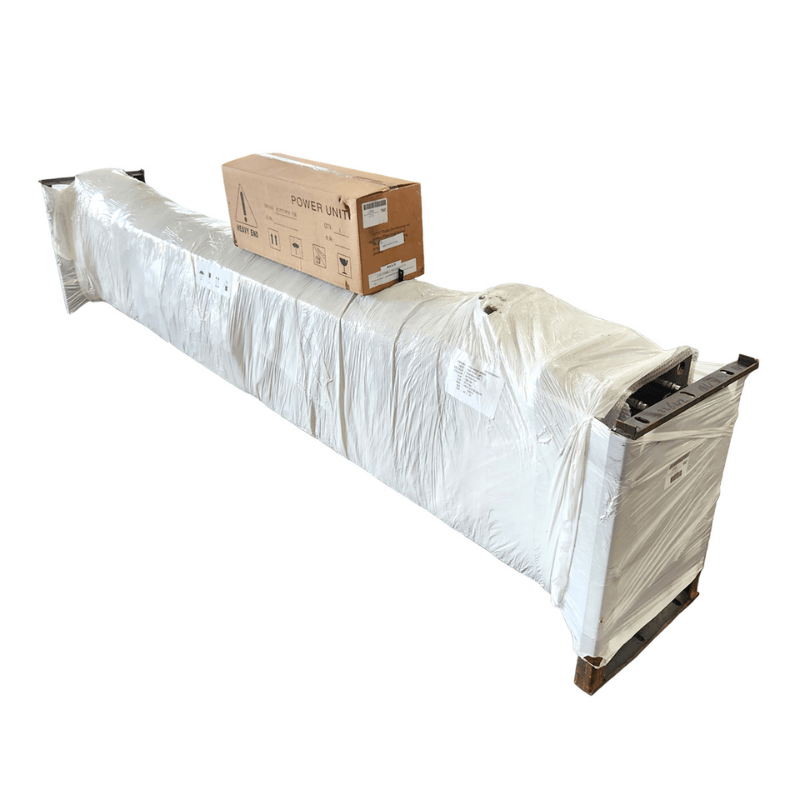

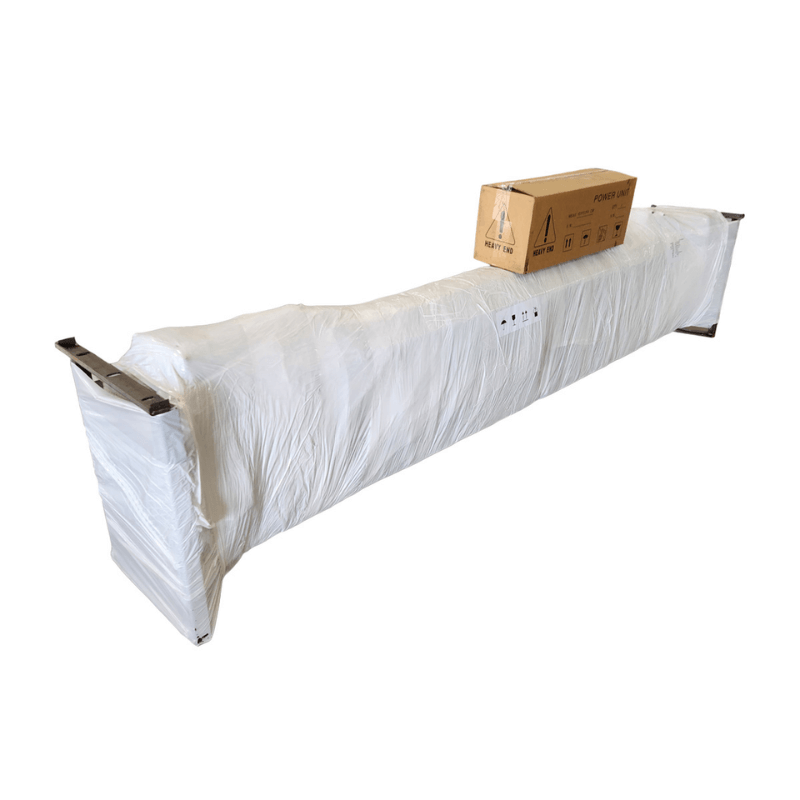

• Shipping Dimensions:
  • Length: 142″
  • Width: 22″
  • Height: 42″
  • Weight: 1,380 lb

Titan 9,000lb 2 Post Lift Special Features

• Power on Green LED
• Single button operation
• Included Electrical disconnect
• Single lever lowering
• Direct Drive Hydraulic Cylinders
• Serviceable Arm Restraint Locks
• Thread-up Lifting Pads
• Carriage Limit Switch
• 3-Stage Front Arms
• Single-Point Lock Release
• European Style Carriages
• 4” Truck Adapters
• Rubber Door Guards
• Steel Toe-guards
• Steel Hydraulic Oil Reservoir
• 5 Year Structural Warranty
• 2 Year Electric/Hydraulic Warranty
• Lifetime Warranty on Nylon Slide Blocks
• Durable Textured Powder-coated Finish


HD2P-9KMSC Manual

   HD2P-9KMSC Installation and Operations Manual

   HD2P-9KMSC Spec Sheet
