Titan HD2P-9KMSF 9,000lb 2 Post Lift - Master Series

HD2P-9KMSF 9,000lb 2 Post Lift by Titan

Craving that pro-garage vibe without leaving your home? The Titan HD2P-9KMSC 9,000lb 2-Post Lift with Floor Plate has got you covered. Designed for both seasoned mechanics and hardcore car enthusiasts, this beast offers a 9,000 lb lifting capacity and a max lift height of 81-3/4” with adapters, making it perfect for just about any vehicle. Got a low-clearance garage? No worries – the floor plate design ensures stability while keeping everything low and accessible. And thanks to its direct-drive hydraulic cylinders, you’ll experience smooth, reliable lifting every time.

What’s cool about this lift? It’s packed with handy extras like 3-stage front arms for better reach, threaded lifting pads for fine-tuning, and a single-point lock release for quick, easy operation. Safety isn’t an afterthought either – it comes with an overhead shut-off bar, carriage limit switch, and steel toe-guards to keep you and your ride safe. Plus, the durable textured powder-coated finish means it’ll look sharp and stay tough, even after years of use.

9KMSF Specifications

• Type: Floor Plate / Asymmetric
• Lifting Capacity: 9,000 lb
• Lifting Time: 50-60 seconds
• Overall Height: 112"
• Width Between Posts: 111-1/2"
• Drive-Thru Width: 100-3/4"
• Low Pad Height: 3-3/4"
• Lifting Height: 74-1/4” (81-3/4" with truck adapters and threaded pad mounts)
• Power Unit: 220V / 1Ph / 60Hz

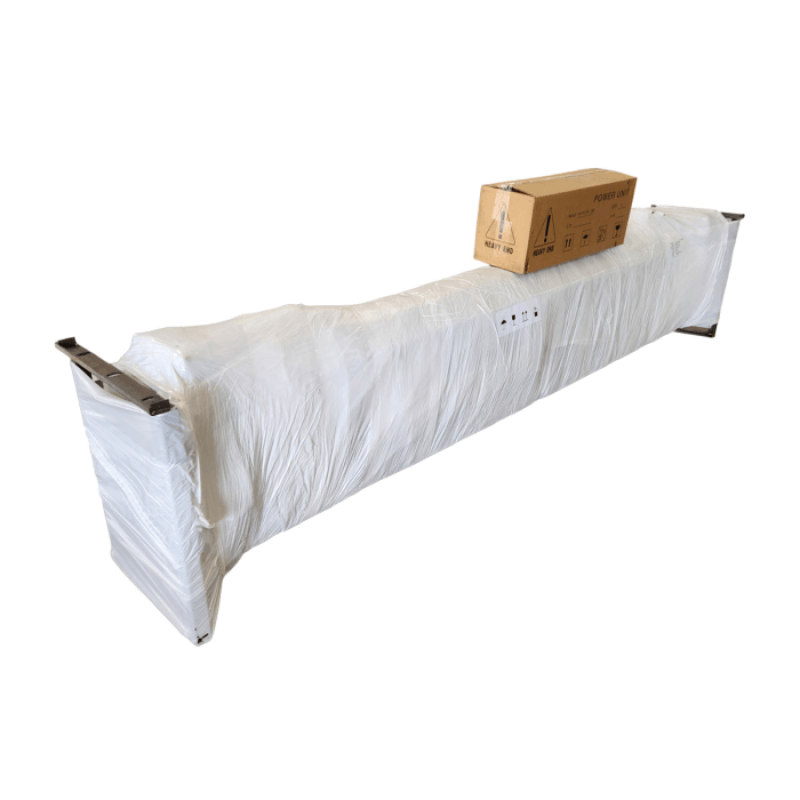

• Shipping Dimensions:
  • Length: 142"
  • Width: 22"
  • Height: 42"
  • Weight: 1,380 lb

Titan 9,000lb 2 Post Lift Special Features

• Power on Green LED
• Single button operation
• Included Electrical disconnect
• Single lever lowering
• Chain Over Roller Hydraulic Cylinders
• Serviceable Arm Restraint Locks
• Thread-up Lifting Pads
• Carriage Limit Switch
• 3-Stage Front Arms
• Single-Point Lock Release
• European Style Carriages

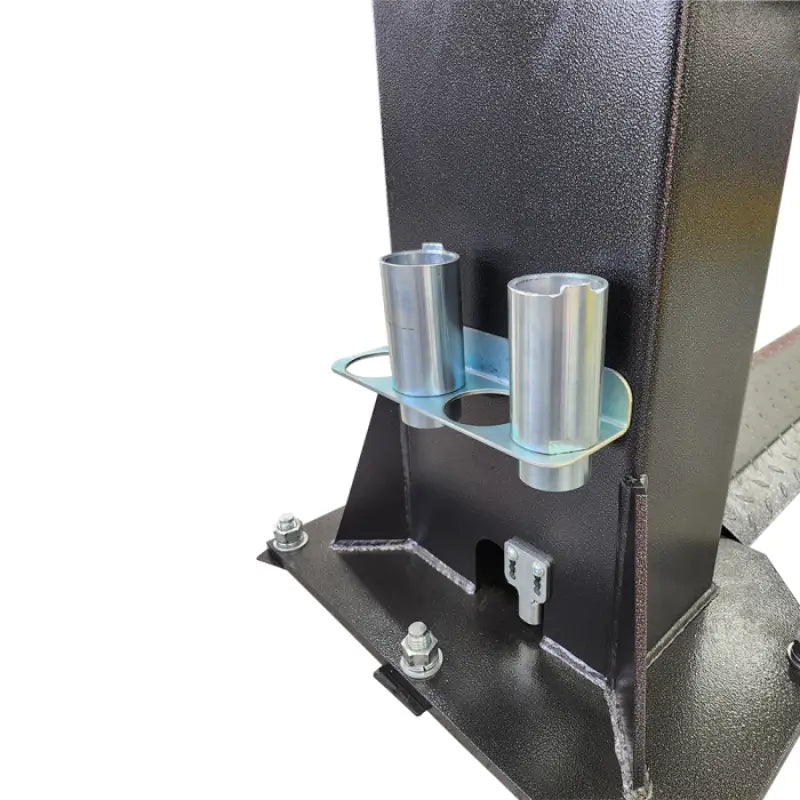

• 4” Truck Adapters
• Rubber Door Guards
• Steel Toe-guards
• Steel Hydraulic Oil Reservoir
• 5 Year Structural Warranty
• 2 Year Electric/Hydraulic Warranty
• Lifetime Warranty on Nylon Slide Blocks
• Durable Textured Powder-coated Finish


HD2P-9KMSF Manual

  Titan HD2P-9KMSF Installation and Operations Manual

  Titan HD2P-9KMSF Brochure

Warehouse Pickup locations (No shipping charge):

• Greenwood, IN 46143
