Triumph NSS 8 X1, 8,000lb Vehicle Storage Lift (Delivery via Residential Lift Gate Service)

NSS8X-1 Vehicle Storage Lift by Triumph

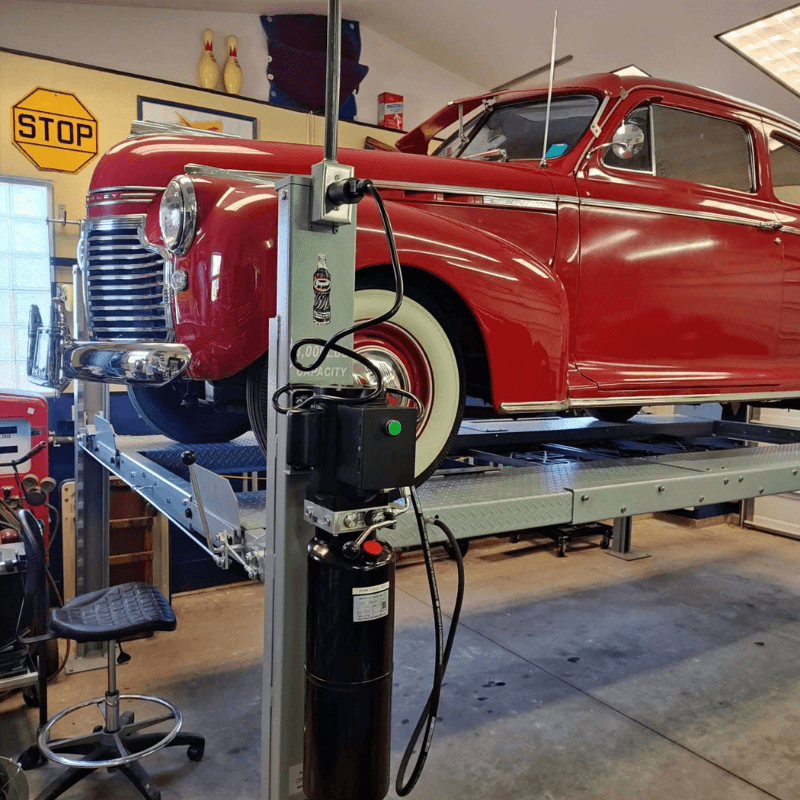

Is your cramped garage leaving you feeling like you're stuck in rush hour traffic - without the actual traffic? The Triumph NSS8X-1 Easy Park lift is your express lane to automotive nirvana. Its 8,000 lb capacity elevates your ride to a lofty 72", creating a two-car oasis in a one-car space. With 10 secure locking positions and reinforced construction, it's as dependable as a trusty old Chevy.

Say goodbye to oil-stained floors with three included drip trays, and hello to easy maintenance with the built-in jack tray. The NSS8X-1 rolls in like a NASCAR hauler, no forklift required, and sets up easier than changing a tire. Its 175" x 106" footprint fits most garages, while the 93" drive-thru width welcomes vehicles of all sizes. It's backed by a 1-year parts warranty, so you can sleep like a baby at night.

NSS8 X1 Specifications

• Capacity: 8,000 lbs.
• Overall Height: 84"
• Overall Length: 175"
• Overall Width: 106" (base plate to base plate)
• Lift Height: 72"
• Height Under Runway: 69"
• Runway Length: 165"
• Drive Thru Width: 93"
• Runway Width: 18"
• Lowered Height: 5"
• Locking Positions:
  • First Lock: 17" up to 68" (roughly every 4 inches)
• Base Plate Size: 12" x 12"
• Lock Release: Single Point
• Lift Time: 40 Seconds
• Voltage: 110 Volts (30 amp breaker)
• Shipping Weight: 1,600 lbs. - Ships in 2 Packages
  • Available to unload via Lift Gate!
• Pallet Dimension:
  • 84.5" x 21" x 29"
  • 84.5" x 21" x 29"

NSS 8 X1 Special Features

• No Forklift Required: Packaged for easy unloading at your location.
• Includes:

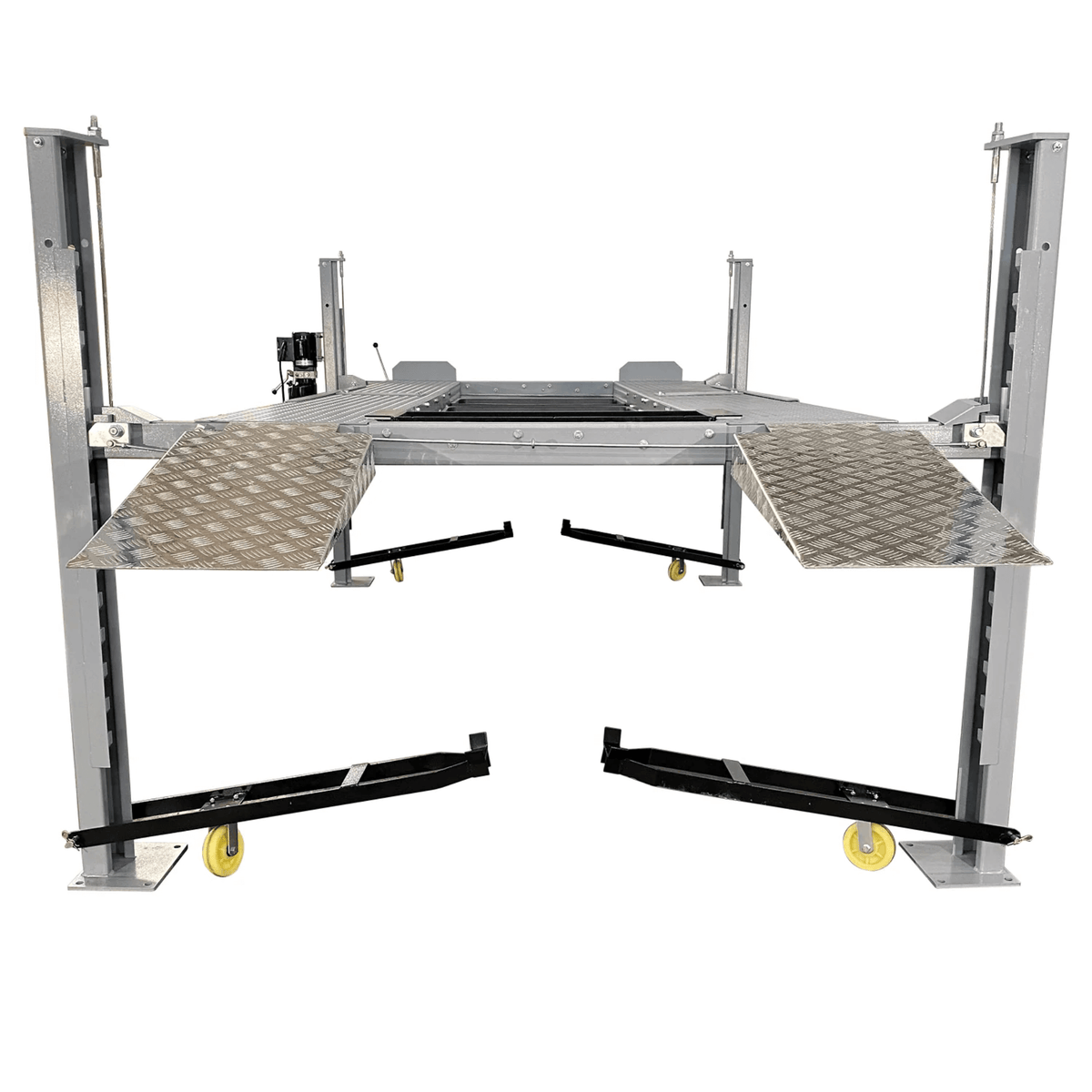

  • Caster Kit: For easy movement around the garage.
  • Jack Tray: Allows for lifting one end of the vehicle with a bottle or floor jack.

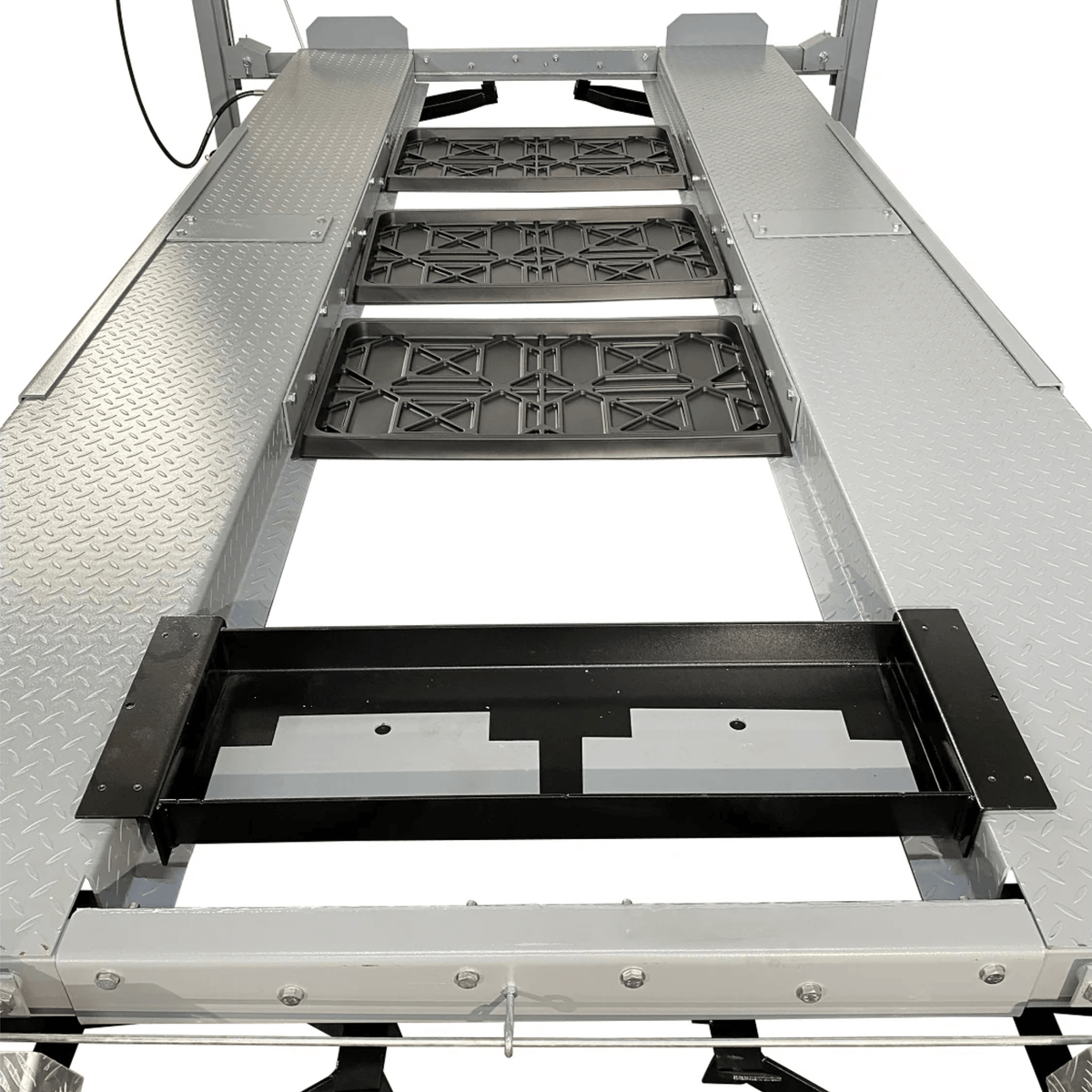

  • Drip Trays: Prevents fluid from dripping onto the lower vehicle.
• Reinforced Structure: Runways and cross rails are reinforced for added strength.

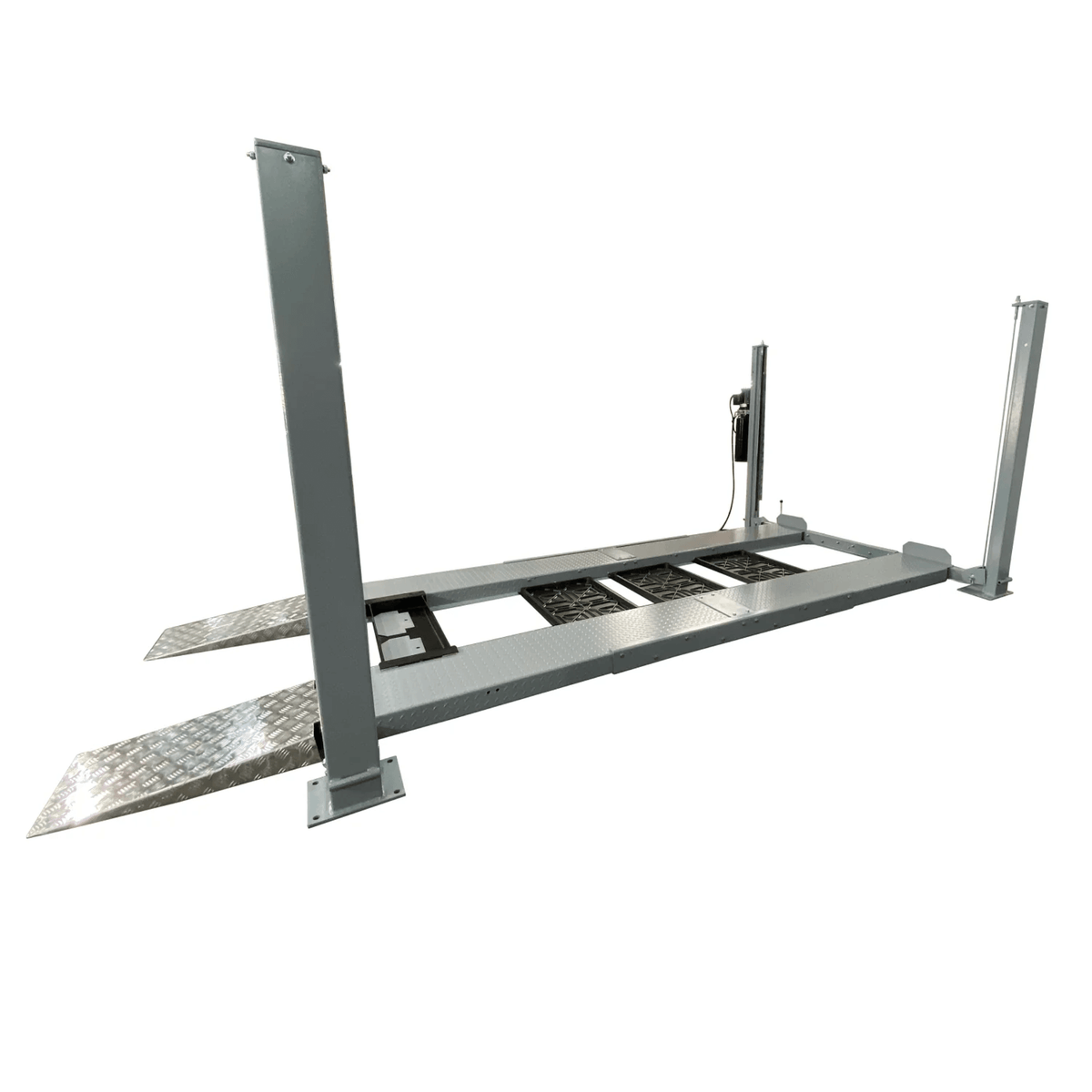

• Aluminum Ramps

• Automatic Locking: Engages at 10 positions for secure operation.
• Easy Assembly: Can be set up by two people without heavy machinery.
• Warranty: 1 year parts only
• Certification: CE Certified and built in factories with ISO9001 Quality Certification
• Optional Item (Sold Separate)
  • Triumph NSS-8 Storage Lift Bridge Jack SJ35

NSS 8 X1 Manual

  Triumph NSS 8 X1 Manual
