Atlas PRO9000 4 Post Lift + (2) RJ6BK Air Rolling Jack Combo

The Atlas Garage PRO9000 4-post lift with jacks is a robust hobbyist lift with the highest lifting capacity in our Garage PRO series. It boasts extra-long runways, believed to be the longest available in a portable 9,000 lb. four-post lift, making it ideal for handling vehicles with long wheelbases. The PRO9000 is also extra-wide, accommodating even Diesel Duallys with ease. Additionally, its extra height allows it to park vehicles ranging from Smart Cars to Duallys both underneath and on the runways.

With its commercial-grade features, the Garage PRO9000 is an excellent choice for both automotive service centers and homeowners seeking a portable, professional four-post lift at a competitive price.

This combo package also includes two popular Atlas RJ6 rolling bridge jacks, perfect for lifting a vehicle's wheels off the lift’s runways for tire and brake service.

4 Post Parking Lift Pro9000 + Rolling Jacks RJ6 Specifications:

PRO9000

• Capacity: 9,000 lbs
• Lifting Height to Top of Runway: 85" (7' 1")
• Clearance Under Runways: 80 1/4" (6' 8 1/4")
• Height of Columns: 95 3/4" (7' 11 3/4")
• Overall Width (Without Motor): 123 1/2" (10' 3 1/2")
• Overall Width (With Motor): 131 1/2" (10' 11 1/2")
• Overall Length With Approach Ramp: 227 1/2" (18’ 11 1/2”)
• Approach Ramp: 31" (2' 7")
• Runway Width: 21 1/4" (with Rails) or 20" (Driving Surface)
• Runway Length: 199 1/2" (16' 7 1/2")
• Runway Thickness: 4 3/4"
• Width Between Runways: 39 3/4" (3' 3 3/4")
• Width Between Runway Rails: 35 1/2" (2’ 11 1/2")
• Outside Runway to Outside Runway: 79" (6' 7")
• Clearance Between Columns: 110 1/2" (9' 2 1/2")
• Length Between Columns: 184 1/2" (15' 4 1/2")
• Maximum Wheel Base: 187" (15' 7")
• Drive Thru (Outside of Tire to Outside of Tire): 97 1/4" (8' 1 1/4")
• Motor/Electrical Requirement: 110 Volt, 30 AMP Breaker Required
• Shipping Dimensions: 202-1/4" x 21-1/2" x 18-1/4" - 2,300lbs

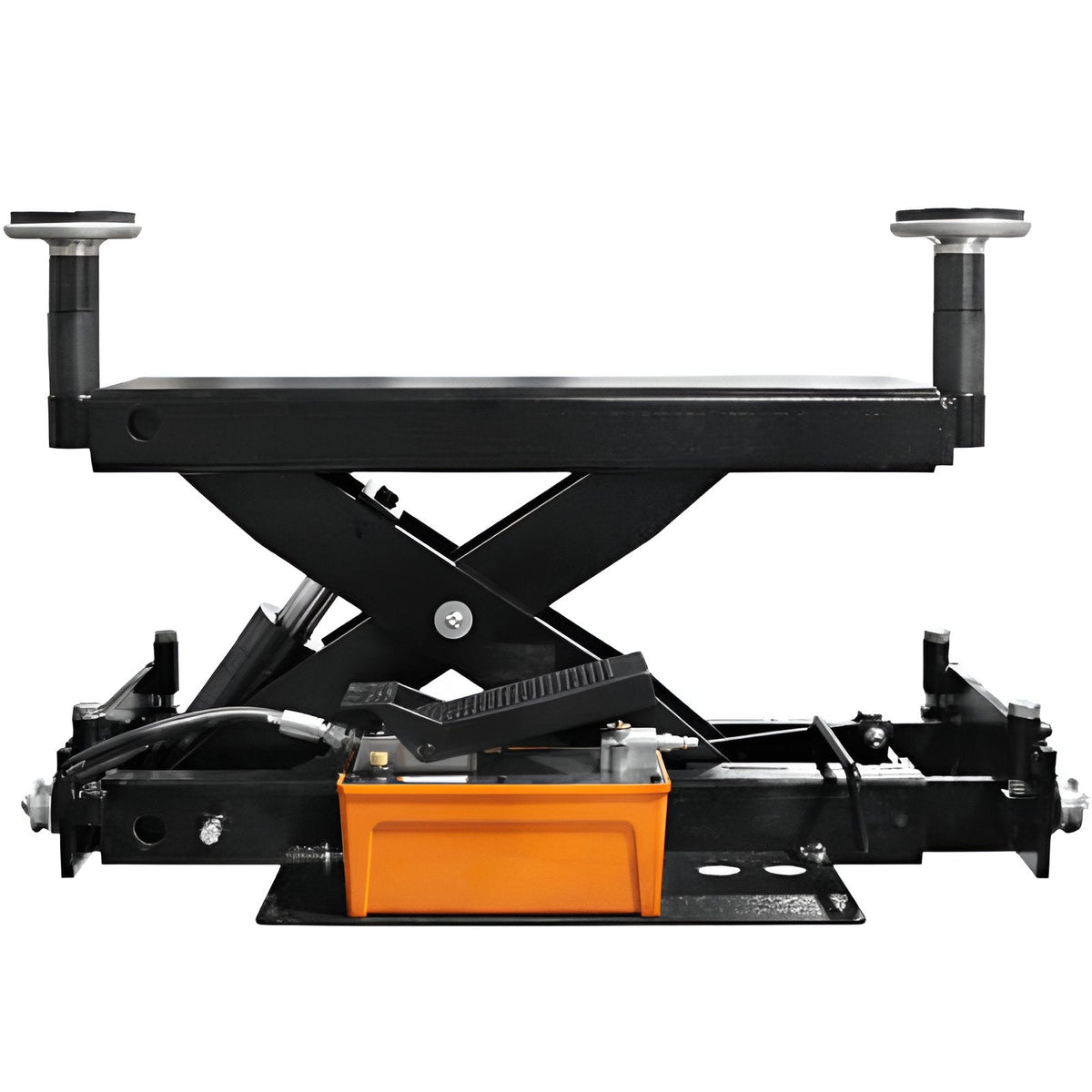

RJ6 - Pneumatic

• Maximum Capacity: 6,000 lbs

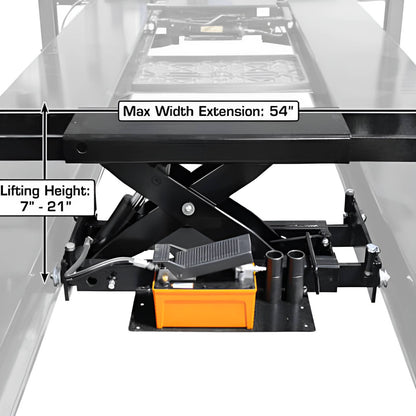

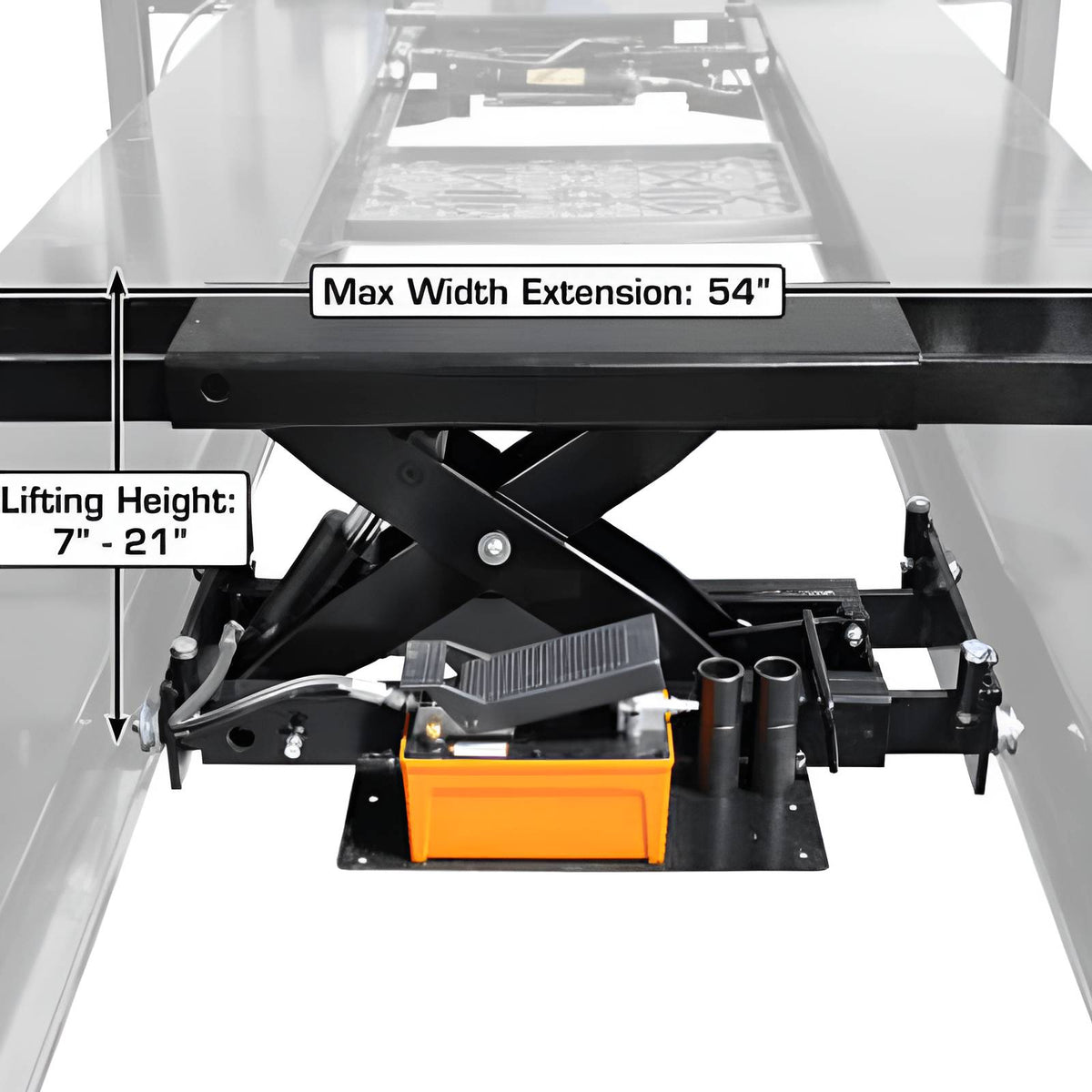

• Maximum Width: 55" (4' 7")

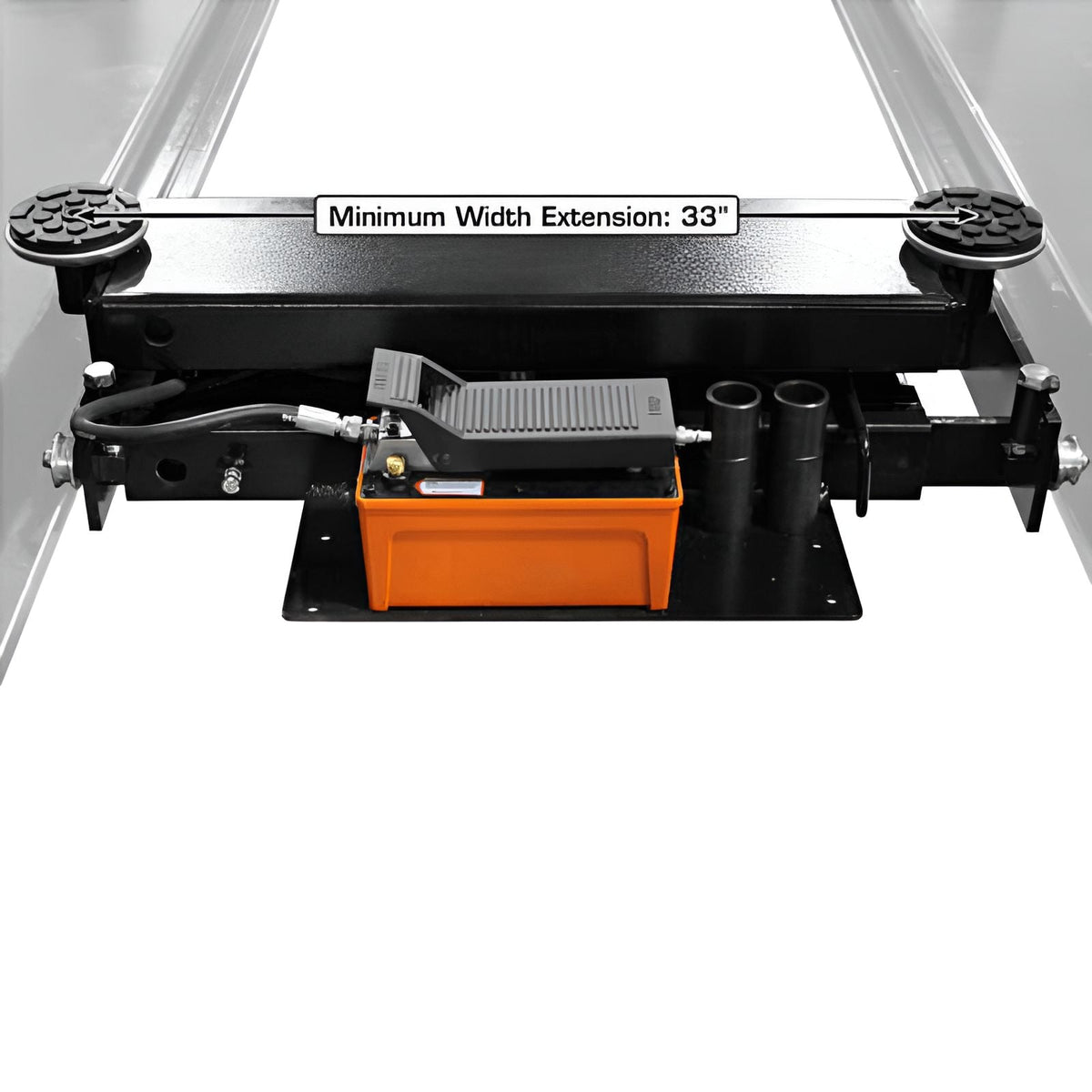

• Minimum Width: 35" (2' 11")
• Distance Between Runway Capability: 32"-52"

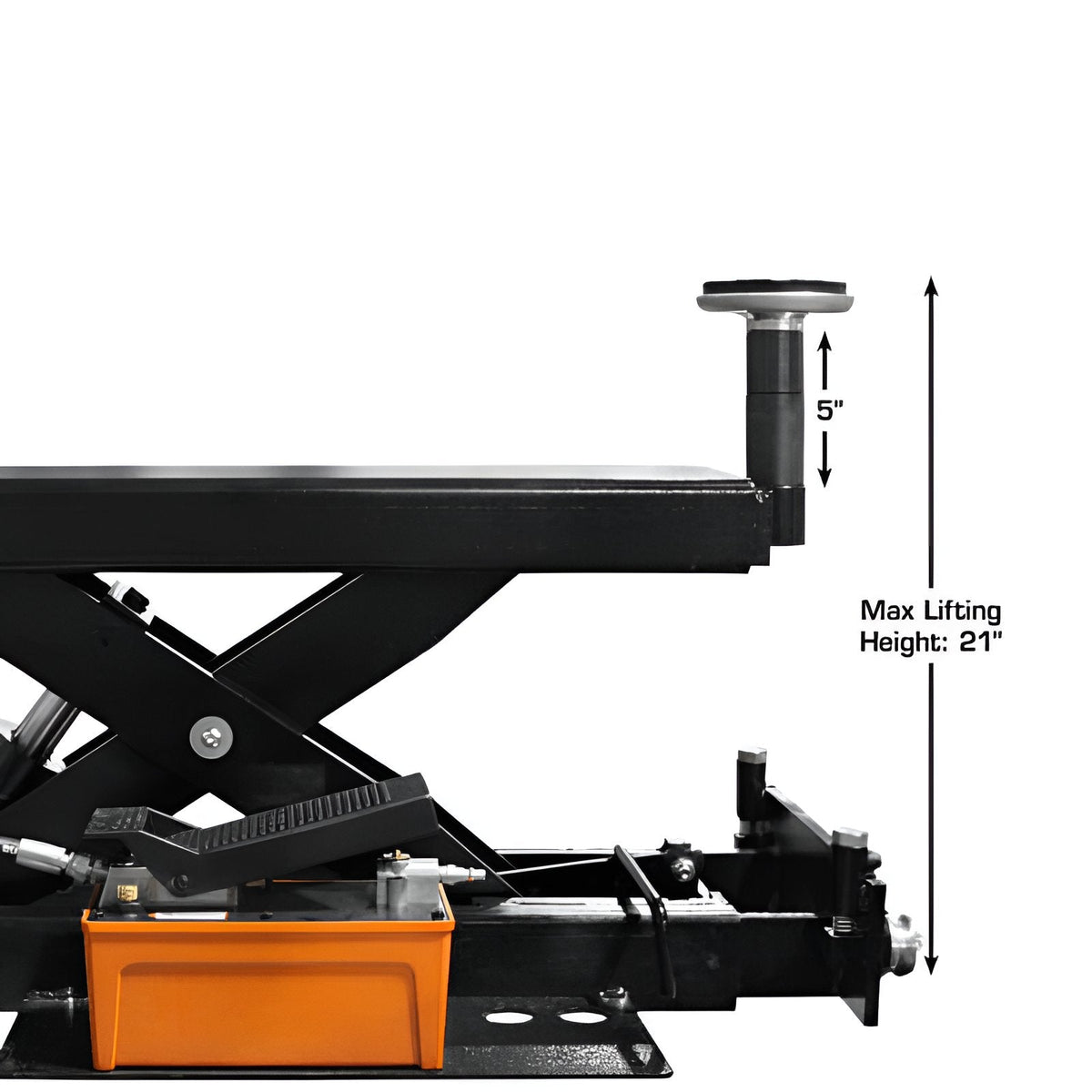

• Maximum Lifting Height (With Adapters): 21" (1' 9")
• Air Requirement: 70-115 PSI
• Shipping Weight: 350 lbs
• Adapter Heights: 2 Each 2", 3"
• Arm Hole/Adapter Peg Size: 1.5"

PRO9000 4 Post Lift + RJ6 Rolling Jacks Special Features:

PRO9000

• 9,000 lb. Capacity
• Free Standing/Portable Design
• Heavy Duty
• Extra Tall/Extra Wide/Extra Long
• Single-Point Lock Release
• Lock Ladder Design
• Double Lock Safety System
• Caster Kit With Polyurethane Wheels Included
• Steel Approach Ramps Included
• Steel Jack Tray Included
• 4 Plastic Drip Trays Included
• 2 Rubber Wheel Chocks Included
• Perfect For Storing Or Working On Vehicles
• 110volt Electric Operation (30 AMP BREAKER REQUIRED)
• Shipping Weight 2,300 lbs.
• 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

RJ6BK

• 6,000 lb. Capacity
• Air/Hydraulic Operated (external air supply required)

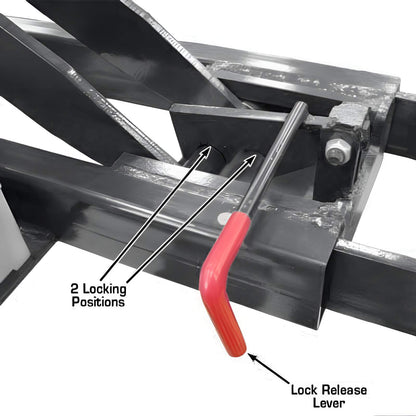

• Multiple Safety Lock Positions
• Compact Size with Low Profile
• Smooth Rolling Action
• Scissor mechanism allows for level lifting
• Powder Coated Finish
• 4 Piece Truck Adapter Set Included
• 1 Year Parts Only Warranty

Garage Pro 9000 Manual

   Atlas Pro9000 Manual

*Due to Extra Large Size, product cannot be delivered to a freight terminal.

Warehouse Pickup locations (No shipping charge):

• Atlanta, GA
• Dallas, TX
• Indianapolis, IN
• Phoenix, AZ
• Somerset, NJ
