9K Two-Post Car Lift (TP9KAC-TUX)
£1,250.00
FREE LOCAL PICKUP (Reidsville, NC) -- NO WAREHOUSE FEES ADDED

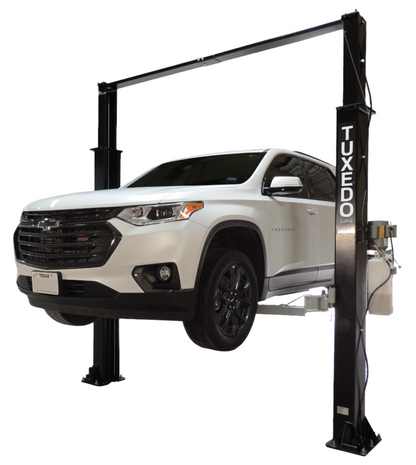

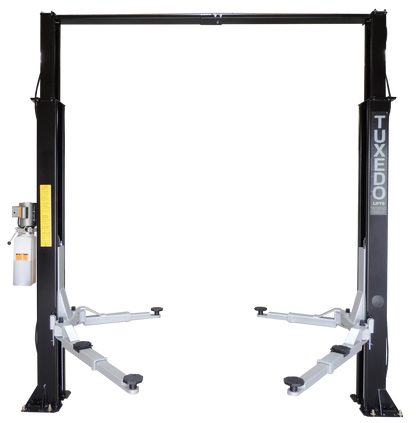

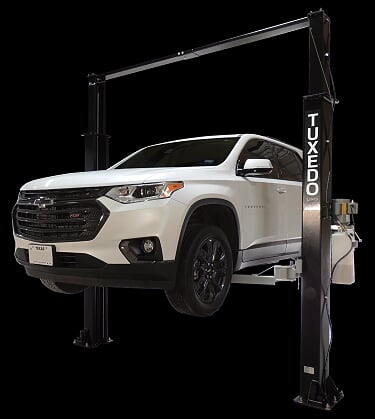

The TUXEDO TP9KAC-TUX 9,000 lb. Light Duty Two Post Lift is an economy designed overhead vehicle lift.
| TP9KAC-TUX ATTRIBUTES / SPECIFICATIONS | |
| CAPACITY | 9000 LBS |
| LIFT CONFIGURATION | OVERHEAD |
| CEILING HEIGHT MINIMUM | 12' 4" |
| HEIGHT OVERALL | 142.7" (11'10-5/8") |
| LIFTING HEIGHT | 72" (6') |
| LIFTING HEIGHT (W/ADAPTERS) | 75-7/8" (6'3-7/8") |
| LOW PAD HEIGHT | 4" |
| WIDTH OVERALL | 141" (11' 9") |
| WIDTH BETWEEN COLUMNS | 110.4" (9' 2.4") |
| TIRE/DRIVE-THRU WIDTH | 93.7" (7'9") |
| ARM ATRICULATION | ASYMMETRIC |
| FRONT ARM REACH (MIN/MAX) | 28.5" - 41.4" |
| REAR ARM REACH (MIN/MAX) | 37" - 57" |
| ADAPTERS (2 sets of 4 each) | 1.3" and 5" |
| MAX. LOAD PER ARM (LBS) | 2250 |
| SAFETY LOCKING SYSTEM | DUAL POINT |
| POWER PACK (HP/PH-V-A) | 2HP/1PH-220V-20A |
| CABLE DIAMETER | 3/8" |
| LIFTING SPEED (SECONDS) | 50 |
| SHIPPING WEIGHT (LBS) | 1390 |
| -------------------- | --------------------- |
| CONCRETE SPEC | 3000 PSI / 4.25" Thickness |
| ANCHOR BOLTS (3/4" X 5-1/2") | 3.25" EMBEDMENT / 7" FROM EDGE |
| NON-DETERGENT HYDRAULIC OIL | SAE10 / AW32 |
TP9KAC Lift Manual: Click Here
Local Pick-up (Reidsville, NC): 12' - 16' (Open) trailer required for pick-up. Enclosed trailers will not be loaded due to risk of damage to loading ramp.
Shipping / Receiving: Offloading of the delivery truck is the responsibility of customer. A forklift or similar vehicle is required to unload the lift. Residential delivery is an additional $150 charge by the freight carrier.
