9K Two-Post Floor-Plate Car Lift- TP9KF-TUX

9K Two-Post Floor-Plate Car Lift- TP9KF-TUX

Name: 9K Two-Post Floor-Plate Car Lift- TP9KF-TUX
Brand: Tuxedo
SKU: TP9KF-TUX
Price: 1001.00 GBP
Availability: InStock

£1,001.00

Product variants

FREE LOCAL PICKUP (Reidsville, NC) -- NO WAREHOUSE FEES ADDED

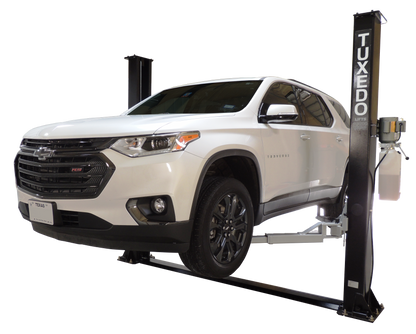

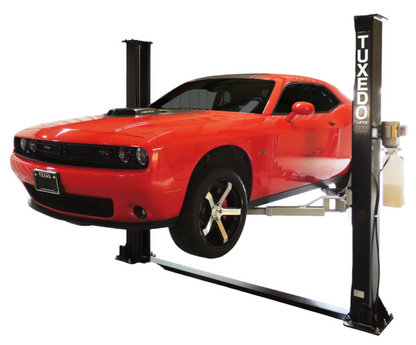

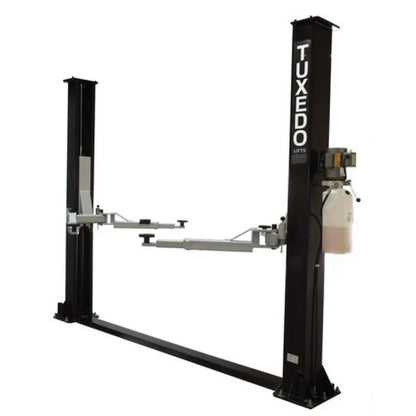

The TUXEDO TP9KF-TUX 9,000 Light Duty Two Post Lift is an economy designed floor-plate vehicle lift.

TP9KF-TUX / SPECIFICATIONS
CAPACITY	9000 LBS
LIFT CONFIGURATION	FLOOR PLATE
CEILING HEIGHT MINIMUM	10'
HEIGHT OVERALL	111.9" (9' 4")
LIFTING HEIGHT	72" (6')
LIFTING HEIGHT (W/ADAPTERS)	75 1/2" (6'3-1/2")
LOW PAD HEIGHT	4"
WIDTH OVERALL	134.6" (11' 2-1/2")
WIDTH BETWEEN COLUMNS	110.4" (9' 2.4")
TIRE/DRIVE-THRU WIDTH	101" (8' 4")
ARM ATRICULATION	SYMMETRIC
FRONT ARM REACH (MIN/MAX)	31" - 45"
REAR ARM REACH (MIN/MAX)	31" - 45"
ADAPTERS (2 sets of 4 each)	1.3" and 5"
MAX. LOAD PER ARM (LBS)	2250
SAFETY LOCKING SYSTEM	DUAL POINT
POWER PACK (HP/PH-V-A)	2HP/1PH-220V-20A
CABLE DIAMETER	3/8"
LIFTING SPEED (SECONDS)	50
SHIPPING WEIGHT (LBS)	1265
----------------	----------------
CONCRETE SPEC	3000 PSI / 4.25" Thickness
ANCHOR BOLTS (3/4" X 5-1/2")	3.25" EMBEDMENT / 7" FROM EDGE
NON-DETERGENT HYDRAULIC OIL	SAE10 / AW32

TP9KF Lift Video: Click Here

TP9KF Lift Manual: Click Here

Local Pick-up (Reidsville, NC): 12' - 16' (Open) trailer required for pick-up. Enclosed trailers will not be loaded due to risk of damage to loading ramp.

Shipping / Receiving: Offloading of the delivery truck is the responsibility of the customer. A forklift or similar vehicle is required to unload the lift.
