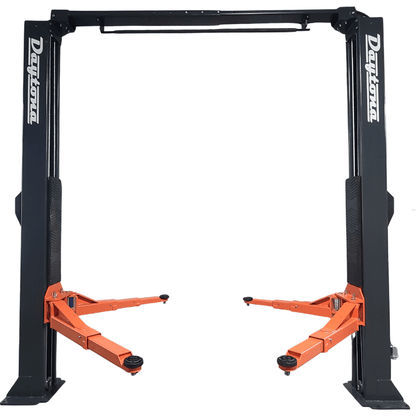

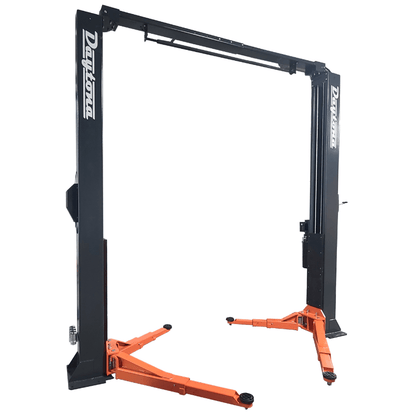

Daytona LTPA10 10,000lb 2-Post Lift Adjustable Width

LTPA10 10,000lb Adjustable Width 2-Post Lift – Heavy-Duty Auto Hoist for Professional Vehicle Service

The Daytona LTPA10 10,000lb Adjustable Width 2-Post Lift is a powerful and versatile lifting solution designed to meet the demands of professional automotive technicians and serious car enthusiasts. With its impressive 10,000-pound lifting capacity and rugged construction, this 2-post lift provides the strength and stability needed to safely elevate a wide range of vehicles, from compact cars to full-size trucks. The lift features three adjustable width settings, giving you the flexibility to accommodate different vehicle sizes and shop layouts. Its dual direct drive 6-foot cylinders and cable equalization ensure smooth and synchronized lifting for optimal control and reliability during every use.

Engineered with safety and durability in mind, the Daytona LTPA10 includes a range of features that make it stand out from other lifts in its class. Automatic safety locks with a single-point release provide secure vehicle positioning during maintenance, while high polymer polyethylene slide blocks reduce wear and extend the life of the lift. Three-stage front arms and 3-stage screw-up pads make it easy to access a wide range of lifting points, and the included truck adapters allow for hassle-free servicing of taller vehicles. A durable powder coat finish resists corrosion and shop wear, and added conveniences like a height limit switch and rubber door guards make the LTPA10 a smart, professional-grade investment for any garage.

2-Post Lift LTPA10 Specification

• Lifting Capacity: 10,000 lbs

• Power Supply: 220V, 1 Phase, 60Hz

• Outer Width (Post Base Outsides): 139”

• Inner Width (Base Insides): 108”

• Clearance Under Arm at Full Height: 68”

• Inner Width Between Posts: 113”

• Outer Width from Post Outsides: 131”

• Minimum Arm Clearance (Down Position): 4.25”

• Vehicle Clearance Between Arms: 101.5”

• Safety Cover Clearance Requirement: 12”

• Post Base Dimensions: 19” x 16”

• Post Dimensions: 9” x 11”

• Height to Overhead Bar (Standard): 142”

• Optional Height Extension Kit: Adds 2 feet

  •  LTPA10-EXT - Contact us for Pricing

• Adjustable Drive-Through Widths:

  • Narrow: 88.6″

  • Medium: 94.5″

  • Wide: 100.4″

• Shipping Dimensions:

  • Pallet 1: 143" L x 28" W x 24" H - 1,780 lbs

• • Pallet 2: 32" L 12" W x 12: H - 70 lbs

LTPA10 10,000lb 2-Post Lift Special Features

• 10,000 lb lifting capacity for a wide range of vehicles

• Adjustable width with three drive-through settings

• Dual direct drive 6’ hydraulic cylinders with cable equalization

• Automatic safety locks with single-point lock release system

• Three-stage front arms and 3-stage screw-up pads for flexible lifting positions

• High polymer polyethylene slide blocks for reduced wear and longer life

• Integrated height limit switch to prevent accidental overhead contact

• Rubber door guards to protect vehicle surfaces

• Durable powder coat finish for resistance against corrosion and wear

• Includes truck adapters for servicing larger or lifted vehicles

• Daytona 5-2-1 Warranty

  • 5 Year Structural
  • 2 Year Electric, Cylinders, Seal Kits
  • 1 Year Defective Parts
