Eagle EAG-9F 9,000 Lbs 2-Post Lift – Floor Plate Asymmetric Arms

EAG-9F 9,000 lb 2-Post Lift with Floor Plate Asymmetric Arms for Cars, SUVs & Light Trucks

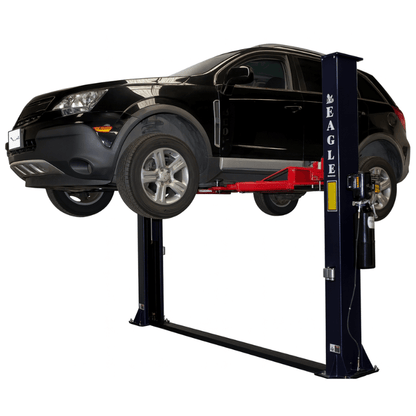

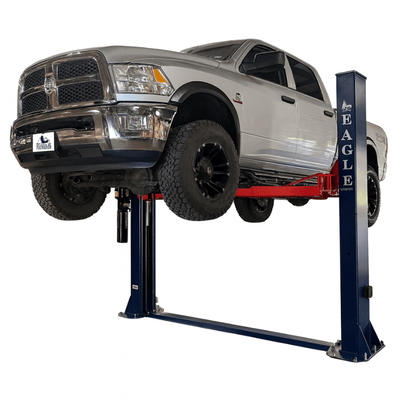

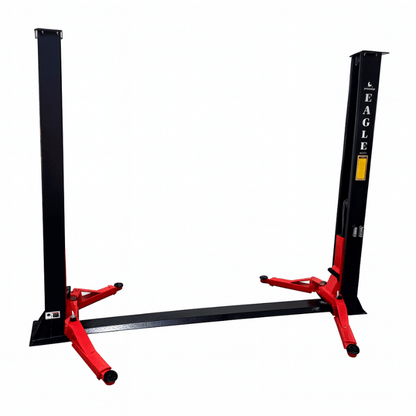

The Eagle EAG-9F 9,000 lb 2-Post Lift is a versatile and professional-grade lift engineered for safely servicing cars, SUVs, and light trucks. Its asymmetric design—with shorter front arms and longer rear arms—makes vehicle entry and exit easier while maintaining stability during lifting. This clear-floor lift provides unobstructed workspace underneath the vehicle, giving technicians flexibility for tools, jacks, or additional workspace.

Designed with operator safety in mind, the EAG-9F incorporates a Dead Man’s type control, requiring the operator to actively hold the controls for lifting and lowering. The lift also features automatic arm restraints, an equalizing cable system, a collision-prevention limit switch, pipe break valves, and a pressure relief valve to ensure precise, level, and safe operation under load. These safety systems make it ideal for professional shops and home garages alike.

Powered by a 2HP motor with 220V/380V power options, the EAG-9F delivers smooth lifting and lowering with a rise time of 60 seconds. Adjustable height adapters extend lift versatility, providing maximum clearance and support for a wide range of vehicles. Built from durable materials and designed for long-term reliability, this lift offers technicians peace of mind while providing efficient, easy-to-use service capabilities.

2-Post Lift EAG-9F Specification

• Style: Asymmetric

• Lifting Capacity: 9,000 lbs

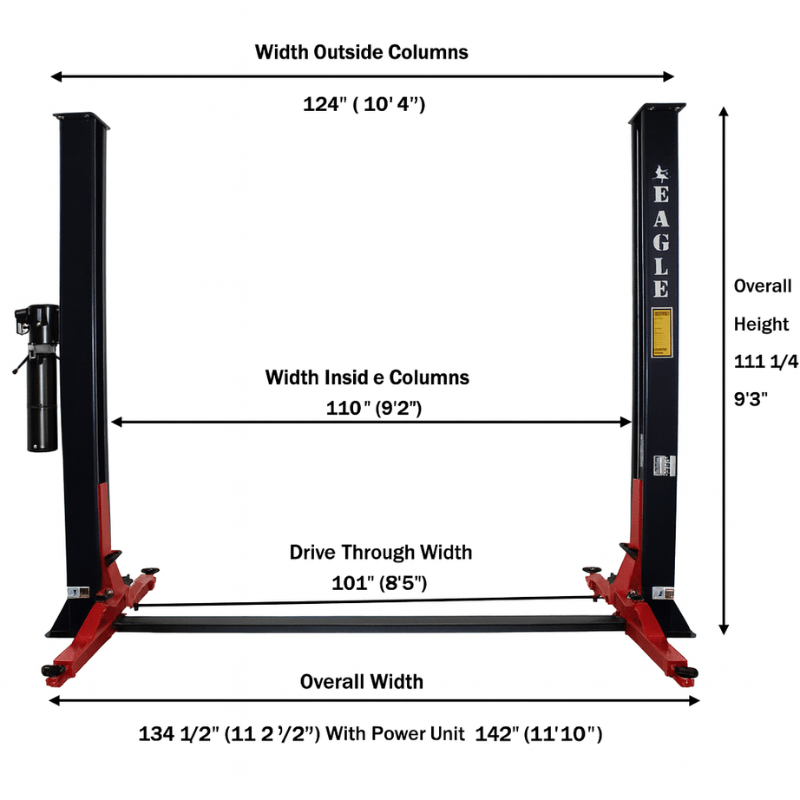

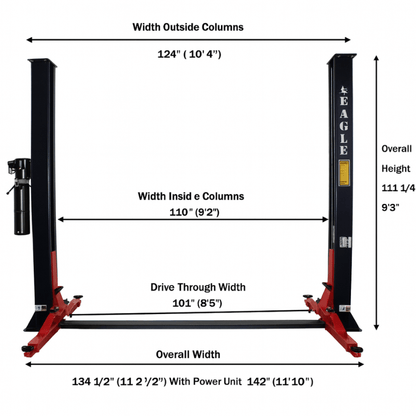

• Overall Height: 111.5"

• Overall Width (outside base plate): 134.25"

• Width (outside columns): 124.75"

• Inside Columns: 110"

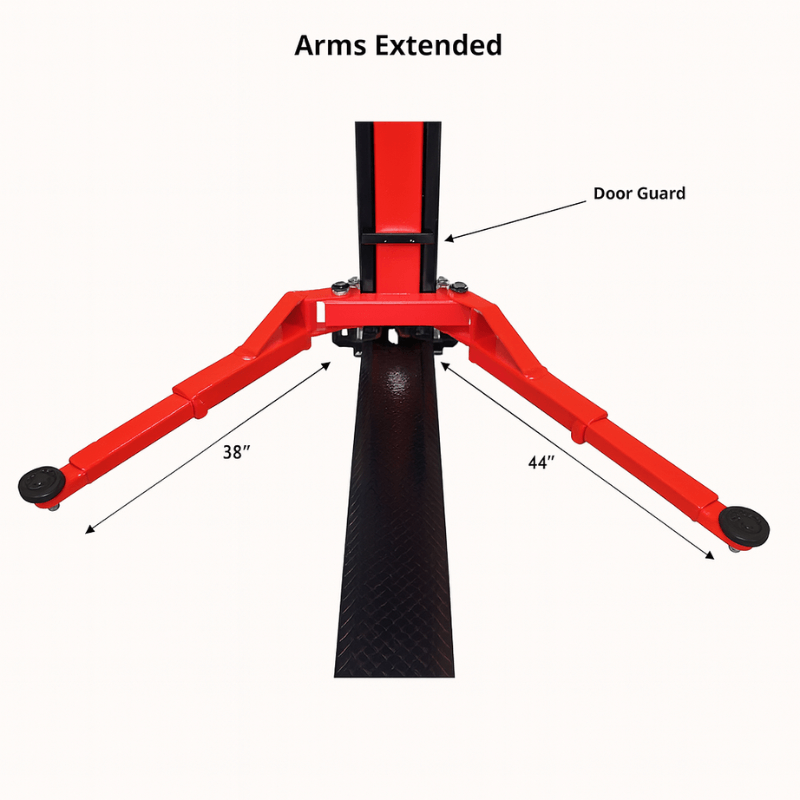

• Front Arm Reach: 31.5"–44.75"

• Rear Arm Reach: 31.5"–44.75"

• Minimum Pad Height: 4"

• Height Adapters: 1.75"–4"

• Rise: 69.5"

• Max Lifting Height (pad only): 72.8"

• Max Lifting Height (with adapters): 80.75"

• Drive-Through Clearance: 101"

• Time to Full Rise (no load): 60 seconds

• Anchoring: 0.75" bolts

• Concrete Grade Minimum: 3,000 psi / 4" thick

• Motor Power: 2 HP (1.5 kW)

• Power Supply: 220V/380V, 50Hz/60Hz

• Shipping Weight: 1,290 lbs

• Shipping Dimensions (with power unit): 114" L × 22" W × 42" H

EAG-9F 9,000 Lbs 2-Post Lift Special Features

• Heavy-duty lifting capacity: 9,000 lbs

• Asymmetric floor plate arms for easier vehicle access

• Clear-floor design for workspace under vehicle

• Dead Man’s style control for enhanced safety

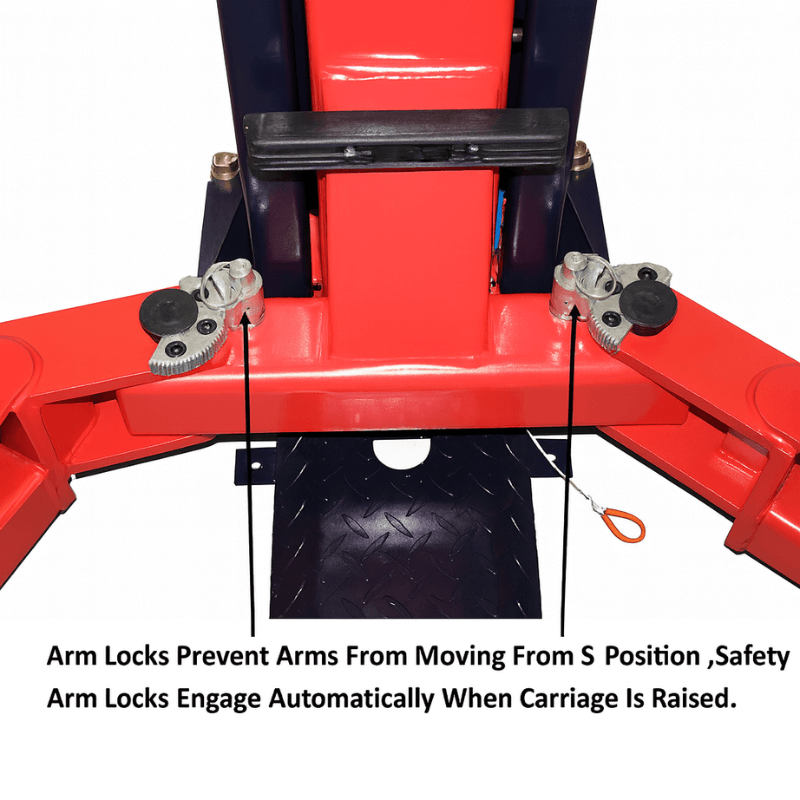

• Automatic arm restraints prevent arm swivel under load

• Collision prevention limit switch protects vehicle roof

• Equalizing cable system for level carriage movement

• Pipe break and pressure relief valves for hydraulic safety

• Adjustable height adapters: 1.75"–4"

• Durable construction with long-lasting performance

• Suitable for cars, SUVs, and light trucks

• 1-year manufacturer warranty

EAG-9F Manual

  Eagle EAG-9F Installation and Operations Manual
