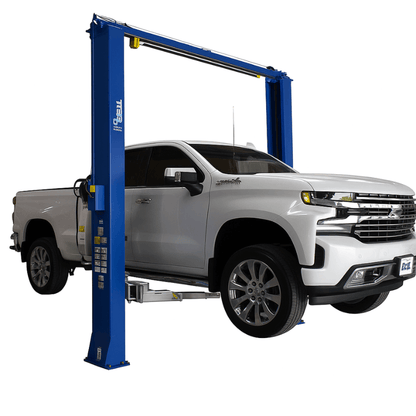

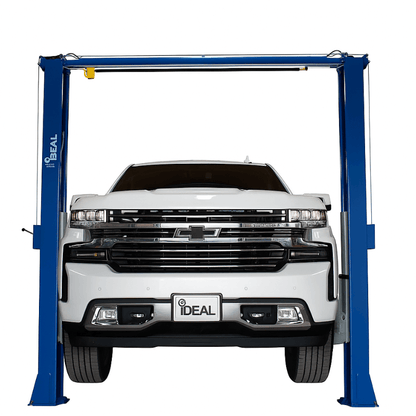

TP10KAC-DX 10,000lb 2 Post Car Lift - ALI Certified

Ideal TP10KAC-DX 2 Post Lift

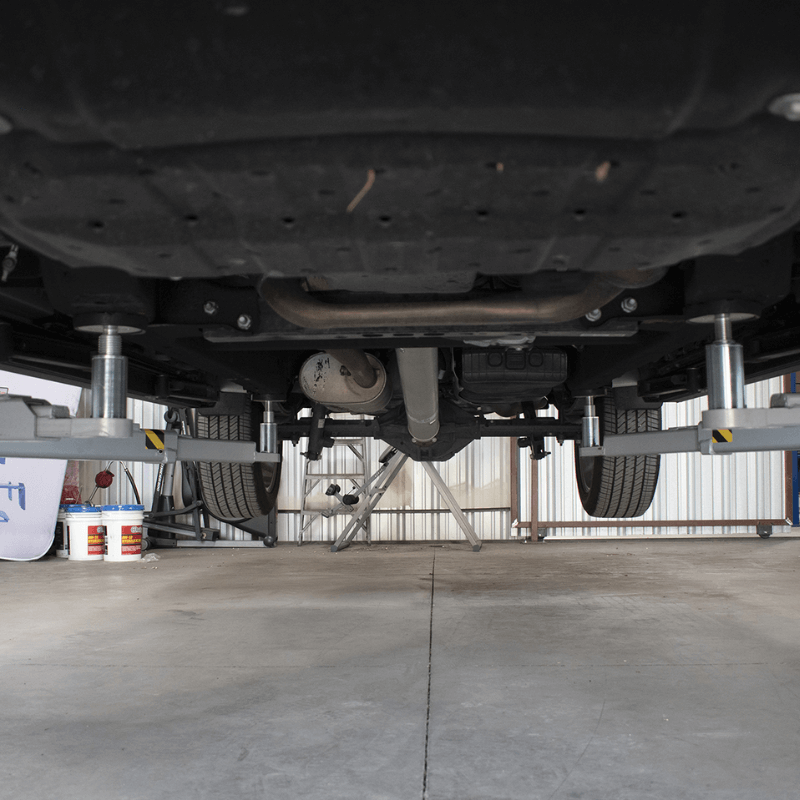

Time to lighten your load with the TP10KAC-DX Car Lift! With its 10,000 lbs capacity and bi-symmetric arms, it's ready to bench press everything from pint-sized compacts to hefty pickup trucks. But here's where it really flexes its muscles: a not exactly lightning-fast 50-second rise time that'll make one-minute rise time jacks jealous, and a single-point lock release smoother than a well-oiled transmission.

Worried about safety? This lift's got more protective features than a medieval fortress. Rubber door guards and heavy-duty arm restraints keep vehicles snug as a bug, while external hose guards fend off potential damage like a knight in shining armor. With ALI certification and a Duro Certified Power Unit, it's more reliable than a Swiss watch. The TP10KAC-DX is your ticket to turning car maintenance from a Herculean task into a walk in the park!

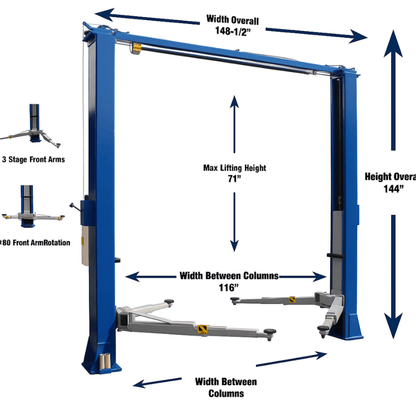

Ideal TP10KAC Specifications:

• Overall Width: 137 3/16″
• Overall Width w/Power Unit: 145 1/2″
• Overall Height: 144″
• Minimum Ceiling Height: 12′
• Low Pad Height: 4″
• Max. Lift Height: 71″
• Max. Lift Height w/Tallest Adapter: 76 1/2″
• Width Between Columns: 116″
• Drive Thru Width: 104″
• Floor to Overhead Shutoff: 136″
• Arm Reach Front: 23″ – 45″
• Arm Reach Rear: 41″ – 57″
• Maximum Load Per Arm: 2,500 lbs
• Electric Power Unit: 220VAC, 20 Amp, 1 Phase
• Rise Speed: 50 Seconds

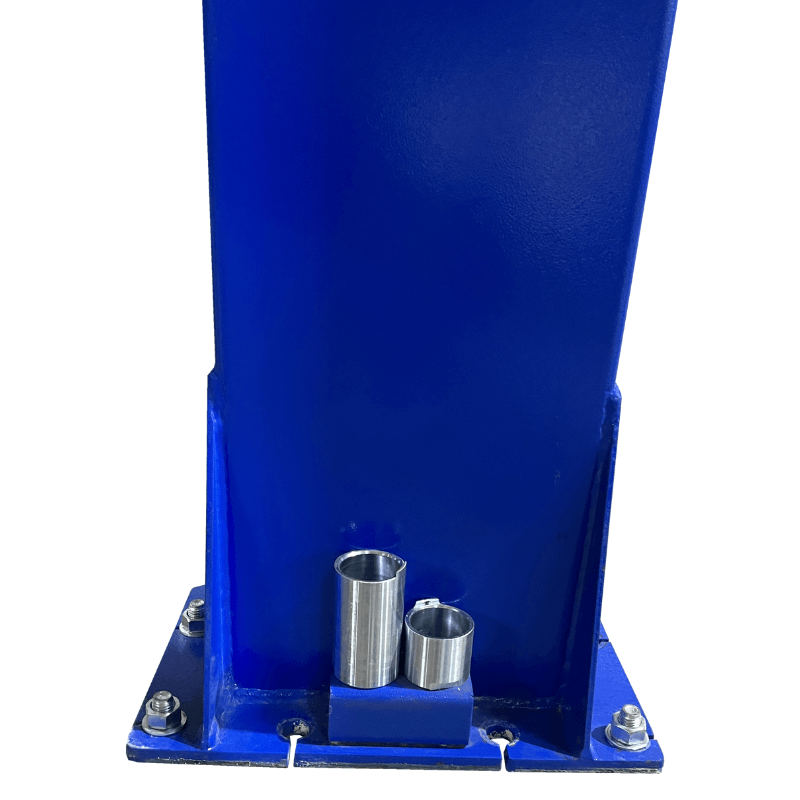

• Minimum Concrete: 4 1/4″ / 3000PSI
• Operating Pressure: 3,050 PSI
• Shipping Weight: 1,705 lbs.
• Shipping Dimensions: 140″ L X 19″ W X 40″ T
• Pallet Dimensions: 140" 19" 48"

Ideal 10000lb Special Features:

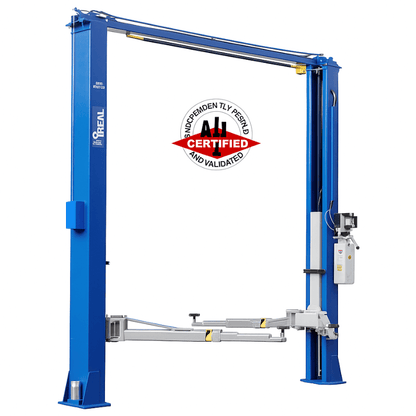

• ALI certified
• 10,000 lbs capacity

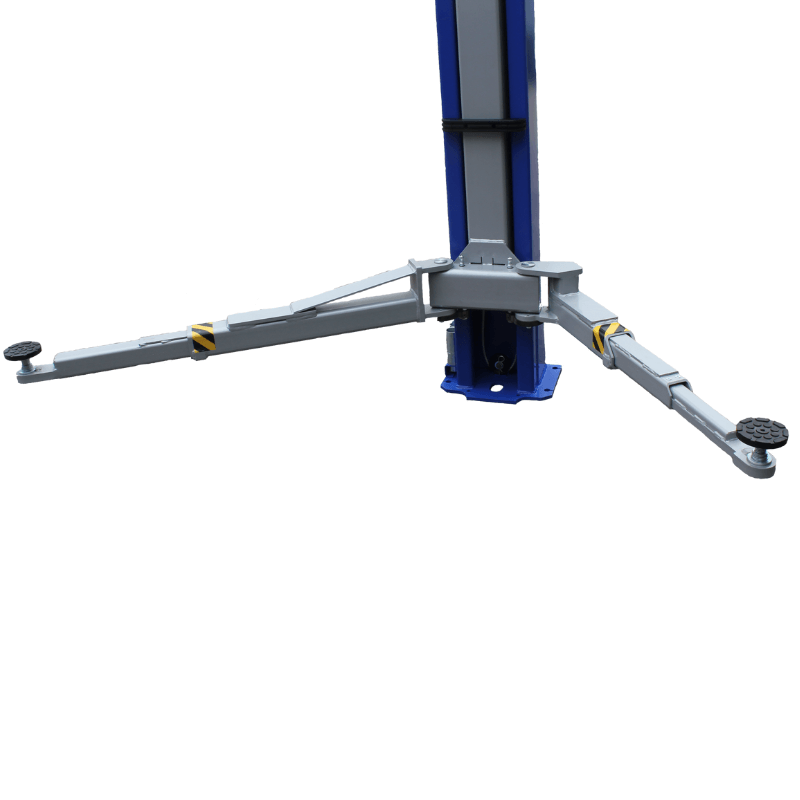

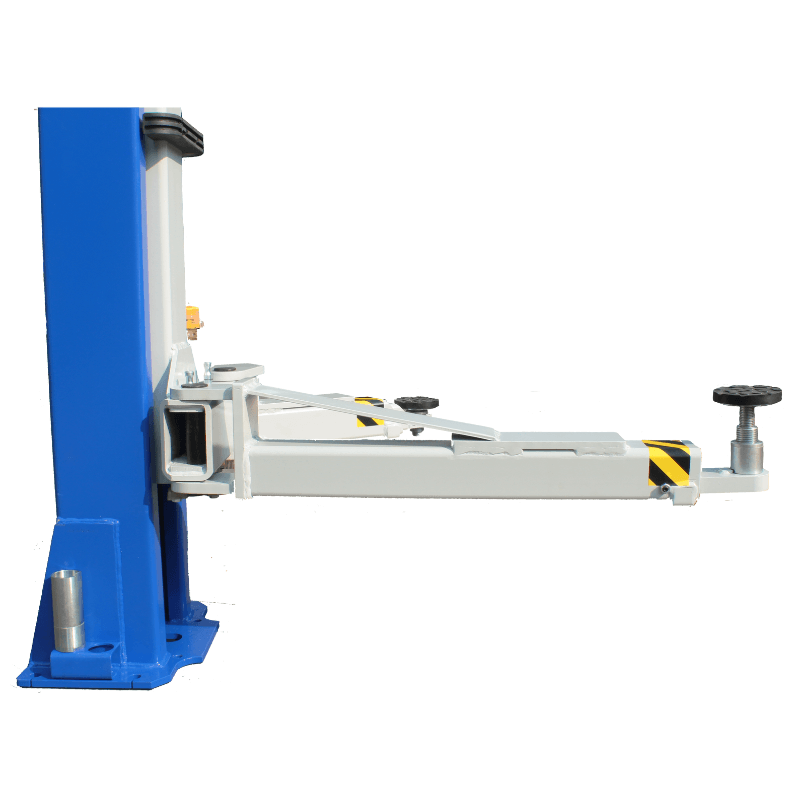

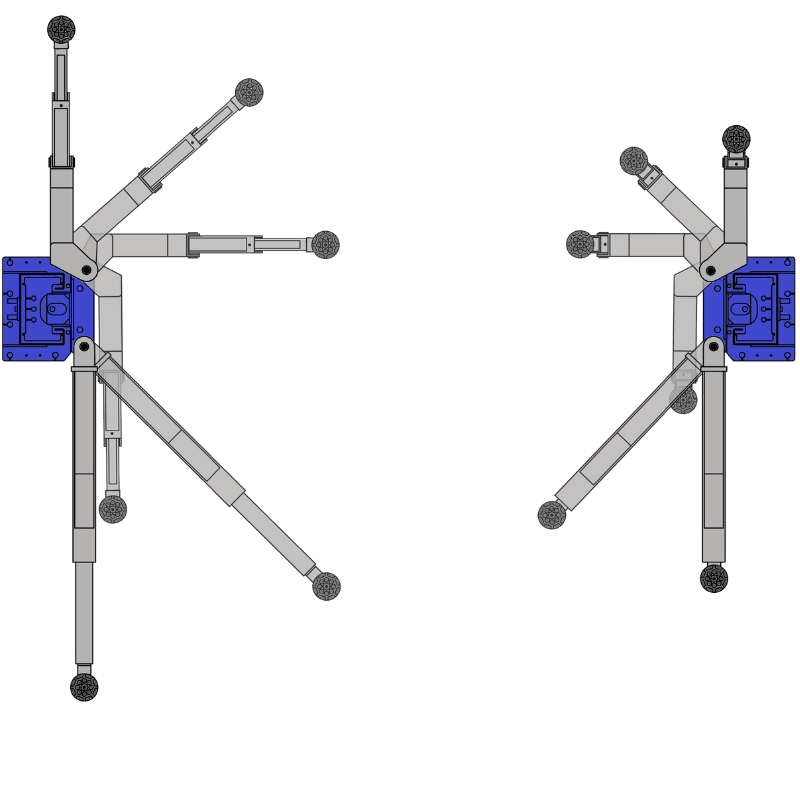

• Bi-Symmetric arm design

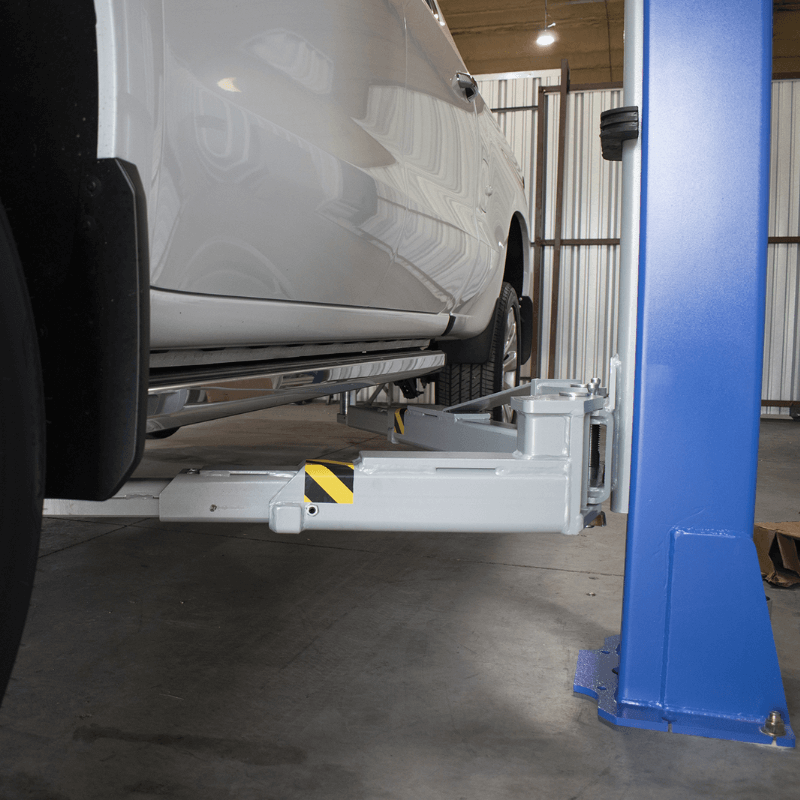

• Rubber Door Guards

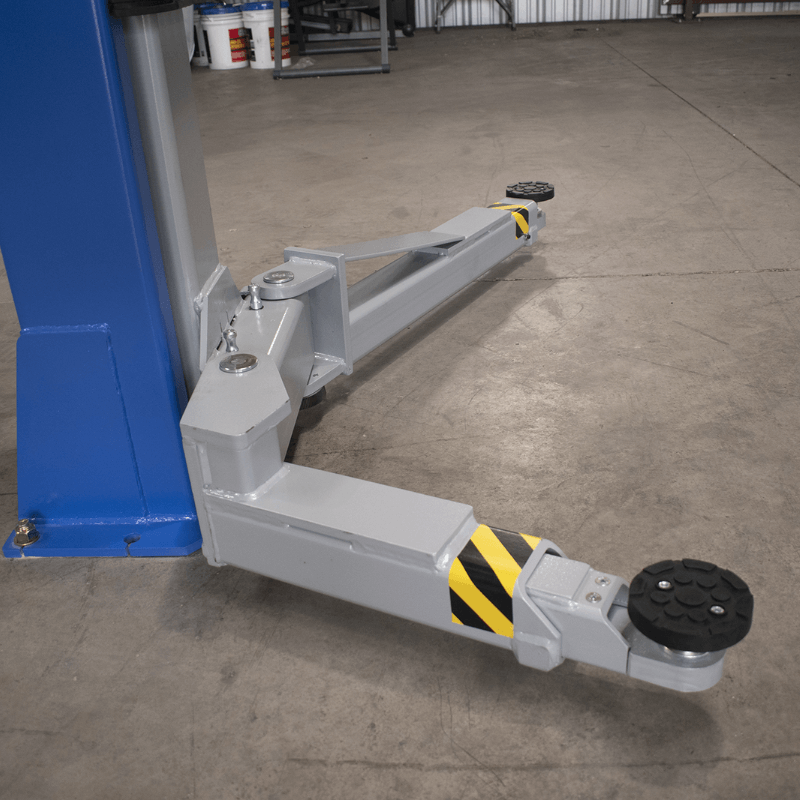

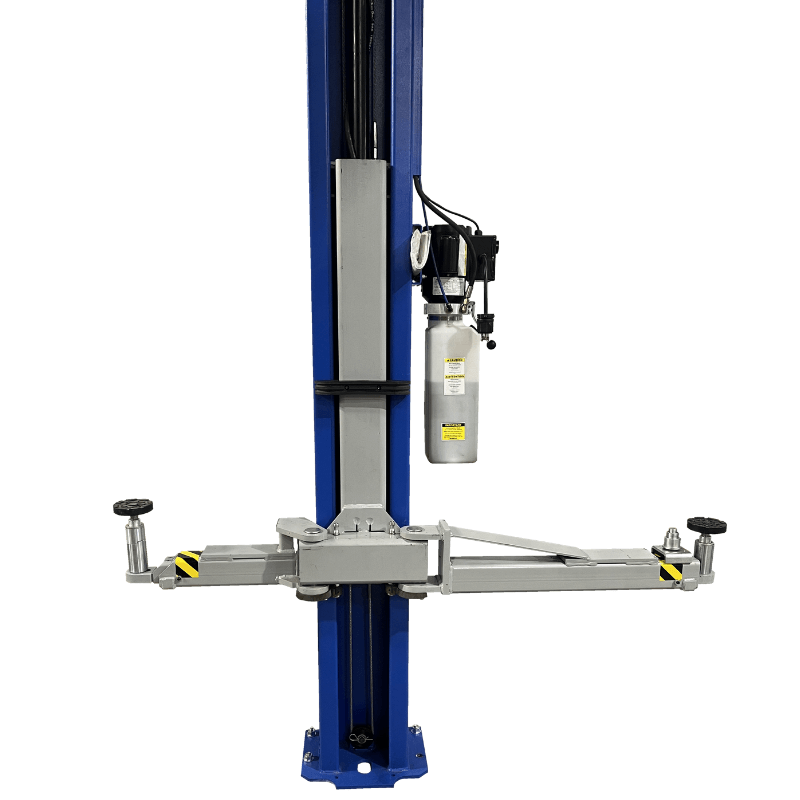

• 3 Stage Front Arms
• Single Piece Column
• Direct Drive pull Cylinders
• Single Point Lock Release

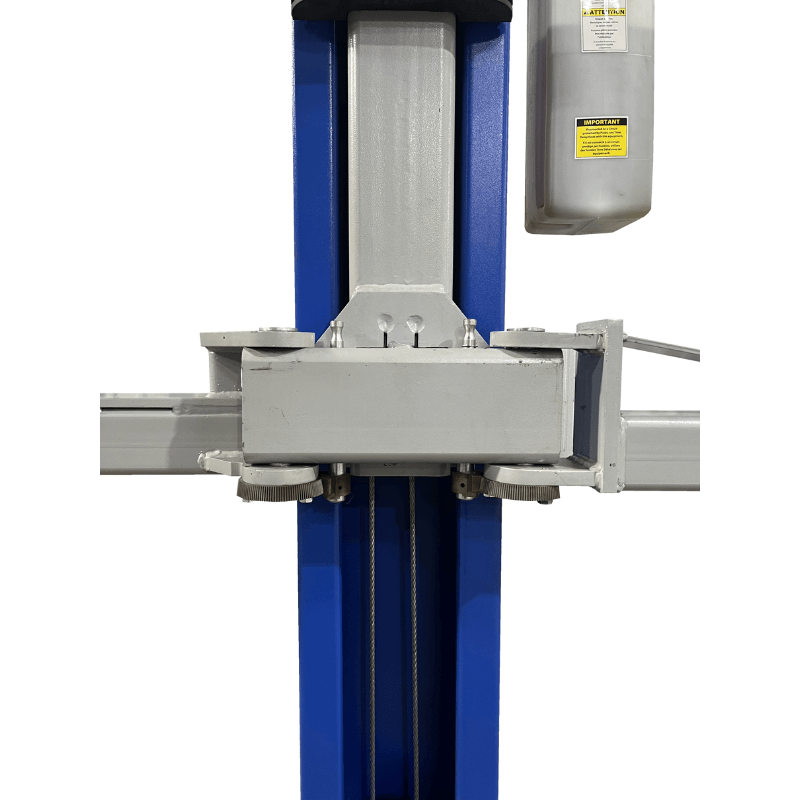

• Heavy Duty Arm Restraint System

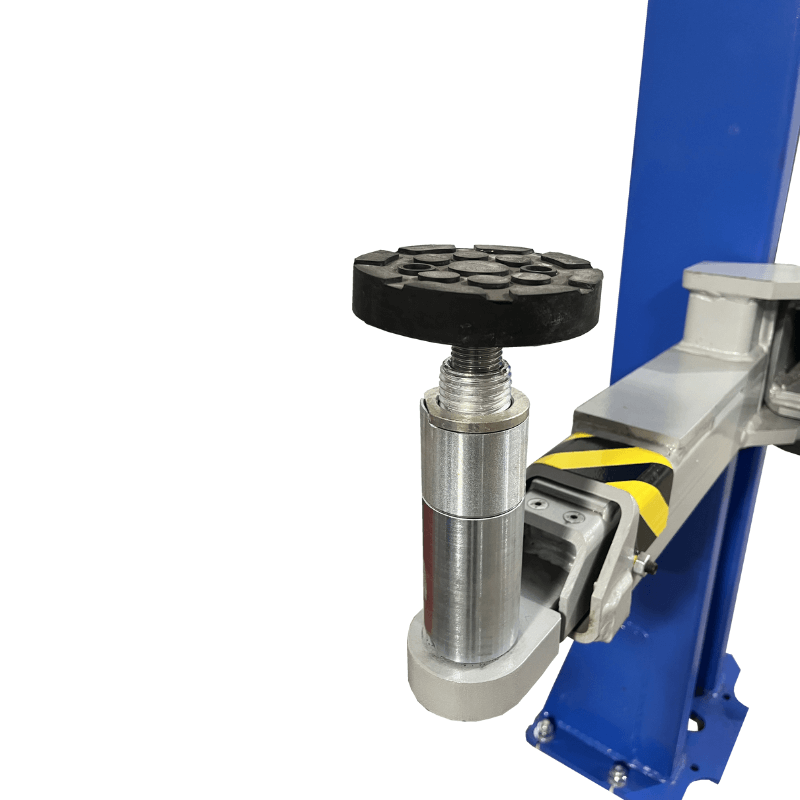

• Spin Up Low Profile Lift Pads
• Stackable Adapters Included

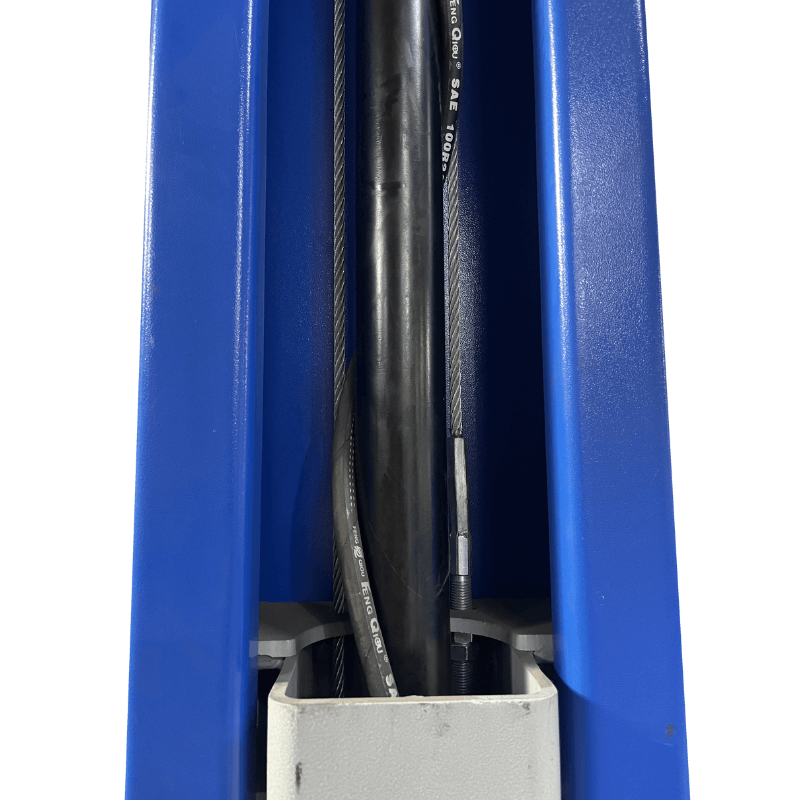

• External hose guards

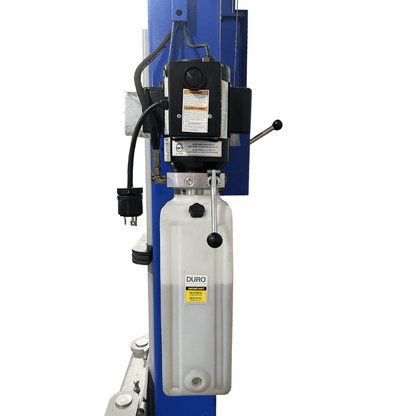

• Duro Certifed Power Unit – MET, UL, CSA
• Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use

TP10KAC-DX Manual:

   iDeal TP10KAC-DX Manual

  iDeal TP10KAC-DX Brochure
