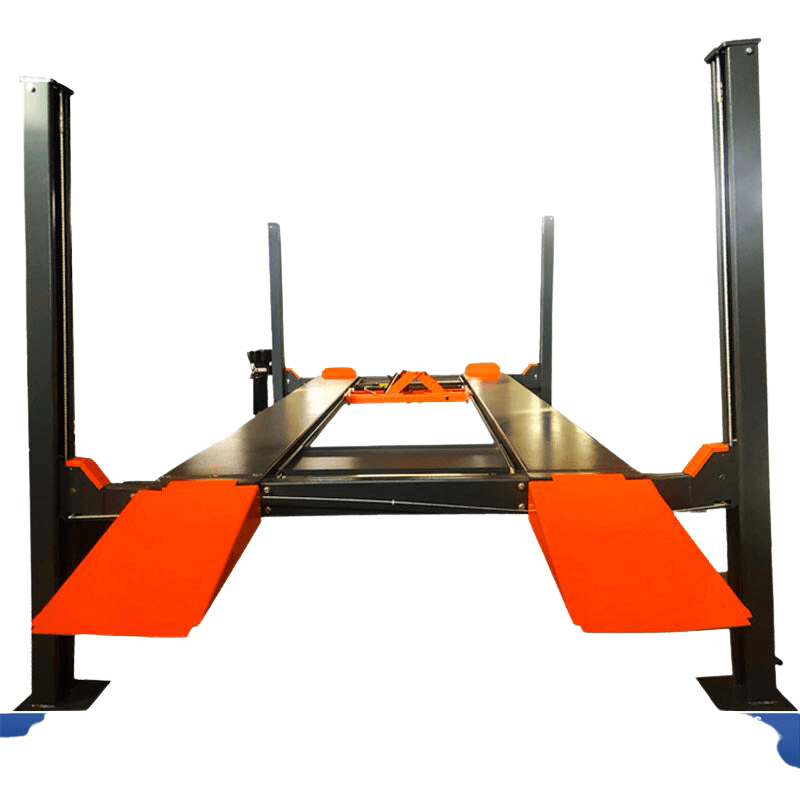

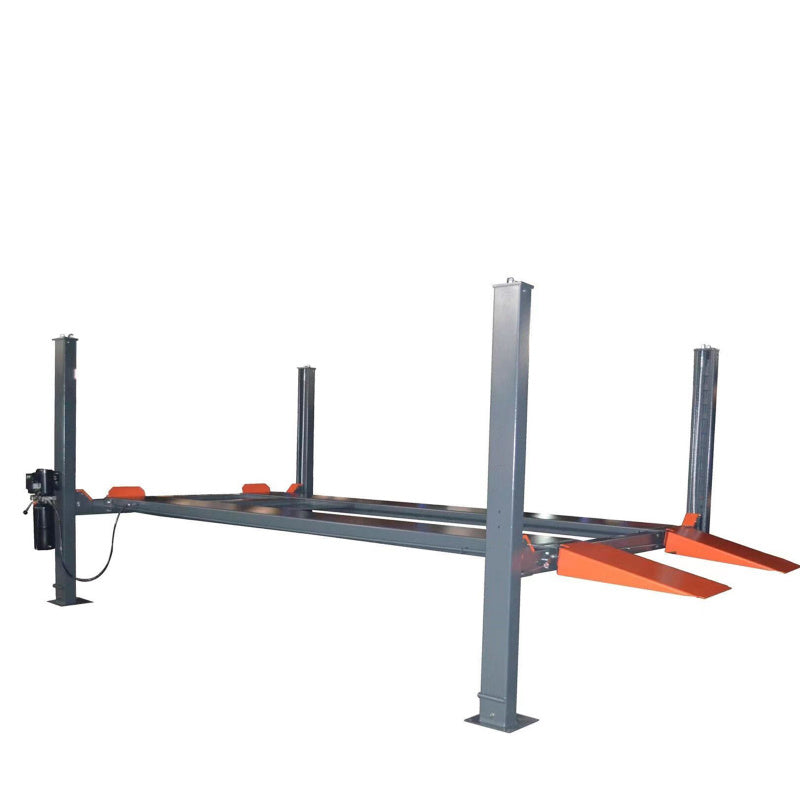

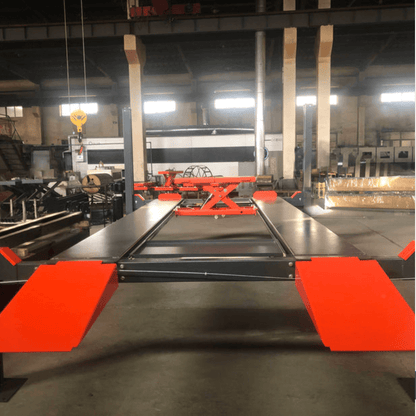

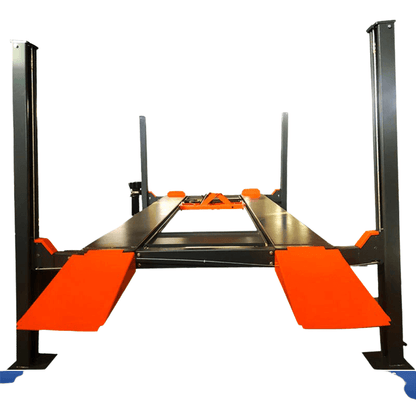

KT-4H110 4 Post Vehicle Storage Lift 11,000lb

Katool KT-4H110 Vehicle Storage Lift

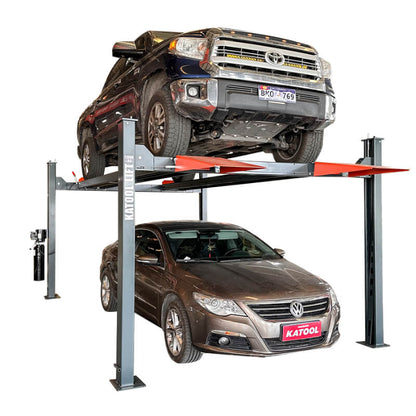

Drowning in clutter and struggling to park your vehicles? The Katool KT-4H110 Vehicle Storage Lifts is your space-saving solution for a cleaner, more organized garage. This powerful 4-post lift has a massive 11,000-lb lifting capacity, accommodating even heavy-duty trucks and SUVs. The KT-4H110 dimensions are so compact that it fits perfectly into tight spaces with an overall width of just 126". It effortlessly elevates vehicles to a comfortable 84.25" height for easy maintenance or storage. This lift offers the perfect blend of power and functionality, with a minimum runway height of just 6.2" for slammed cars. Convenience matters with a choice of 110V or 220V power and included drip trays and jack tray.

Stop sacrificing space! Upgrade to the Katool KT-4H110 and experience the freedom of a clean, organized garage. CE-approved and certified with four mechanical locking devices and a non-slip platform, safety is never compromised. Get yours now and reclaim your precious garage space!

Katool 11000 lb Lift Specifications

• Lifting Capacity: 11,000 lb
• Max Lifting Height: 84.3"
• Height Under Runway: 78.7"
• Drive Thru Clearance: 98.3"
• Runway Width (outside to outside): 79.7"
• Height of Posts: 95"
• Overall Width:  126"
• Length (w/ ramps): 223"
• Length (w/o ramps): 191"
• Inside Columns: 113"
• Inside Runways: 45"
• Min. Runway Height: 6.2"
• Lock Position: Every 4.7" (14 Positions)
• Power: 110V/60HZ/1PH or 220V/60HZ/1PH (30amp breaker required)
• Shipping Dimensions: 195" x 26" x 32"
• Weight: 2,119lbs
• Oil: AW-46 or AW-32 (colder climates)
• Included:
  • Drip Trays, Jack Tray

KT 4H110 Special Features:

• 11,000 LB Capacity: Designed for full-size vehicles including heavy-duty pickups and long-wheelbase SUVs.

• CE Certified: Tested to 115% dynamic and 150% static load standards for industry-grade safety and durability.

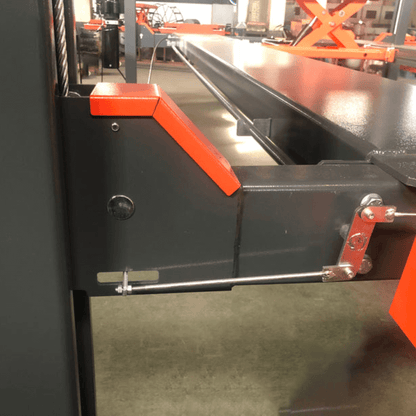

• Manual Safety Release: Single-point manual release engages 4 mechanical locking positions for added peace of mind.

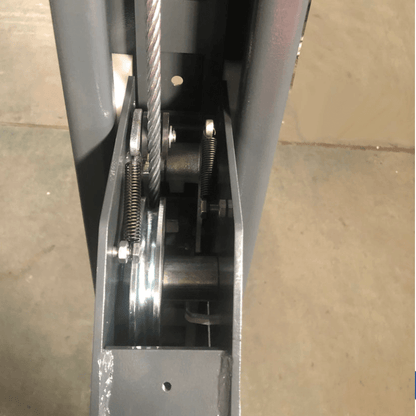

• Redundant Safety Locks: Each post includes primary and secondary locking systems for built-in backup protection.

• Flexible Power Column Placement: Mount the power-side post in the front, rear, or either side—whichever fits your shop best.

• Non-Skid Diamond Plate Runways: Textured platforms keep tires from slipping during approach and lift.

• Adjustable Locking Ladder System: Dial in the perfect working height and maintain precise leveling.

• Add-On Options Available: Caster kit for mobility and rolling jack trays for wheel service (sold separately).

• Jack Tray + Drip Trays Included: Keep fluids off the floor and lift your load securely from the center.

• Power Supply Options: Standard 110V/60Hz/1Ph motor included, with optional upgrade to 220V for faster lifting.

• Katool Warranty: One-year (12 months) warranty on all parts and against product defects, free of charge. Vehicle lifts include an additional three-year (36 months) warranty on all structural components.

Katool 4H110 Manual:

   Katool KT-4H110 Installation and Operations Manual

4H110 Vehicle Storage Lifts Optional Items (sold separately):

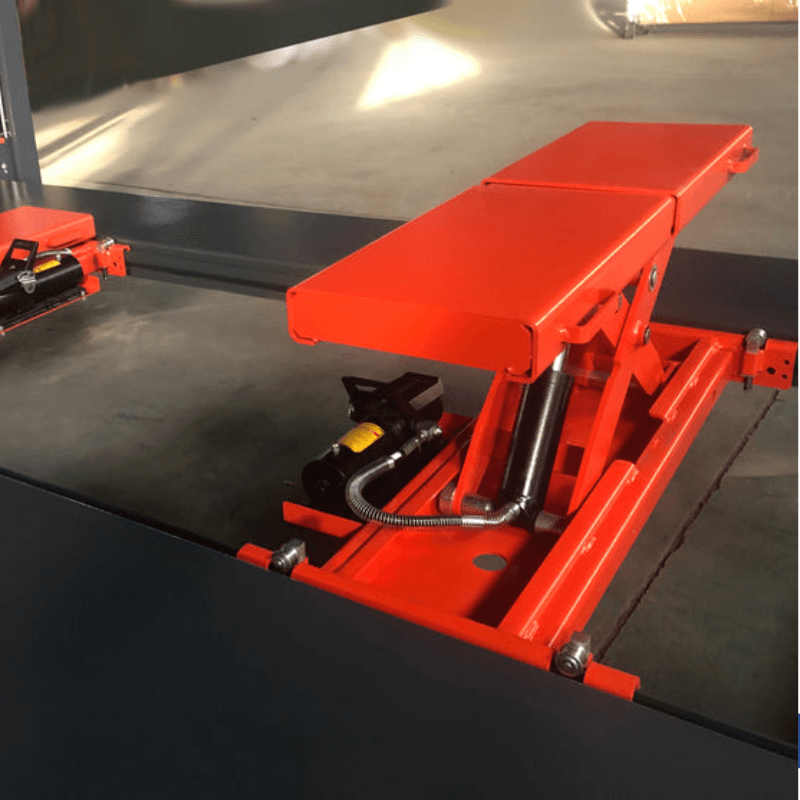

• 5,000lb Rolling Jack - KT-RJ50

• 7,000lb Rolling Jack - KT-RJ70
• Caster Kit

*Prior to purchasing and installing, customers must confirm the concrete thickness and strength to ensure safety. The concrete must be at least 3.93" thick and have a 3000 PSI rating in order to properly install this lift and avoid potential injury or death.
