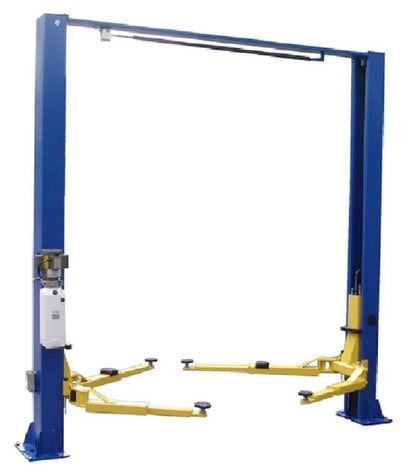

Two-Post 9K Lift (TP9KACX)
FREE LOCAL PICKUP (Reidsville, NC) -- NO WAREHOUSE FEES ADDED
| Lift Model | TP9KACX |
| Capacity | 9,000 lbs. |
| Height Overall | 142-7/8″ |
| Width Overall w/ Power Unit | 138″ |
| Max Lift Height | 72″ |
| Width Between Columns | 113-5/8″ |
| Min. Pad Height | 4″ |
| Drive Thru Clearance | 96″ |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Asymmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach – min/max | 29″-41″ |
| Long Arm Reach – min/max | 37″-57″ |
| Narrow Bay Setting | NA |
| Max Load Per Arm | 2,250 lbs. |
| Ship Weight | 1,370 lbs |
| Power | 220V – 20 AMP – 1 PH |
TP9KACX Lift Video: Click Here
TP9KACX Lift Manual: Click Here
TP9KAC Lift Flier: Click Here
Local Pick-up (Reidsville, NC): 12' - 16' (Open) trailer required for pick-up. Enclosed trailers will not be loaded due to risk of damage to loading ramp.
Shipping / Receiving: Offloading of the delivery truck is the responsibility of the customer. A forklift or similar vehicle is required to unload the lift. Residential delivery is an additional $150 charge by the freight carrier.
