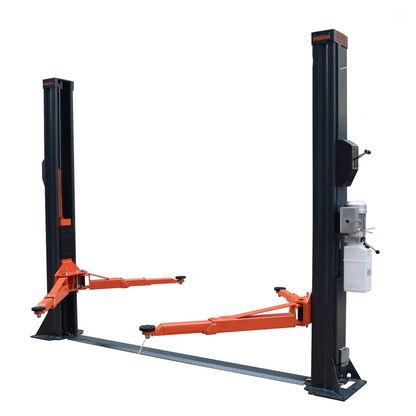

Stratus SAE-F10X 10,000lb 2 Post Lift - Extra Wide

SAE-F10X 2 Post Lift by Stratus

The SAE-FX10X Car Lift is a robust automotive lifting solution designed for versatility and reliability. With a lifting capacity of 10,000 lbs, it offers a maximum lifting height of 83 1/6" (2110 mm) with adaptors and a minimum lifting height of 10 7/6" (265 mm), making it suitable for a wide range of vehicle types and sizes. This lift operates efficiently with a rise time of approximately 50 seconds, facilitated by a 3 HP motor operating at 220V. Its dimensions of 144 7/8" (3680 mm) in length, 20 1/2" (520 mm) in width, and an overall height of 112" (2845 mm) ensure ample space for maneuvering vehicles during service. The lift's construction includes a powder-coated finish in Granite Gray and Rein orange, offering durability and corrosion resistance.

Equipped with a base plate/open top design, the SAE-FX10X features convenient single-point manual release and a top limiter switch for added safety during operation. It meets stringent safety standards, having undergone dynamic testing at 115% of its rated capacity and static testing at 150% rated capacity. This lift also incorporates a reliable hydraulic system compatible with AW32 or AW46 oil and operates efficiently under a breaker requirement of 30A. Ideal for professional automotive workshops, the SAE-FX10X combines robust engineering with user-friendly features to enhance workflow and ensure reliable vehicle servicing.

2 Post Car Lift SAE-F10X Specifications:

• Model: FX10
• Capacity: 10,000 LBS

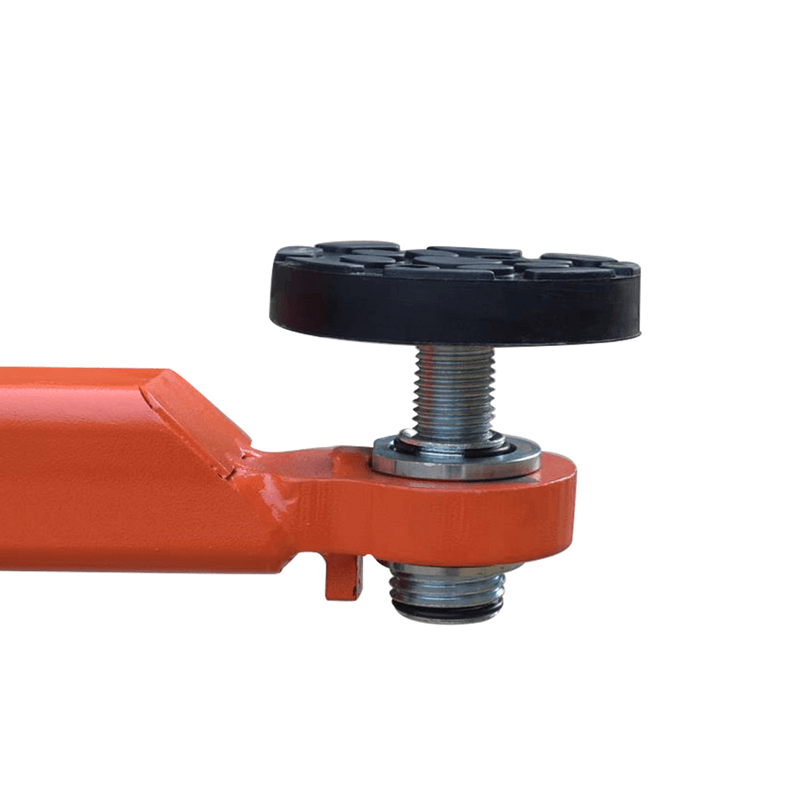

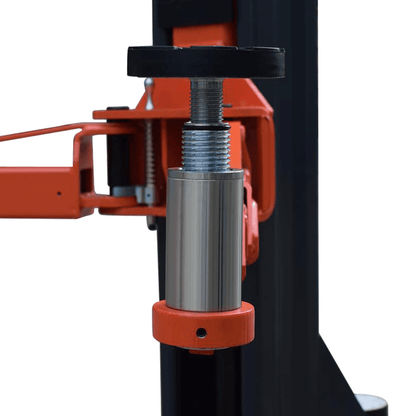

• Max Lifting Height with Adaptors: 83 1/6" (2110 MM)
• Min Lifting Height with Adaptors: 10 7/6" (265 MM)
• Max Lifting without Adaptors: 76 3/4" (1950 MM)
• Min Lifting without Adaptors: 3 15/16" (100 MM)
• Rise Time: ~50 SEC
• Overall Height: 112" (2845 MM)
• Overall Width: 20 1/2" (520 MM)
• Overall Length: 144 7/8" (3680 MM)
• Inside Columns: 118 1/8" (3000 MM)
• Drive Thru: 106 5/6" (2700 MM)
• Front Arm Reach Max: 56 5/16" (1430 MM)
• Front Arm Reach Min: 35 7/16" (900 MM)
• Rear Arm Reach Max: 44 7/8" (1140 MM)
• Rear Arm Reach Min: 22 13/16" (580 MM)

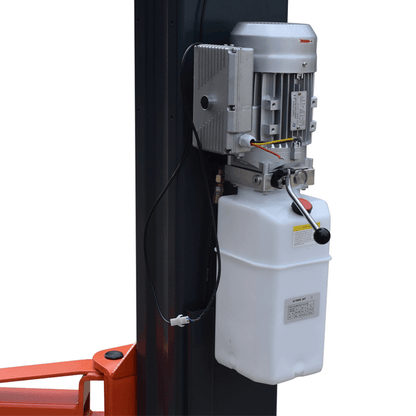

• Motor: 3 HP, 220V, 60 HZ, 1PH
• Oil: AW32 or AW46
• Breaker: 30A
• Weight: 10 7/16" (265 MM)
• Dimension: 76 3/4" (1950 MM)
• Requirements: 6" - 3000 PSI

SAE-F10X 10,000 lbs 2 Post Car Lift Special Features:

• Base Plate / Open Top

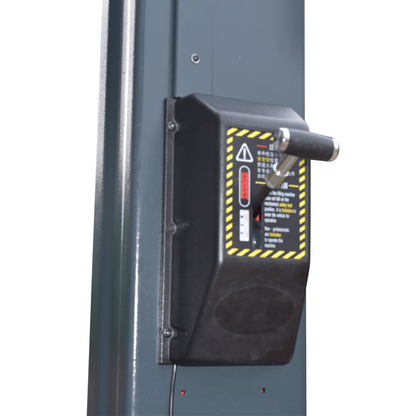

• Single point manual release
• Top limiter switch
• Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
• Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)

Stratus SAE-F10X Documentation:

   Stratus SAE-F10X Car Lift Product Manual
