Titan HD2P-15000C 15,000lb 2 Post Car Lift

HD2P-15000C 2-Post Lift by Titan

Need serious lifting power for heavy-duty trucks and fleet vehicles? The HD2P-15000C is built for the big stuff. With a 15,000 lb capacity, over 9 feet of drive-thru clearance, and extra-tall 182" columns, this clear-floor lift gives you the room and strength to handle full-size work trucks and commercial vehicles without hassle.

It’s equipped with massive twin 3" cylinders and low-friction chain rollers for smooth, fast lifting—just 45 seconds to full height. The low-profile arms and automatic restraints keep your vehicle secure, and the bright yellow arms make positioning easy and safe. “Big Foot” base plates add rock-solid stability, and the cobalt blue powder coat holds up to shop abuse.

2-Post Lift HD2P-15000C Specifications

• Overall Height: 182 inches
• Overall Width: 148.375 inches
• Width Between Posts: 120.75 inches
• Drive-Thru Width: 109.5 inches
• Min Pad Height: 5 inches
• Max Pad Height: 76.5 inches
• Lifting Speed: 45 seconds
• Lifting Capacity: 15,000 lbs
• Concrete Spec Min: 6" @ 3,000 PSI
• Power Unit: 220V-1PH-60HZ-20AMP

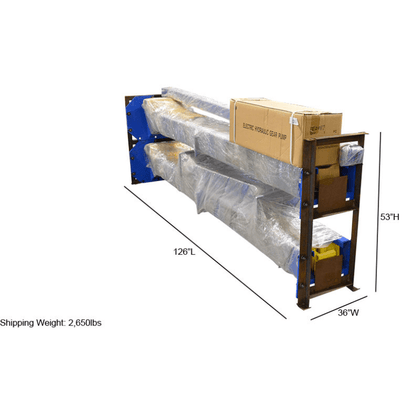

• Shipping Dimensions: 126" (L) x 36" (W) x 53" (H)
• Shipping Weight: 2,650 lbs


HD2P-15000C 2-Post Lift Special Features

• 15,000 lb. lifting capacity for heavy-duty vehicles
• Large twin 3-inch diameter cylinders with low-friction chain rollers
• “Big Foot” base plates for superior stability
• Low-profile automatic arm restraints for secure vehicle positioning
• Electrical override automatic safety shut-off on clear-floor models
• Bright yellow arms for improved visibility and safety
• Durable, scratch-resistant Cobalt Blue powder-coated finish
• Free mounting hardware for easy installation
  • 1-year electric/hydraulic warranty and 5-year structural warranty
