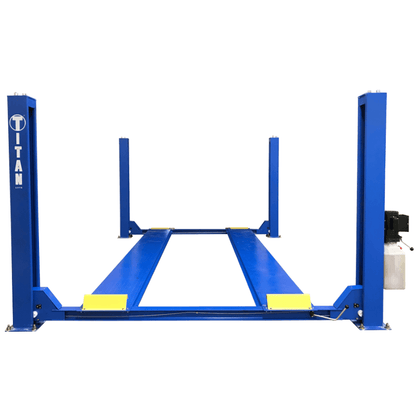

Titan HD4P-12000 12,000lb 4 Post Car Lift

Titan HD4P-12000 4-Post Lift – Heavy-Duty Power for Professional-Grade Lifting

The Titan HD4P-12000 4-Post Lift is a powerful and professional-grade lifting solution designed for heavy-duty vehicle maintenance and storage. With an impressive 12,000 lb. lifting capacity, this commercial-grade lift is ideal for automotive shops and serious enthusiasts who require strength, stability, and efficiency. Unlike traditional lifts, the HD4P-12000 features a unique under-runway cylinder storage design, eliminating the need for a power beam and enhancing workspace accessibility. Its cable-driven system ensures smooth and reliable lifting performance, while the single-lever release and integrated safety locks provide effortless operation and secure positioning. Whether you're servicing commercial trucks, SUVs, or larger vehicles, this lift delivers unparalleled lifting power in a solid, four-post configuration.

4-Post Lift HD4P-12000 Specifications

• Overall Height: 88 inches
• Overall Width: 137 inches
• Overall Length: 195.25 inches
• Lifting Speed: 51 seconds
• Max Lifting Height: 67 inches
• Lowered Runway Height: 6 inches
• Width Between Columns: 118.5 inches
• Max Drive-Thru Clearance: 104.5 inches
• Max Clearance Under Runway: 63 inches
• Runway Width: 19.25 inches
• Width Between Runways: 48 inches
• Runway Length (No Ramp): 191.25 inches
• Ramp Length: 38 inches
• Load Capacity: 12,000 lbs
• Concrete Requirement: 4" Reinforced @ 3,000 PSI
• Power Supply: 220V-1PH-60HZ-20AMP

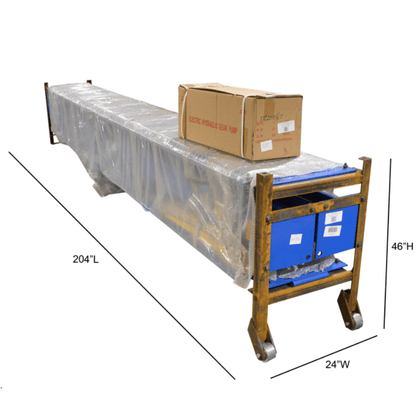

Shipping Information

• Shipping Length: 196 inches
• Shipping Width: 25 inches
• Shipping Height: 43 inches
• Shipping Weight: 2,320 lbs


HD4P-12000 4-Post Lift Special Features

• 12,000 lb. lifting capacity for commercial and heavy-duty vehicles
• No power beam design with an under-runway cylinder storage for better workspace access
• Cable-driven system for consistent and reliable lifting
• Single-lever release with automatic safety locks for secure operation
• Wide 104.5-inch drive-thru clearance for easy vehicle entry and exit
• Durable diamond-plate runways for enhanced traction and safety
• Spacious 63-inch under-runway clearance for easy access to vehicle underside
• Fast 51-second lifting speed for efficient workflow
• 220V power system for strong and consistent lifting performance
• Built for professional use with reinforced concrete installation requirements

HD4P-12000 Manual

  Titan HD4P-12000 Manual
