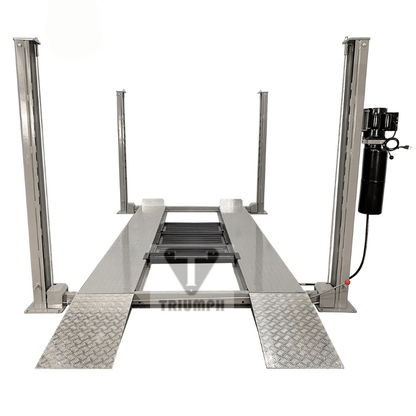

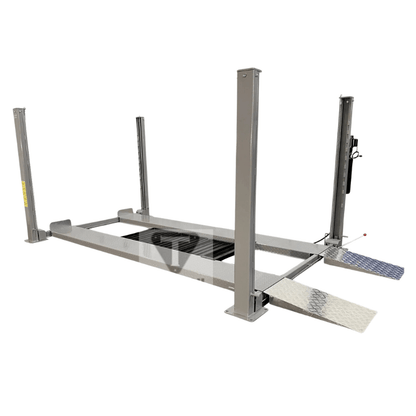

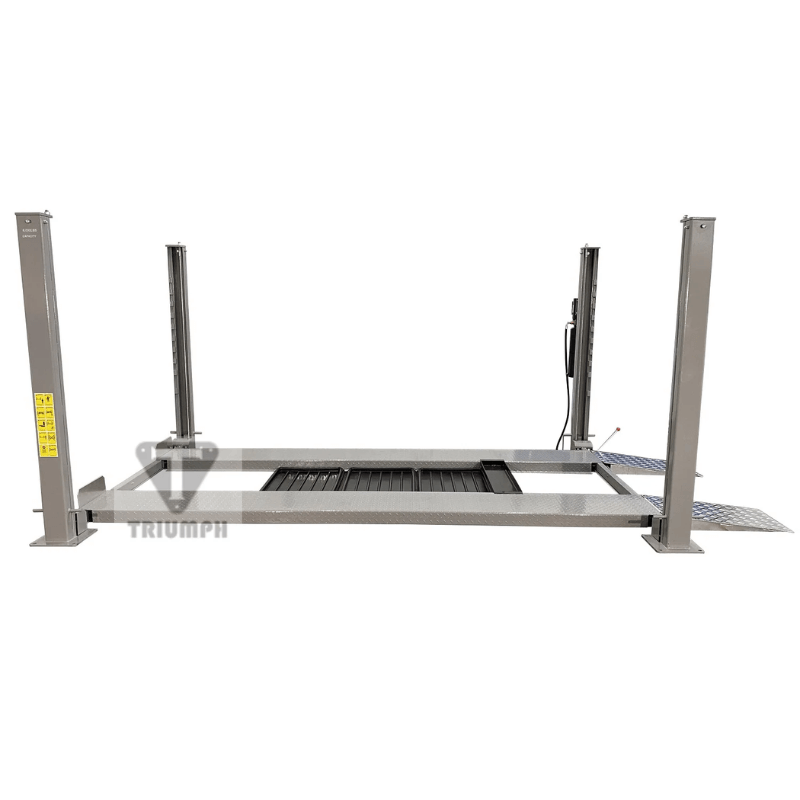

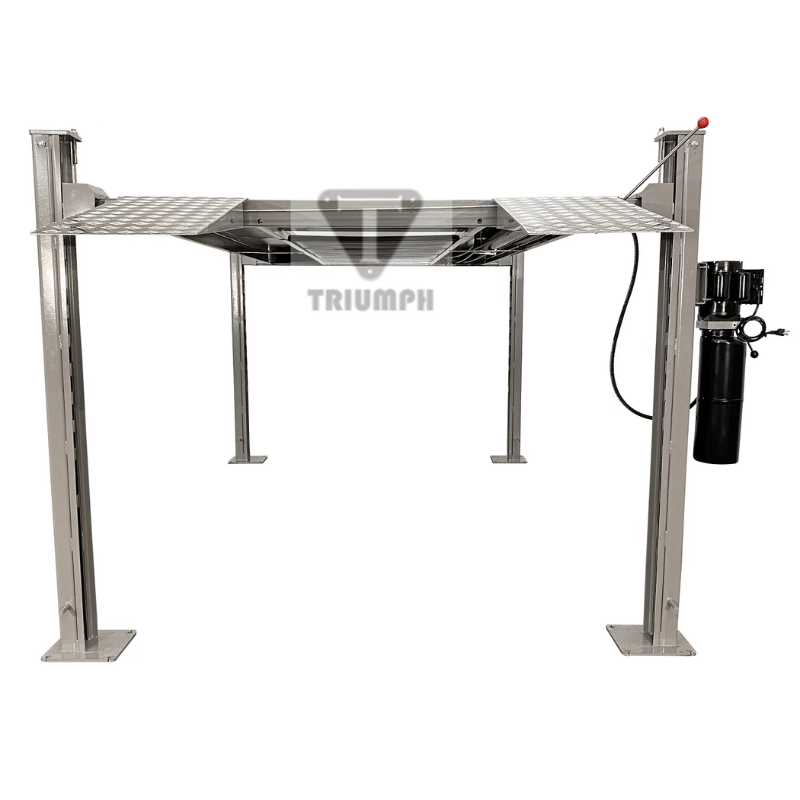

NSS 8, 8,000 lb Vehicle Storage Lift

Triumph NSS 8 8,000 lb Vehicle Storage Lift

Squeezing all your tools in that sorry excuse of a space called your garage? The Triumph NSS-8 is your ticket out of the automotive squeeze. With a lifting height of 72", it's like adding a mezzanine to your garage. This lift doesn't just park cars - it augments your space like automotive IKEA.

But here's where the rubber really grips the road: this 8,000 lb capacity beast lifts vehicles with the precision of a German sports car. Its four-post design is more stable than a luxury sedan's ride, while the automatic safety locks engage faster than a drag racer's reflexes. Add in the mobility of the caster kit, the cleanliness of drip trays, and the flexibility of a jack tray, and you've got more features than a fully-loaded SUV. The NSS-8 isn't just a lift - it's your personal pit crew, valet, and space-saving genius all rolled into one steel dynamo.

Triumph NSS8 Specifications:

• Lifting Capacity: 8,000 lbs
• Overall Length (without ramps): 175"
• Overall Length (Including Ramps): 195"
• Overall Width: 106" (not including motor; base plate to base plate)
• Overall Width: 117" (including motor)
• Drive thru width: 93"
• Runway Length: 165"
• Runway Width: 18"
• Lifting Height: 72"
• Between Runway: 37"
• Height Under Runway: 69"
• Overall Height: 84"
• Lowered Height: 5"
• Locking Positions: 10 (Every 4.5")
• Lowest Lock Position: 26"
• Highest Lock Position: 69.5"

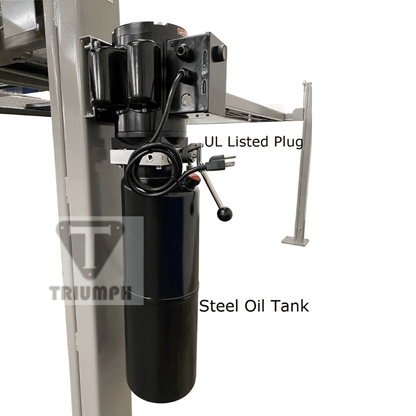

• Voltage: 110v (30 amp breaker) - 1HP Motor
• Shipping Weight: 1,600 lbs
• Pallet Dimensions: 169" x 21" x 29"

NSS-8 8,000 lb Vehicle Storage Lift Special Features:

• Four-post design for enhanced stability and vehicle storage
• Automatic safety locks for secure lifting

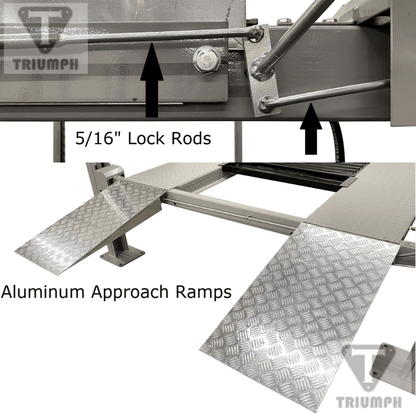

• Aluminum Ramps
• Includes:

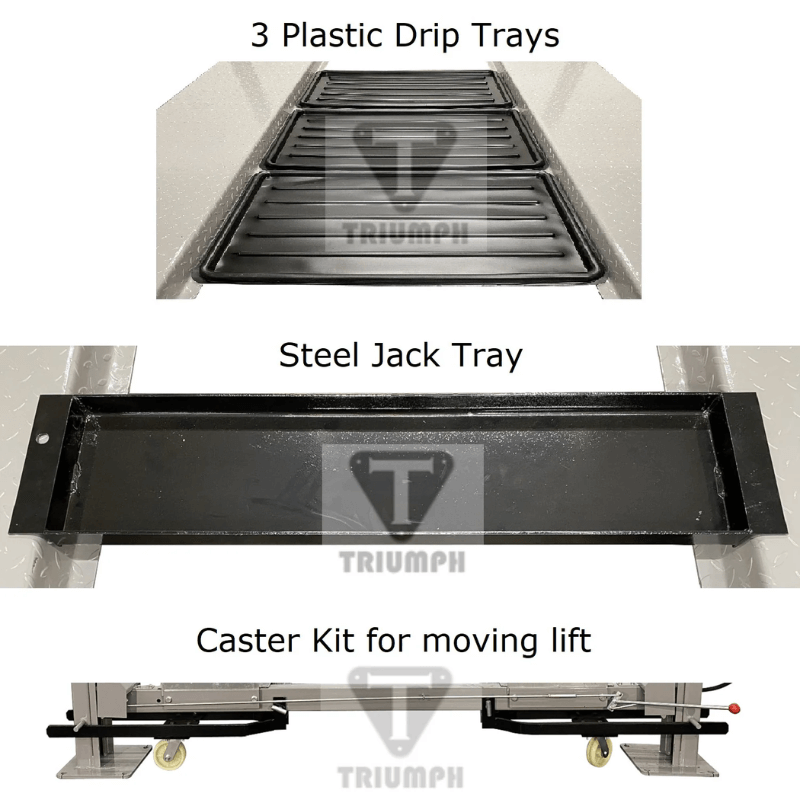

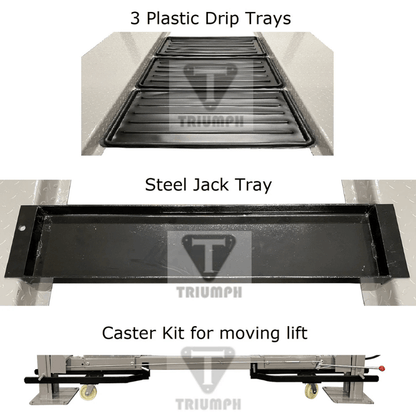

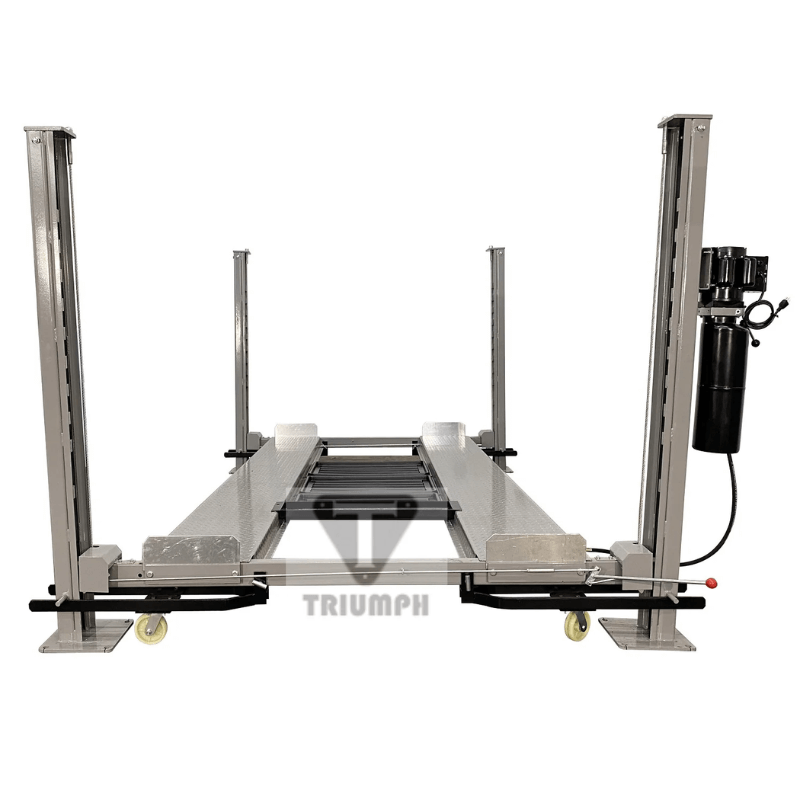

  • Caster kit for mobility and easy placement
  • Drip trays to prevent fluid mess
  • Jack tray for additional lifting flexibility
• Warranty: 1 year parts only
• Certification: CE Certified and built in factories with ISO9001 Quality Certification
• Optional Item (Sold Separate)
  • Triumph NSS-8 Storage Lift Bridge Jack SJ35
• Need Extra Length or Height? Choose the XLT Version - NSS-8XLT

NSS 8 Manual:

   Triumph NSS 8 Manual

  Triumph NSS-8 Cable Routing

Warehouse Pickup locations (No shipping charge):

• Columbus, OH
• Fort Worth, TX
• North Las Vegas, NV

*An additional $200 freight fee is required for locations in Northern CA, SD, ND, MT, & WY. After initial purchase, a separate link will be sent to complete your transaction.
