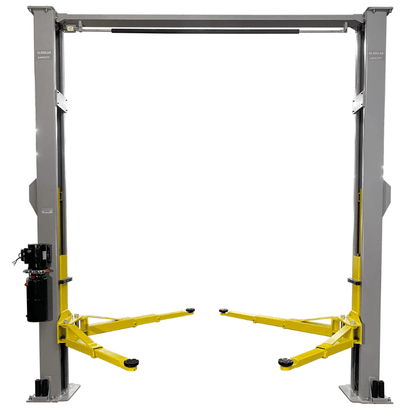

Triumph NTO-10A, 10,000 lb 2 Post Lift

NTO-10A 10,000 lb 2 Post Lift by Triumph

Struggling to find a reliable, high-capacity lift for your garage that won't break the bank? Meet the Triumph NTO-10A 10,000 lb Two Post Auto Lift—a robust and versatile solution that brings professional-grade features to both commercial and home setups. With a 10,000 lb capacity, this lift is perfect for a range of vehicles, from compact cars to heavy-duty trucks. The three-stage arms provide extended reach for various vehicles, while the single-point lock release ensures smooth, efficient operation, allowing you to move through jobs faster and safer.

Built for efficiency and safety, the NTO-10A includes an overhead bar that keeps cables and hoses out of the way, reducing tripping hazards and keeping your workspace clear. The lift is powered by a 3 HP motor with a quick 40-second lift time, giving you the power and speed to maximize productivity. Designed to fit into most garages with its compact base plate size and overhead style. This lift offers a perfect balance of speed, safety, and functionality to transform how you work on vehicles.

NTO 10A Specifications:

• Capacity: 10,000 lbs
• Overall Height: 145"
• Overall Width: 133"
• Lifting Height: 72"
• Distance Between Posts: 107"
• Drive Thru Width: 96"
• Lowered Height: 4.5"
• Base Plate Size: 18"x17"
• Truck Adapters: Yes
• Lock Release: Single Point
• Electric Safety Cutoff: Yes
• Lift Time: 40 Seconds
• Voltage: 220 Volt (30amp Breaker)
• Horsepower: 3 HP
• Concrete Requirement: 4" Slab, 3,000 PSI
• Style: Overhead
• Pallet Dimension: 149" x 19" x 38"

Triumph NTO10000A, 10,000 lb 2 Post Lift Special Features:

• Single Point Lock Release: Streamlines the lifting process.

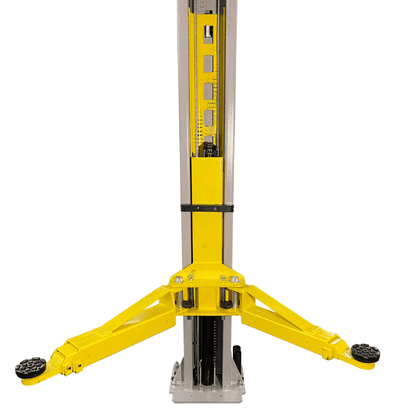

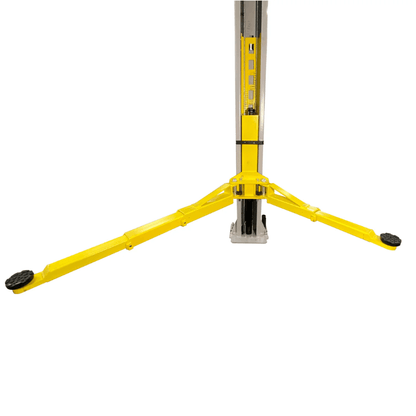

• Three-Stage Arms: Enhances reach for various vehicles.
• Overhead Bar: Keeps the floor clear by routing cables and hoses above.

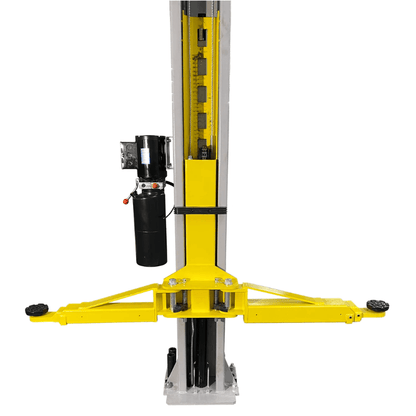

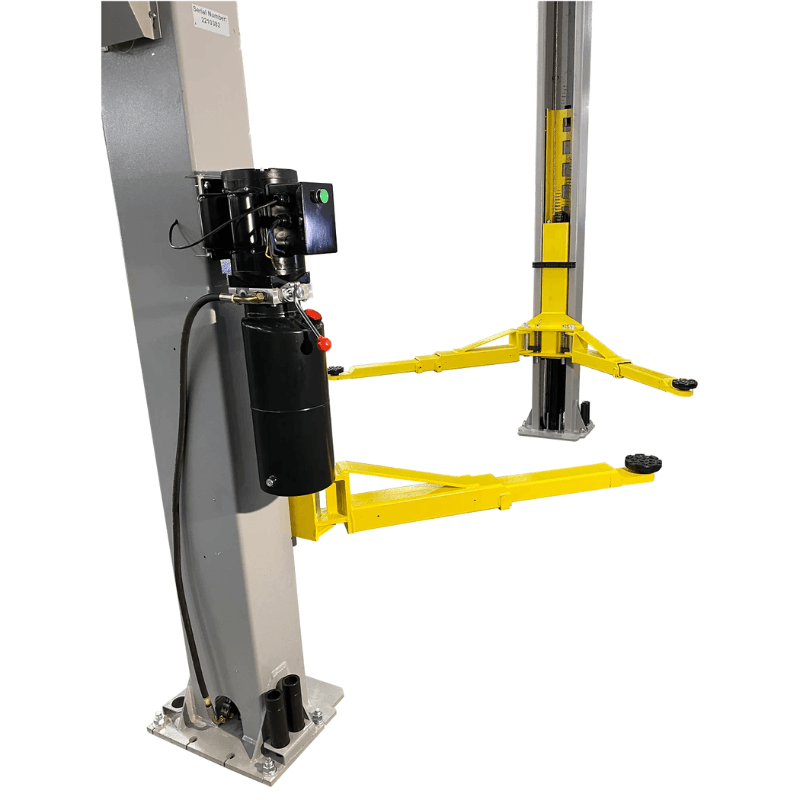

• Power Unit/Motor Included: Comes with all necessary mounting hardware for easy setup.
• Electric Safety Cutoff: Ensures safety during operation.
• Certification: CE Certified and built in factories with ISO9001 Quality Certification
• Warranty: 1 year parts only

NTO-10A Manual

   Triumph NTO-10A Installation Instruction

Warehouse Pickup locations (No shipping charge):

• Columbus, OH
• Fort Worth, TX
• North Las Vegas, NV

*An additional $200 freight fee is required for locations in Northern CA, SD, ND, MT, & WY. After initial purchase, a separate link will be sent to complete your transaction.
