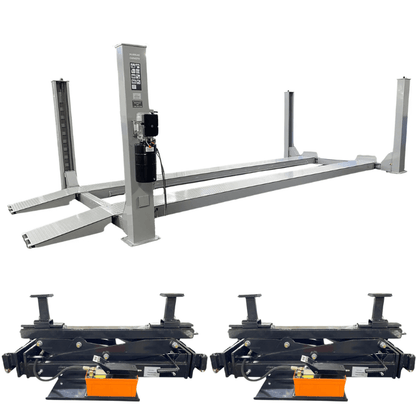

Triumph NTR-24 24,000 lb 4 Post Lift Combo - Includes (2) RJ-15000 Rolling Jack

NTR-24 24,000 lb Four Post Auto Lift With RJ-15000 Rolling Bridge Jack Combo by Triumph

The Triumph NTR-24 Four-Post Auto Lift and RJ-15000 Rolling Bridge Jack Combo provides an efficient, high-capacity solution for demanding automotive maintenance. Designed to handle 24,000 lbs, the NTR-24 lift is built for commercial trucks, buses, and fleet vehicles. Its robust steel construction, adjustable runways, and spacious design ensure stability and reliability during intensive repairs. With a maximum lifting height of 70.8 inches, nine locking positions, and a 220V single-phase electrical system, this lift guarantees versatility and smooth operation in professional settings. The wide width between runways (45.3" to 49.2") accommodates various vehicle sizes, making it a vital asset for garages and industrial workshops.

Enhancing the lift’s versatility, the RJ-15000 Rolling Bridge Jack offers an additional 15,000 lbs of lifting capacity, ideal for servicing wheels, brakes, and suspension. Adjustable lifting pads with two height adapters ensure compatibility with a wide range of vehicle profiles. Supporting runway widths from 48.7" to 55", this rugged jack integrates seamlessly with the NTR-24 lift. Built for long-term performance, the compact yet durable design offers stability and ergonomic ease of use. Together, the NTR-24 and RJ-15000 deliver exceptional strength, precision, and versatility, meeting the toughest challenges of heavy-duty vehicle maintenance with confidence.

4 Post Lift NTR-24 with Rolling Jack RJ-15000 Combo Specifications

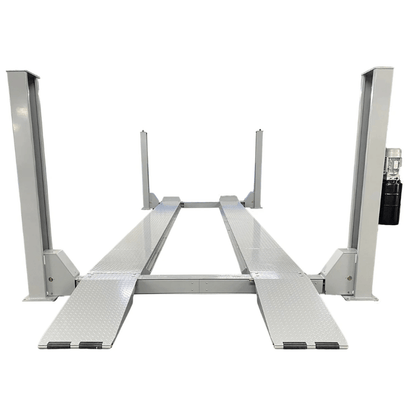

NTR-24

• Lifting Capacity: 24,000 lbs
• Overall Height: 93.1"
• Overall Length Without Ramps: 300"
• Overall Length With Ramps: 338.9"
• Overall Width: 150.1" (base plate to base plate)
• Minimum Runway Height: 9"
• Maximum Lifting Height: 70.8"
• Runway Length: 289.9"
• Runway Width: 24"
• Width Between Runways: 45.3" - 49.2"
• Width Between Columns: 131.8"
• Number of Lock Positions: 9
• Electrical Requirement: 220V Single Phase
• Shipping Weight: 6,614 lbs
• Shipping Dimensions: 295x30x43 inches

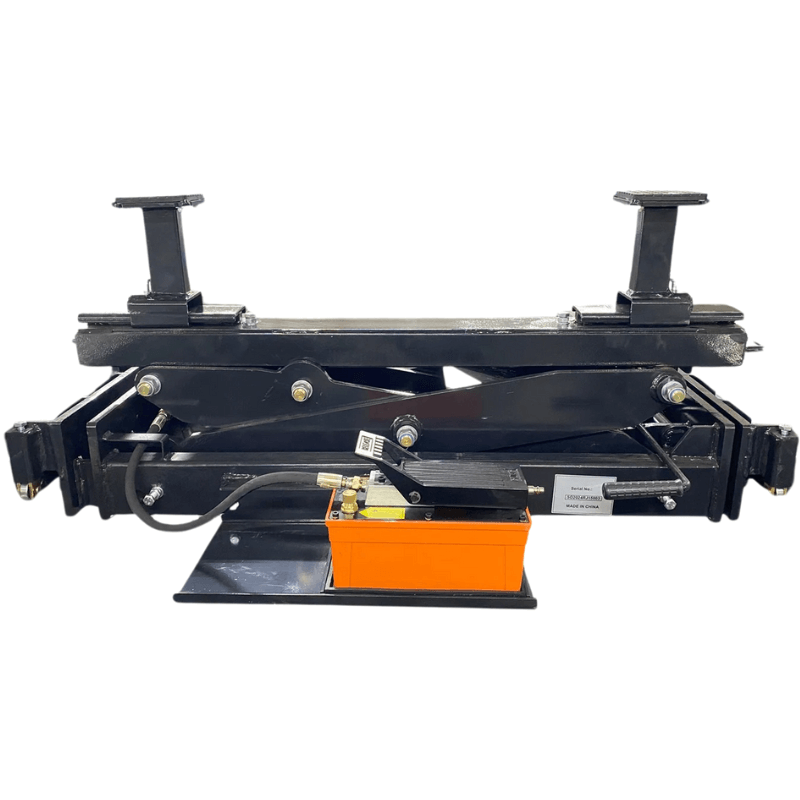

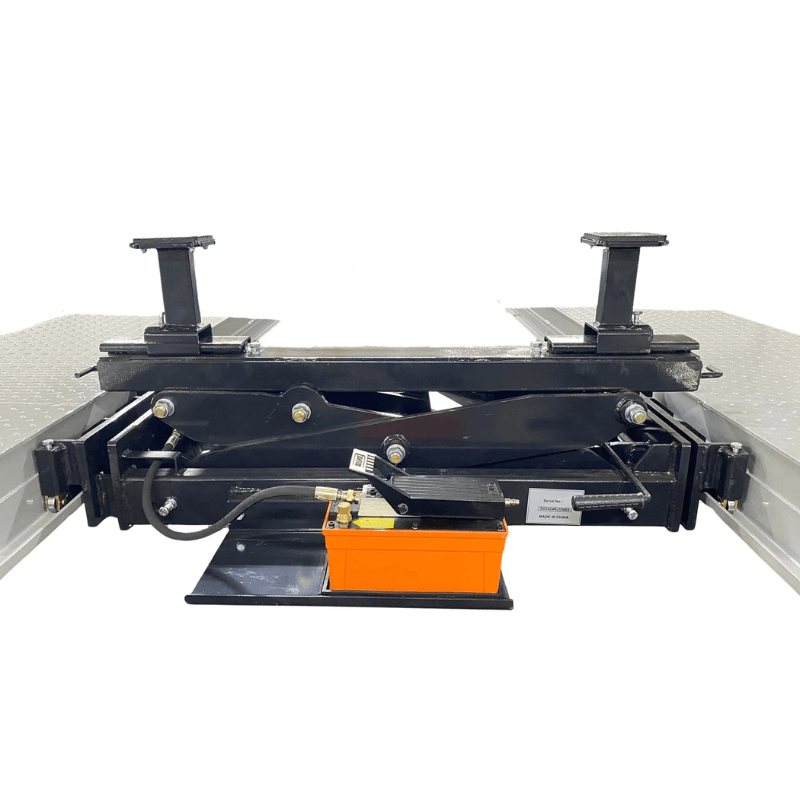

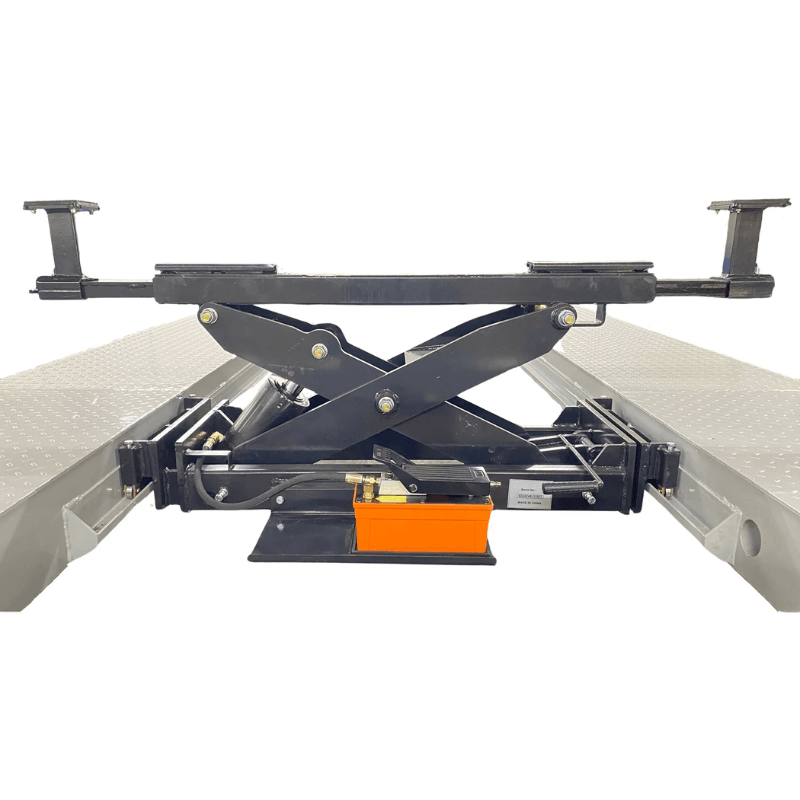

RJ-15000

• Lifting Capacity: 15,000 lbs
• Qty: 2
• Lowered Height: 15.3"
• Maximum Lifting Height: 28.3"
• Minimum Width Between Pads: 42.6"
• Maximum Width Between Pads: 68.7"
• Minimum Width Between Runways: 48.7"
• Maximum Width Between Runways: 55"
• Shipping Weight: 661 lbs
• Shipping Dimensions: 51x33x17 inches

NTR-24 24,000 with RJ-15000 Rolling Jack Combo Special Features:

NTR-24

• Heavy-duty construction for handling large commercial vehicles
• 9 lock positions for secure and adjustable lifting heights
• Wide 24" runways to support a variety of large vehicles
• Adjustable spacing between runways for flexibility and versatility
• High lifting capacity ideal for trucks, buses, and fleet maintenance
• 220V single-phase electrical system for consistent and reliable operation
• Durable steel frame ensures long-lasting performance
• Spacious design allows for efficient vehicle servicing
• Certification: CE Certified and built in factories with ISO9001 Quality Certification
• Precision-engineered for safety, stability, and smooth operation


RJ-15000

• Heavy-duty 15,000 lb lifting capacity for large vehicles and commercial applications
• Adjustable lifting pads accommodate a wide range of vehicle sizes
• Includes two sets of height adapters (5" and 6.75") for precise height adjustments
• Compatible with four-post lift runway widths from 48.7" to 55"
• Durable steel frame construction ensures long-lasting reliability and performance
• Compact, ergonomic design for easy positioning and operation
• Wide lifting range (15.3" to 28.3") for versatility in automotive repair tasks
• Ideal for servicing trucks, SUVs, and fleet vehicles in professional garages
• Engineered for smooth, safe, and efficient lifting in demanding conditions

NTR-24 + RJ-15000 Combo Manual

No documents

Triumph NTR-24 24,000 + RJ-15000 Combo Optional Item (Sold Separately)

• NTR-24 24,000 lb Four Post Auto Lift
• RJ-15000 Rolling Bridge Jack
