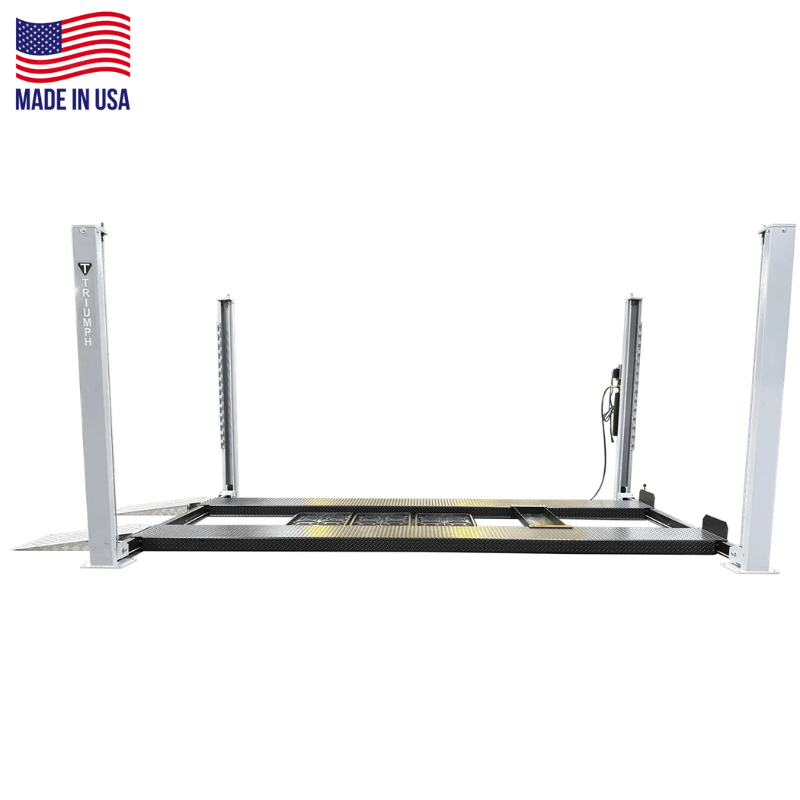

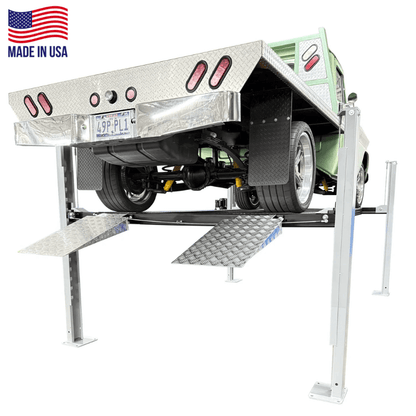

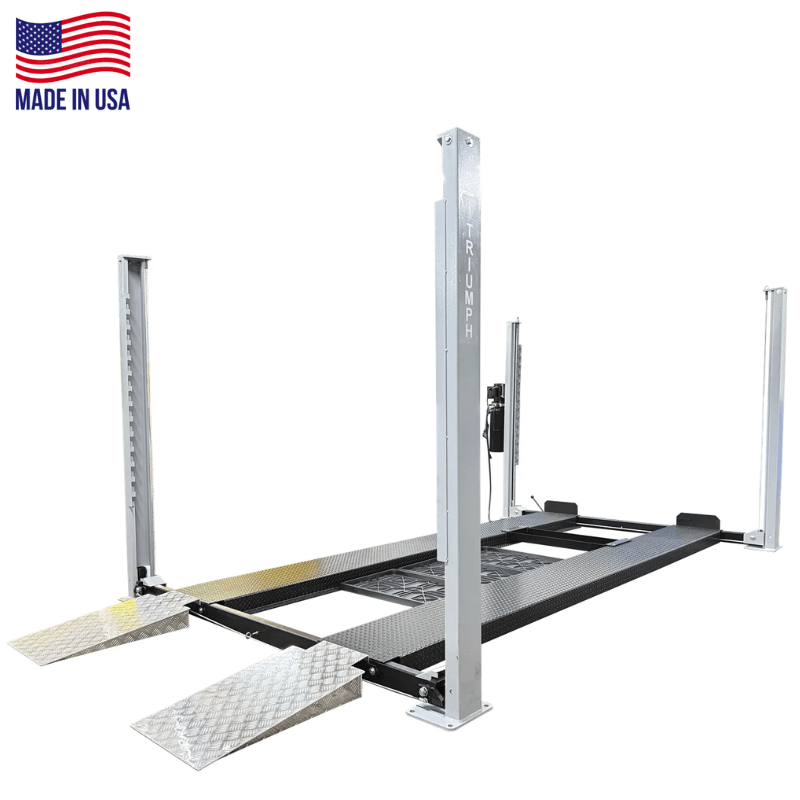

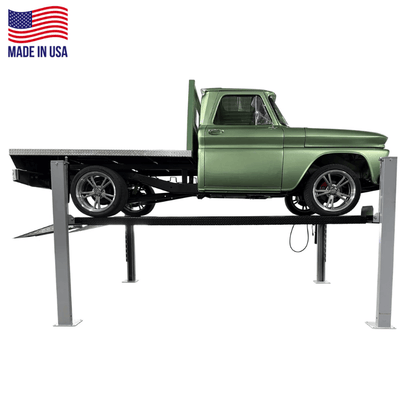

Triumph USA8000XLT 8,000lb 4 Post Lift - Made in USA

USA8000XLT - 8,000lb 4 Post Lift

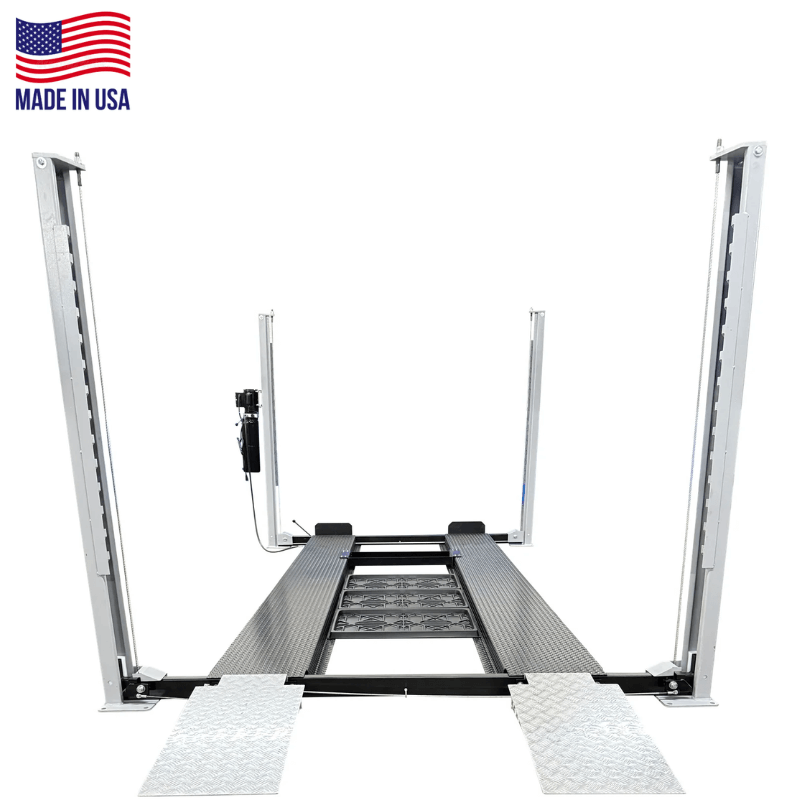

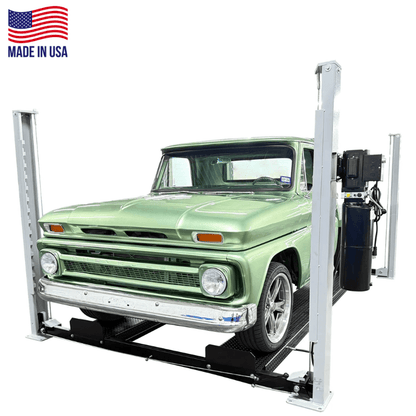

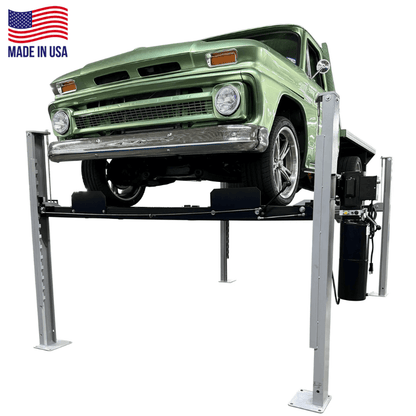

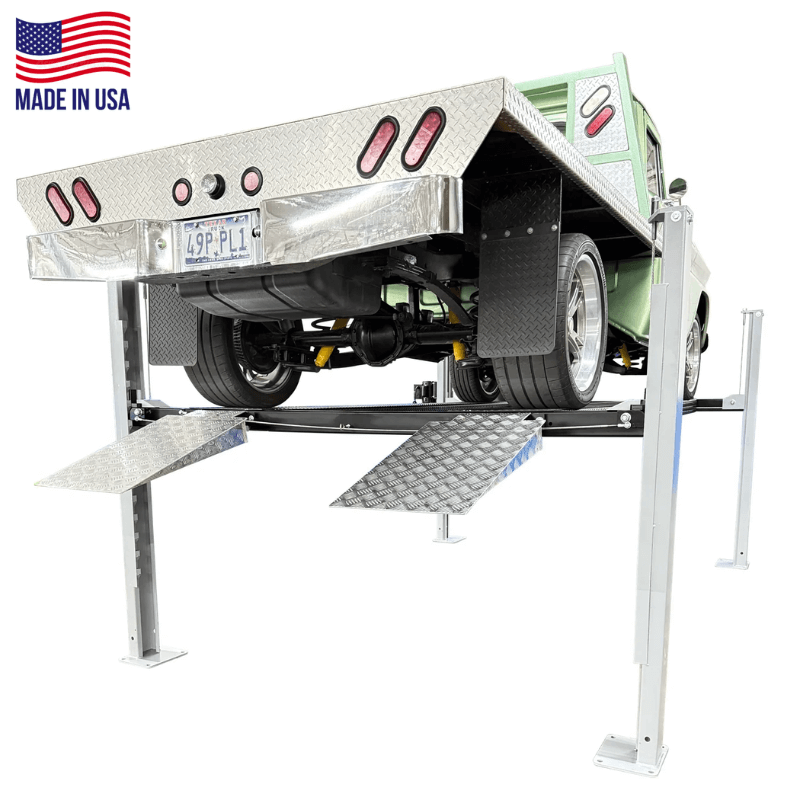

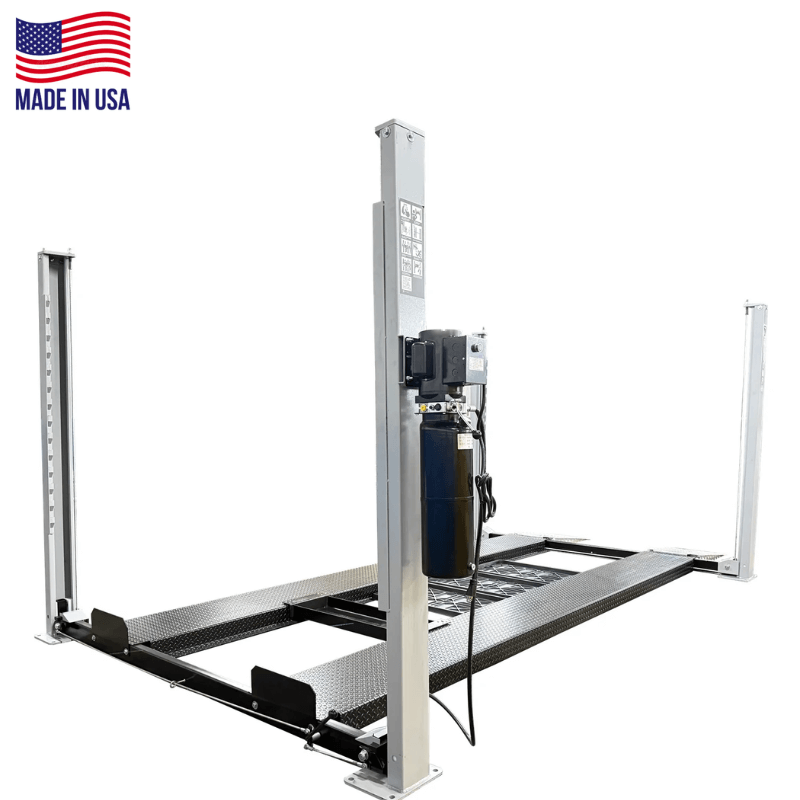

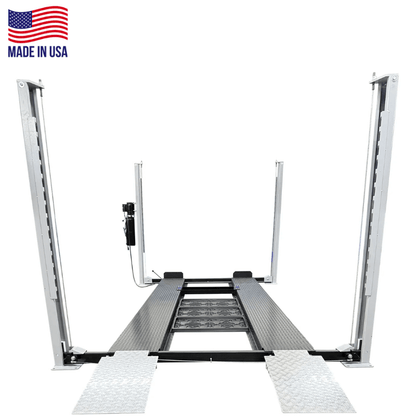

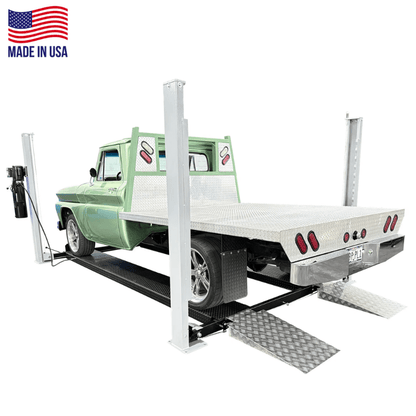

The Triumph USA8000XLT Four Post Lift is the extended version of the classic USA8000, designed for drivers who need more height and length for larger vehicles. With an 8,000 lb. lifting capacity, a taller 90" overall height, and longer 180" runways, it provides greater flexibility for storage and service in both home garages and professional shops.

Equipped with a caster kit, jack tray, and three drip trays, this lift is built for convenience and protection. The caster kit makes it portable, the jack tray allows for additional lifting with a bottle or floor jack, and the drip trays catch leaks from upper vehicles to keep the workspace clean. Its extra space and added height make it ideal for trucks, SUVs, or taller vehicles that need secure lifting.

USA 8000 XLT Specifications:

• Capacity: 8,000 lbs.

• Overall Height: 90"

• Overall Length (without ramps): 190"

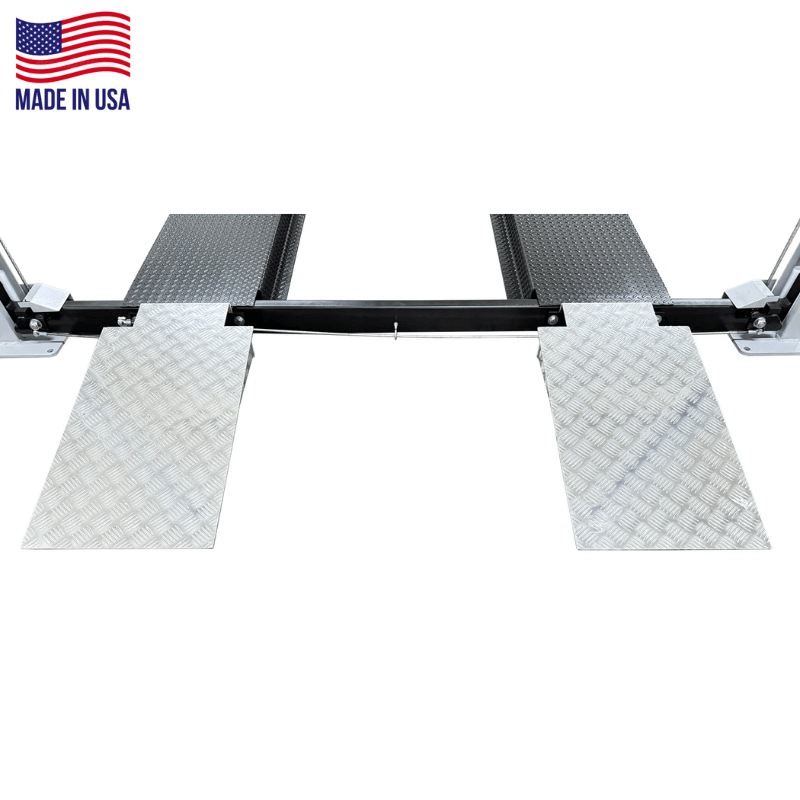

• Overall Length (with ramps): 222"

• Overall Width: 112" (base plate to base plate)

• Overall Width with Power Unit: 124"

• Lift Height: 83"

• Height Under Runway: 79"

• Runway Length: 180"

• Drive Thru Width: 102.5" (between the cables)

• Between the Columns: 104.5"

• Runway Width: 19"

• Between Runways: 37"

• Lowered Height: 5"

• Locking Positions: 14

• Base Plate Size: 12" x 10"

• Lock Release: Single Point

• Lift Time: 40 seconds

• Voltage: 110V

• Shipping Weight: 1,800 lbs.

Triumph USA8000XLT 4 Post Lift Special Features:

• Made in the USA with a proven 20+ year design

• 8,000 lb. lifting capacity for cars, trucks, and SUVs

• Taller 90" height and longer 180" runways for bigger vehicles

• Automatic locking system with 14 safety positions

• Single-point lock release for easy and safe operation

• Includes:

  • Caster kit for portability around the garage

  • Jack tray compatible with bottle jacks or floor jacks

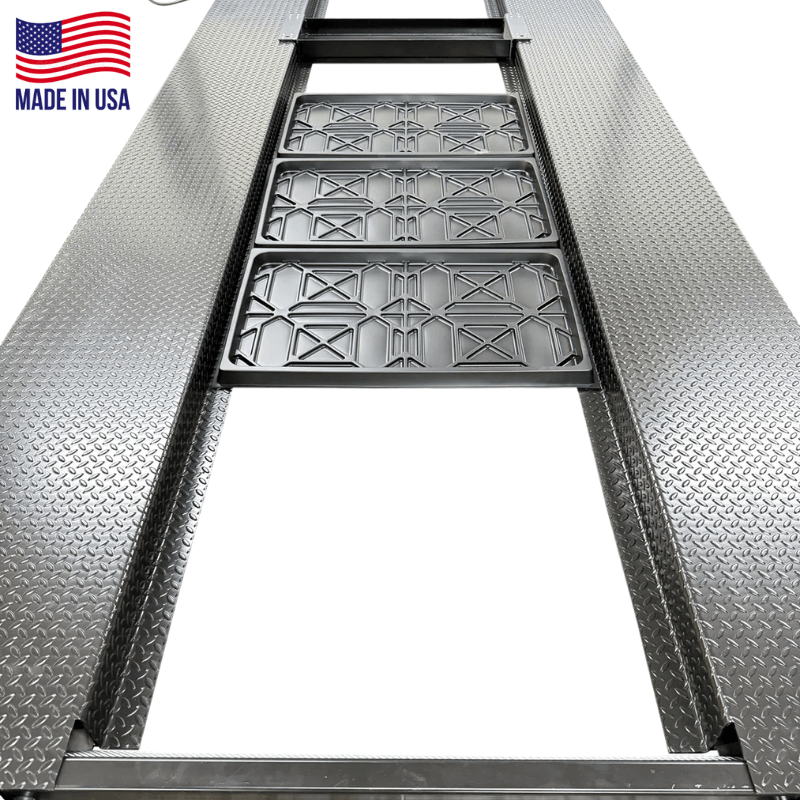

  • Three drip trays catch leaks to protect lower vehicles

• Portable, easy-to-setup design with sleek grey and black finish
