TP12KFX 12,000lb 2 Post Lift

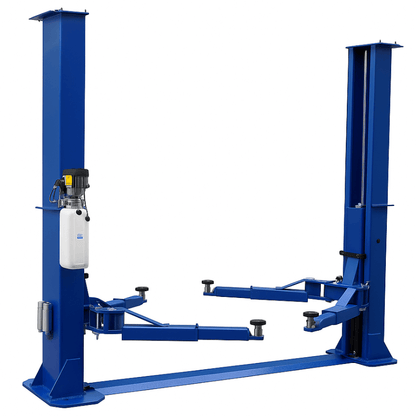

Tuxedo TP12KFX 2 Post Floor Plate Car Lift

Your current lift not lifting enough weight? Picture the lost productivity and potential revenue when your equipment breaks down in the middle of a job. Raise your standards with the Tuxedo TP12KFX 2 Post Car Lift, the ultimate solution for heavy-duty vehicle lifting. This beast of a lift is engineered to deliver exceptional performance and reliability, with an impressive 12,000 lbs capacity that can handle anything from cars to trucks. With an overall height of 121-1/2 inches and a width of 147-7/8 inches, this lift is designed to fit seamlessly into your garage. It achieves a maximum lift height of 76-1/2 inches, providing ample clearance for under-vehicle maintenance.

With a lifting speed of just 45 seconds, efficiency and productivity in your workshop will no longer be a questionable affair. The symmetric arm design ensures balanced support and stability during lifting, while the floor plate configuration adds to the structural integrity, making the lift robust and reliable. This lift is the perfect addition to any professional workshop, combining robust construction with user-friendly features to meet all your needs - and wants.

Tuxedo TP12 Specifications:

• Capacity: 12,000 lbs.
• Height Overall: 121-1/2″

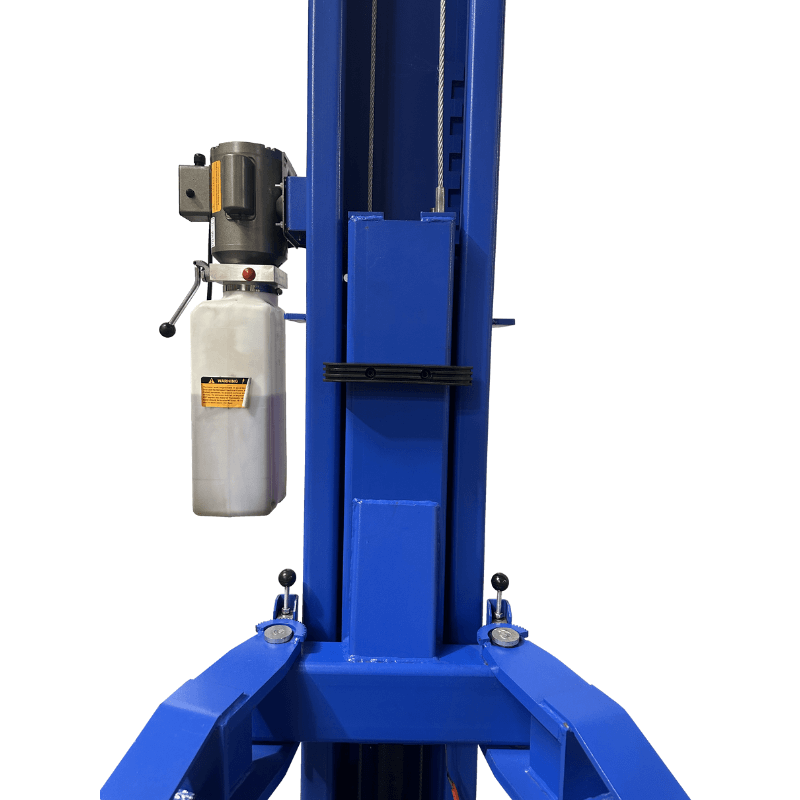

• Width Overall w/ Power Unit: 147-7/8″
• Max Lift Height: 76-1/2″
• Width Between Columns: 120-5/16″
• Min. Pad Height: 5″
• Drive Thru Clearance: 109″
• Lifting Speed: 45 seconds
• Asymmetric / Symmetric: Symmetric
• Clear Floor / Floor Plate: Floor Plate
• Short Arm Reach – min/max: 37″ – 52-1/2″
• Long Arm Reach – min/max: 37″ – 52-1/2″
• Narrow Bay Setting: Not applicable
• Max Load Per Arm: 3,000 lbs.

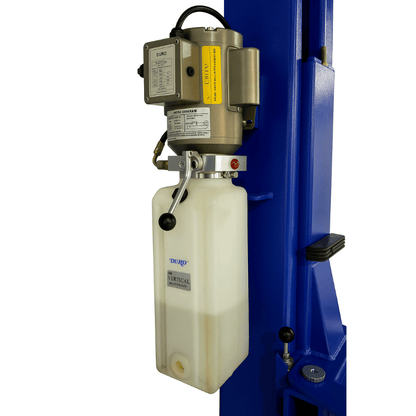

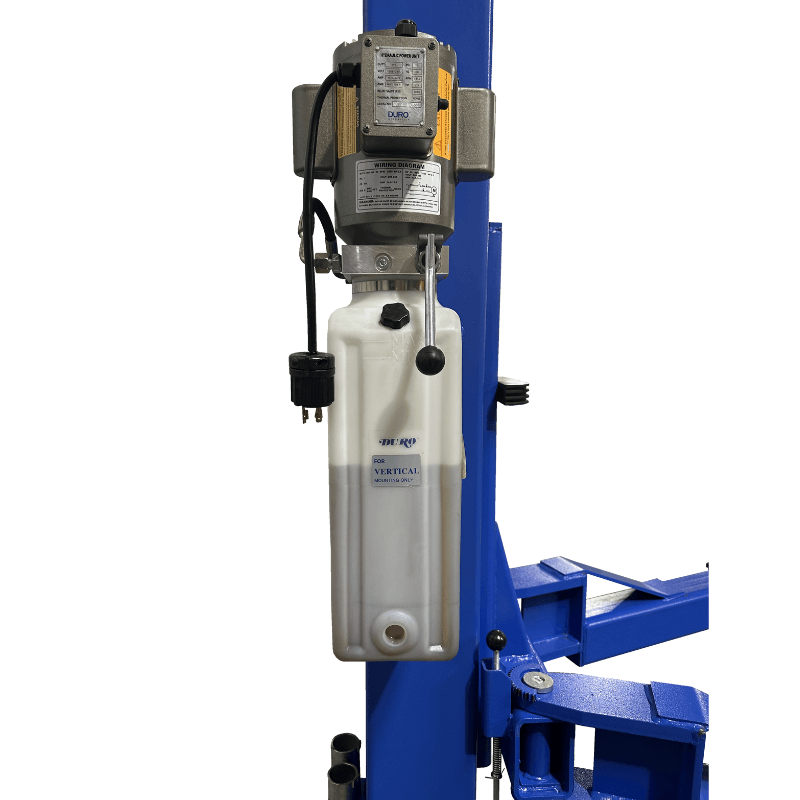

• Power: 220V – 20 AMP – 1 PH
• Ship Weight: 2,460 lbs.

• Pallet Dimensions: 126" 35" 51"

TP12 K FX Special Features:

• 12,000 lbs Capacity

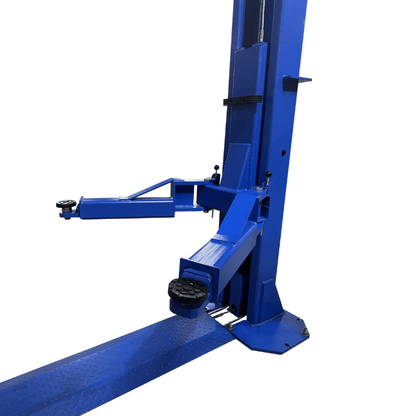

• Symmetric Arms
• Rubber Door Guards

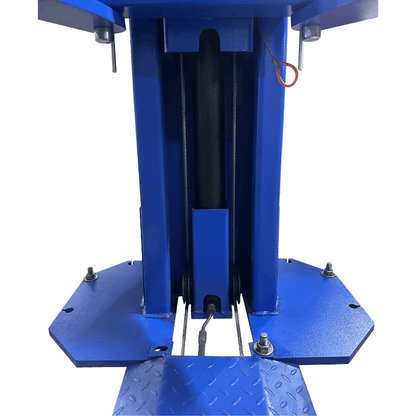

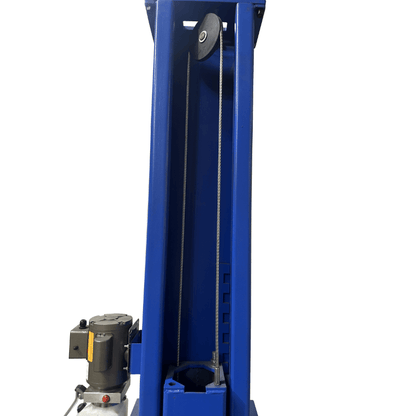

• Chain Drive Cylinders
• Dual Point Lock Release

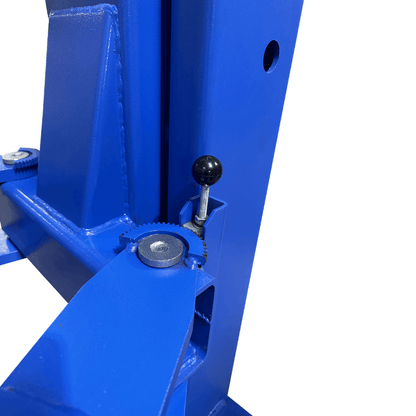

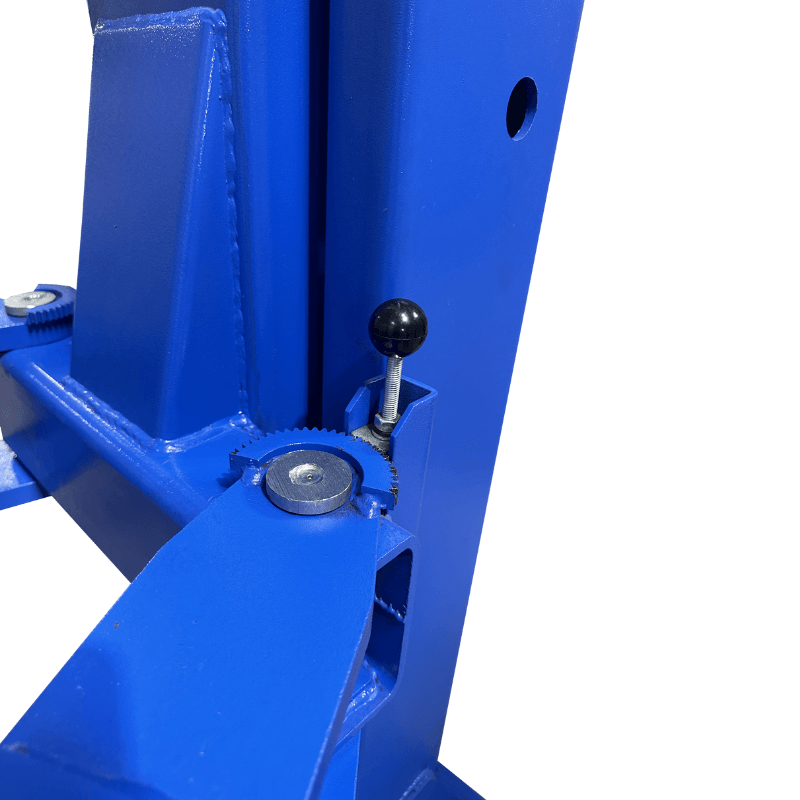

• Auto Arm Restraint System

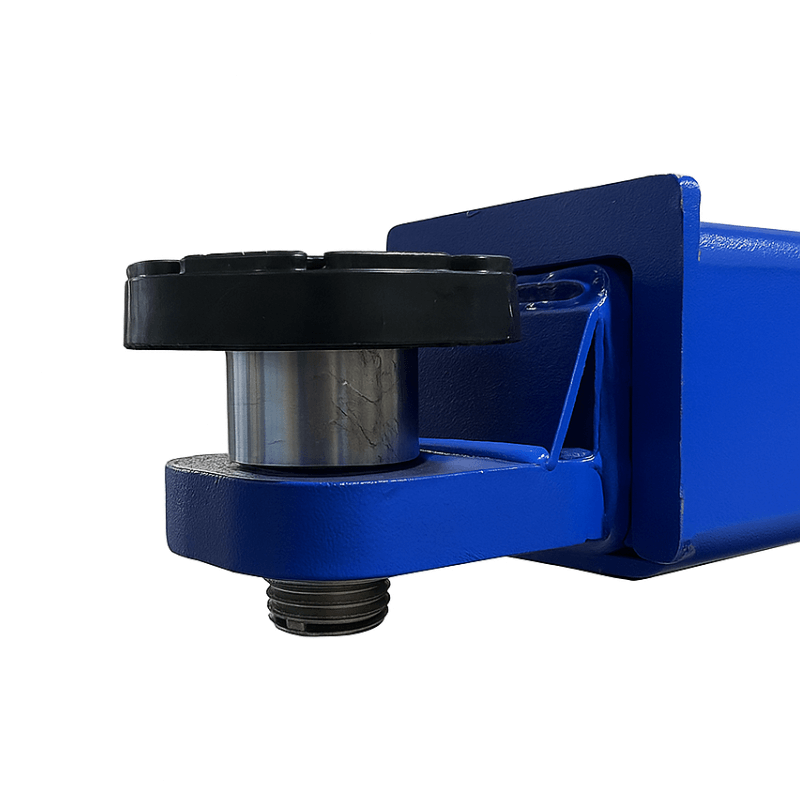

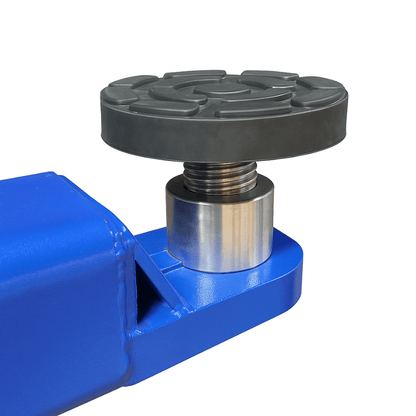

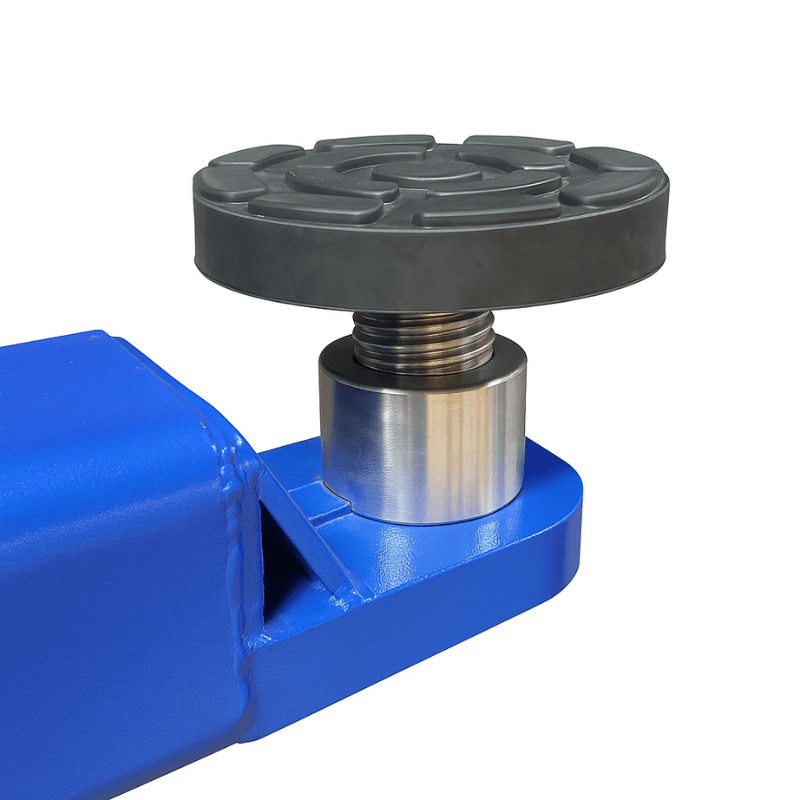

• Spin Up Lift Pads

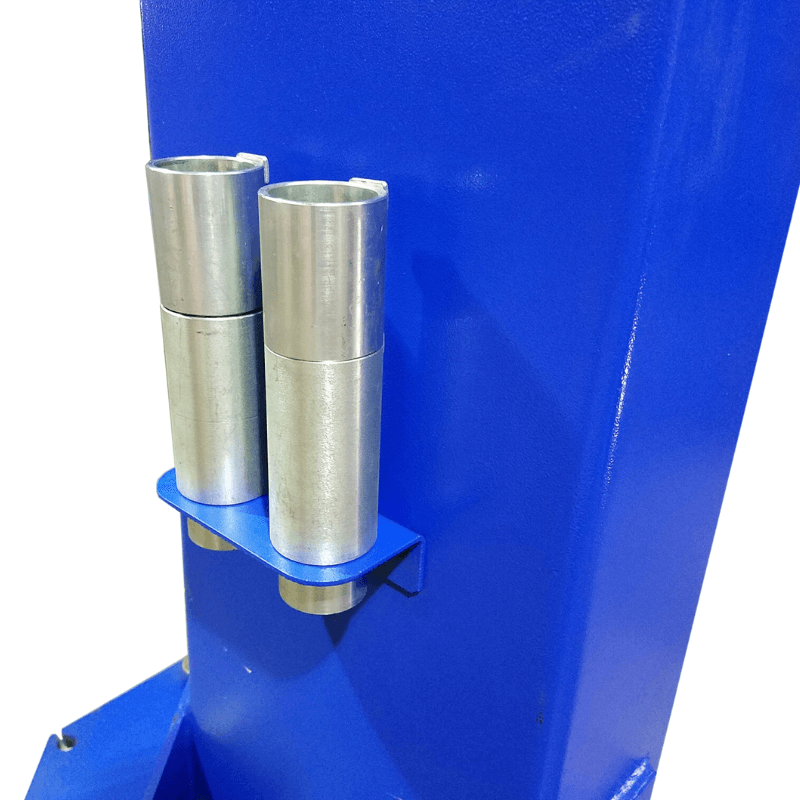

• Stackable Adapters Included
• Internal Hose routing
• Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use

TP12KFX Manual:

    Tuxedo TP12KFX Manual

   Tuxedo TP12KFX Flier

• All refurbished items are stocked and shipped from Texas Warehouse Only
• Pictures of units can be shared upon request
• 20% off is based off regular price.
• Contact Us today if your item is available

Warehouse Pickup locations (No shipping charge):

• Temecula, CA 92590
• Orlando, FL 32824
• Kennesaw, GA 30144
• Elwood, IN 46036
• Maple Grove, MN 55311
• Reidsville, NC 27320
• Bohemia, NY 11715
• Reading, PA 19605
• Alvarado, TX 76009
• West Valley City, UT 84119
