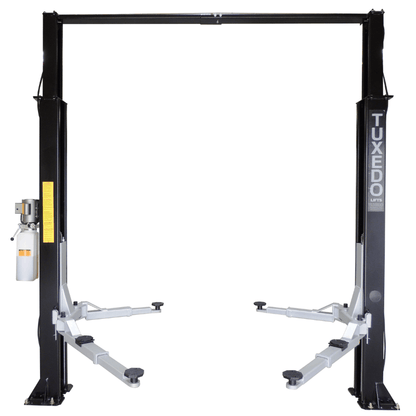

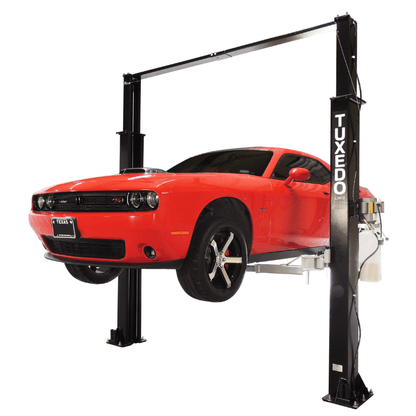

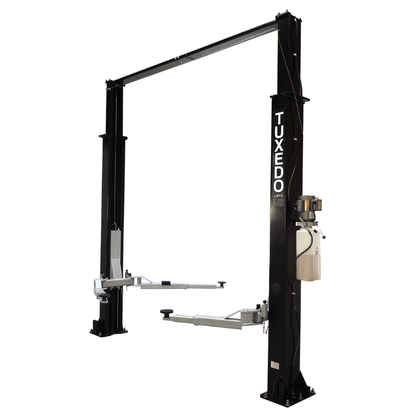

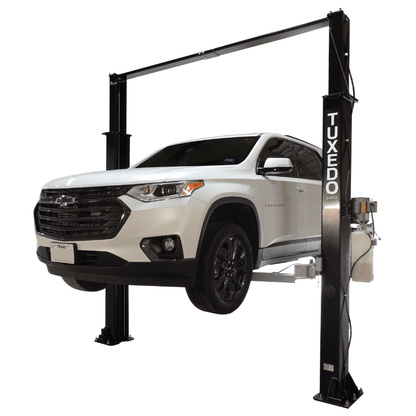

TP9KAC-TUX 9,000lb 2 Post Car Lift - Asymmetric

Tuxedo TP9KAC-TUX 2 Post Car Lift

You deserve a car lift that makes your job easier, not harder. Tired of crawling around on cold, dirty concrete? The Tuxedo TP9KAC-TUX 2 Post Clear Floor Lift is designed with you in mind. Its 9,000-pound capacity means you can handle a wide range of vehicles, and the asymmetric arms give you unparalleled access. Forget about tripping over obstacles; the clear floor design provides a safe and spacious workspace.

With features like chain drive cylinders and an auto arm restraint system, you can trust the Tuxedo TP9KAC-TUX lift to keep you and your car protected. Its efficient 50-second lift speed and low 4-inch minimum pad height save you time and effort. So why risk your back and your car’s safety? Upgrade to the 2 Post Clear Floor Lift - yourback will thank you.

Tuxedo 9000lb Lift Specification:

• Capacity: 9,000 lbs.
• Height Overall: 142-11/16″
• Width Overall w/ Power Unit: 141″
• Max Lift Height: 72″
• Width Between Columns: 110-3/8″
• Min. Pad Height: 4″
• Drive Thru Clearance: 93″
• Lifting Speed: 50 seconds
• Asymmetric / Symmetric: Asymmetric
• Clear Floor / Floor Plate: Clear Floor
• Short Arm Reach – min/max: 29″-41″
• Long Arm Reach – min/max: 37″-57″
• Narrow Bay Setting: Not applicable
• Cable Thickness: 3/8"
• Max Load Per Arm: 2,250 lbs.

• Power: 220V – 20 AMP – 1PH
• Ship Weight: 1,390 lbs.
• Pallet Dimensions: 113" x 21" x 38"

TP9KAC TUX Parts & Special Features:

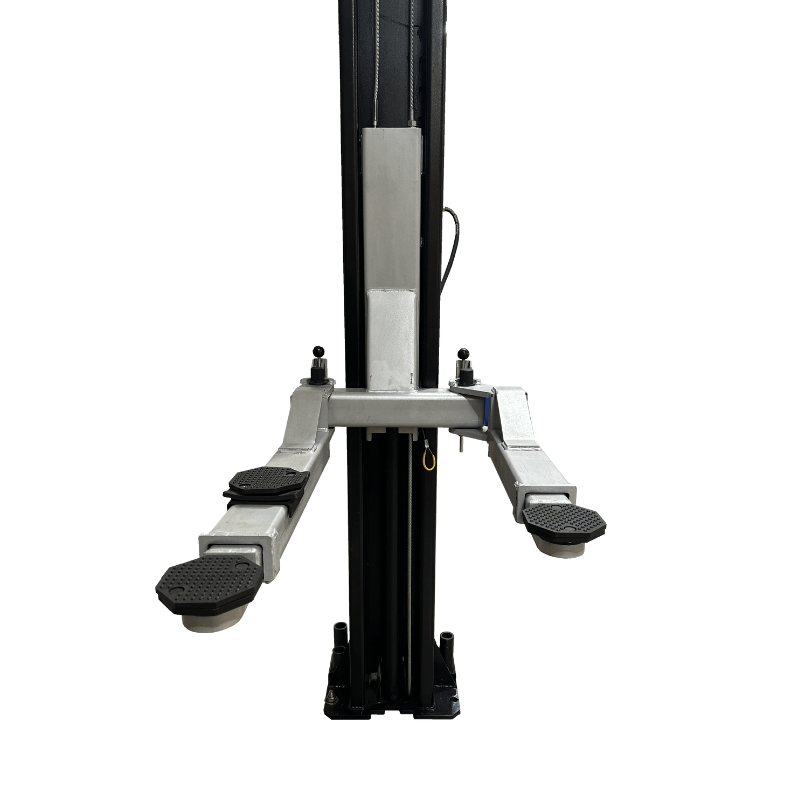

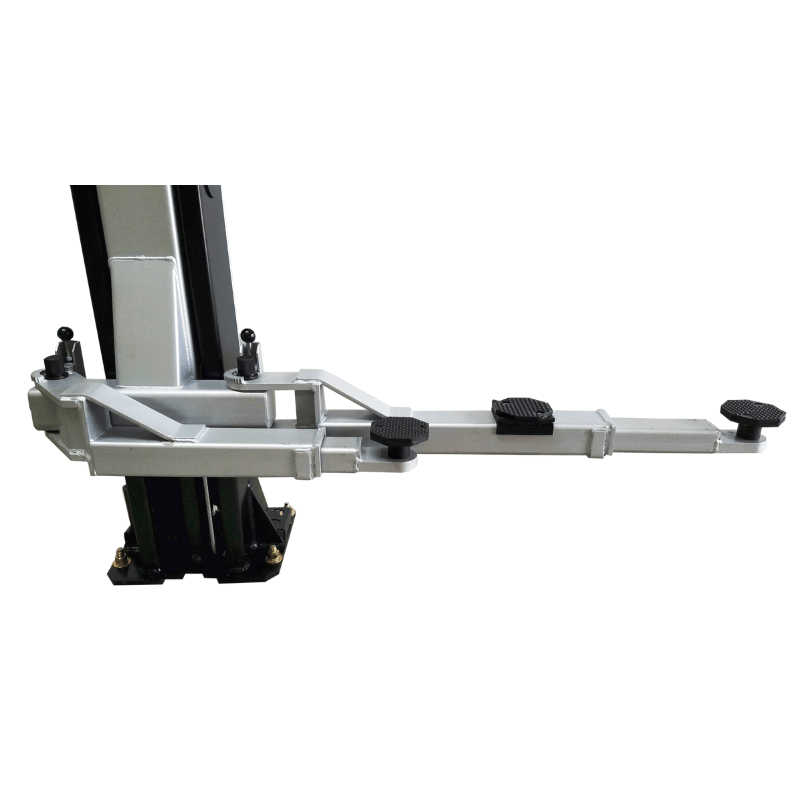

• Asymmetric Arms
• Chain Drive Cylinders
• Dual Point Lock Release

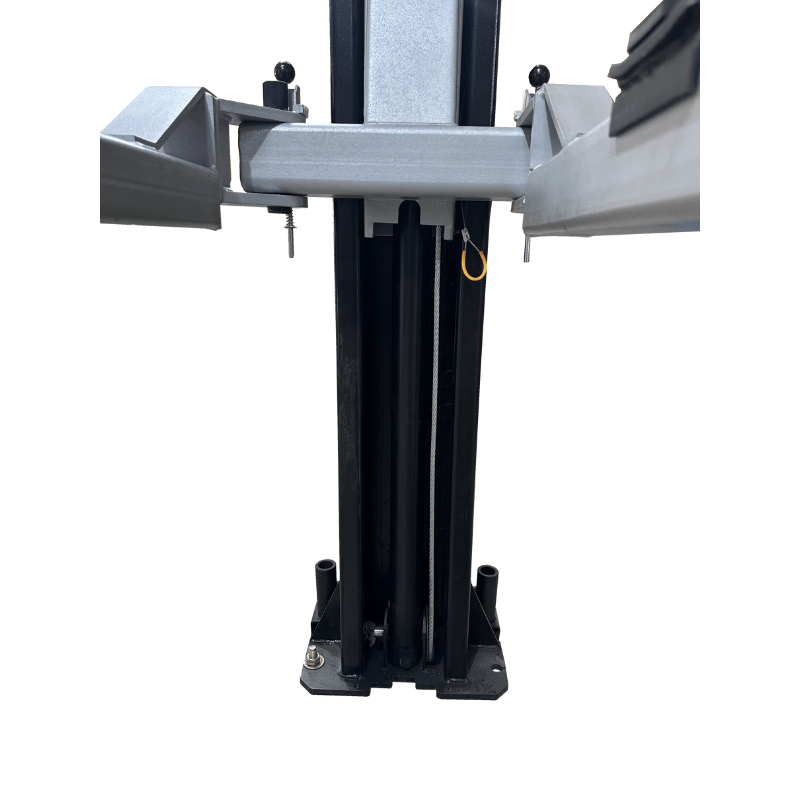

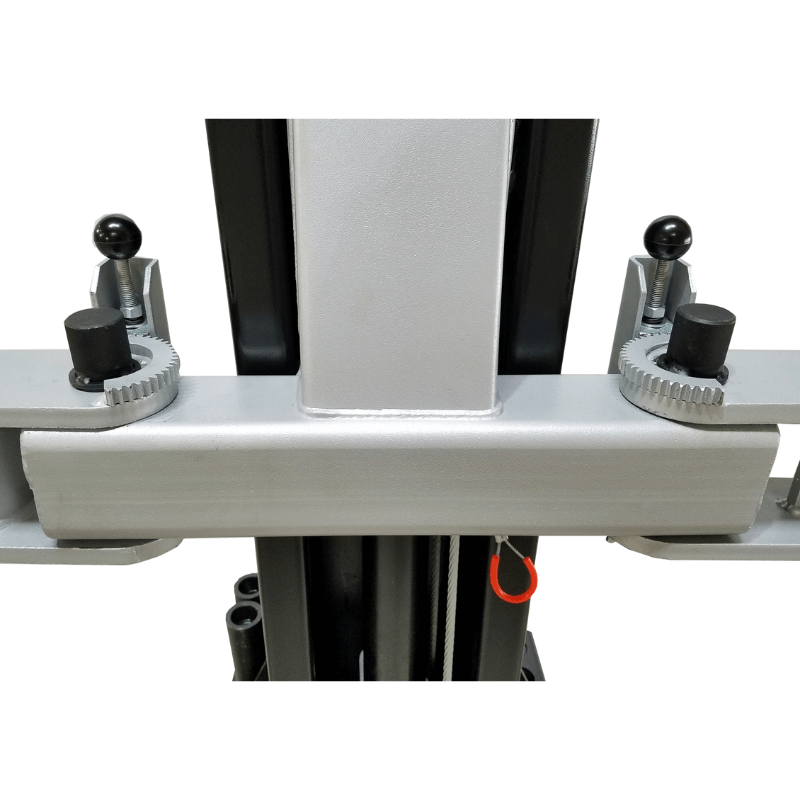

• Auto Arm Restraint System

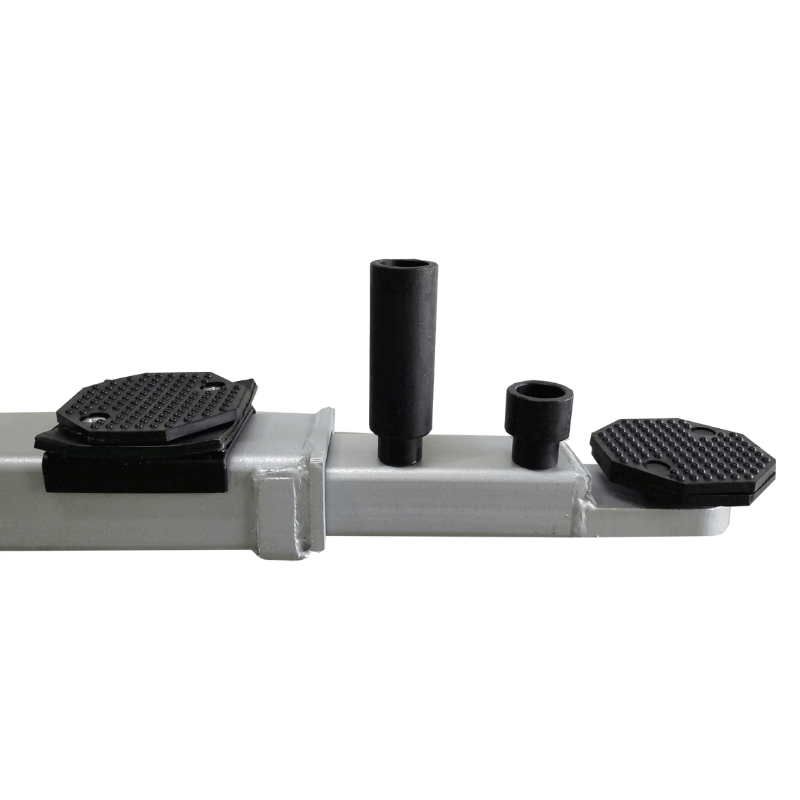

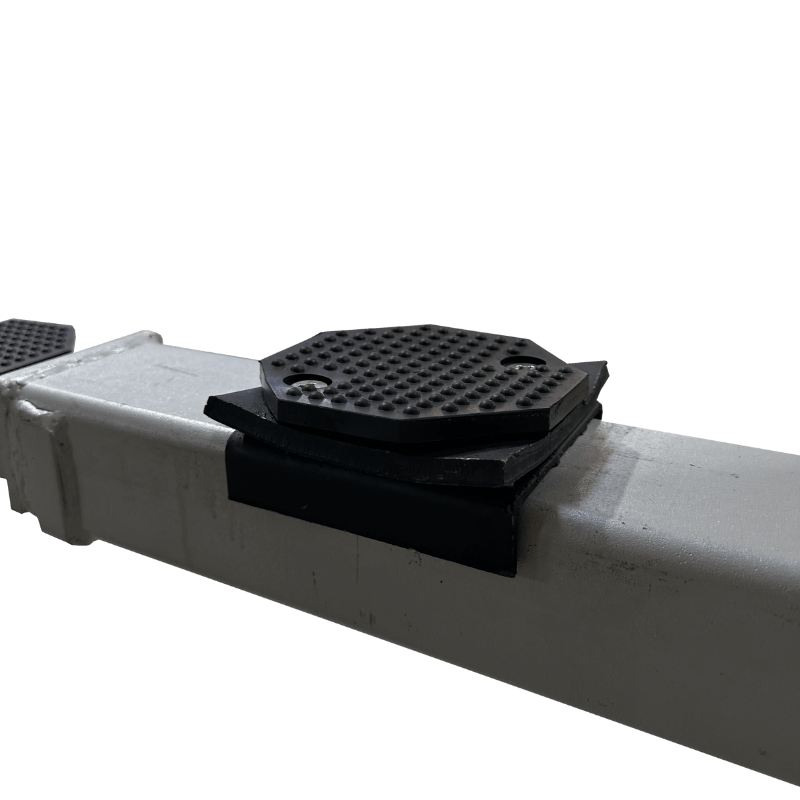

• Low profile drop-in Lift Pads
• Saddle Pad Adapters (1 Pair)
• Stackable Adapters Included

• Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use
