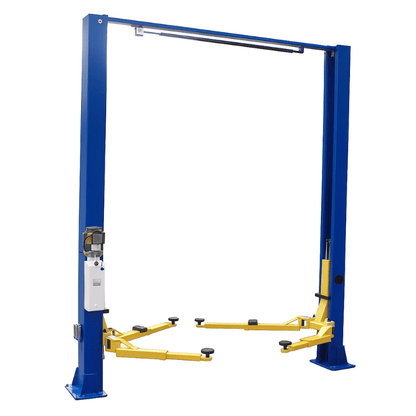

TP9KACX 9,000lb 2 Post Car Lift Clear Floor - Asymmetric

Tuxedo TP9KACX 2 Post Car Lift

Are you tired of struggling with those pesky low-clearance vehicles in your garage? The  Tuxedo TP9KACX Two Post Clear Floor Lift is the ultimate powerhouse you never knew your garage needed. With a jaw-dropping 9,000 lbs capacity, it's ready to handle even the bulkiest cars and SUVs with ease. This baby can lift them up with a mere flick of a switch, thanks to its impressive 4-inch minimum pad height.

How about we about that drive-thru clearance of 96 inches? You'll be zipping in and out of this lift without a care in the world. The asymmetric arms on this lift are designed to give you better access to those hard-to-reach areas, making your repair and maintenance tasks a breeze. Its versatile lifting options with the short arm reach of 29 to 41 inches and the long arm reach of 37 to 57 inches mean you can tackle a wide range of vehicle sizes with confidence. And let's not forget the impressive 2,250 lbs maximum load per arm - this lift is built to handle anything you throw at it without breaking a sweat.

TP9KACX Lift Specification:

• Capacity: 9,000 lbs.
• Height Overall: 142-7/8″
• Width Overall w/ Power Unit: 138″
• Max Lift Height: 72″
• Width Between Columns: 113-5/8″
• Min. Pad Height: 4″
• Drive Thru Clearance: 96″
• Lifting Speed: 50 seconds
• Asymmetric / Symmetric: Asymmetric
• Clear Floor / Floor Plate: Clear Floor
• Short Arm Reach – min/max: 29″-41″
• Long Arm Reach – min/max: 37″-57″
• Narrow Bay Setting: Not applicable
• Max Load Per Arm: 2,250 lbs.
• Cable Thickness: 3/8"
• Ship Weight: 1,370 lbs.
• Power: 220V – 20 AMP – 1 PH
• Pallet Dimension : 148" 18" 42"

TP9KACX Parts and Special Features:

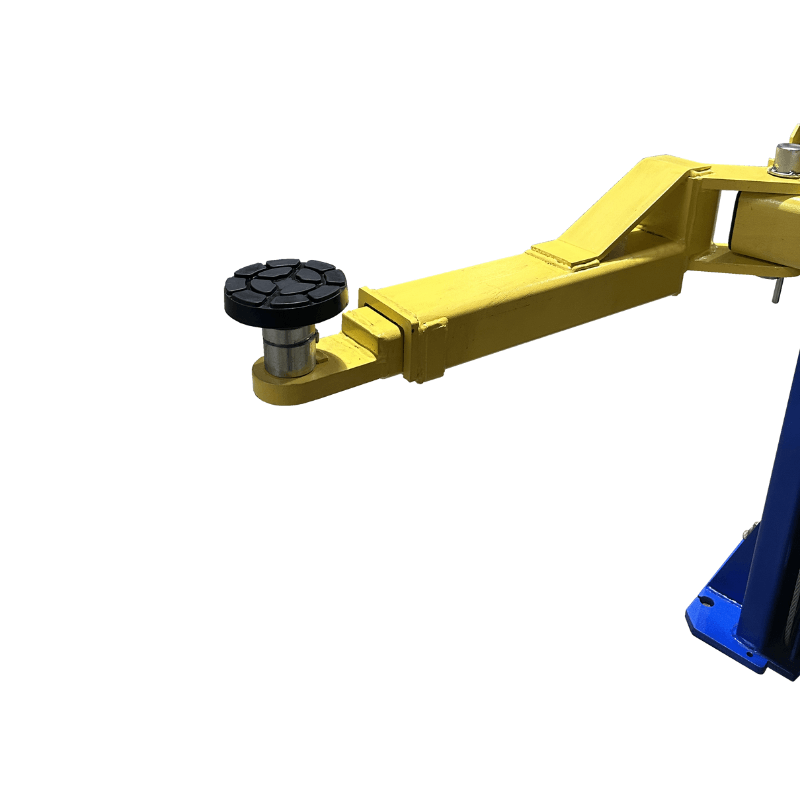

• Asymmetric Arms
• Rubber Door Guards

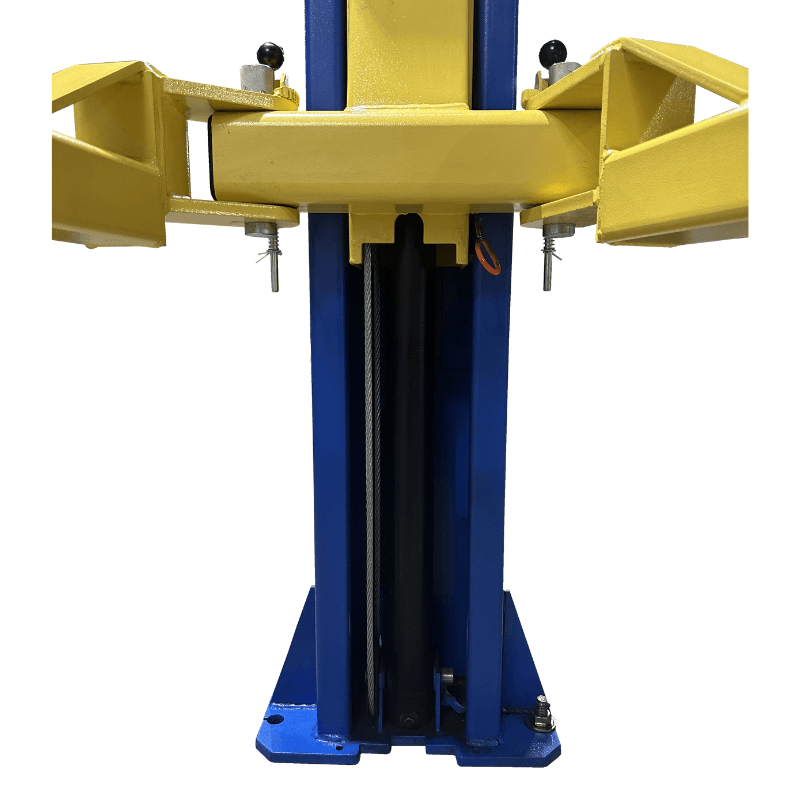

• Chain Drive Cylinders
• Dual Point Lock Release
• Auto Arm Restraint System
• Single Piece Column
• Internal Hose routing
• Low profile Spin Up Lift Pads
• Stackable Adapters Included
• Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use

TP9KACX Lift Manual:

   Tuxedo TP9KACX Manual

  Tuxedo TP9KACX Brochure

• All refurbished items are stocked and shipped from Texas Warehouse Only
• Pictures of units can be shared upon request
• 20% off is based off regular price.
• Contact Us today if your item is available
